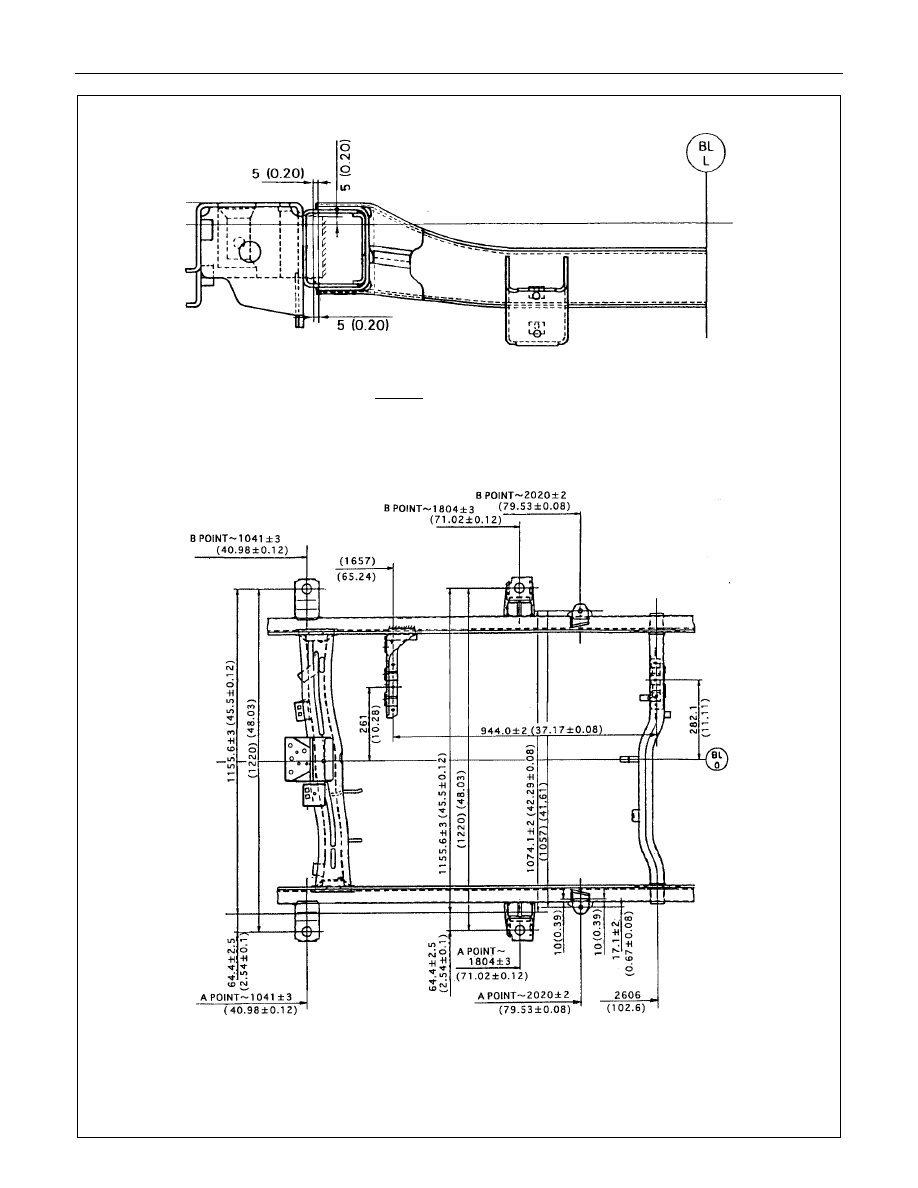

2A-18  FRAME AND BUMPER

VIEW A (Except Australia)

For Crew Cab

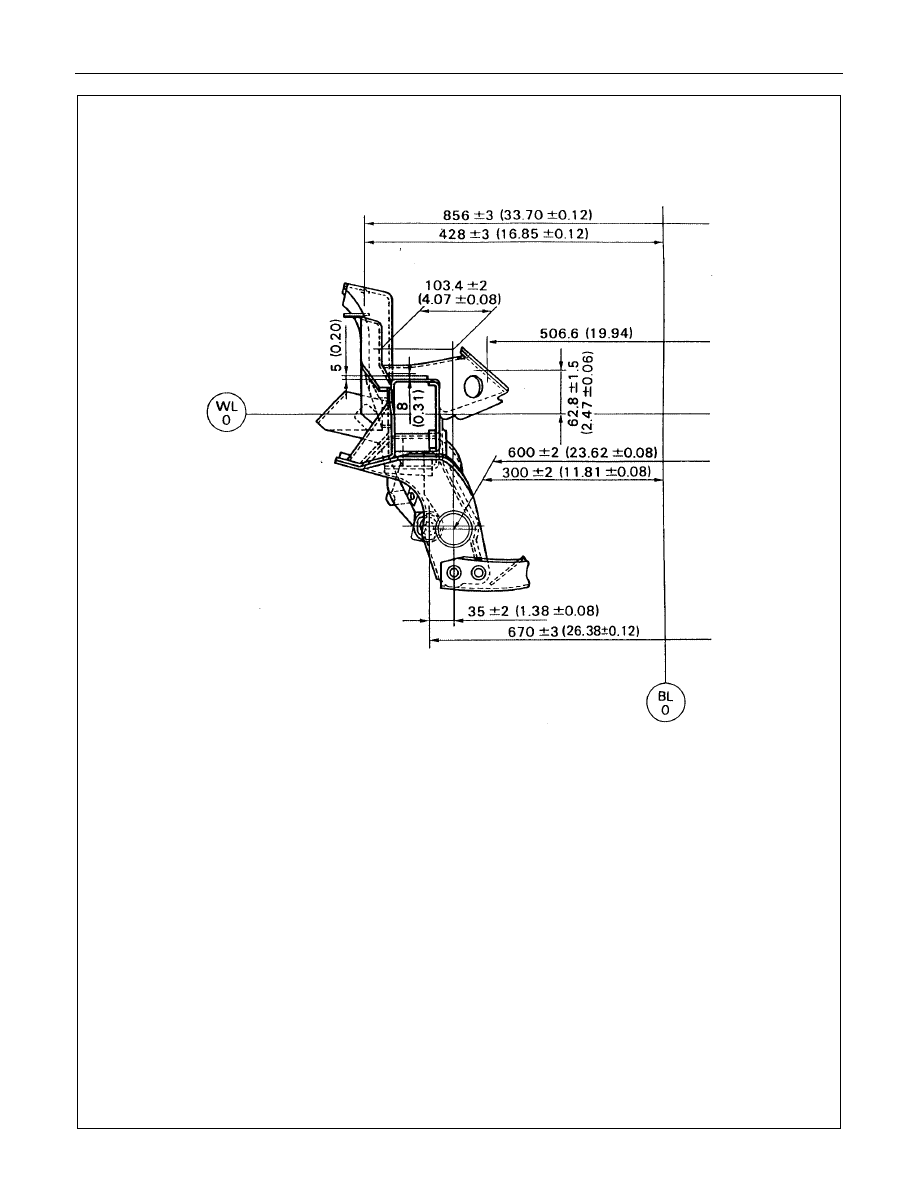

FRAME AND BUMPER  2A-19

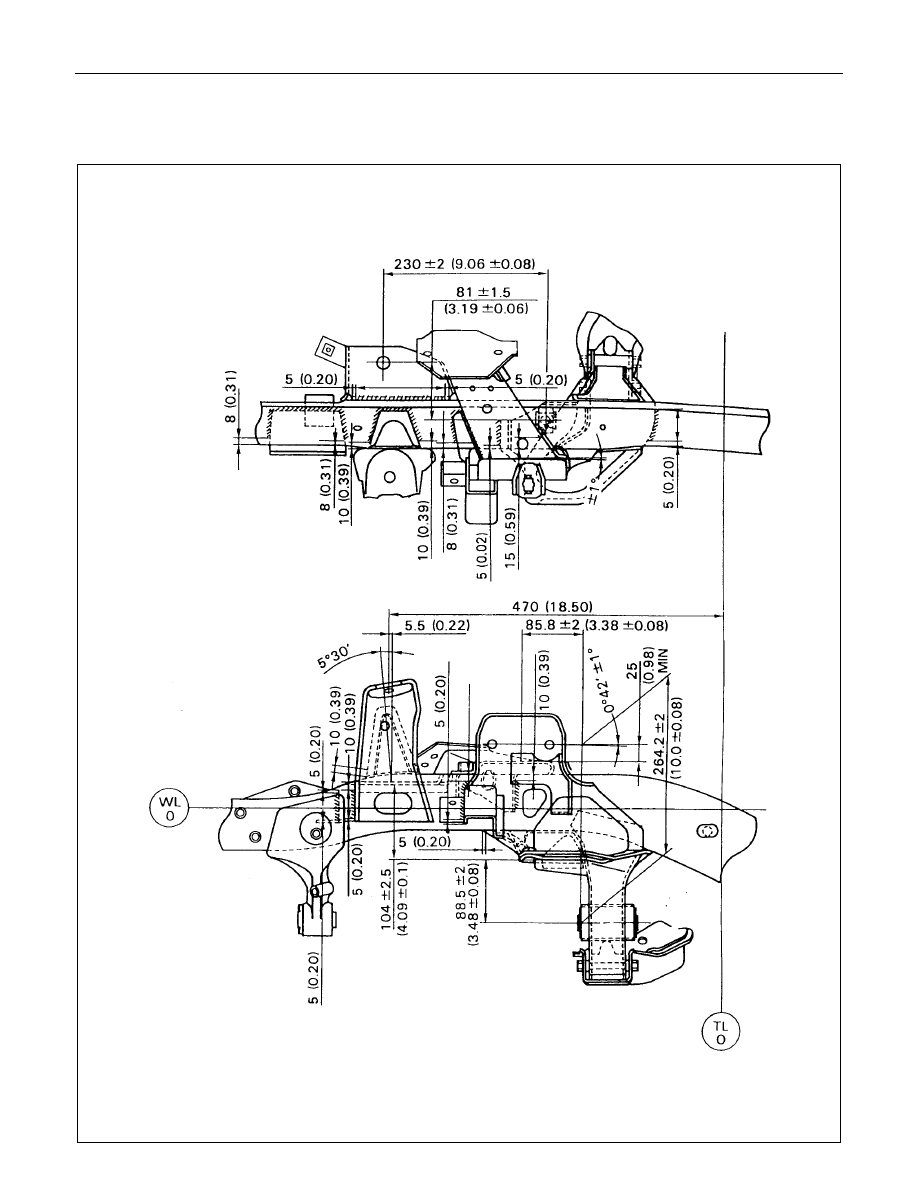

FRONT SUSPENSION DETAILS

mm (in)

2A-20  FRAME AND BUMPER

FRAME AND BUMPER  2A-21

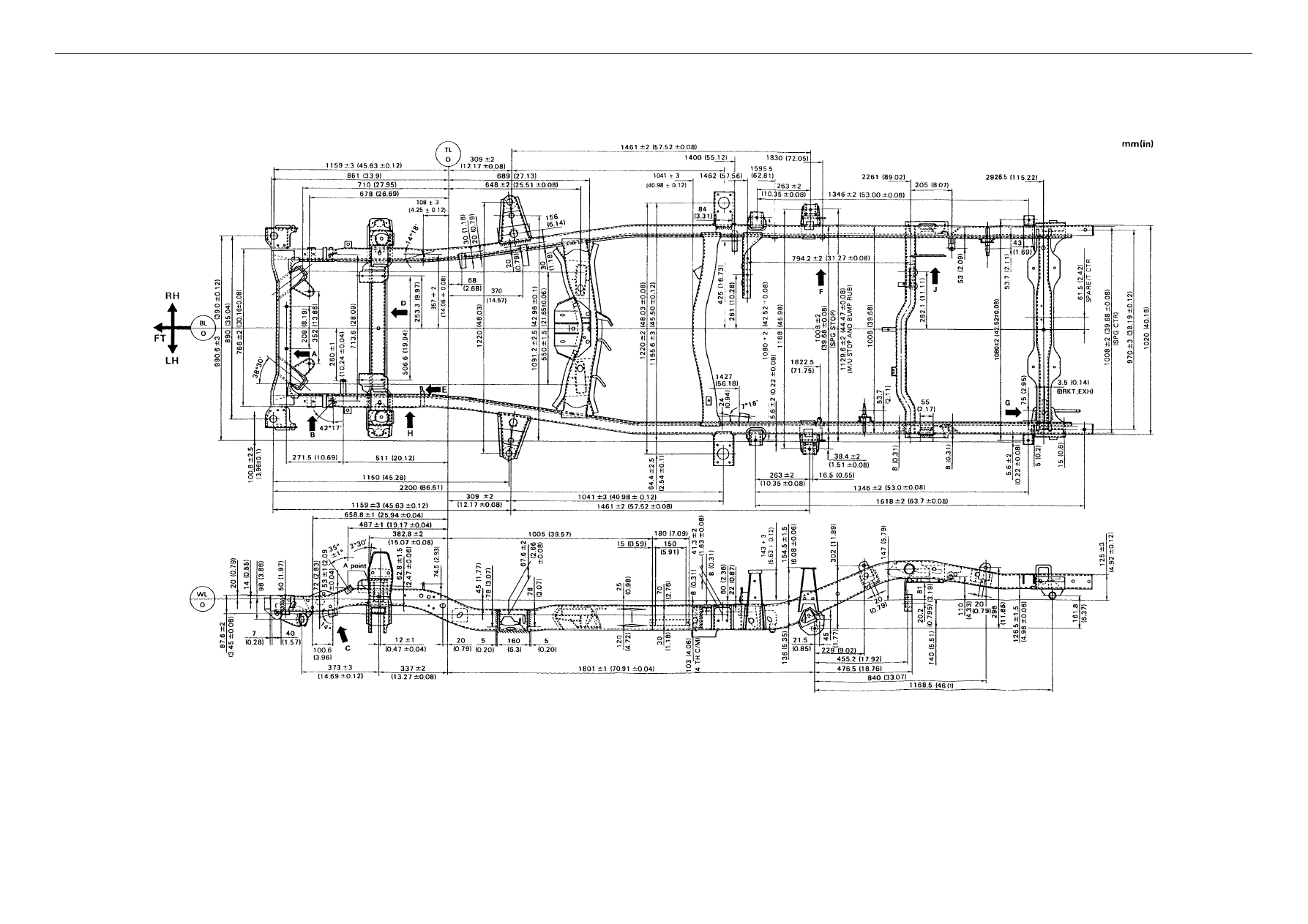

FRAME DIMENSIONS

(4

××××

2, SHORT WHEEL BASE MODEL)
