2A-4  FRAME AND BUMPER

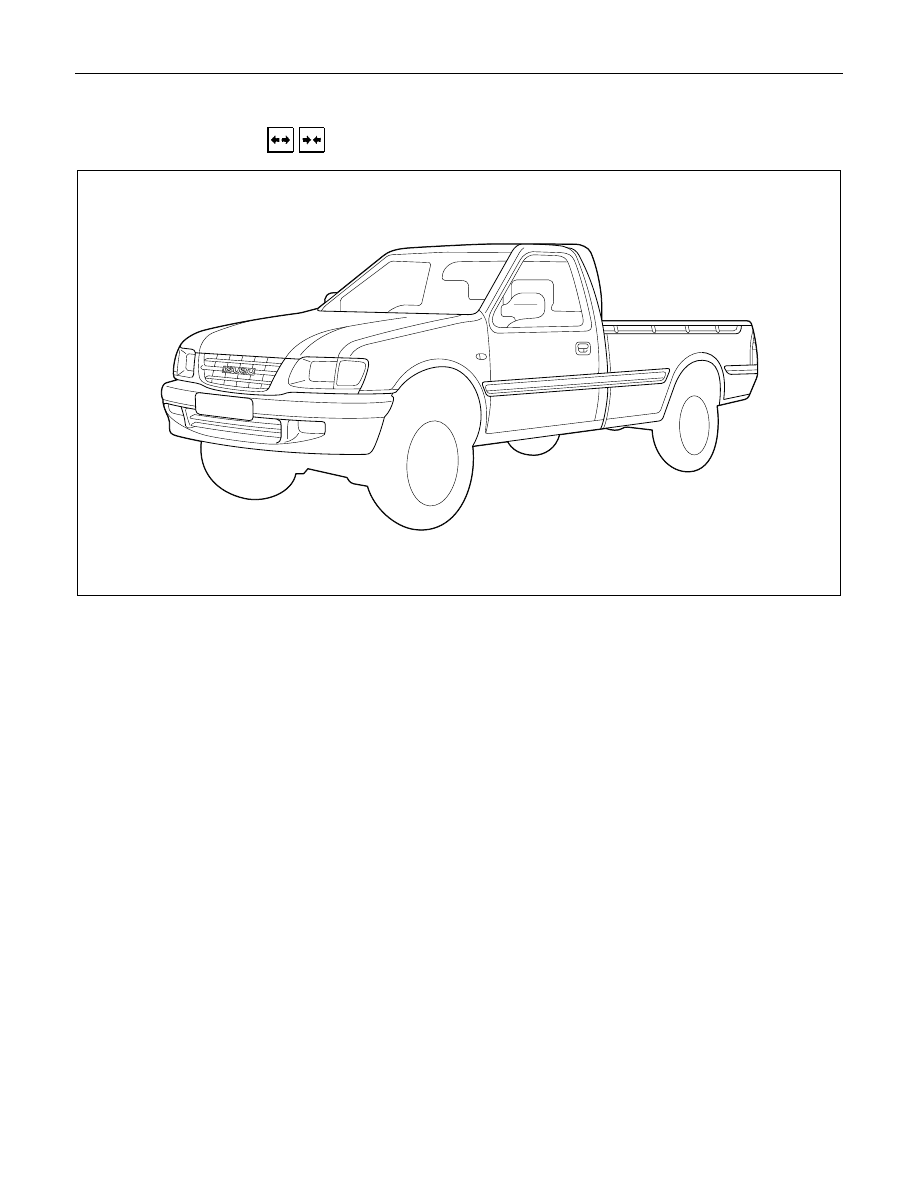

REAR BODY



  REMOVAL AND INSTALLATION

Removal Steps

1. Battery ground cable
2. Rear combination lamp harness

V

3. Fuel filler pipe and evaporator hose
4. Spare tire
5. Bolt; frame to rear body

V

6. Rear body assembly

Installation Steps

6. Rear body assembly

V

5. Bolt; frame to rear body
4. Spare tire
3. Fuel filler pipe and evaporator hose
2. Rear combination lamp harness
1. Battery ground cable

NOTE:
The rear body must be empty before removal.

FRAME AND BUMPER  2A-5

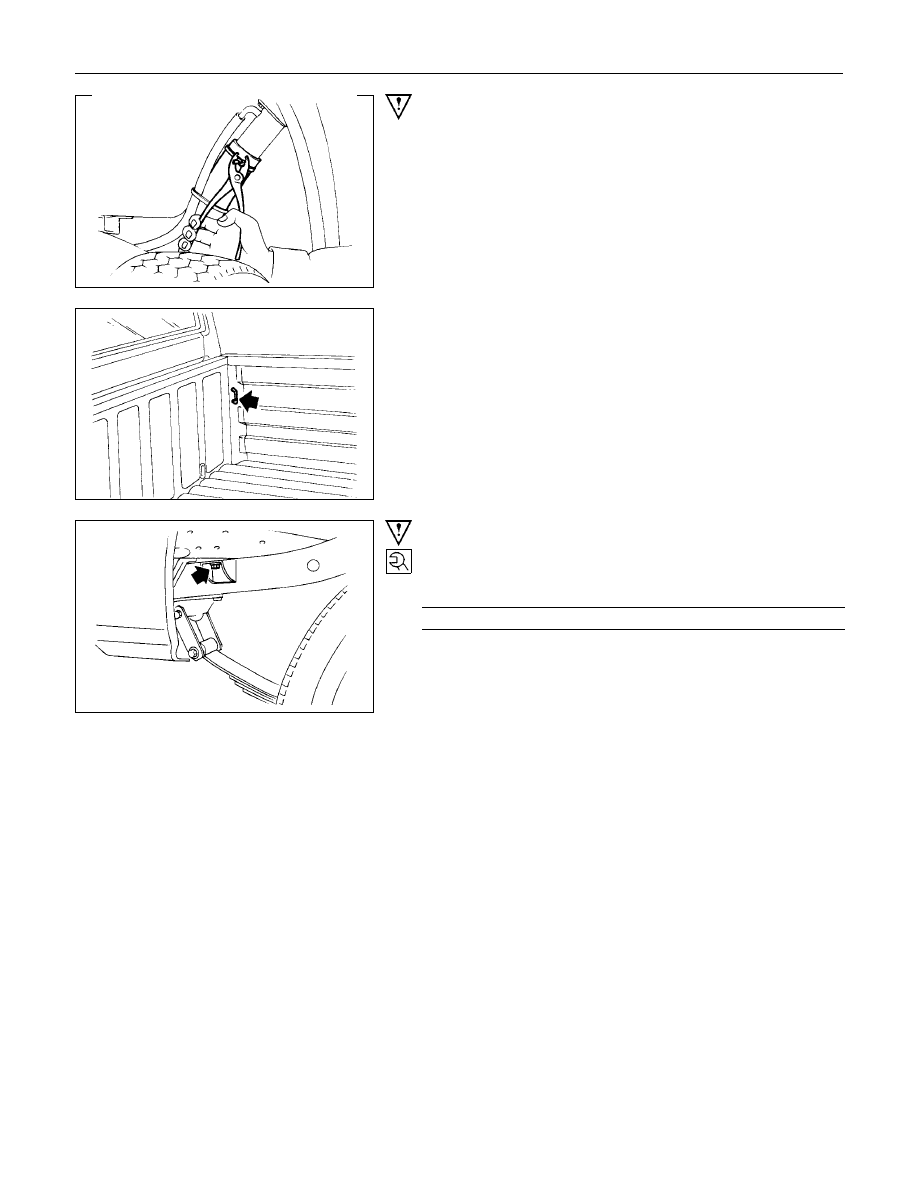

Important Operation - Removal

3. Fuel Filler Pipe and Evaporator Hose
Disconnect the fuel filler pipe and evaporator hose.

6. Rear Body Assembly
Attach lifting wires to the rear body and raise the rear body.

Note:
In lifting up rear body, take care not to dash it against cab
body.

Important Operation - Installation

5. Bolt; Frame to Body

Torque

N

⋅

m(kgf

⋅

m/lb

⋅

ft)

63.8

±

14.7 (6.5

±

1.5 / 47

±

10.8)

2A-6  FRAME AND BUMPER

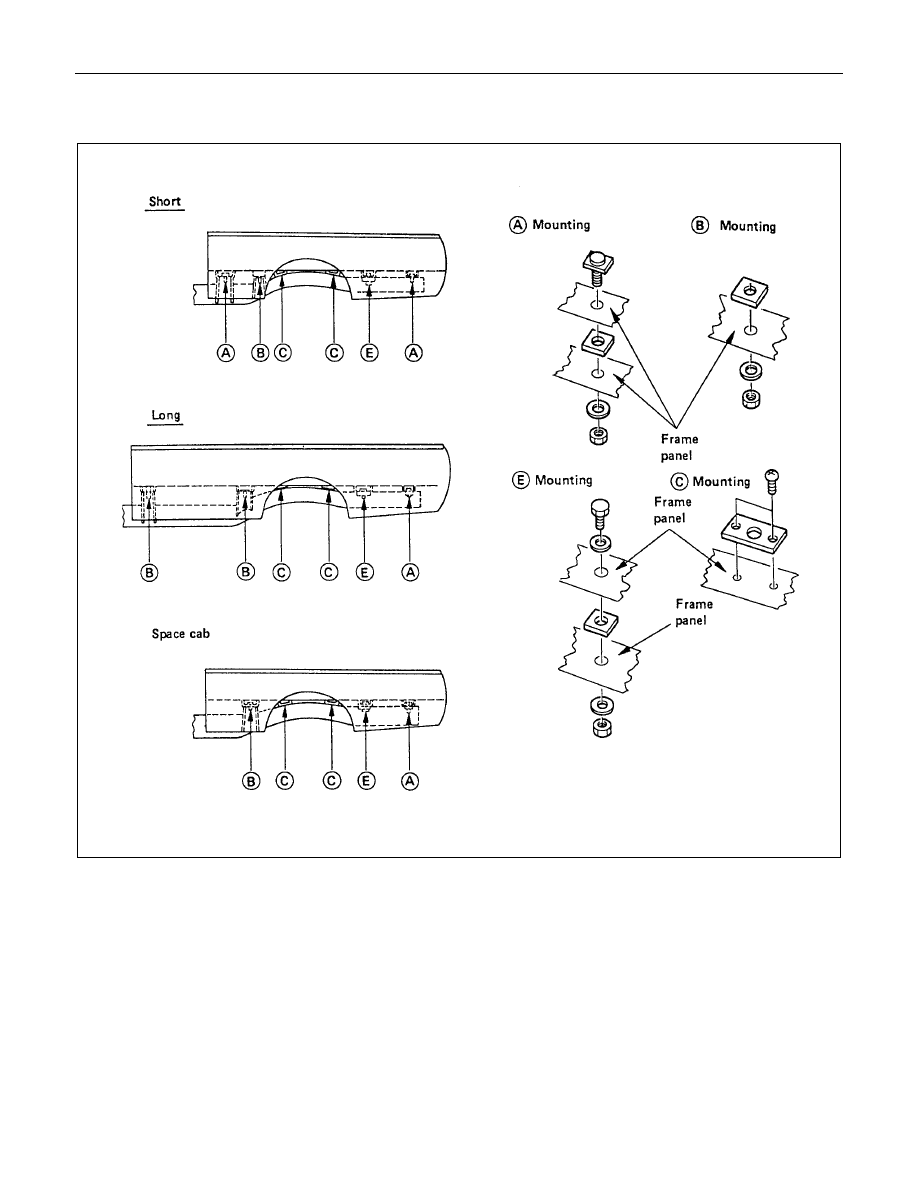

BODY MOUNTING

FRAME AND BUMPER  2A-7

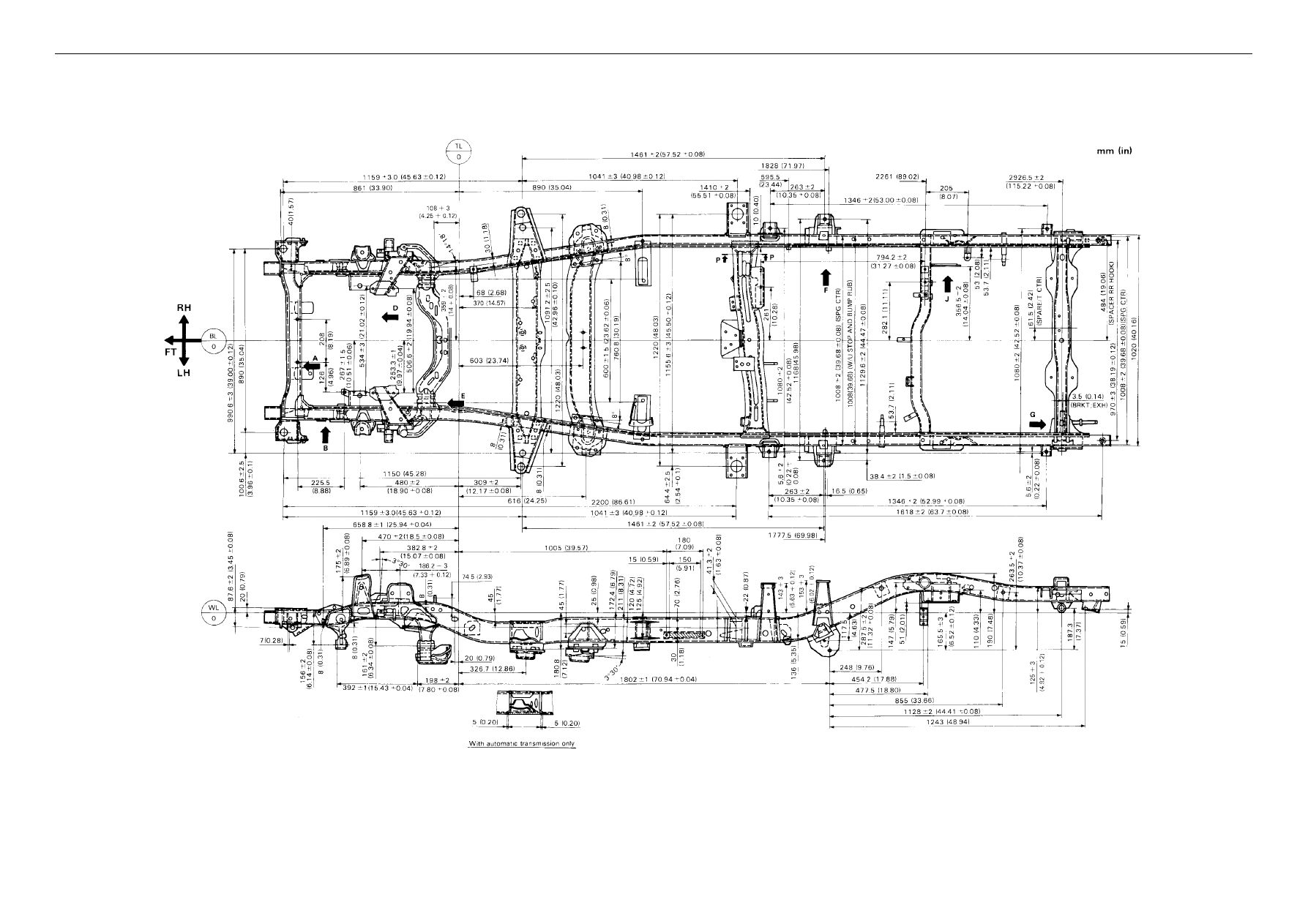

FRAME DIMENSIONS

(4

××××

4, SHORT WHEEL BASE MODEL)
