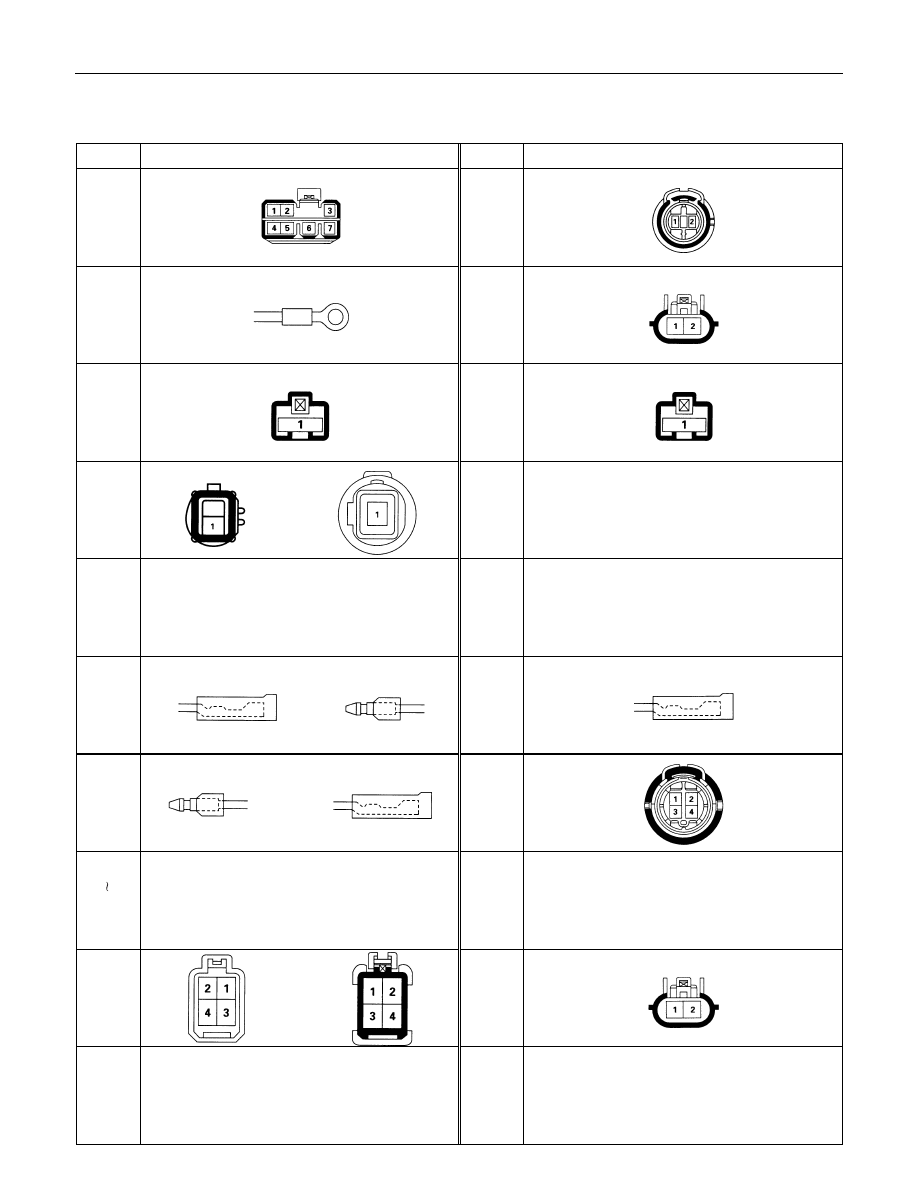

8-376  ELECTRICAL-BODY AND CHASSIS

No.

Connector face

No.

Connector face

C-46

C-60

C-47

C-61

C-48

C-62

C-49

C-63

NOT USED

C-50

NOT USED

C-64

NOT USED

C-51

C-65

C-52

C-66

C-53

C-57

NOT USED

C-67

NOT USED

C-58

C-68

C-59

NOT USED

C-69

NOT USED

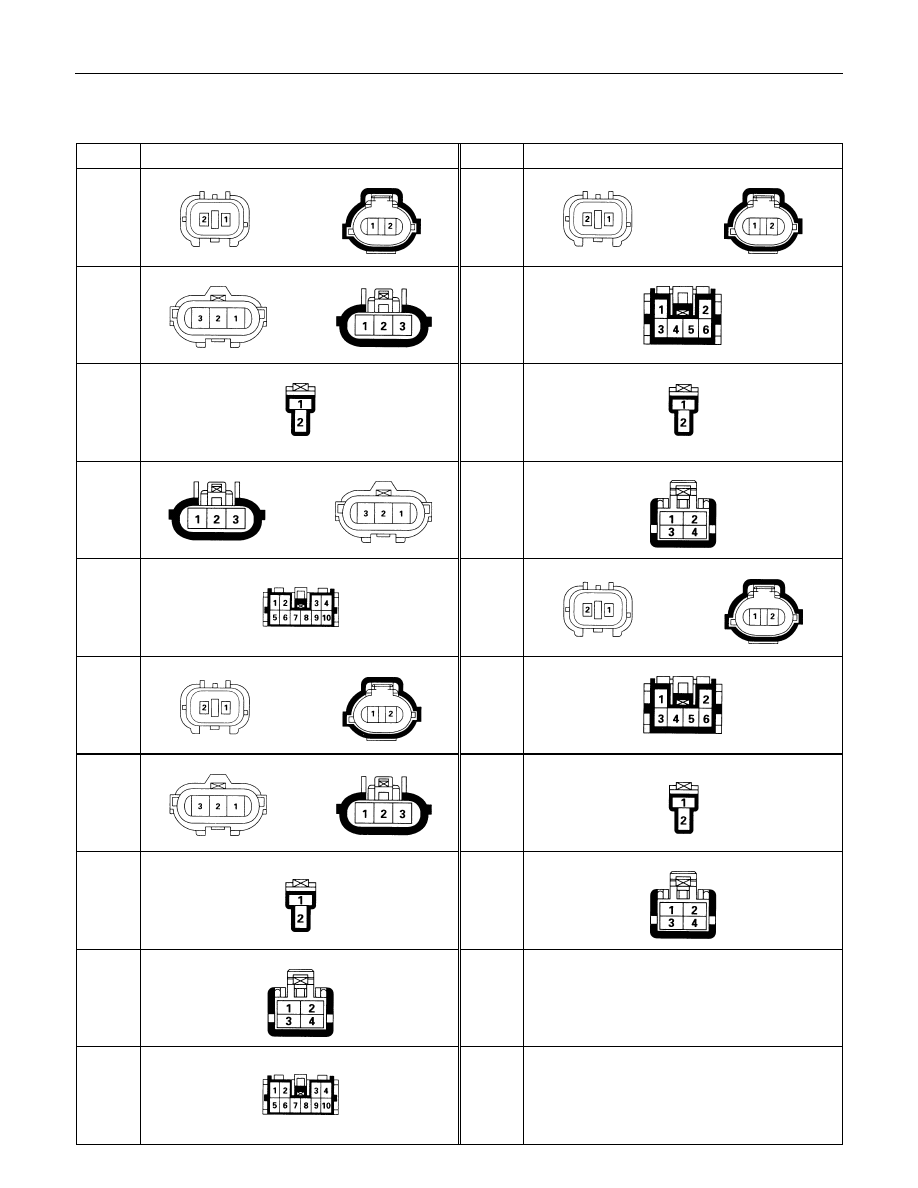

ELECTRICAL-BODY AND CHASSIS  8-377

No.

Connector face

No.

Connector face

C-70

C-80

C-71

C-81

C-72

C-82

C-73

C-83

C-74

C-84

C-75

C-85

C-76

C-86

C-77

C-87

C-78

C-88

NOT USED

C-79

C-89

NOT USED

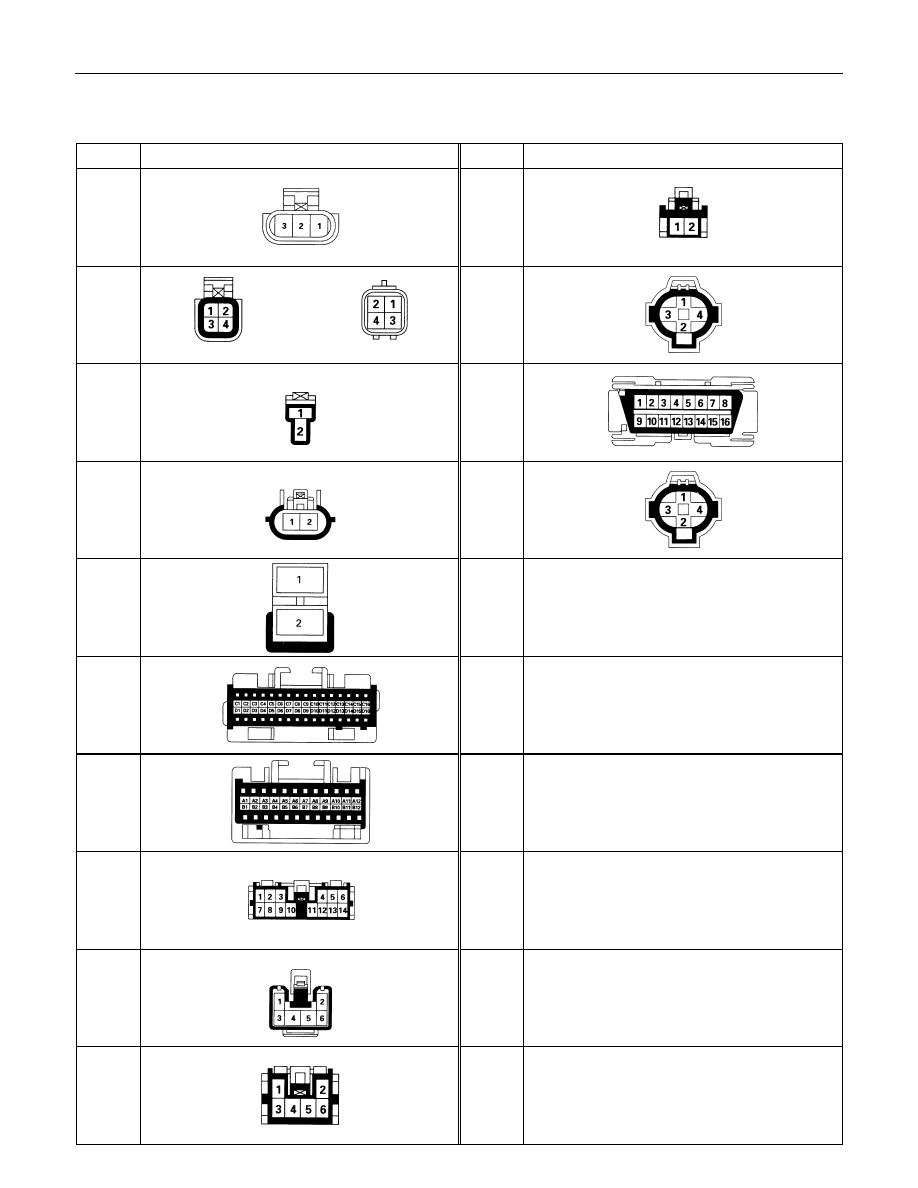

8-378  ELECTRICAL-BODY AND CHASSIS

No.

Connector face

No.

Connector face

C-90

C-100

C-91

C-101

C-92

C-102

C-93

C-103

C-94

C-95

C-96

C-97

C-98

C-99

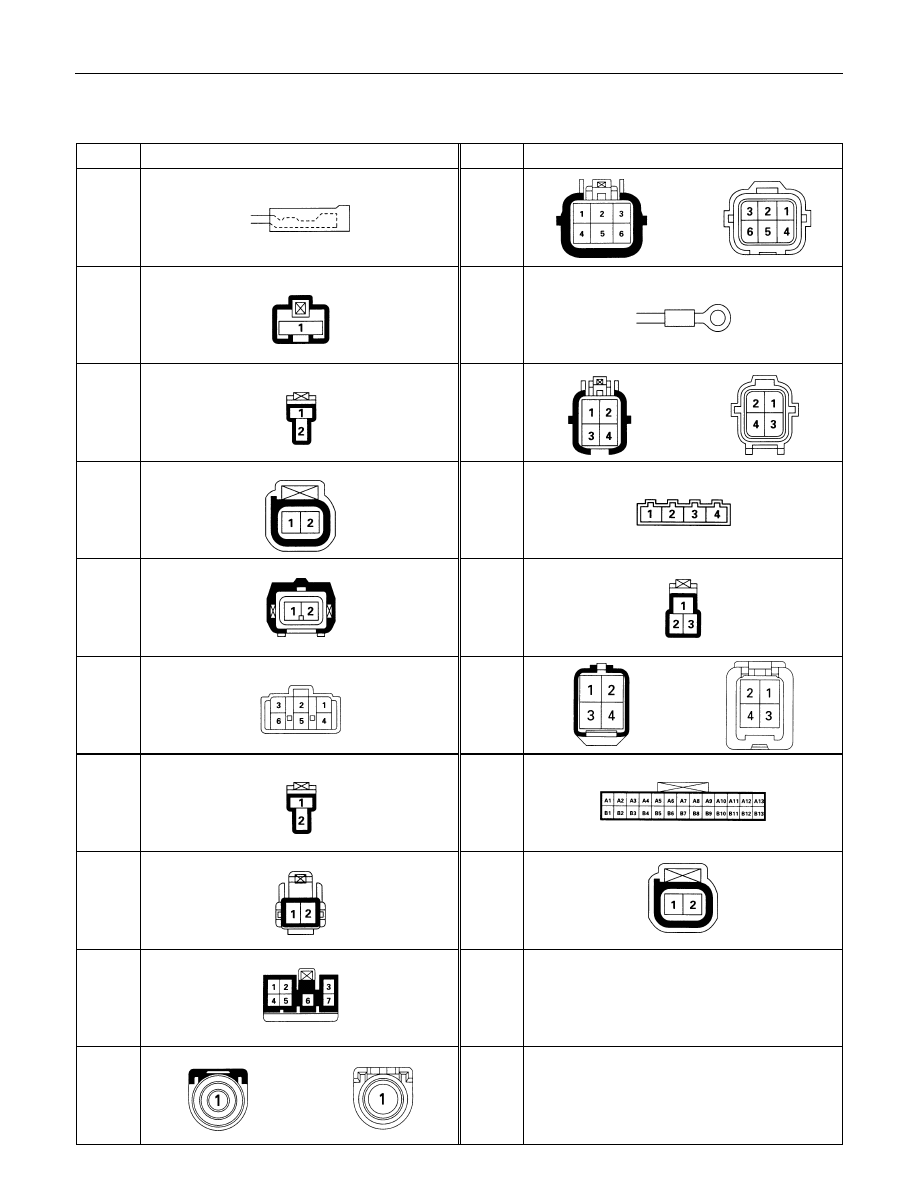

ELECTRICAL-BODY AND CHASSIS  8-379

No.

Connector face

No.

Connector face

D-1

D-11

D-2

D-12

D-3

D-13

D-4

D-14

D-5

D-15

D-6

D-16

D-7

D-17

D-8

D-18

D-9

D-10
