8-328  ELECTRICAL-BODY AND CHASSIS

Door mirror side

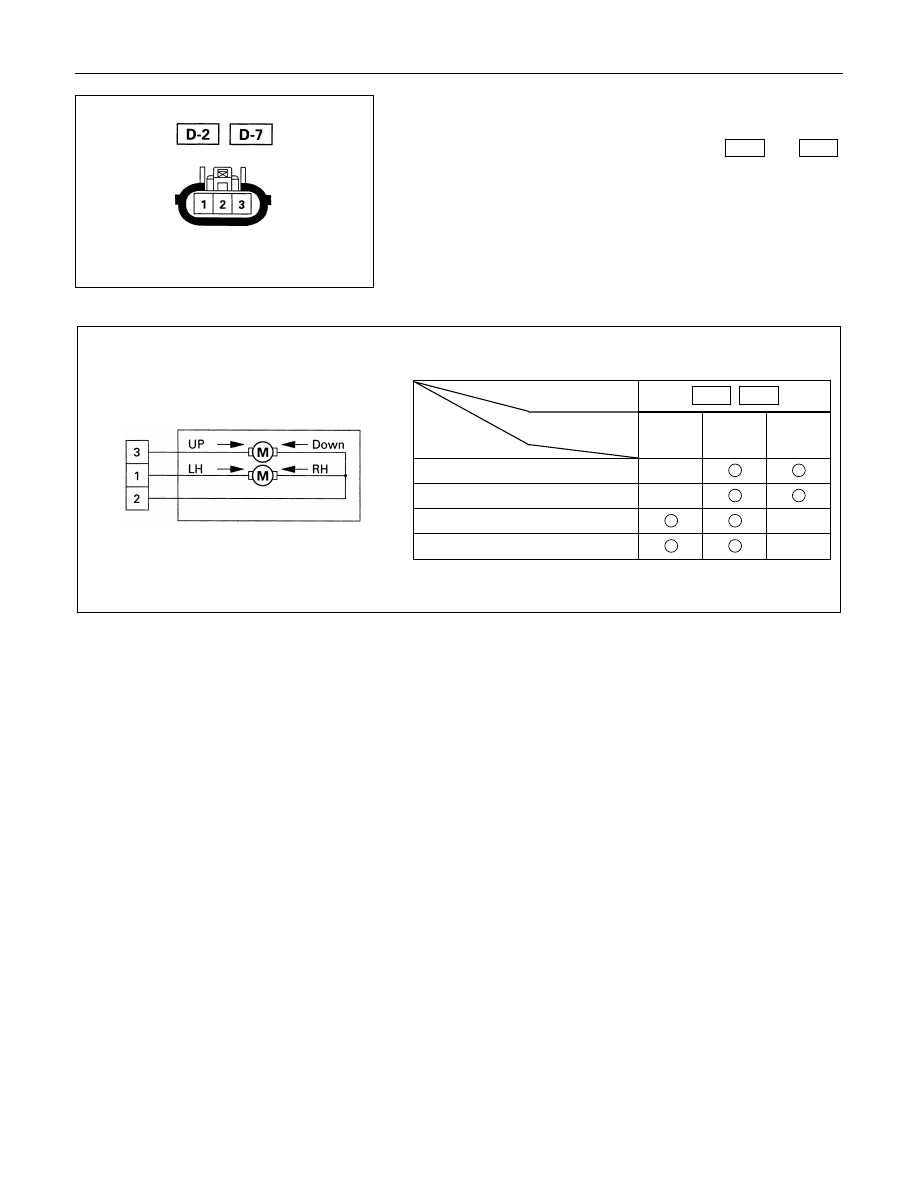

2.Door Mirror Connector Circuit

Disconnect  the  door  mirror  connector,  apply  the  battery

voltage to the door mirror side connector (

D-2

 and

D-7

)

terminals and check its function.

Connector No.

D-2



D-7

Terminal No.

Operation

1

2

3

Up

-

+

Down

+

-

Left

+

-

Right

-

+

ELECTRICAL-BODY AND CHASSIS  8-329

REAR DEFOGGER

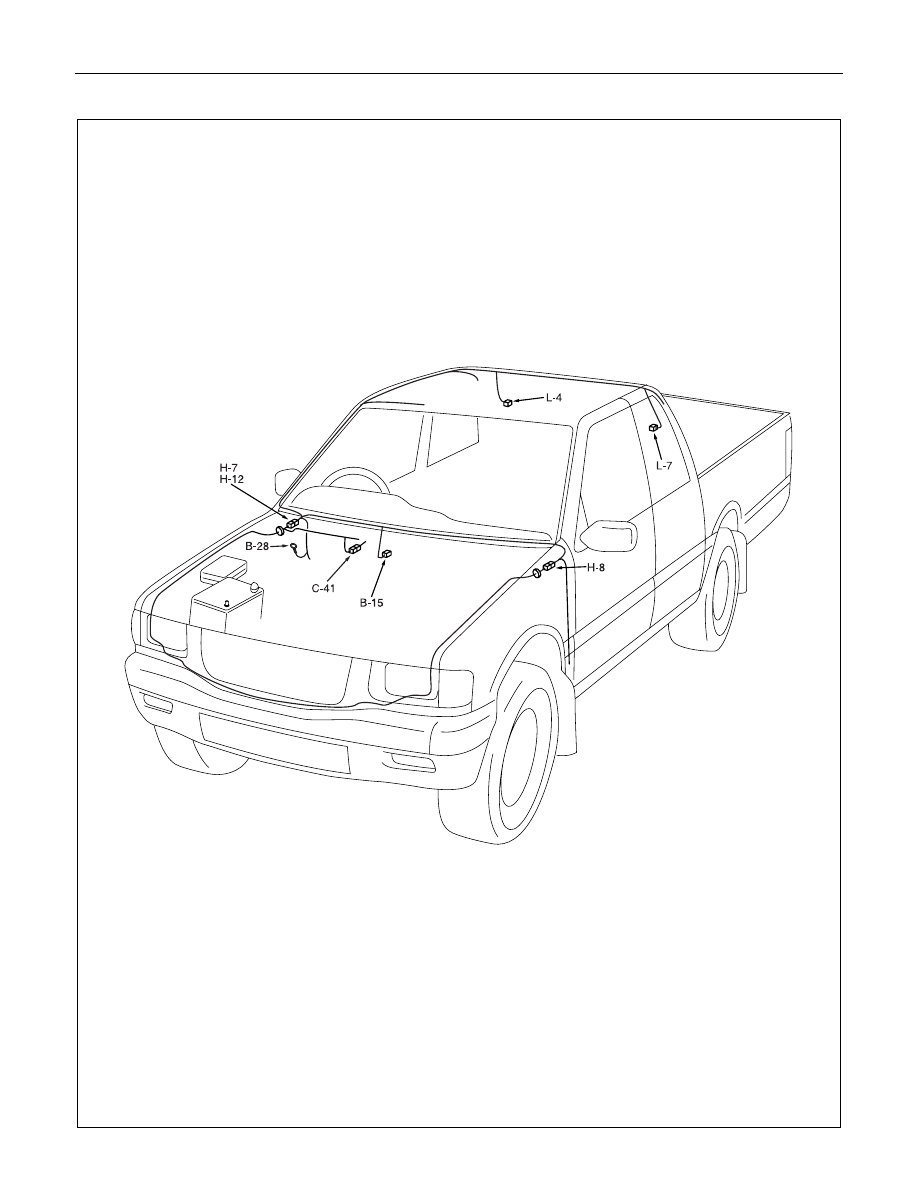

PARTS LOCATION (LHD)

8-330  ELECTRICAL-BODY AND CHASSIS

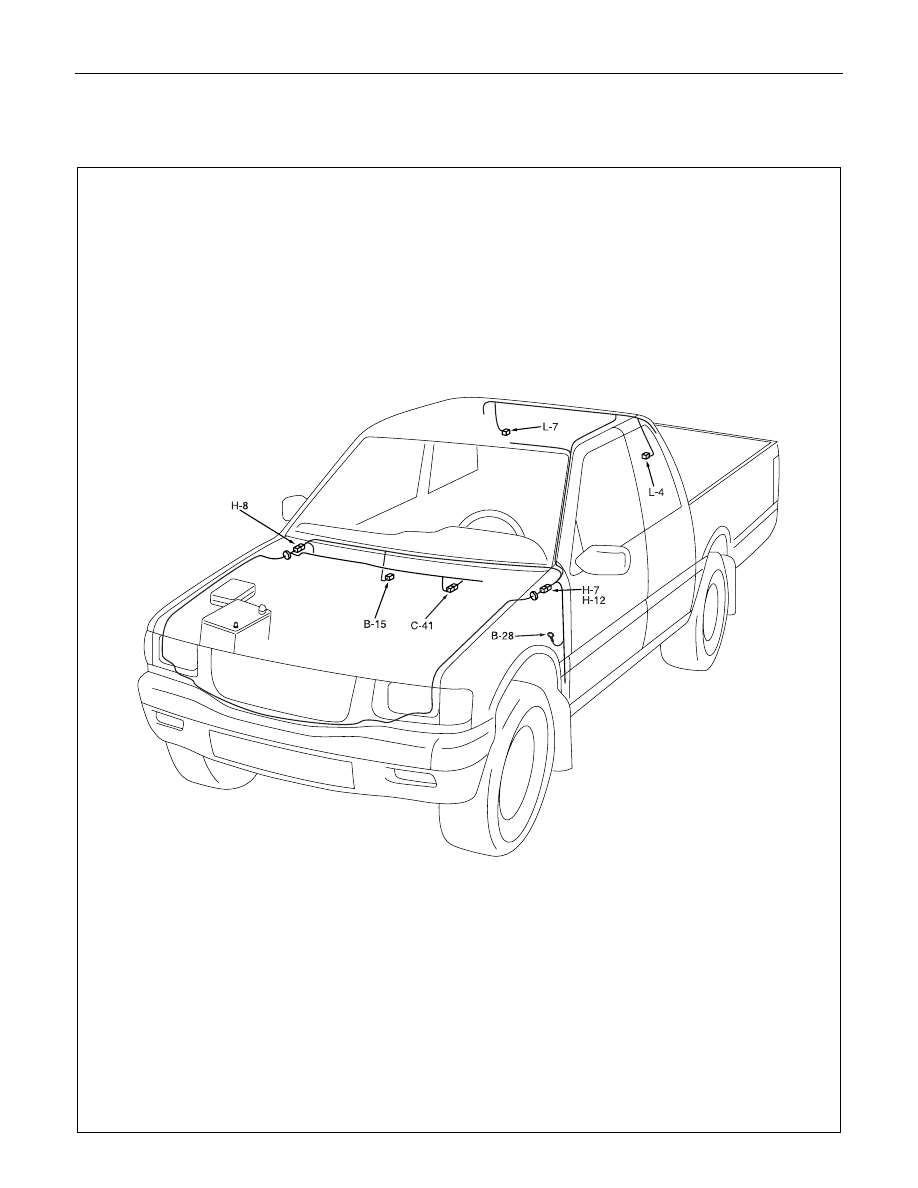

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-331

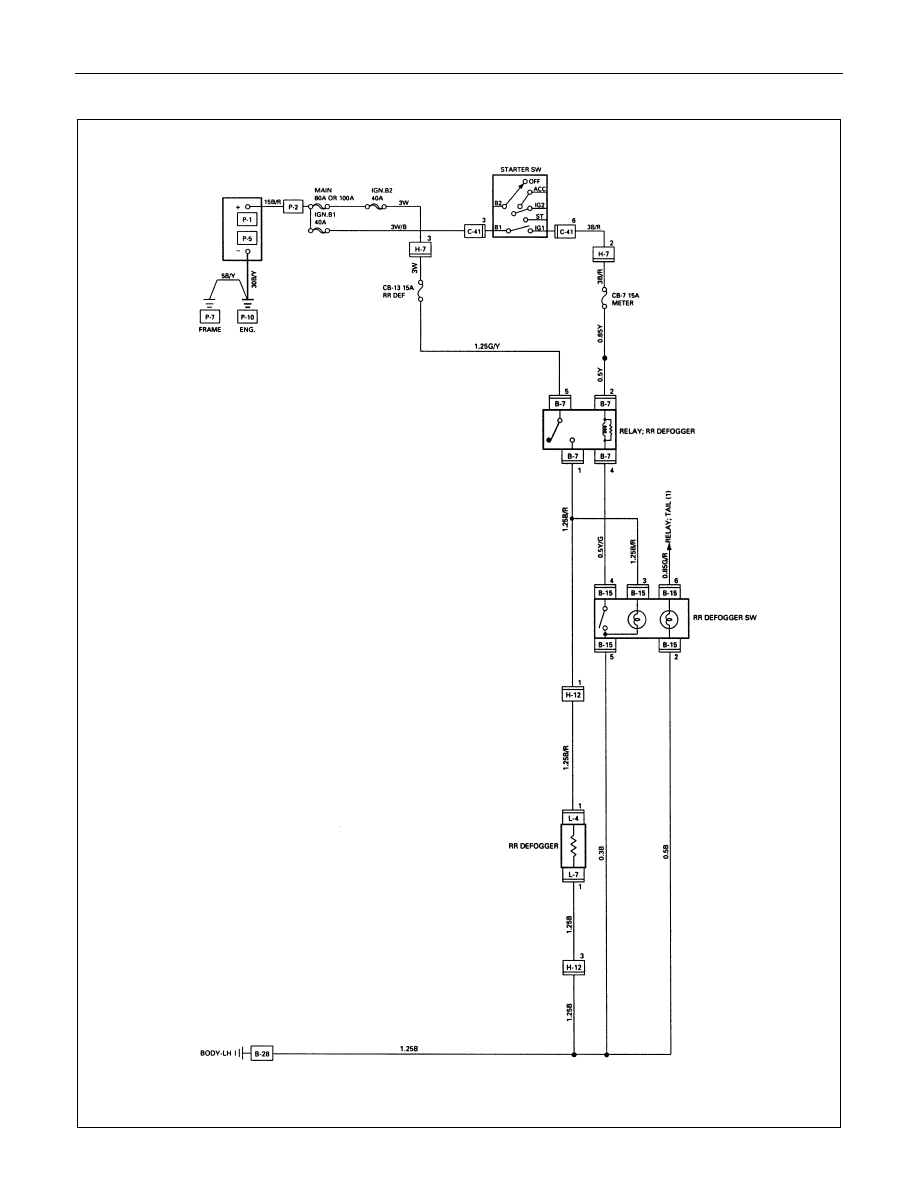

CIRCUIT DIAGRAM (LHD)
