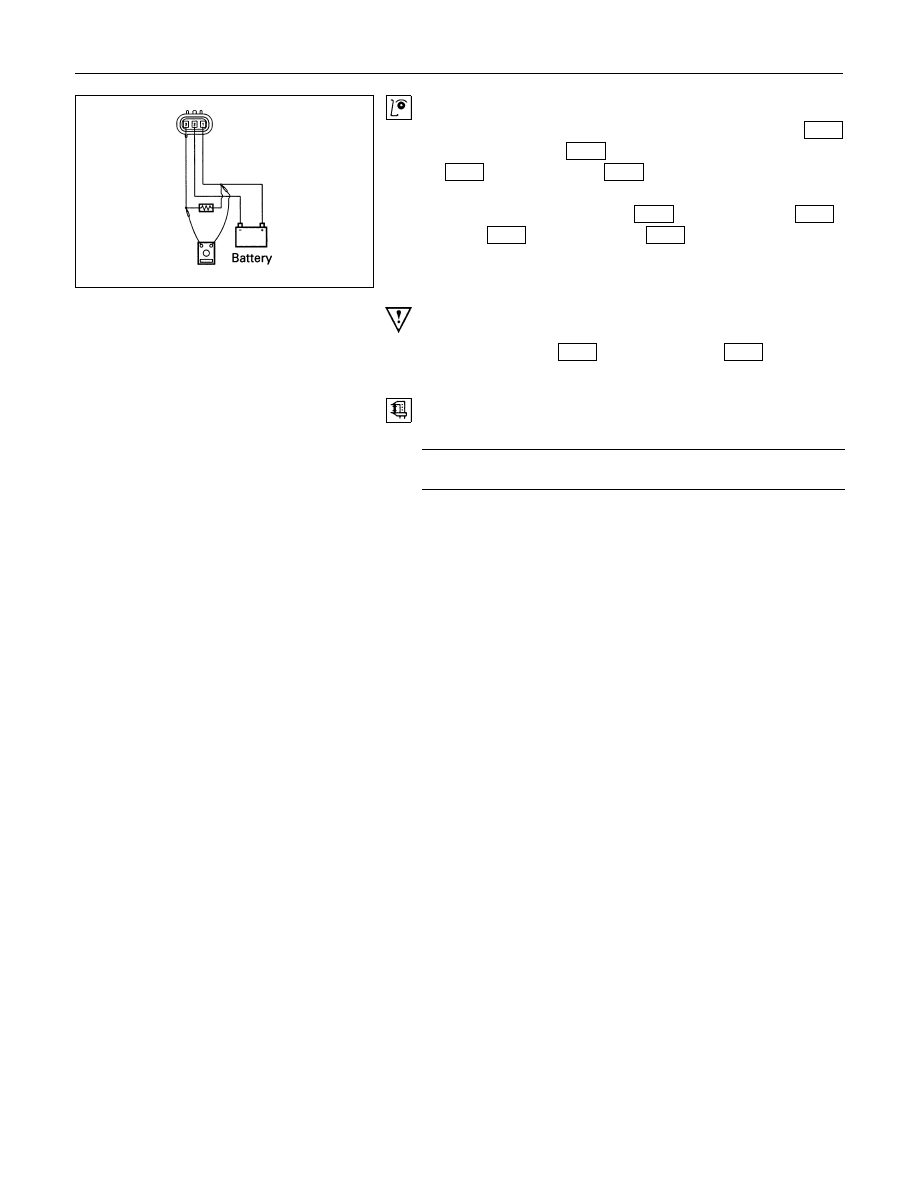

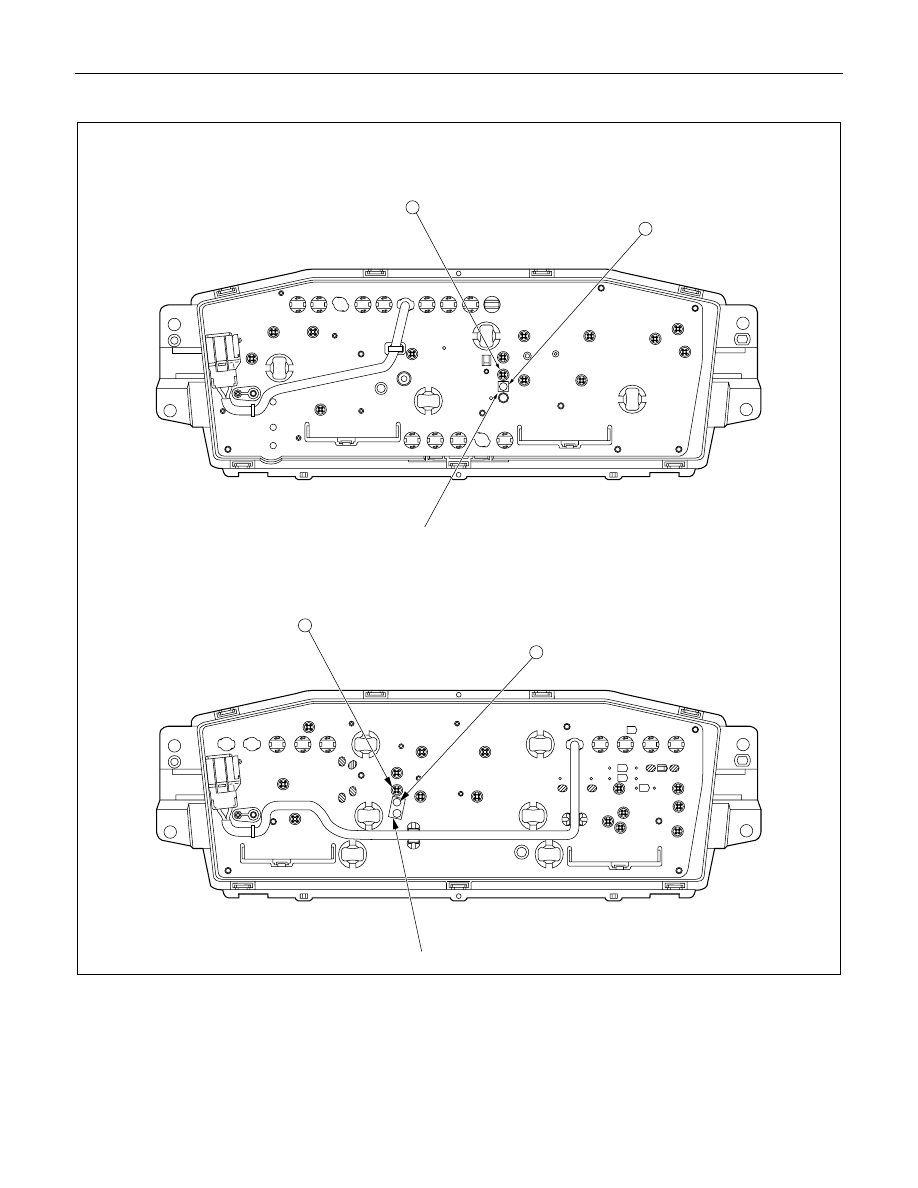

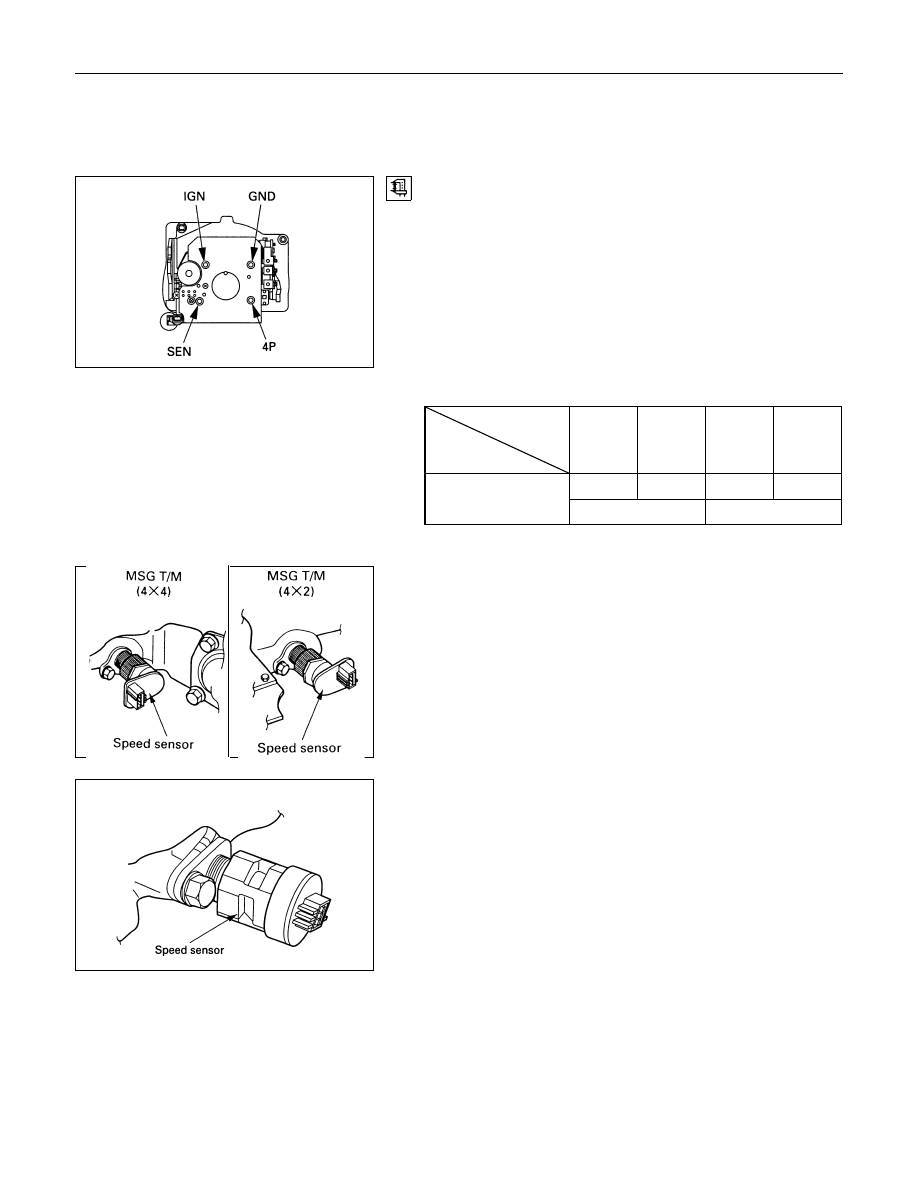

8-260 ELECTRICAL-BODY AND CHASSIS VEHICLE SPEED SENSOR (INCORPORATED IN THE SPEEDOMETER) Vehicle Speed Sensor Inspection Remove the speedometer from the meter assembly and Speed Sensor Resistance Tester Terminal terminal symbol Red (+) Black (-) Black (-) Red (+) 4P GND 4P GND 13.5 - 16.5k ∞ 4P - GND Note: Use the analog type circuit tester. VEHICLE SPEED SENSOR (INSTALLED ON THE TRANSMISSION) The speed sensor is installed on the rear portion of the MUA T/M |
