8-244  ELECTRICAL-BODY AND CHASSIS

Installation

Follow the removal procedure in the reverse order to install the
fuel tank unit.
Pay close attention to the important points mentioned in the
following paragraphs.

Rubber Seal

Be absolutely sure that the fuel tank unit rubber seal is
correctly seated.

Connector

Be absolutely sure that the fuel tank unit connector is securely
connected.
This will prevent a poor contact and an open circuit.

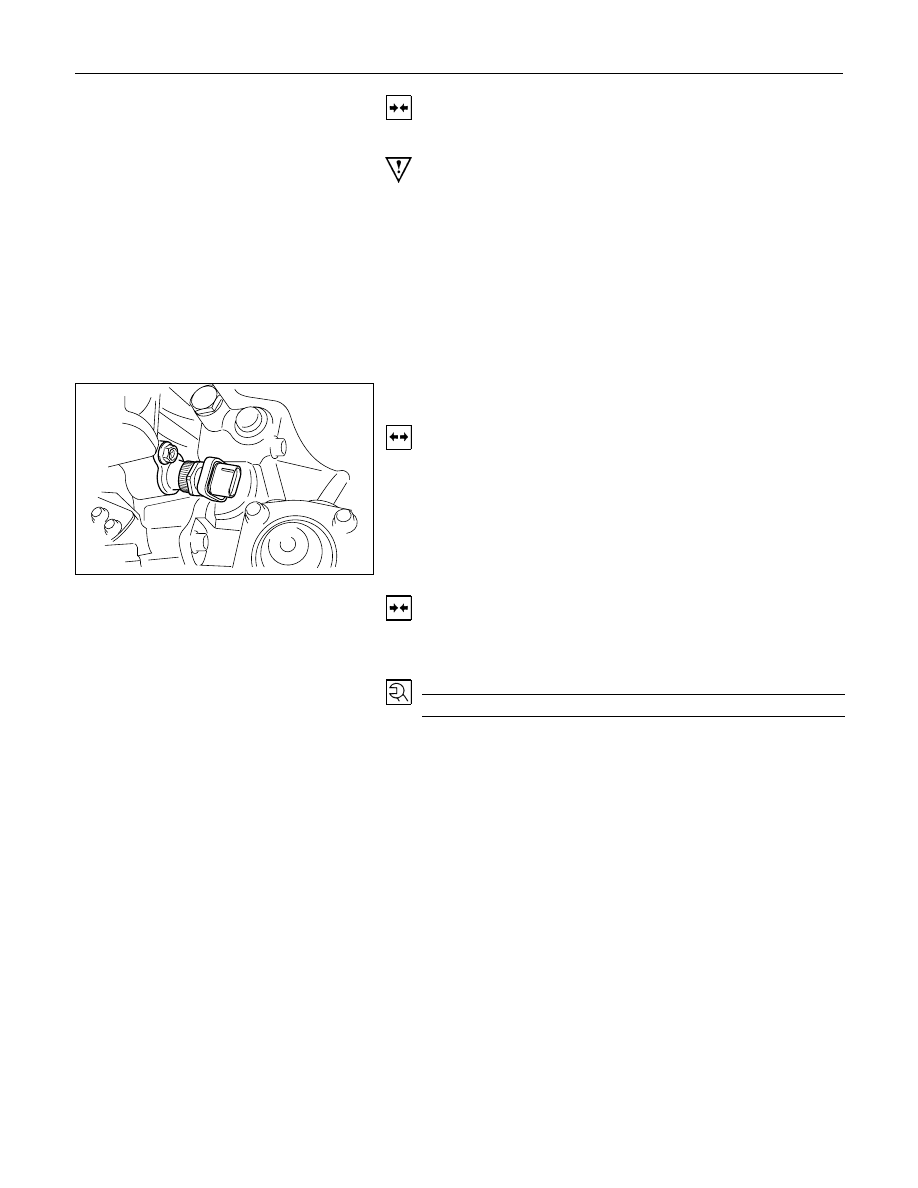

VEHICLE SPEED SENSOR (INSTALLED

ON THE TRANSMISSION)

Removal

1. Disconnect the connector.

2. Remove the vehicle speed sensor body by rotating it.

Installation

To Install, follow the removal steps in the reverse order, noting
the following point.
Tighten the vehicle speed sensor to the specified torque.
Vehicle Speed Sensor Tightening Torque

N

⋅m (kgf⋅m/lb.ft)

25

± 4.9 (2.5 ± 0.5/18 ± 3.6)

ELECTRICAL-BODY AND CHASSIS  8-245

  INSPECTION AND REPAIR

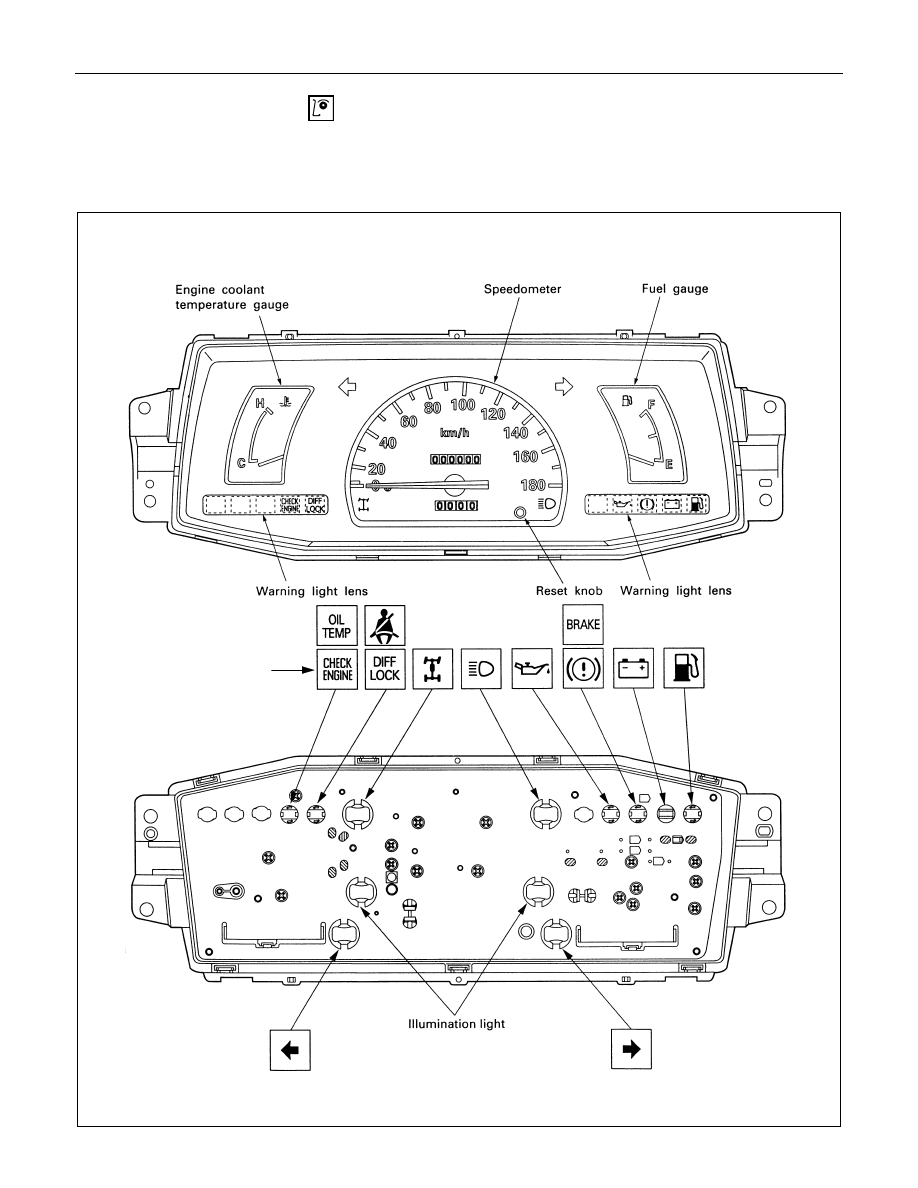

Warning, indicator and illumination light position
W/O tachometer

(This illustration is based on the Km/h meter)

(For South Africa only)

8-246  ELECTRICAL-BODY AND CHASSIS

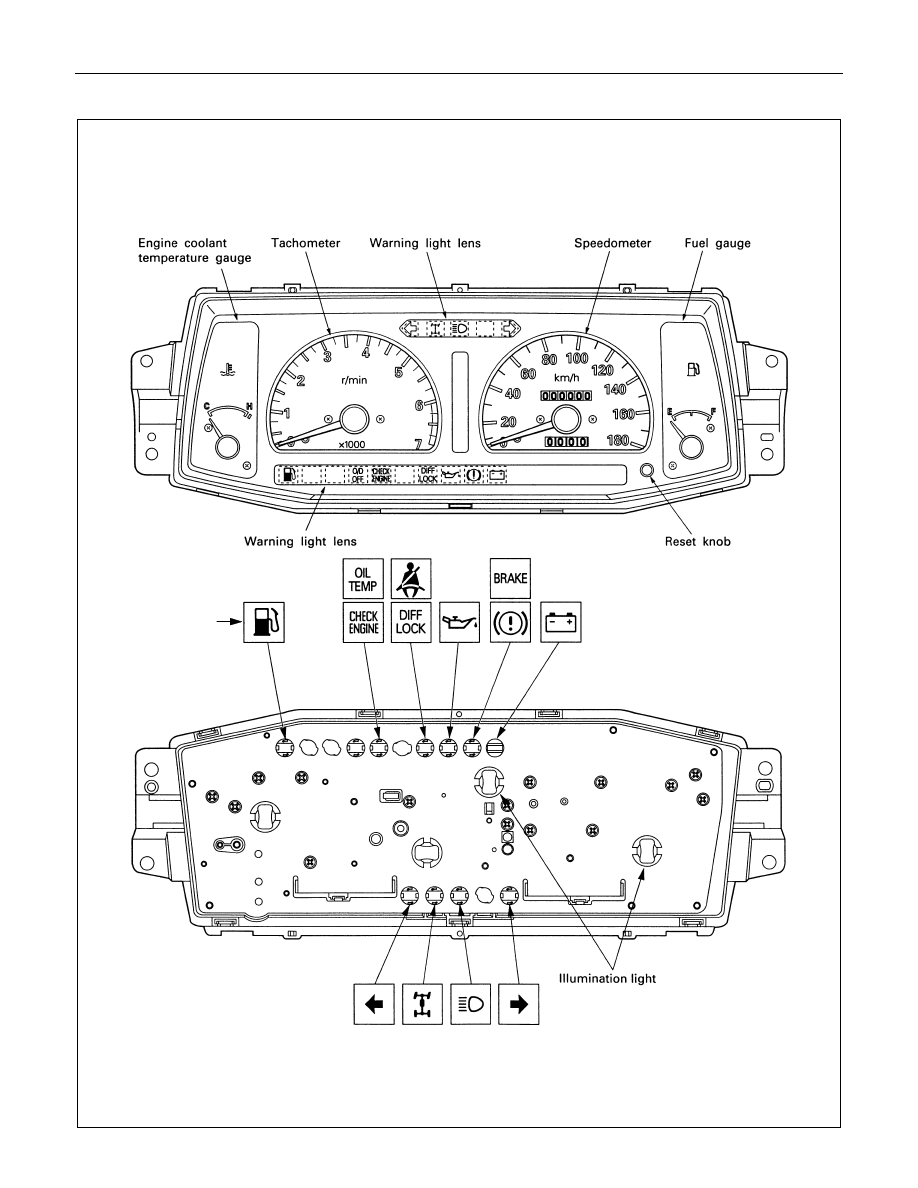

W/ Tachometer

(This illustration is based on the Km/h meter)

(For South Africa

only)

ELECTRICAL-BODY AND CHASSIS  8-247

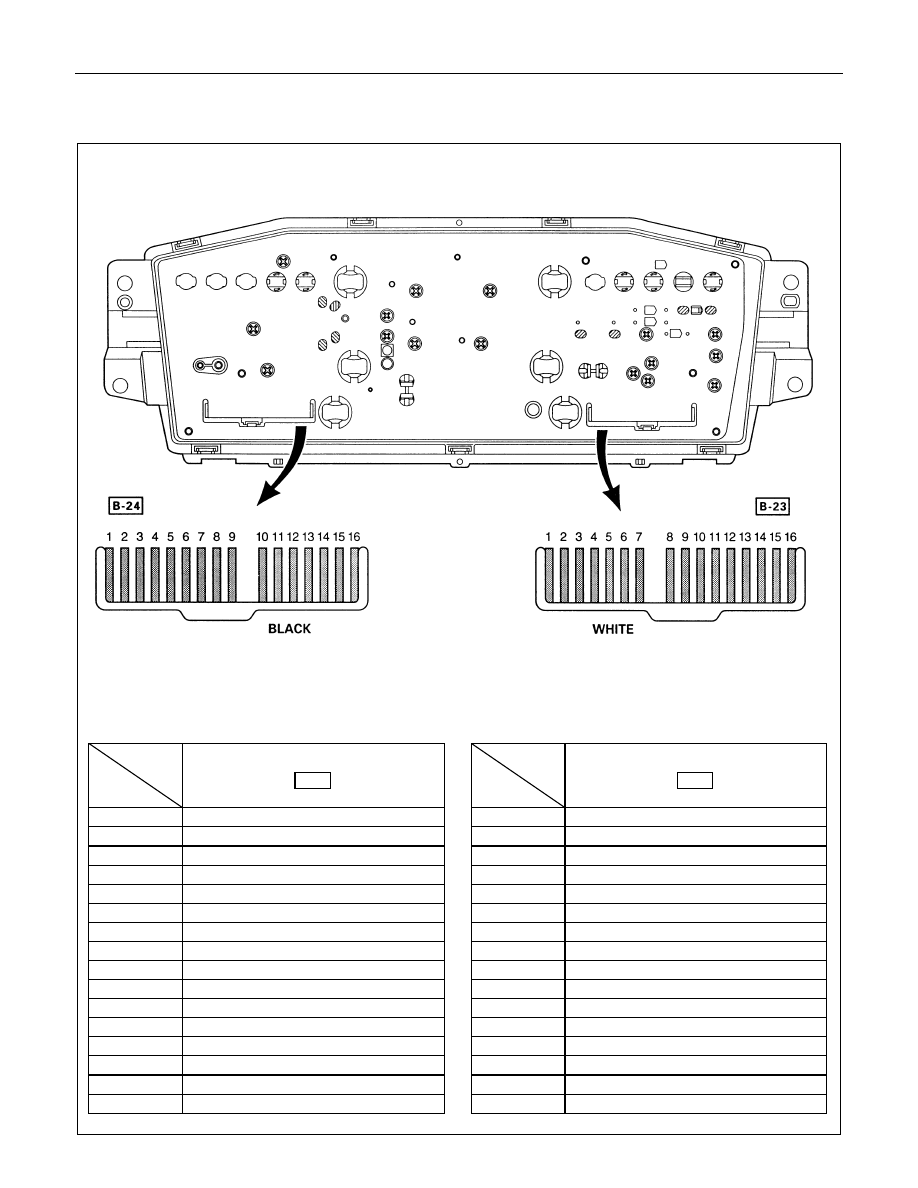

Meter connector pin arrangement
W/O Tachometer-1

Connector

Ter-

No.

minal No.

B-24

1

Ground

2

Ignition

3

-

4

-

5

-

6

Engine coolant temperature gauge

7

-

8

-

9

Check engine warning light

10

Diff. lock indicator light (South Africa only)

11

High-beam indicator light (+)

12

High-beam indicator light (-)

13

Illumination light (+)

14

Illumination light (-)

15

4WD indicator light

16

Turn signal indicator light (left)

Connector

Ter-

No.

minal No.

B-23

1

Turn signal indicator light (right)

2

-

3

-

4

-

5

Ground

6

-

7

Ignition

8

Speedometer

9

Speedometer

10

Oil pressure warning light

11

Fuel gauge

12

Brake warning light

13

Charge warning light

14

-

15

-

16

Fuel warning light (Except Chile)
