Windshield Washer Spray

Be sure that the engine hood

1

 is completely closed before

checking the windshield washer spray adjustment.

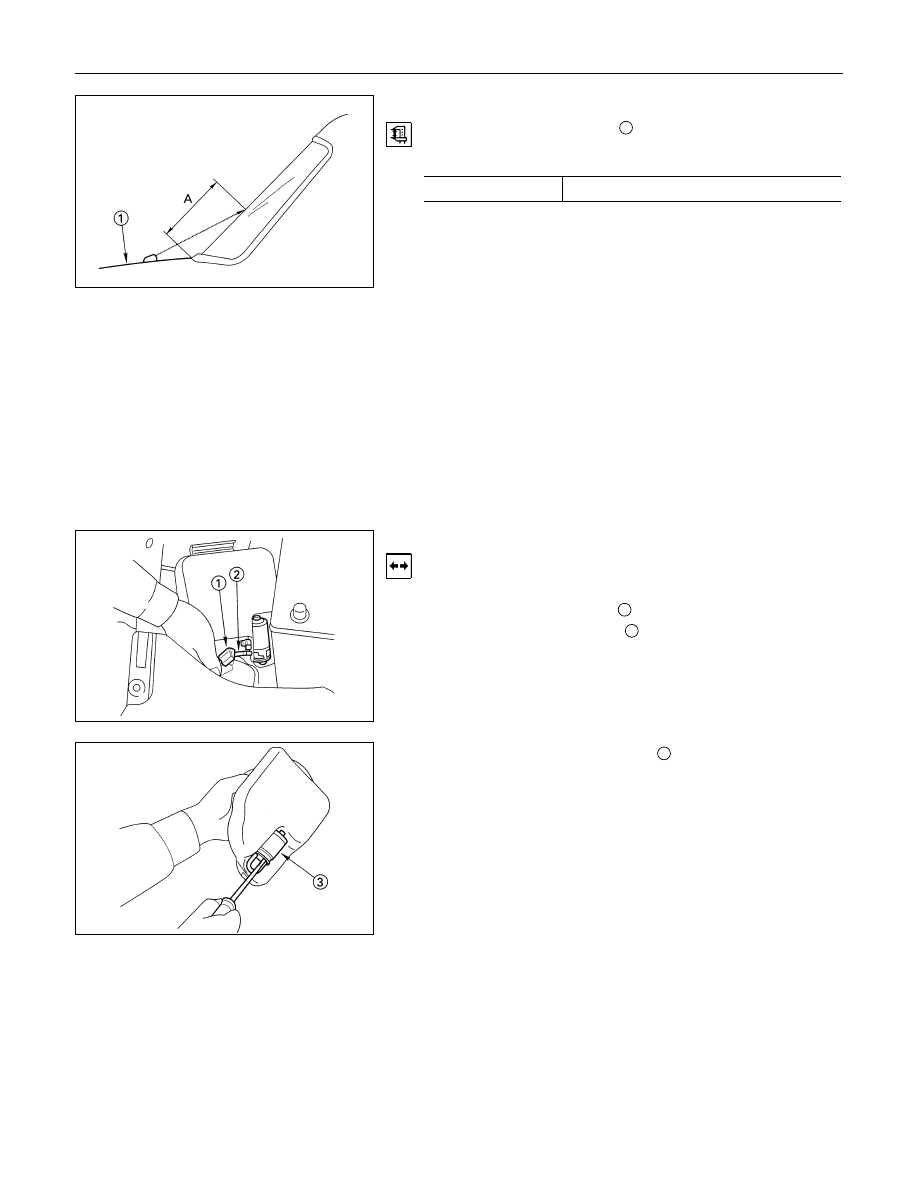

Windshield Washer Spray Position

mm(in)

A

Approximately 300 (11.8)

Connector

Be absolutely sure that the wiper motor connector is securely
connected.
This will prevent a poor contact and an open circuit.

Note:
Windshield wiper arm and blade assembly configurations
are different for the right-hand and left-hand side of the
vehicle.
Be careful not to confuse the right-hand and left-hand side
assemblies.

WASHER TANK MOTOR

Removal

1. Remove the washer tank bolts.

2. Disconnect the connector

1

.

3. Disconnect the water hose

2

.

4. Remove the washer tank motor

3

.

ELECTRICAL-BODY AND CHASSIS  8-201

Installation

Follow the removal procedure in the reverse order to install the
washer tank motor.
Pay close attention to the important points mentioned in the
following paragraphs.

Connector

Be absolutely sure that the washer tank motor connector is
securely connected.
This will prevent a poor contact and an open circuit.

8-202  ELECTRICAL-BODY AND CHASSIS

OVERDRIVE OFF (A/T)

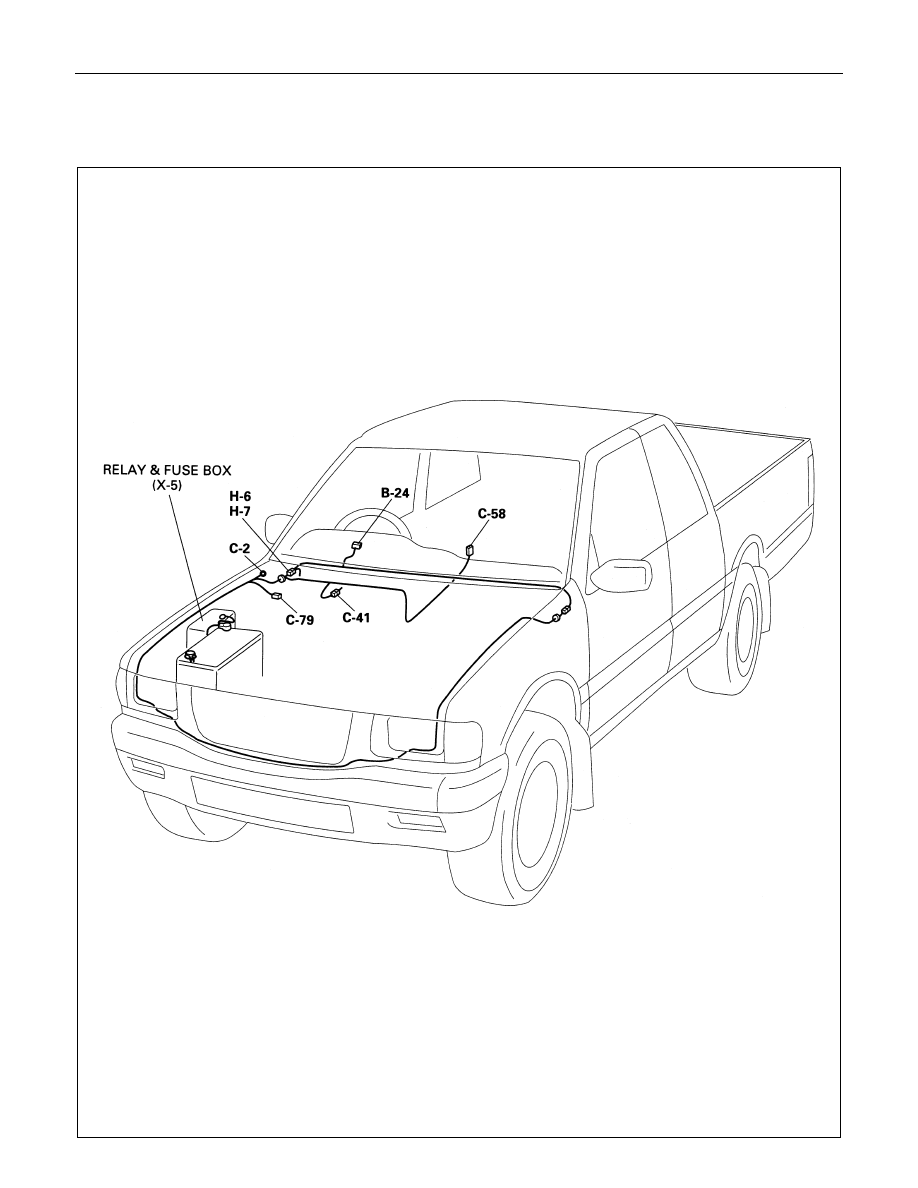

PARTS LOCATION

ELECTRICAL-BODY AND CHASSIS  8-203

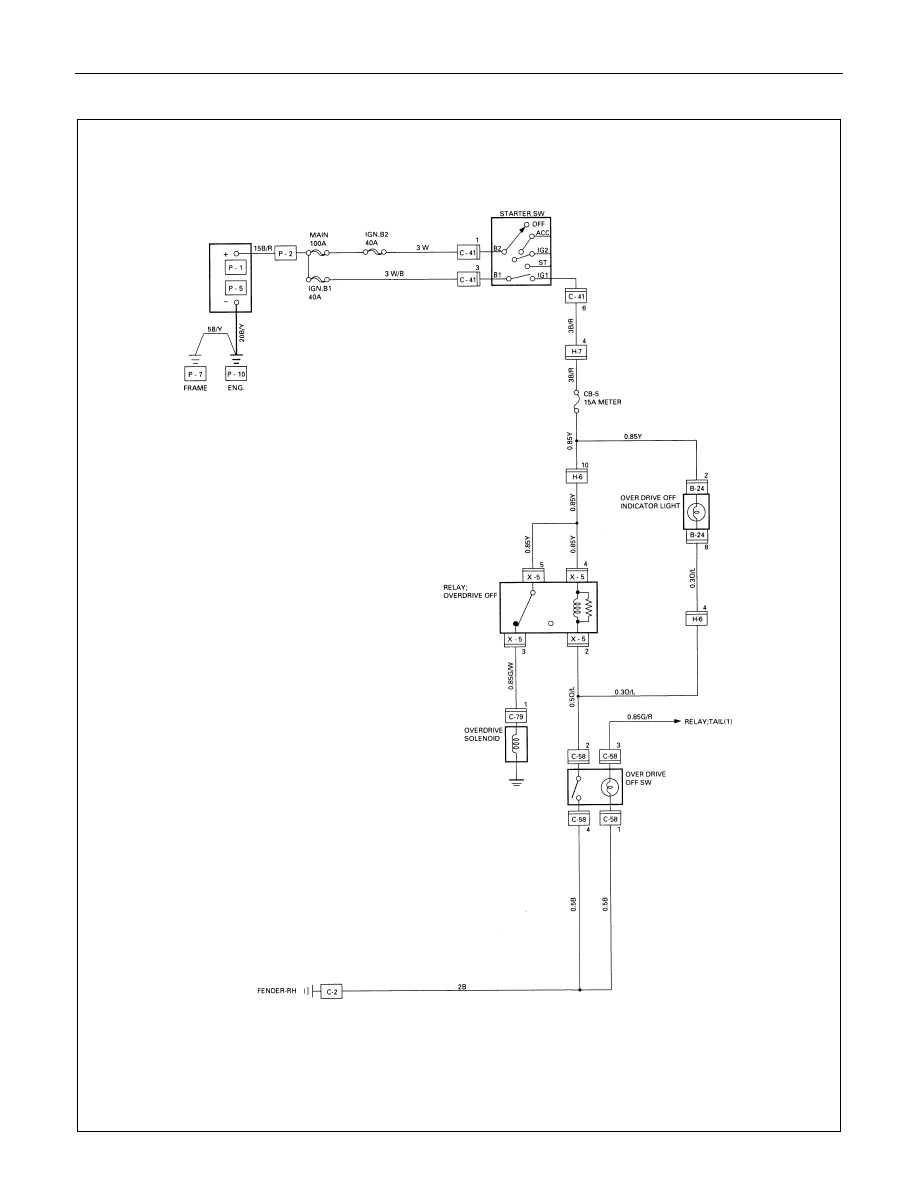

CIRCUIT DIAGRAM
