8-168  ELECTRICAL-BODY AND CHASSIS

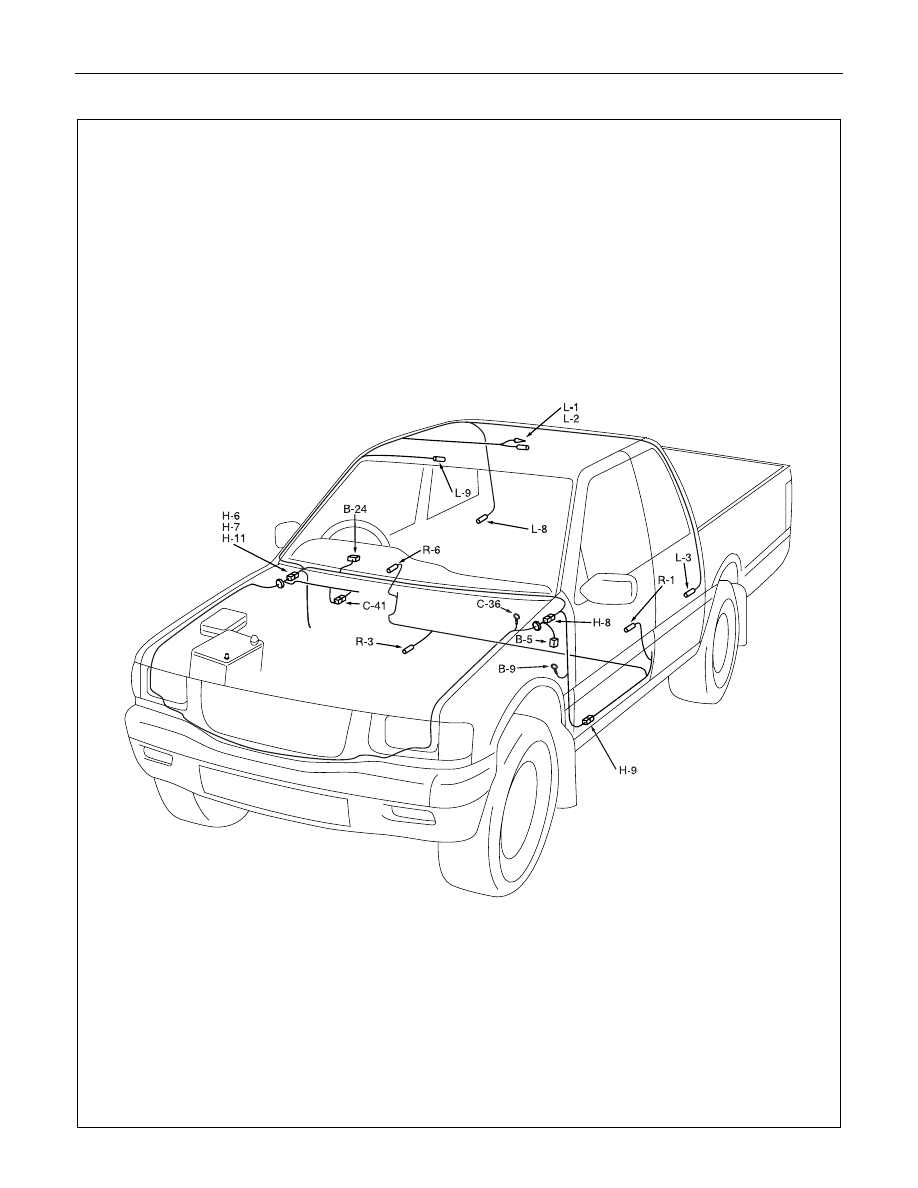

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-169

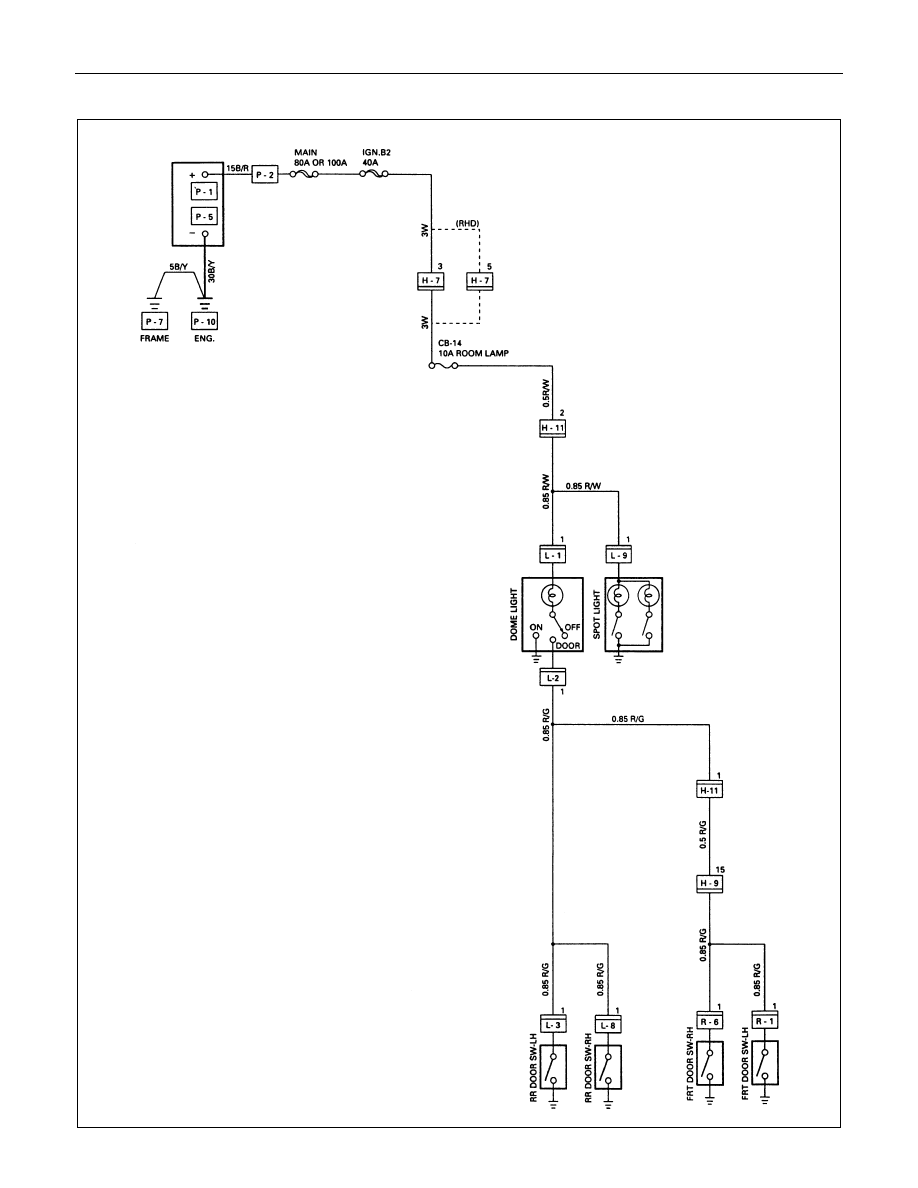

CIRCUIT DIAGRAM (LHD & RHD)

8-170  ELECTRICAL-BODY AND CHASSIS

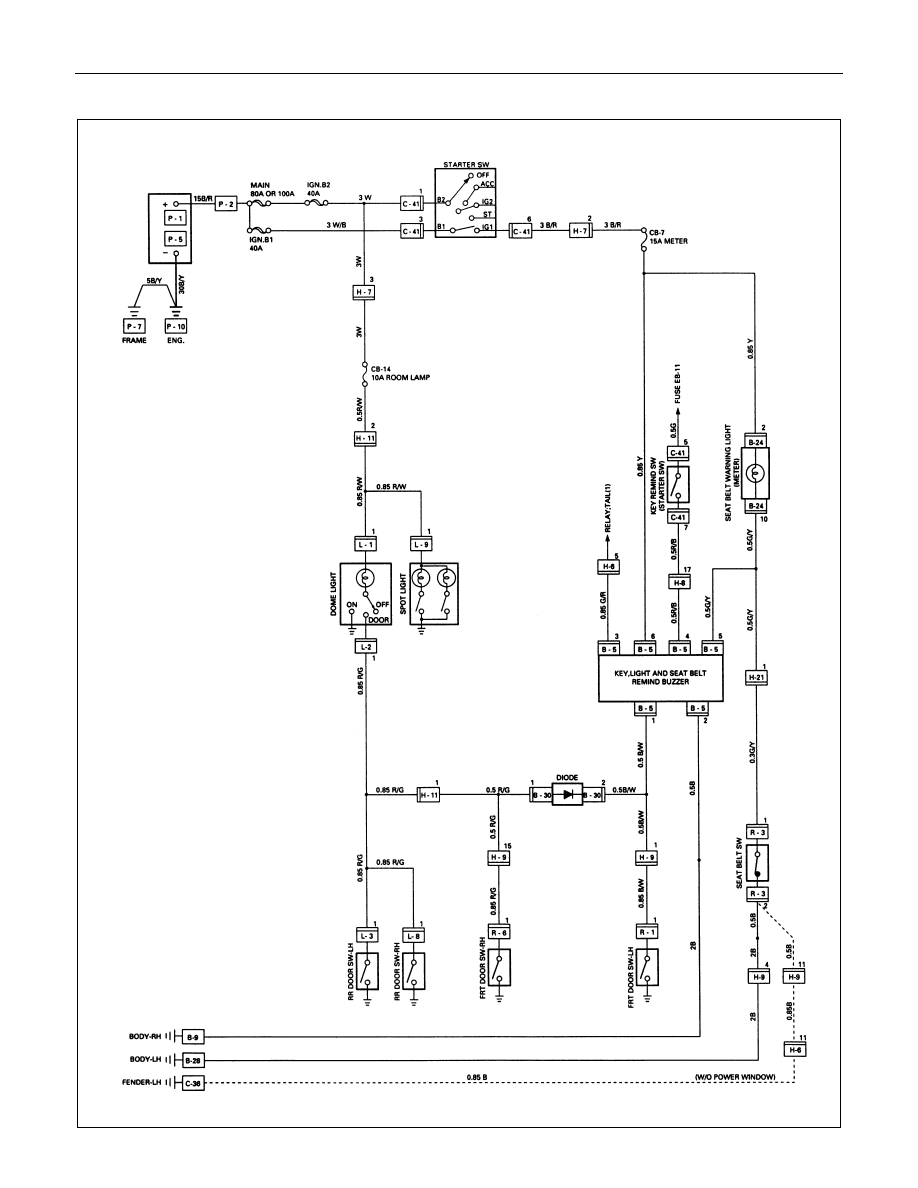

CIRCUIT DIAGRAM (SAUDI ARABIA)

ELECTRICAL-BODY AND CHASSIS  8-171

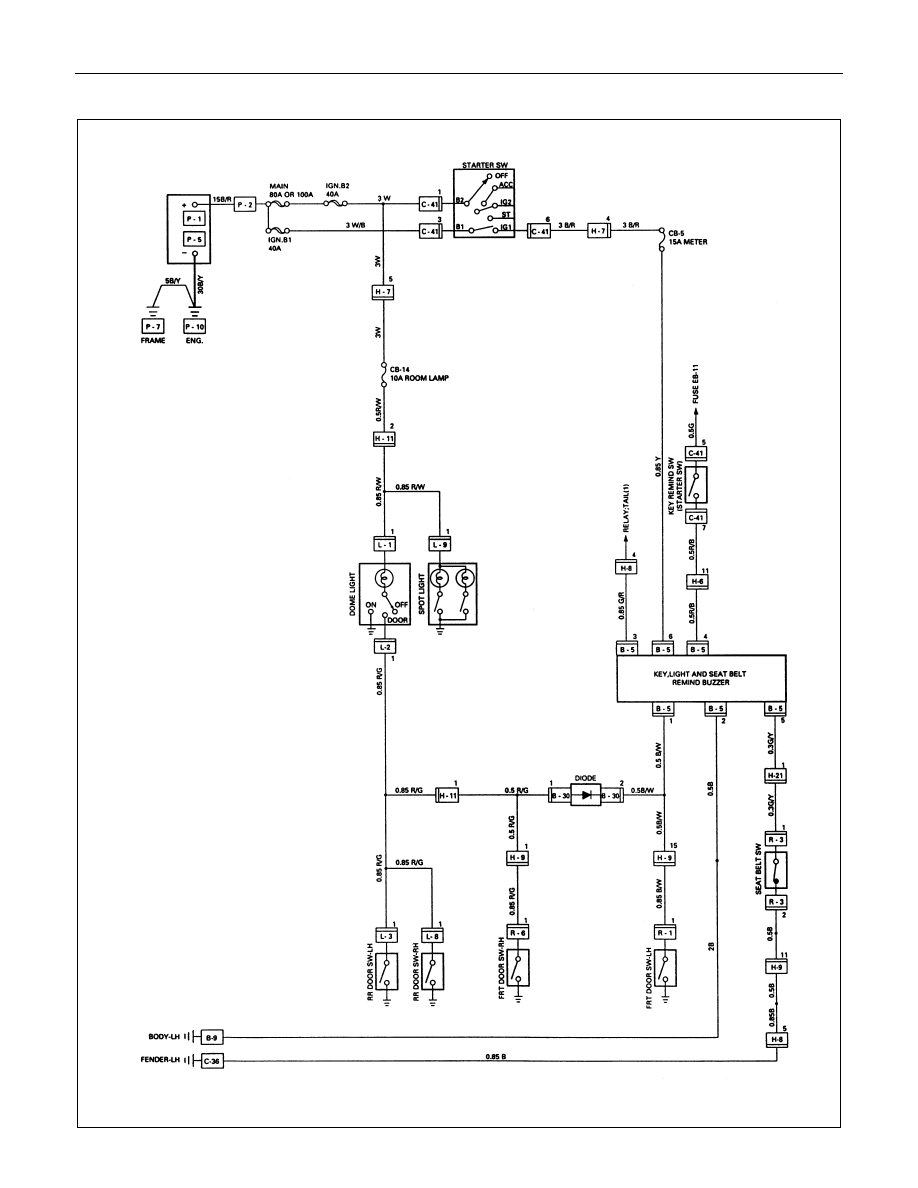

CIRCUIT DIAGRAM (SOUTH AFRICA)
