8-96  ELECTRICAL-BODY AND CHASSIS

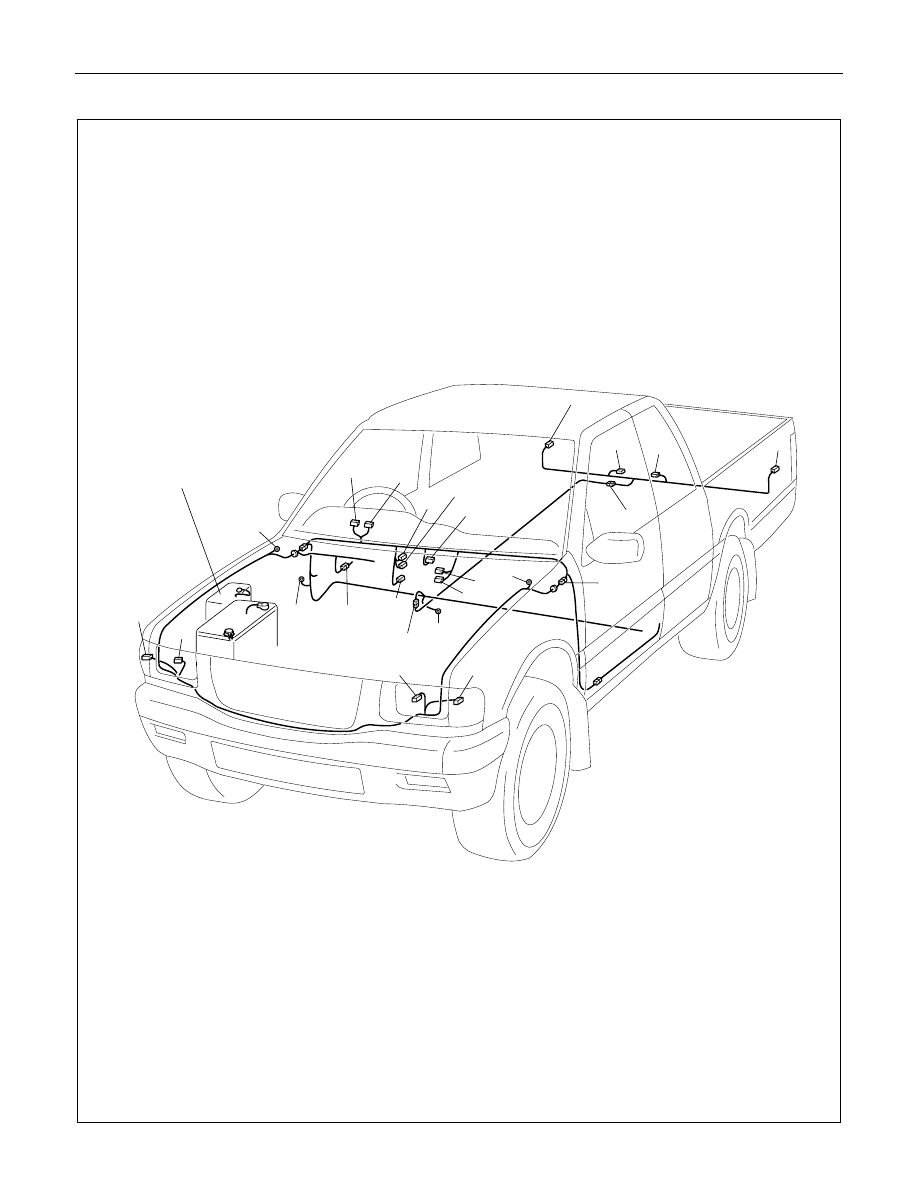

PARTS LOCATION (RHD EXCEPT UK)

ELECTRICAL-BODY AND CHASSIS  8-97

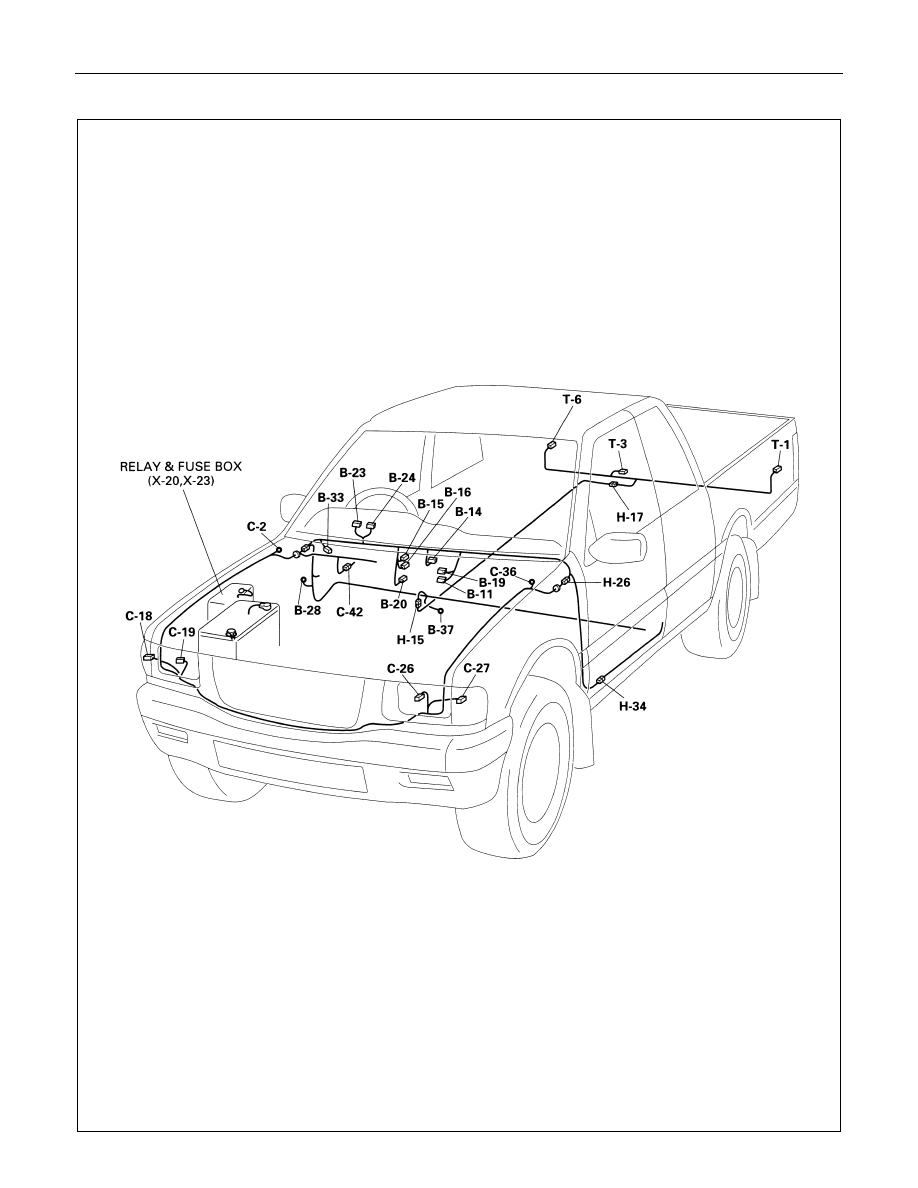

PARTS LOCATION (6VD1-RHD)

8-98  ELECTRICAL-BODY AND CHASSIS

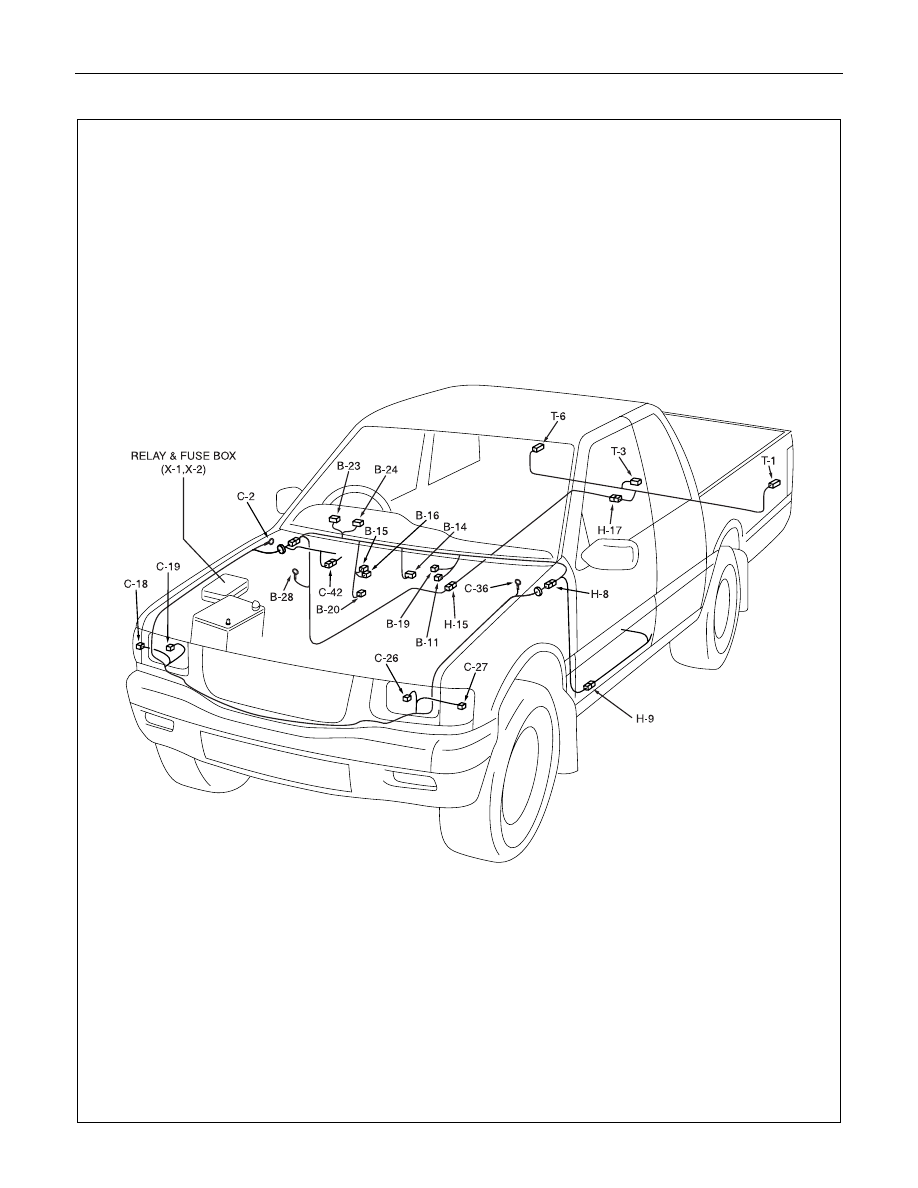

PARTS LOCATION (UK)

B-23

B-20

B-19

B-11

B-24

B-15

B-14

B-16

C-42

B-34

H-8

C-36

B-28

C-2

RELAY & FUSE BOX

(X-1,X-2)

C-18

C-19

C-26

C-27

H-15

H-17

T-6

T-4

T-3

T-1

ELECTRICAL-BODY AND CHASSIS  8-99

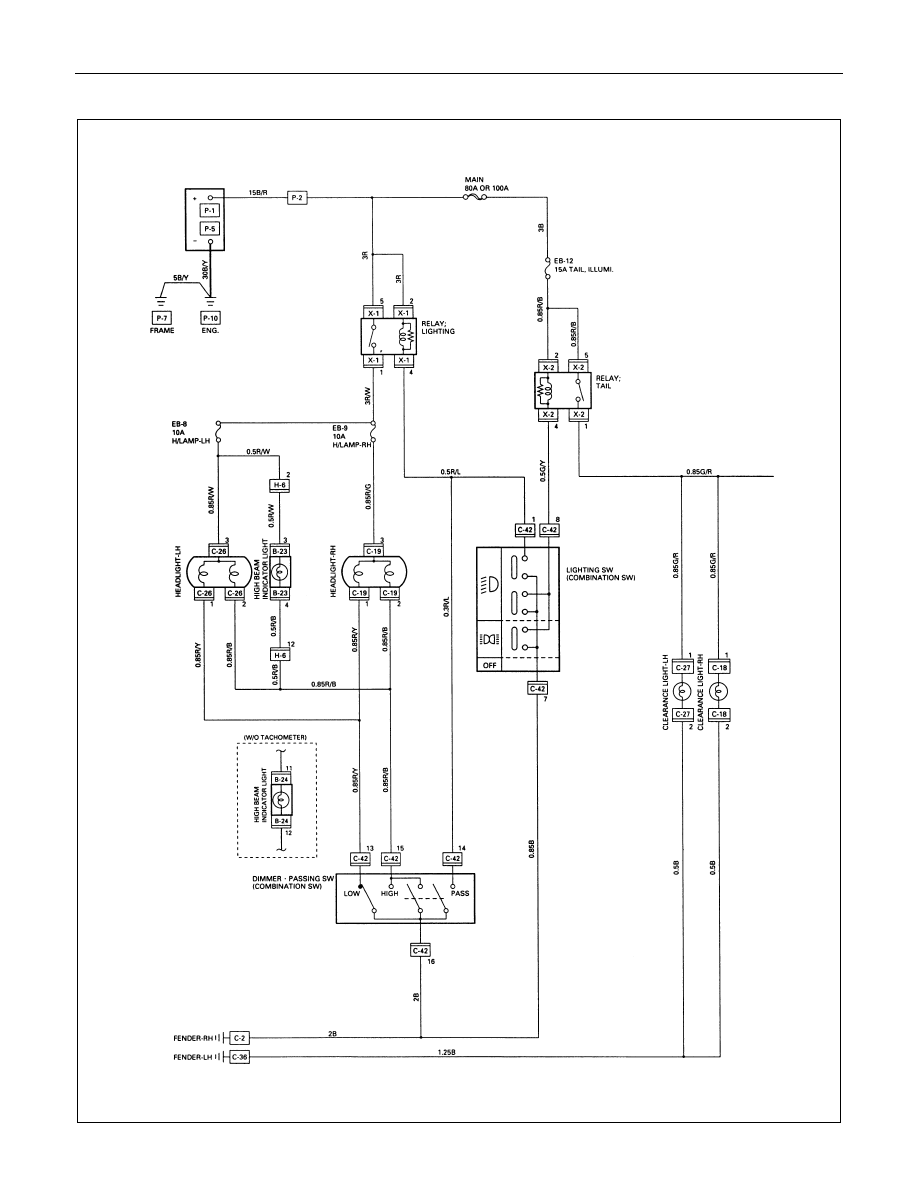

CIRCUIT DIAGRAM (LHD EXCEPT EC)
