Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1490

8-60  ELECTRICAL-BODY AND CHASSIS

SYSTEM REPAIR

START AND CHARGING

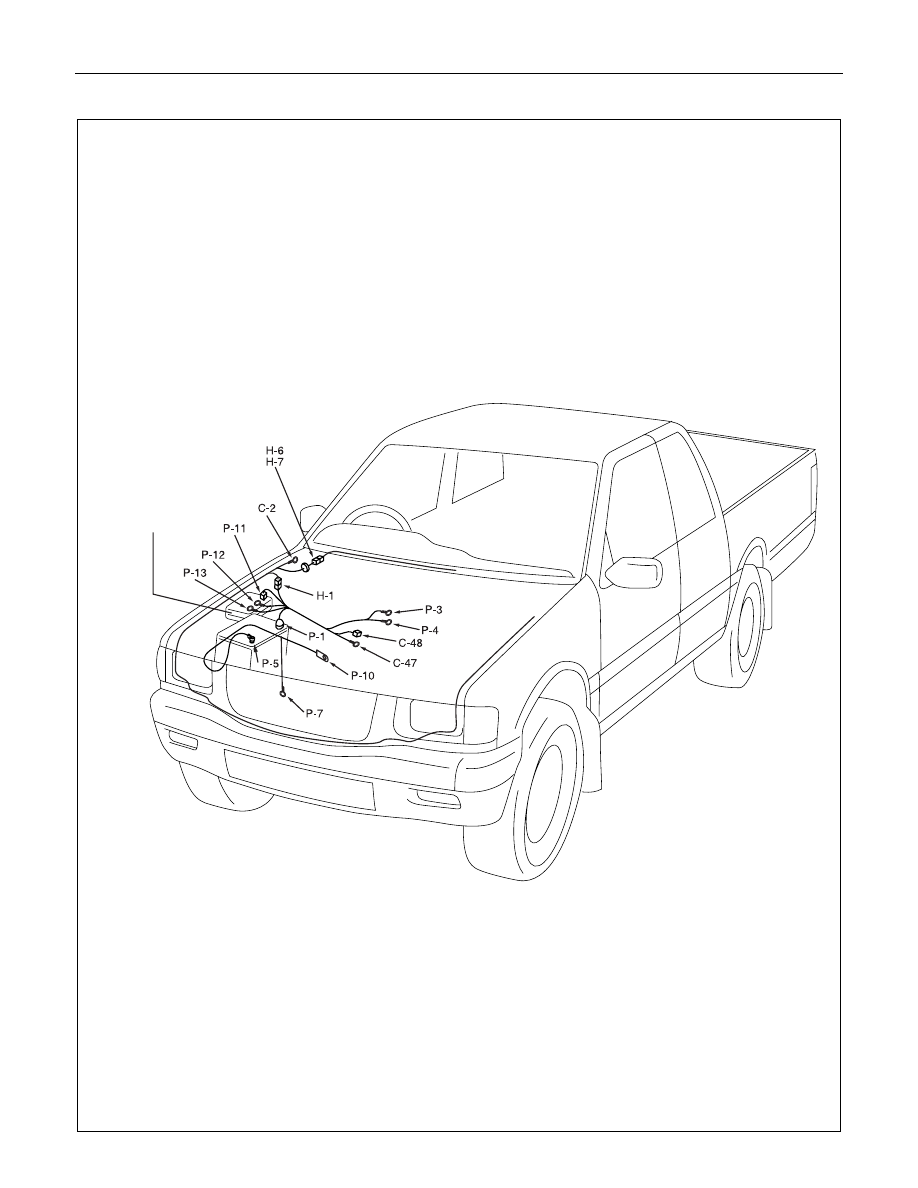

PARTS LOCATION (HEC  ENGINE-LHD)

RELAY & FUSE BOX

(X-3, X-6)

ELECTRICAL-BODY AND CHASSIS  8-61

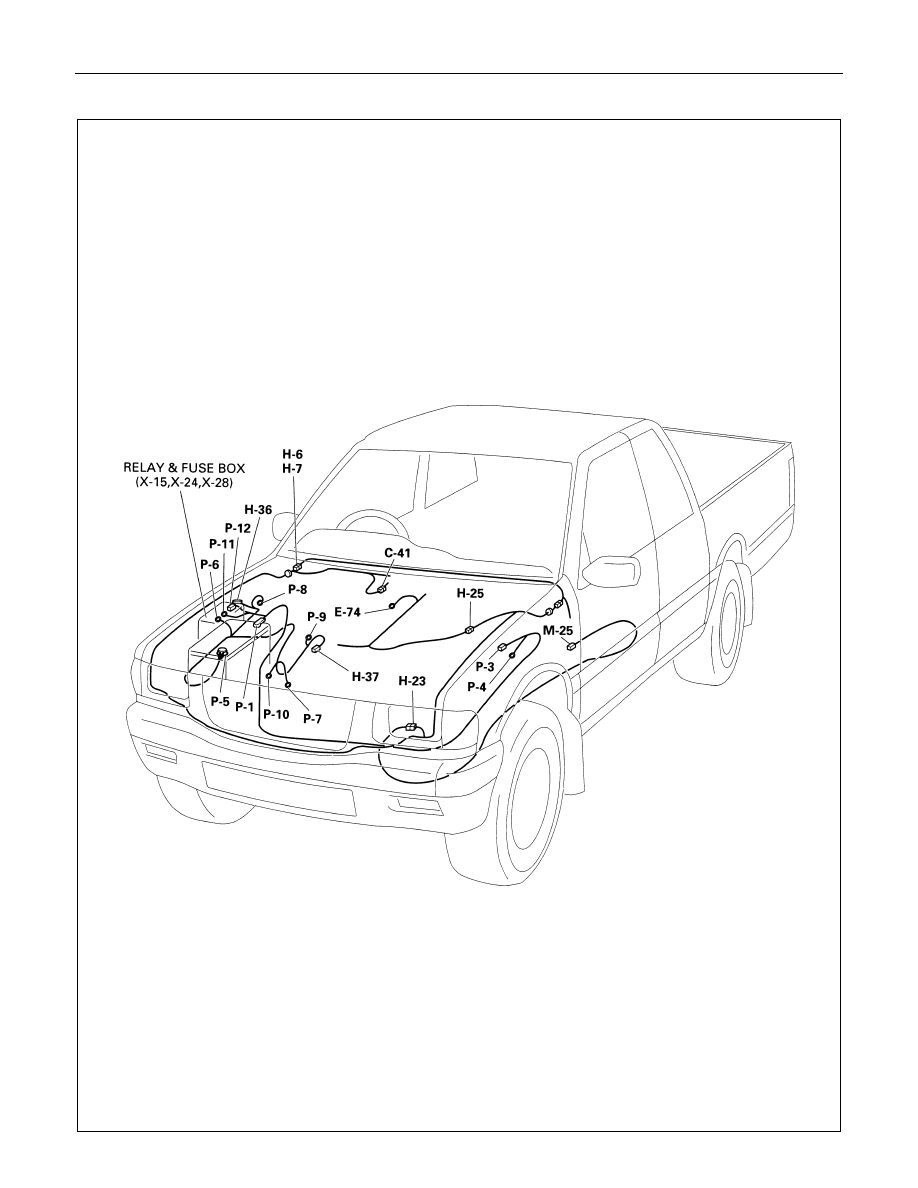

PARTS LOCATION (HEC ENGINE-RHD)

RELAY & FUSE BOX

(X-3, X-6)

8-62  ELECTRICAL-BODY AND CHASSIS

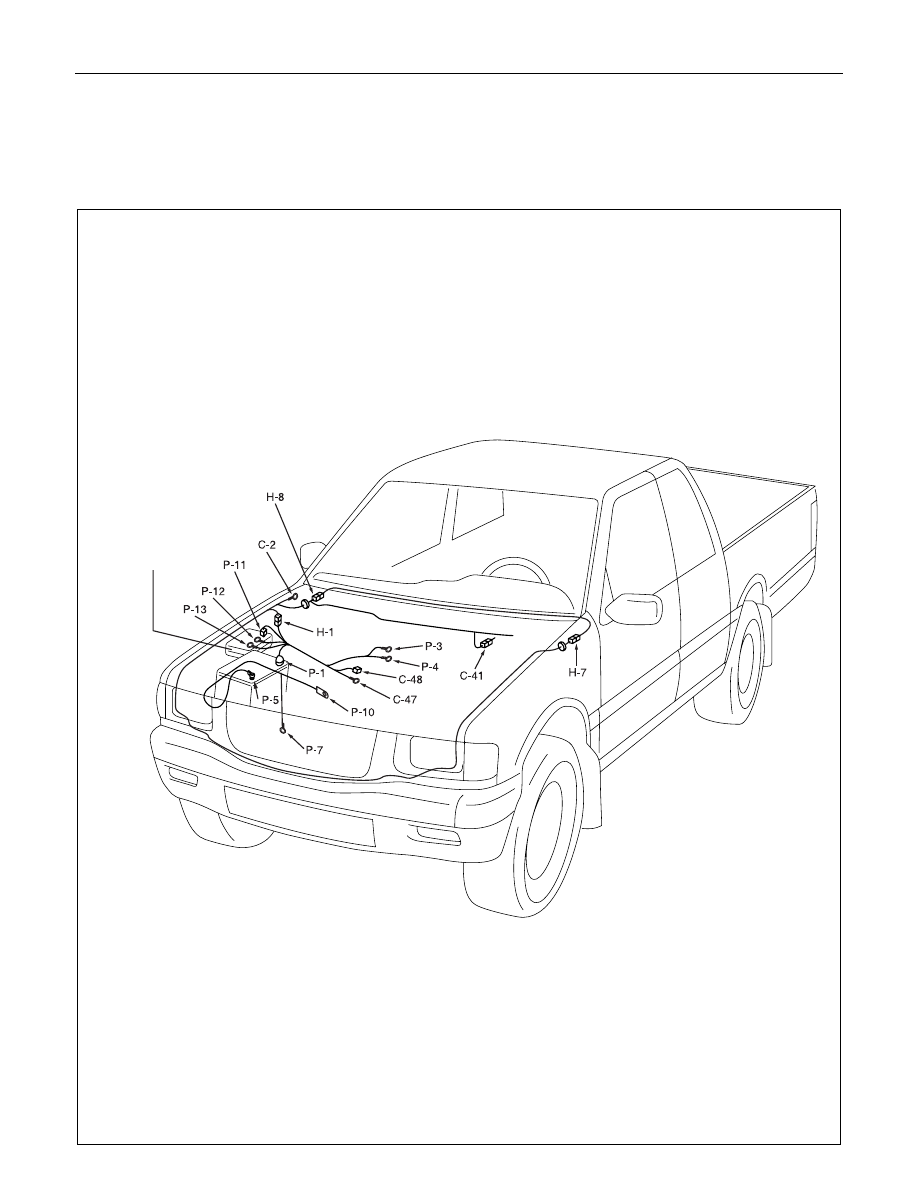

PARTS LOCATION (6VD1 GASOLINE ENGINE-LHD)

ELECTRICAL-BODY AND CHASSIS  8-63

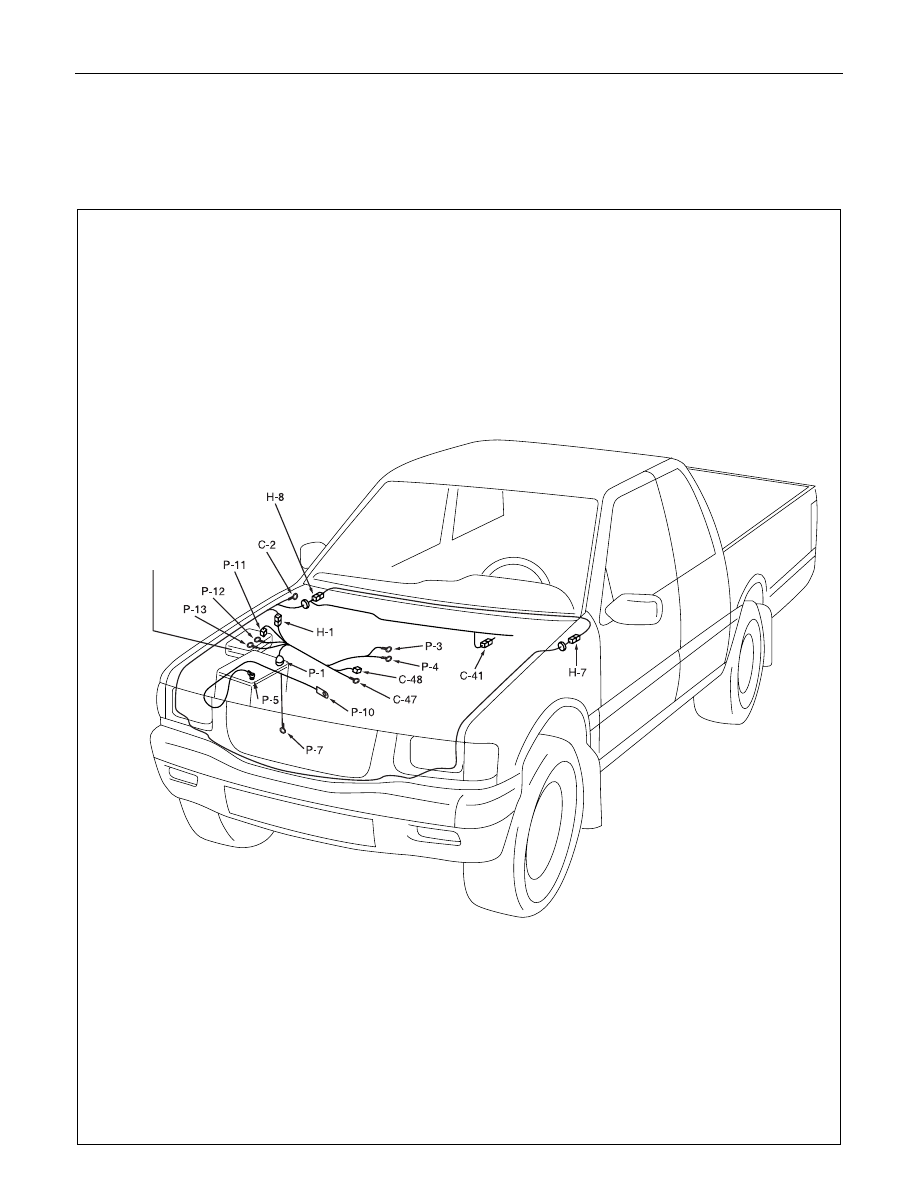

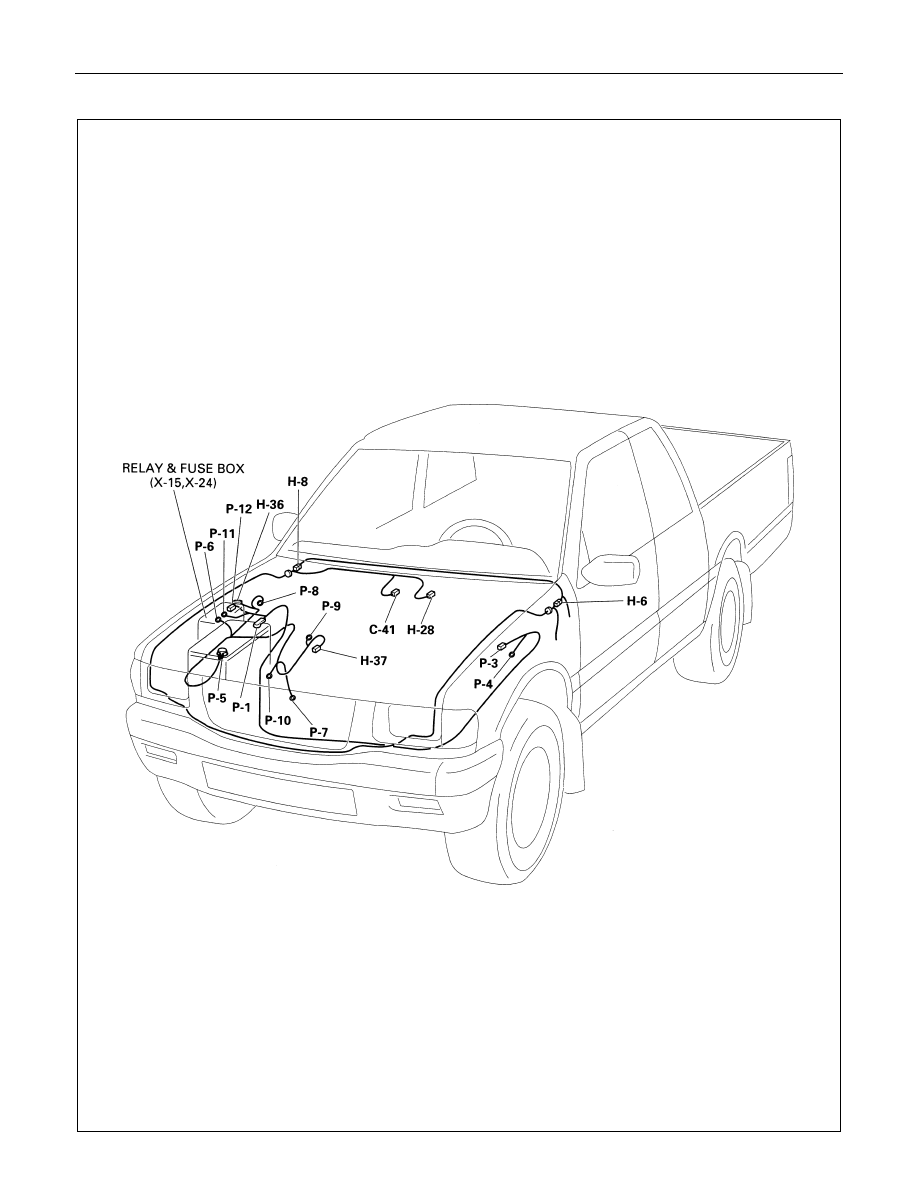

PARTS LOCATION (6VD1 GASOLINE ENGINE-RHD)
