Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1413





ELECTRICAL-BODY AND CHASSIS  8-217

REAR DEFOGGER

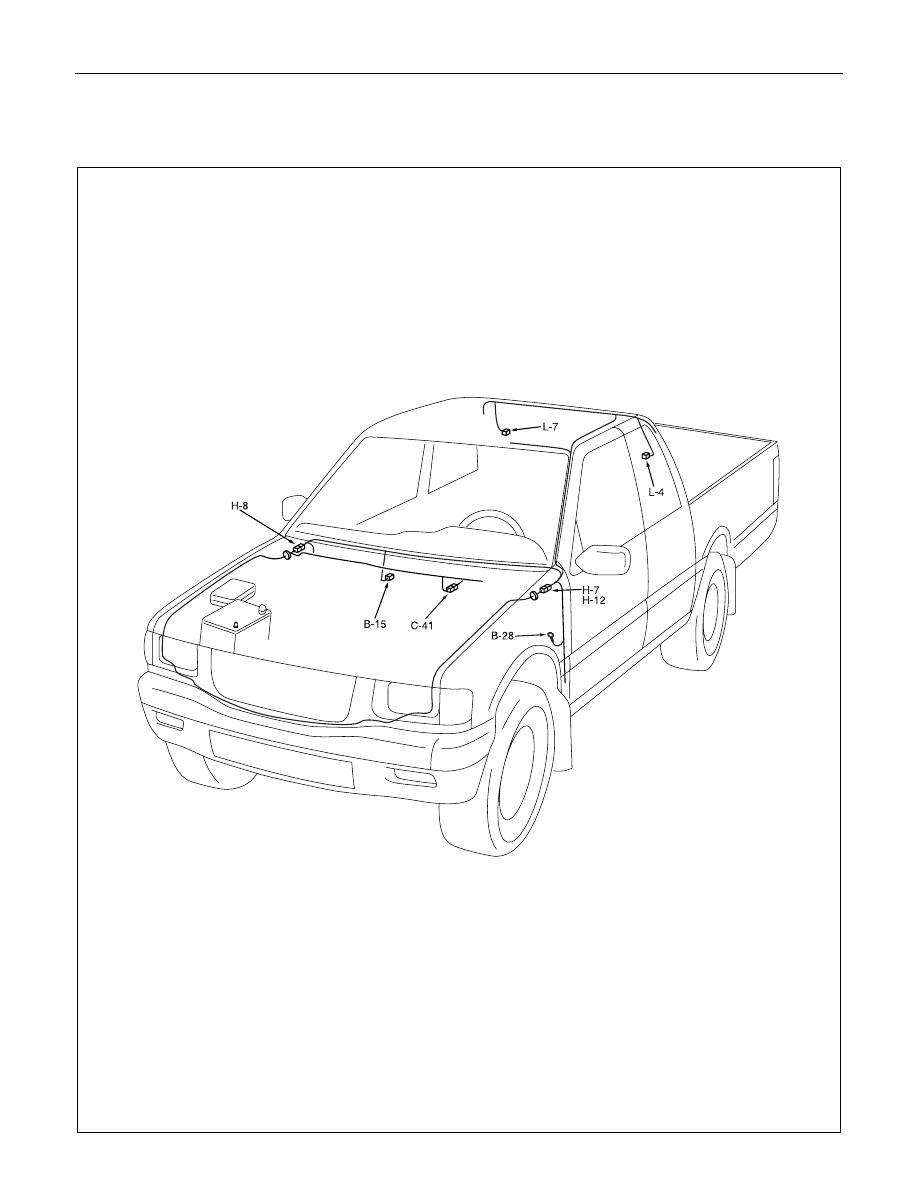

PARTS LOCATION (LHD)

(Except South Africa, Chile)

8-218  ELECTRICAL-BODY AND CHASSIS

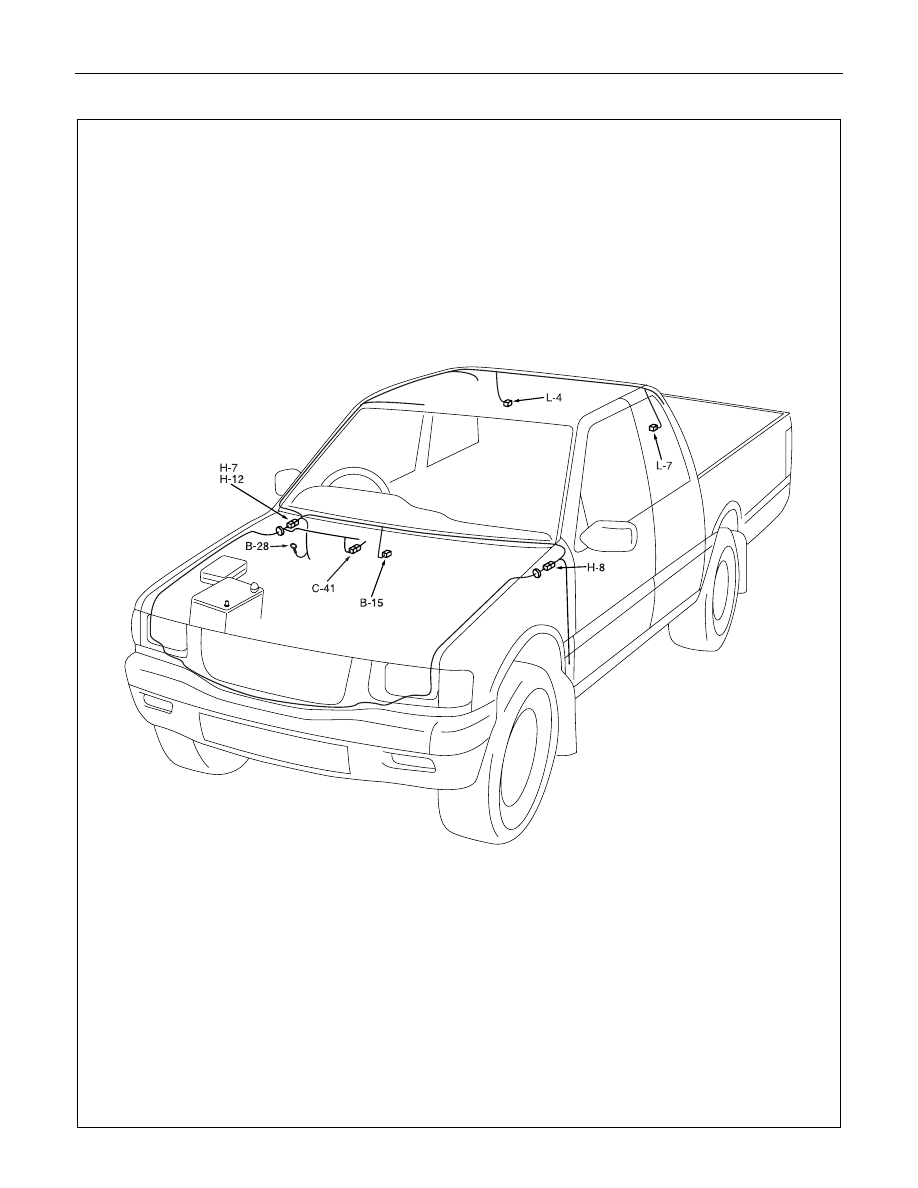

PARTS LOCATION (RHD)

(Except South Africa, Chile)

ELECTRICAL-BODY AND CHASSIS  8-219

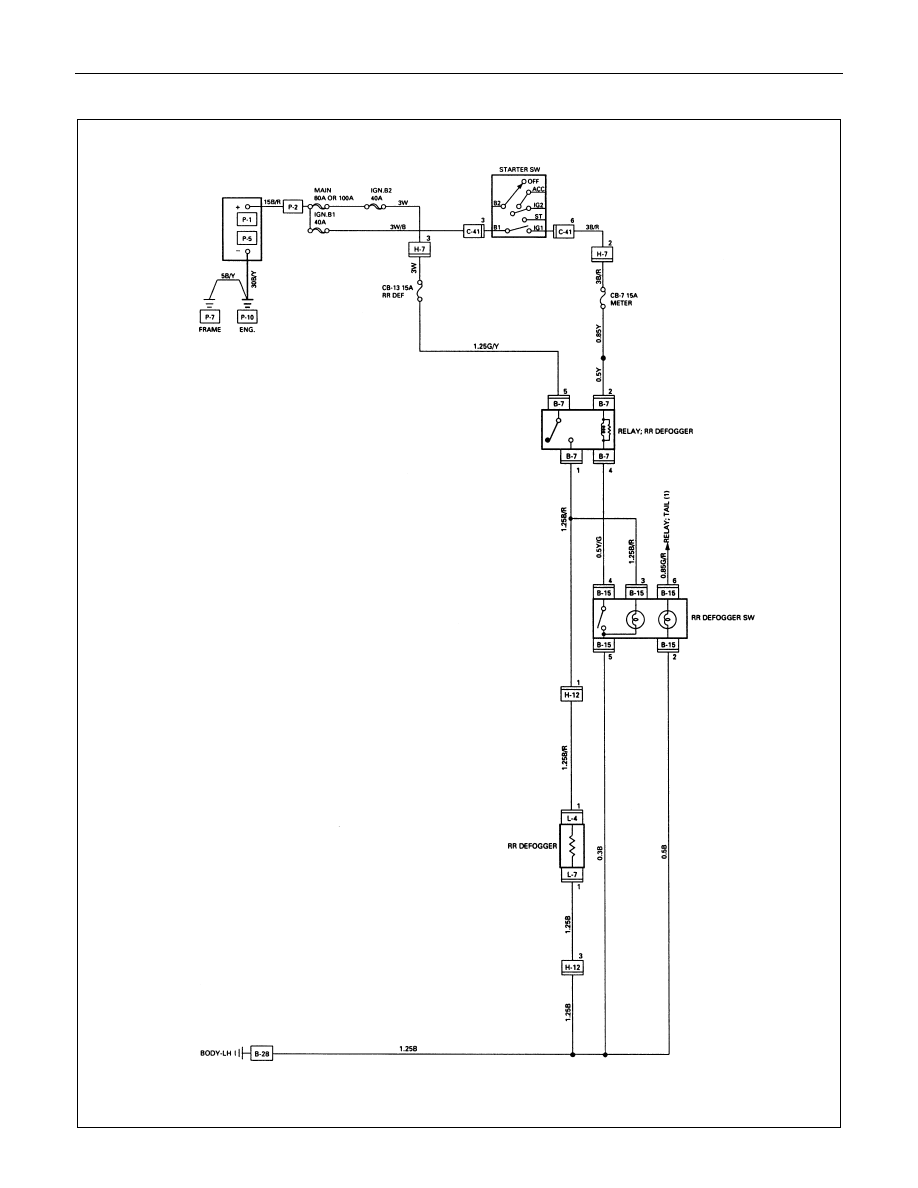

CIRCUIT DIAGRAM (LHD)

8-220  ELECTRICAL-BODY AND CHASSIS

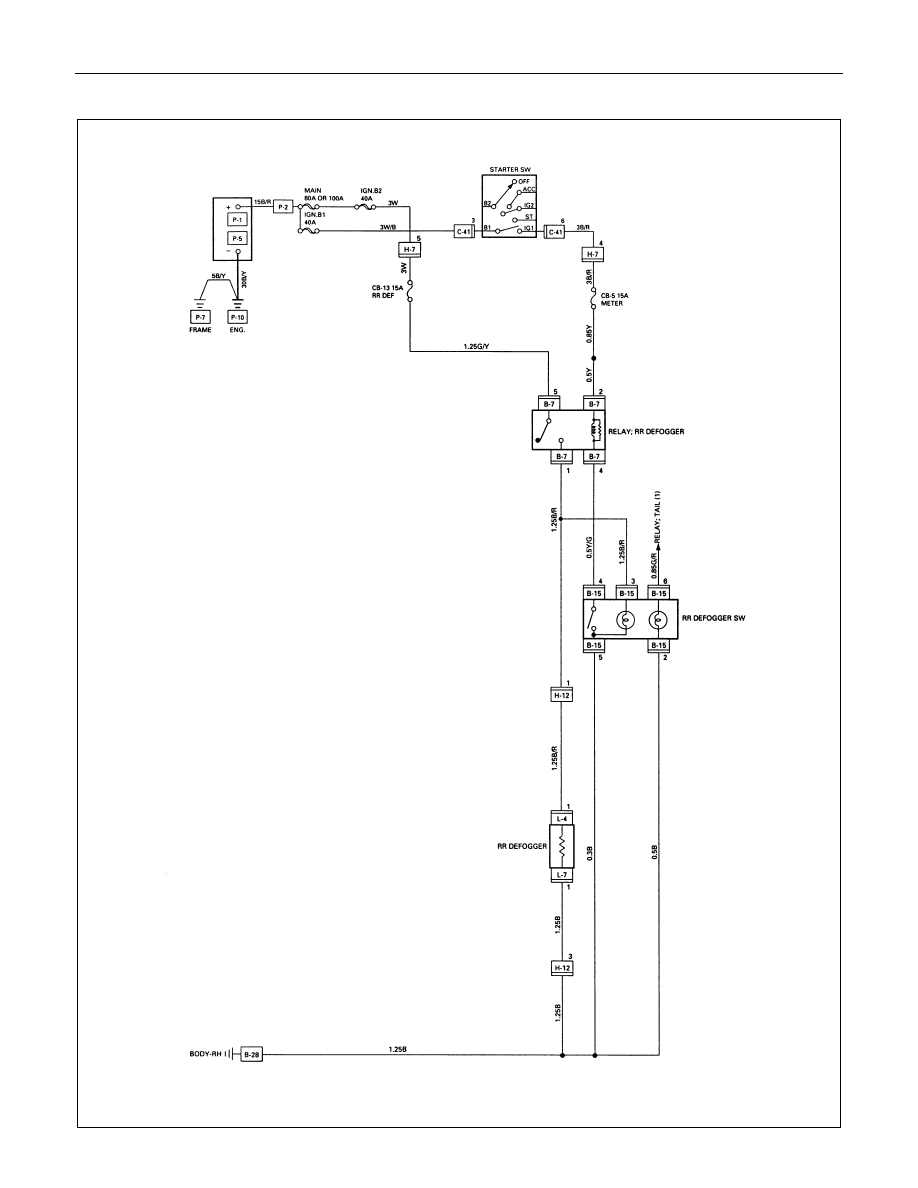

CIRCUIT DIAGRAM (RHD)
