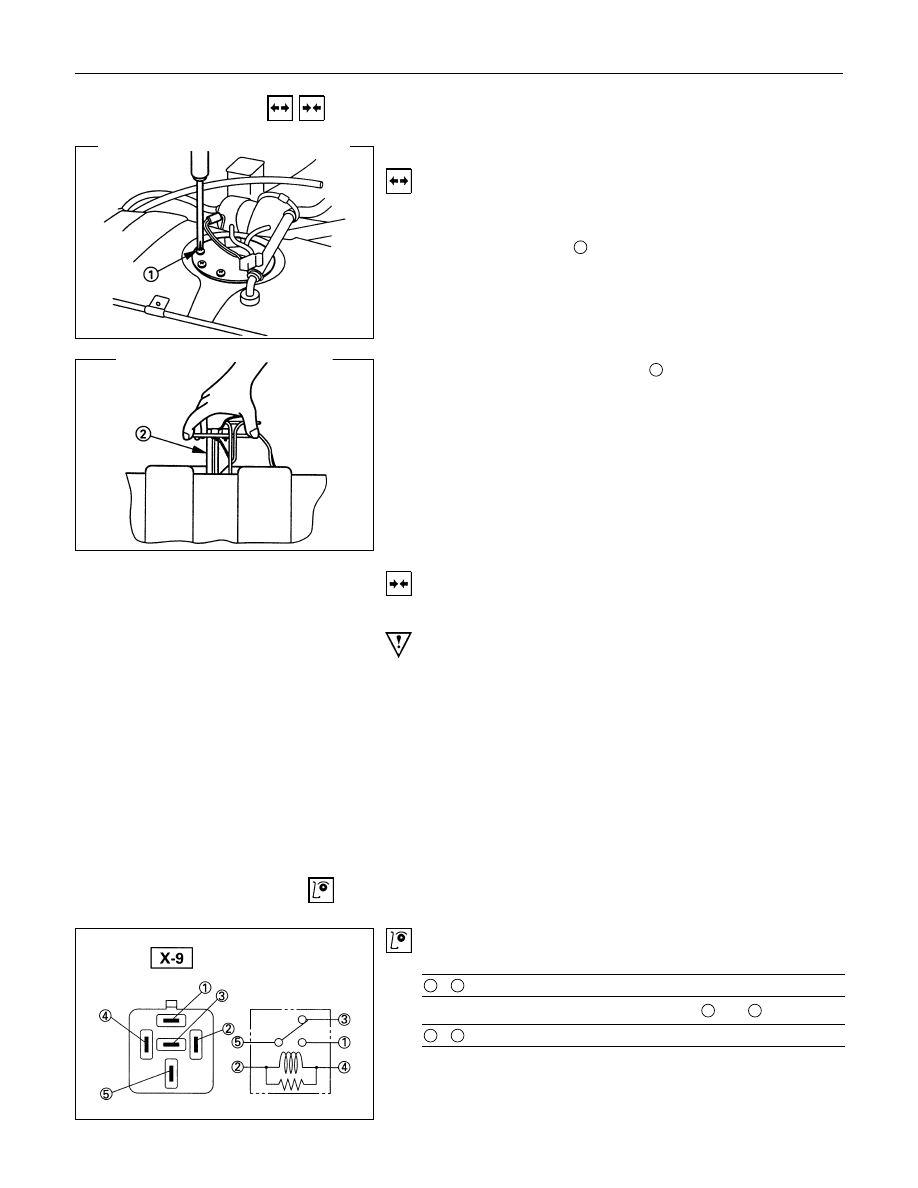

ELECTRICAL-BODY AND CHASSIS  8-57



  REMOVAL AND INSTALLATION

FUEL PUMP

Removal

1. Remove the fuel tank.

Refer to the "ENGINE" Section of this Manual.

2. Loosen the screws

1

.

3. Raise the fuel pump assembly

2

 from the fuel tank.

Installation

Follow the removal procedure in the reverse order to install the
fuel pump.
Pay close attention to the important points mentioned in the
following paragraphs.

Rubber Seal

Be absolutely sure that the fuel pump rubber seals correctly
seated.

Connector

Be absolutely sure that the fuel pump connector is securely
connected.
This will prevent a poor contact and an open circuit.

  INSPECTION AND REPAIR

Fuel pump relay

Check continuity between the relay terminals.

1

 -

5

............................ No continuity

(When battery voltage is applied between

2

 and

4

)

1

 -

5

............................ Continuity

8-58  ELECTRICAL-BODY AND CHASSIS

LIGHTING

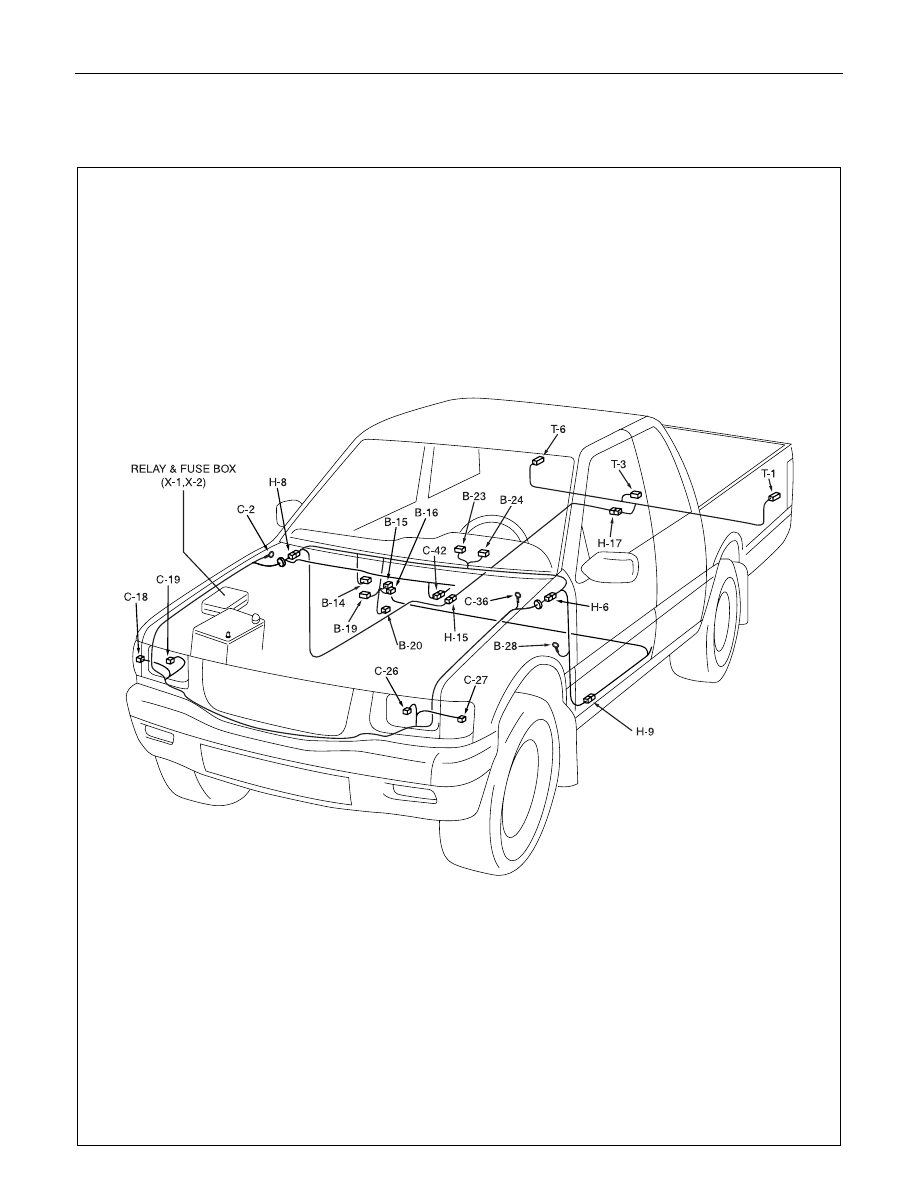

PARTS LOCATION (LHD)

ELECTRICAL-BODY AND CHASSIS  8-59

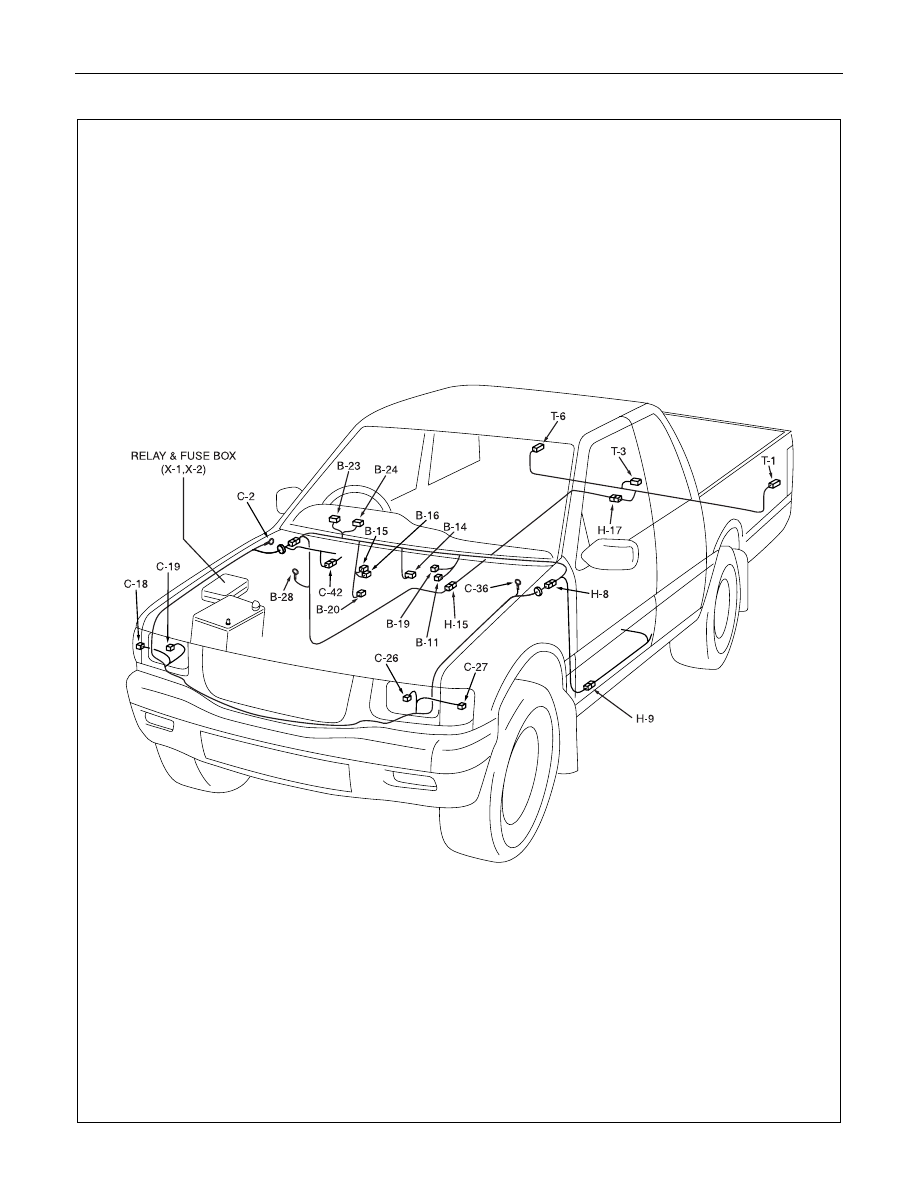

PARTS LOCATION (RHD)

8-60  ELECTRICAL-BODY AND CHASSIS

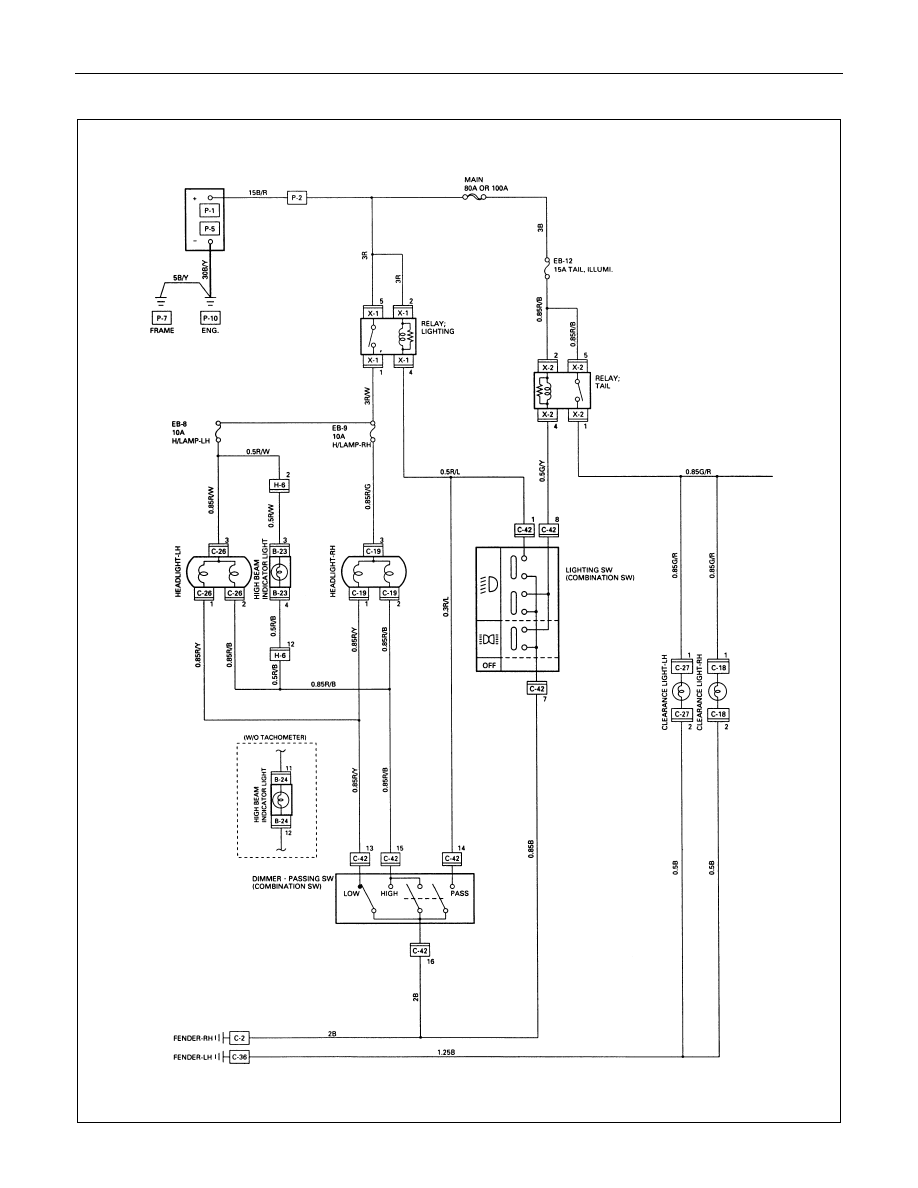

CIRCUIT DIAGRAM (LHD)
