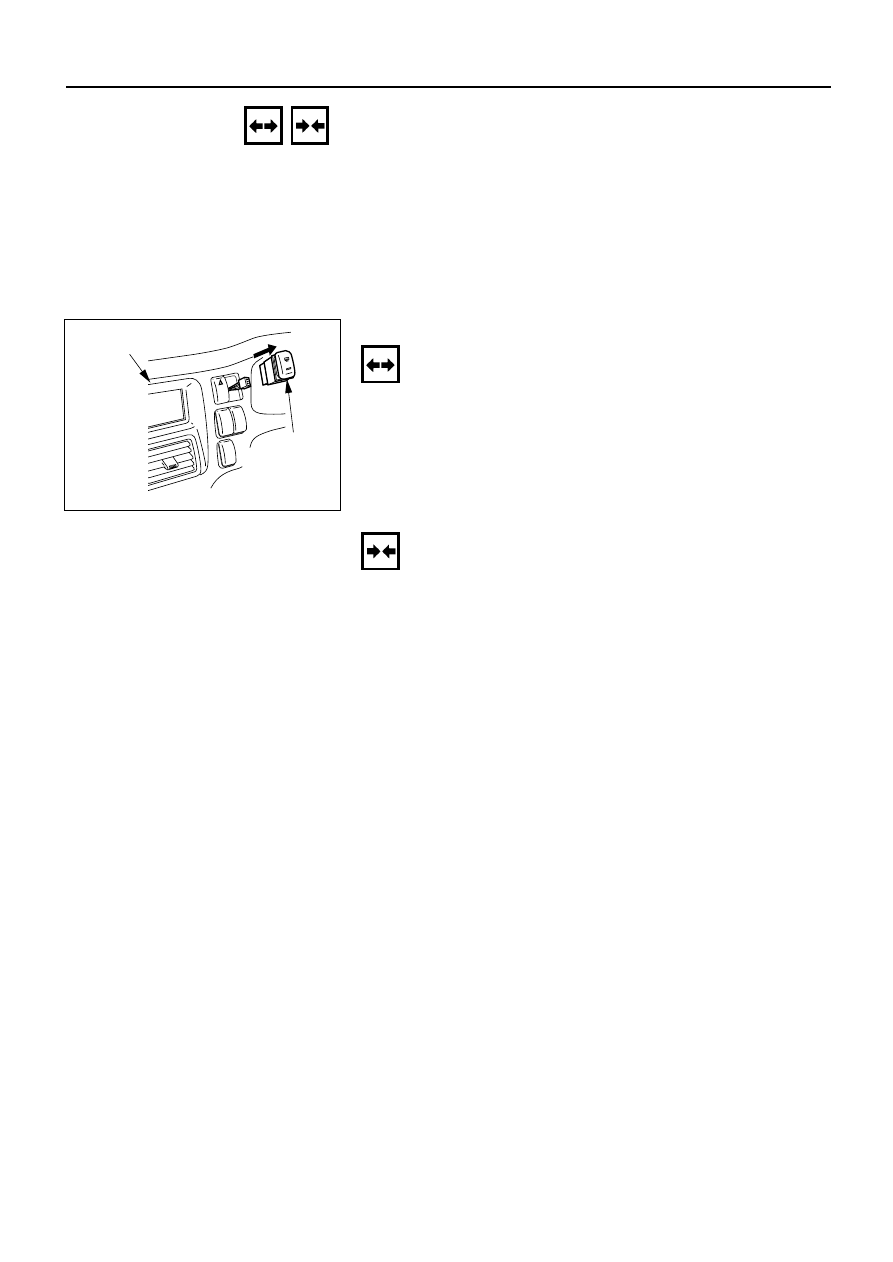

REAR DEFOGGER SWITCH

Removal

1. Instrument Panel Cluster Assembly

•

Refer to Section 10 “BODY” for instrument panel
cluster assembly removal steps.

2. Rear Defogger Switch

•

Disconnect the switch connector.

•

To remove the switch, push the lock from the back
side of the cluster assembly.

Rear defogger
switch

Instrument panel
cluster assembly

825RV095

Installation

Follow the removal procedure in the reverse order to
install the rear defogger switch.

This illustration is based on RHD

ELECTRICAL-BODY AND CHASSIS 8–325

INSPECTION AND REPAIR

REAR DEFOGGER RELAY

Check continuity between the relay terminals.

1 - 5 . . . . . . . . . . . . . . . . . . . . No continuity

(When battery voltage is applied between 2 and 4)

1 - 5 . . . . . . . . . . . . . . . . . . . . Continuity

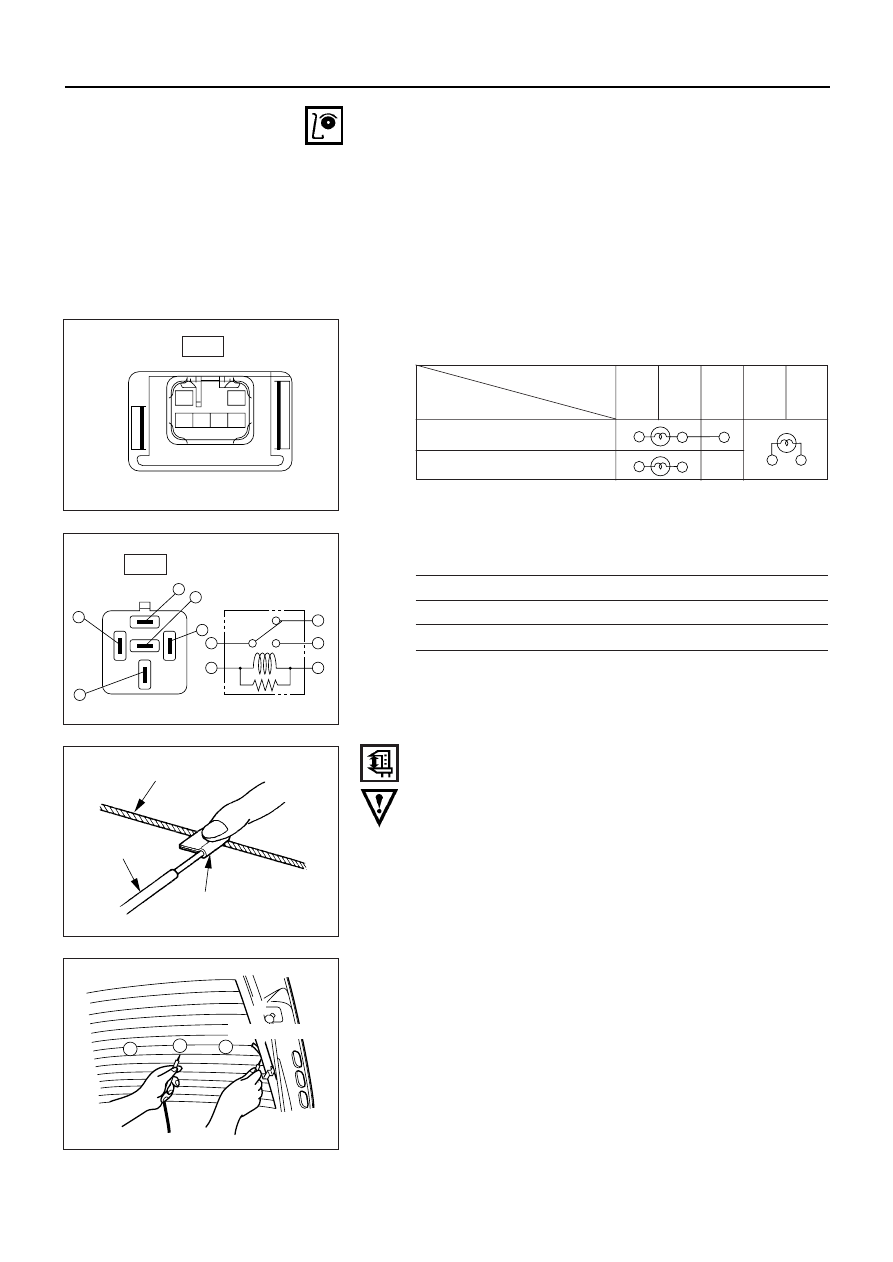

INSPECTION OF REAR DEFOGGER HEAT WIRE

•

Heat wires are printed on the inner side of glass.
To clean, use a soft cloth and wipe horizontally along
the wires.

•

Never use glass cleaner or equivalent.

•

When measuring voltage, wind a piece of tin foil
around the tip of the negative probe and press the
foil against the wire with your finger as shown.

(1)

Turn the ignition switch on.

(2)

Turn the defogger switch on.

(3)

Measure the voltage between the three points on the
heat wire and the (–) terminal with a voltmeter.

(4)

Check that the voltage becomes smaller from A to B
to C.

4

1

3

2

5

2

1

3

4

5

Heat wire

Test probe

Tin foil

Grounding side

A

B

C

060RV005

825RV102

825RV103

B-7

REAR DEFOGGER SWITCH

Rear Defogger Switch Connections

825RV095

2

6 5 4 3

1

B-15

Terminal No.

3

5

4

6

2

SW position

ON

OFF

Switch side

8–326 ELECTRICAL-BODY AND CHASSIS

(5)

If there is a place where the voltage suddenly
changes to 0V, there is a broken wire between there
and the power side.

(6)

Move the tester probe from the position where the
voltage changes to 0V toward the power side and
find where the voltage suddenly increases.

OV

Ground
side

Power
side

Broken
point

825RV101

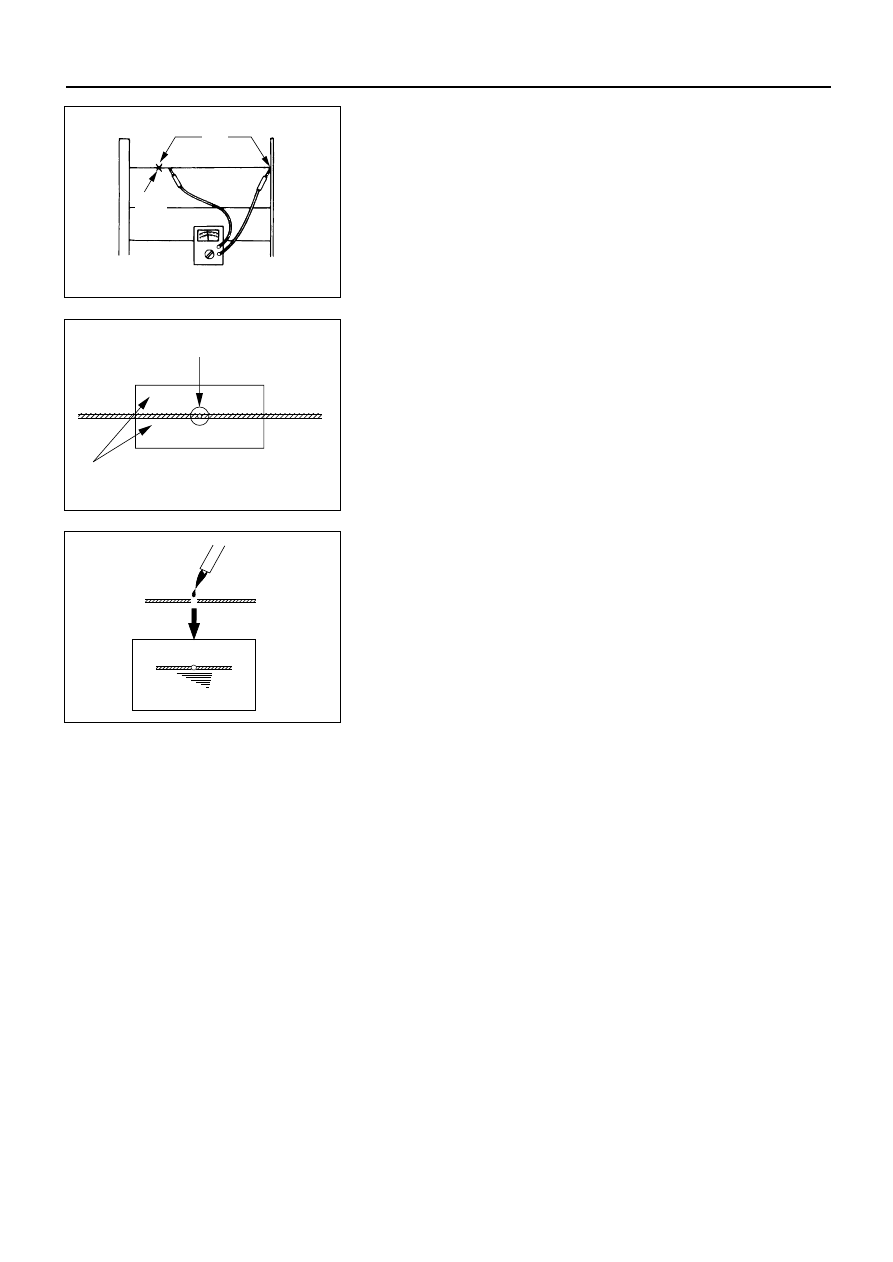

REPAIR OF BROKEN HEAT WIRE

(1)

Clean broken wire tips with white gasoline.

(2)

Place masking tape along both sides of wire to be
repaired.

Repair agent

Masking tape

Broken wire

825RV099

(3)

Thoroughly mix the repair agent (Dupont paste No.
4817 or equivalent).

(4)

Using a fine tip brush, apply a small amount to the
wire.

(5)

After a couple of minutes, remove the masking tape.

(6)

Allow to stand at least 24 hours.

,

,

825RV100
