8–192 ELECTRICAL-BODY AND CHASSIS

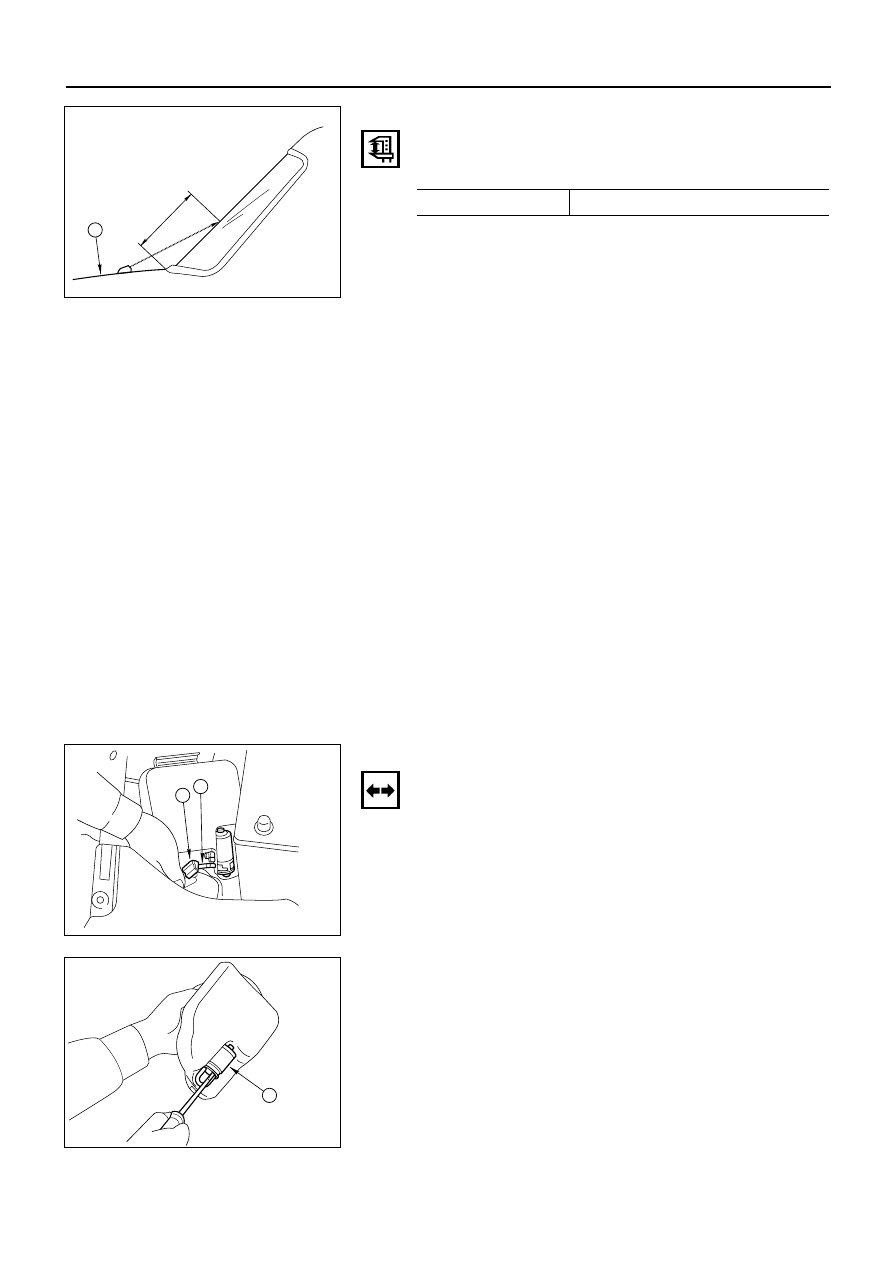

Windshield Washer Spray

Be sure that the engine hood 1 is completely closed
before checking the windshield washer spray adjustment.

Windshield Washer Spray Position

mm (in)

A

Approximately 300 (11.8)

1

A

825RV076

Connector

Be absolutely sure that the wiper motor connector is
securely connected.

This will prevent a poor contact and an open circuit.

Note:

Windshield wiper arm and blade assembly configurations
are different for the right-hand and left-hand side of the
vehicle.

Be careful not to confuse the right-hand and left-hand
side assemblies.

WASHER TANK MOTOR

Removal

1. Remove the washer tank bolts.

2. Disconnect the connector 1.

3. Disconnect the water hose 2.

2

1

825RV077

3

825RV078

4. Remove the washer tank motor 3.

ELECTRICAL-BODY AND CHASSIS 8–193

Installation

Follow the removal procedure in the reverse order to
install the washer tank motor.

Pay close attention to the important points mentioned in
the following paragraphs.

Connector

Be absolutely sure that the washer tank motor connector
is securely connected.

This will prevent a poor contact and an open circuit.

8–194 ELECTRICAL-BODY AND CHASSIS

OVERDRIVE OFF (A/T)

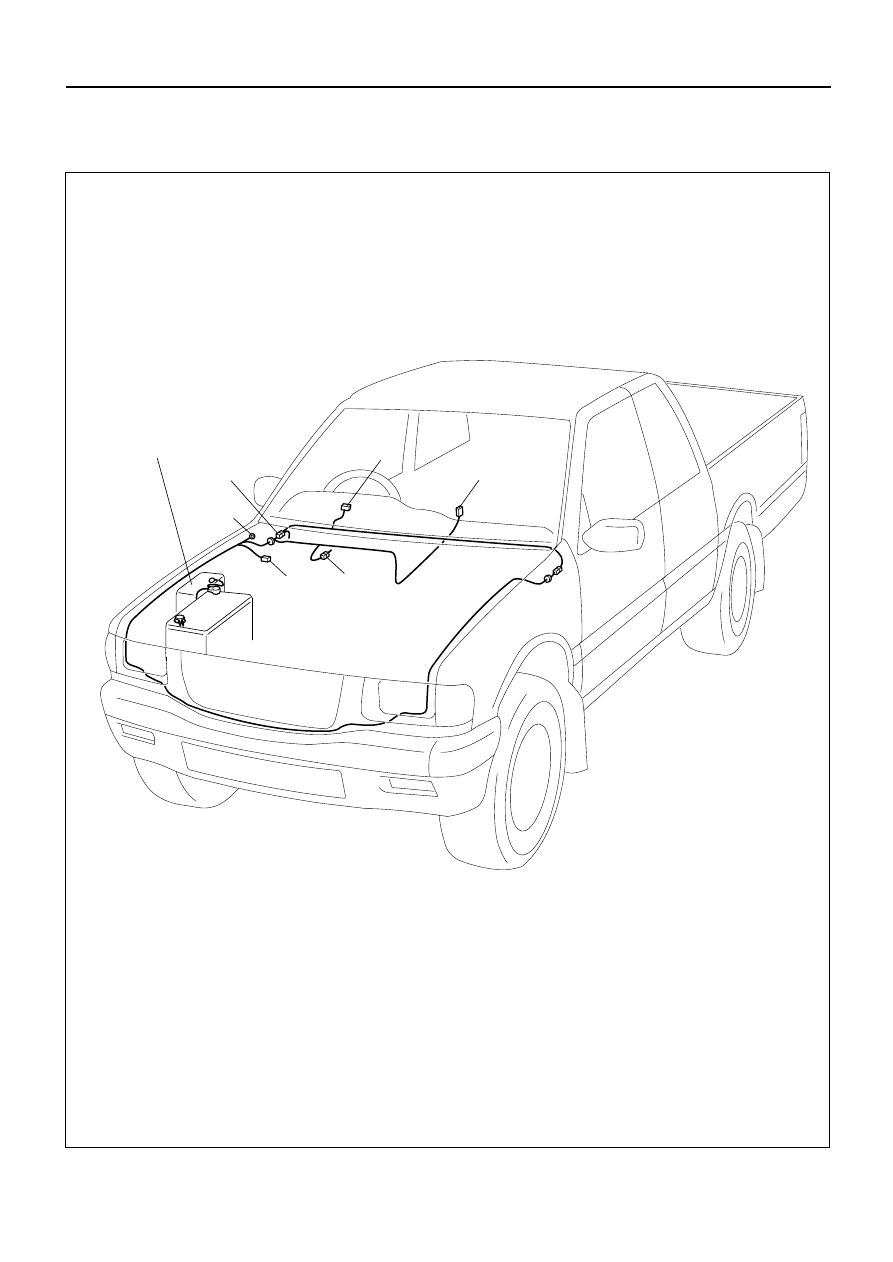

PARTS LOCATION

B-24

C-58

C-79

C-41

RELAY & FUSE BOX

(X-5)

C-2

H-6
H-7

D08RVA37

ELECTRICAL-BODY AND CHASSIS 8–195

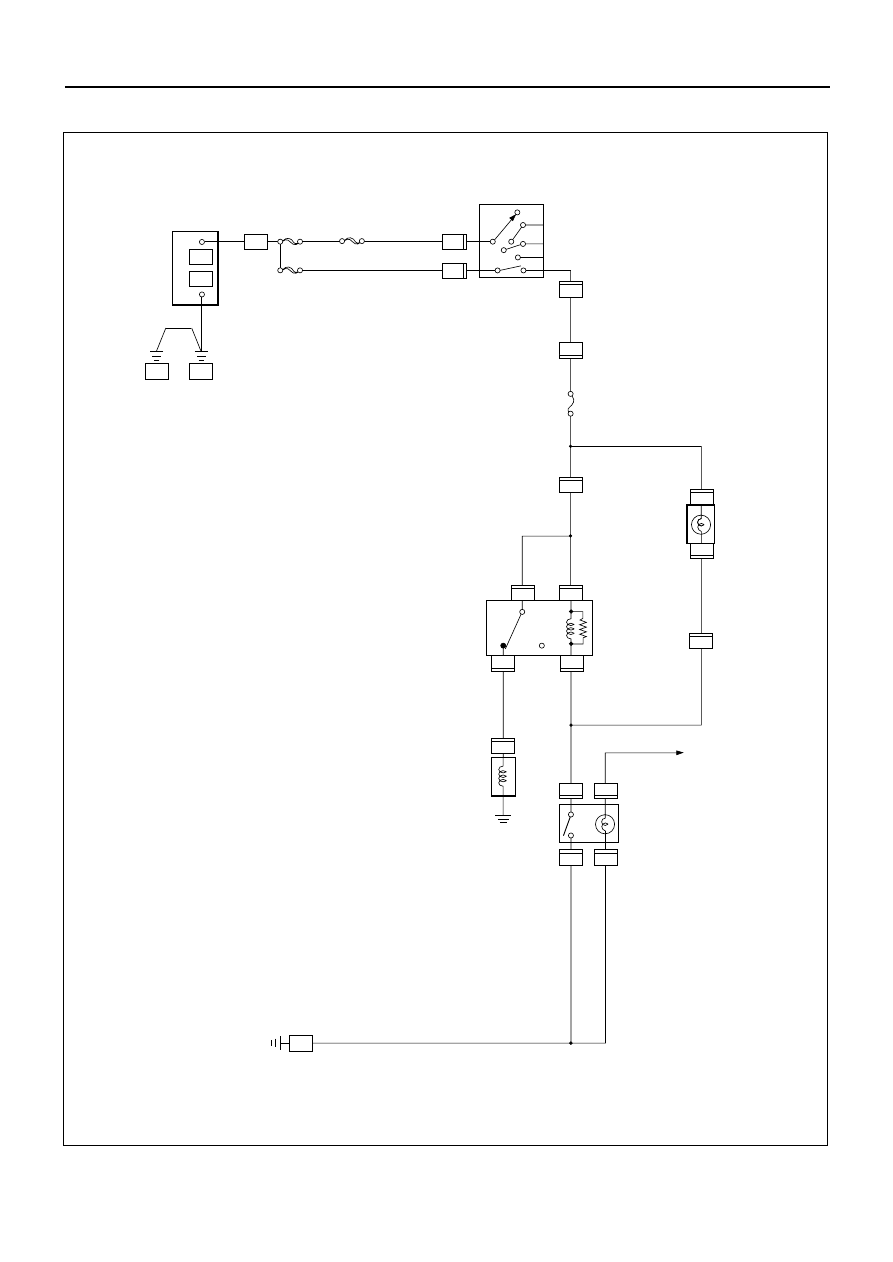

CIRCUIT DIAGRAM

D08RV961

B-24

8

B-24

2

2B

C-2

FENDER-RH

P - 1

P - 5

+

_

P - 10

20B/Y

ENG.

P - 7

FRAME

5B/Y

15B/R

P - 2

C - 41

C - 41

ACC

STARTER SW

IG2

ST

IG1

MAIN
100A

1

3

OFF

3 W

C - 41

6

H-6

10

H-6

4

H-7

4

B2

B1

3B/R

3B/R

0.85Y

0.85Y

CB-5
15A METER

0.85Y

0.85Y

0.5O/L

0.5B

0.5B

0.3O/L

0.3O/L

0.85G/R

0.85Y

0.85G/W

3 W/B

IGN.B1
40A

IGN.B2
40A

C-58

OVER DRIVE
OFF SW

RELAY;TAIL(1)

OVER DRIVE OFF
INDICATOR LIGHT

C-58

1

4

3

2

C-58

C-58

RELAY;
OVERDRIVE OFF

X - 5

2

X - 5

3

X -5

5

X - 5

4

1

C-79

OVERDRIVE
SOLENOID
