8–76 ELECTRICAL-BODY AND CHASSIS

STARTER SWITCH

Removal

1.

Steering Lock Assembly

•

Refer to Section 3B” STEERING COLUMN” for
steering lock assembly removal steps.

2.

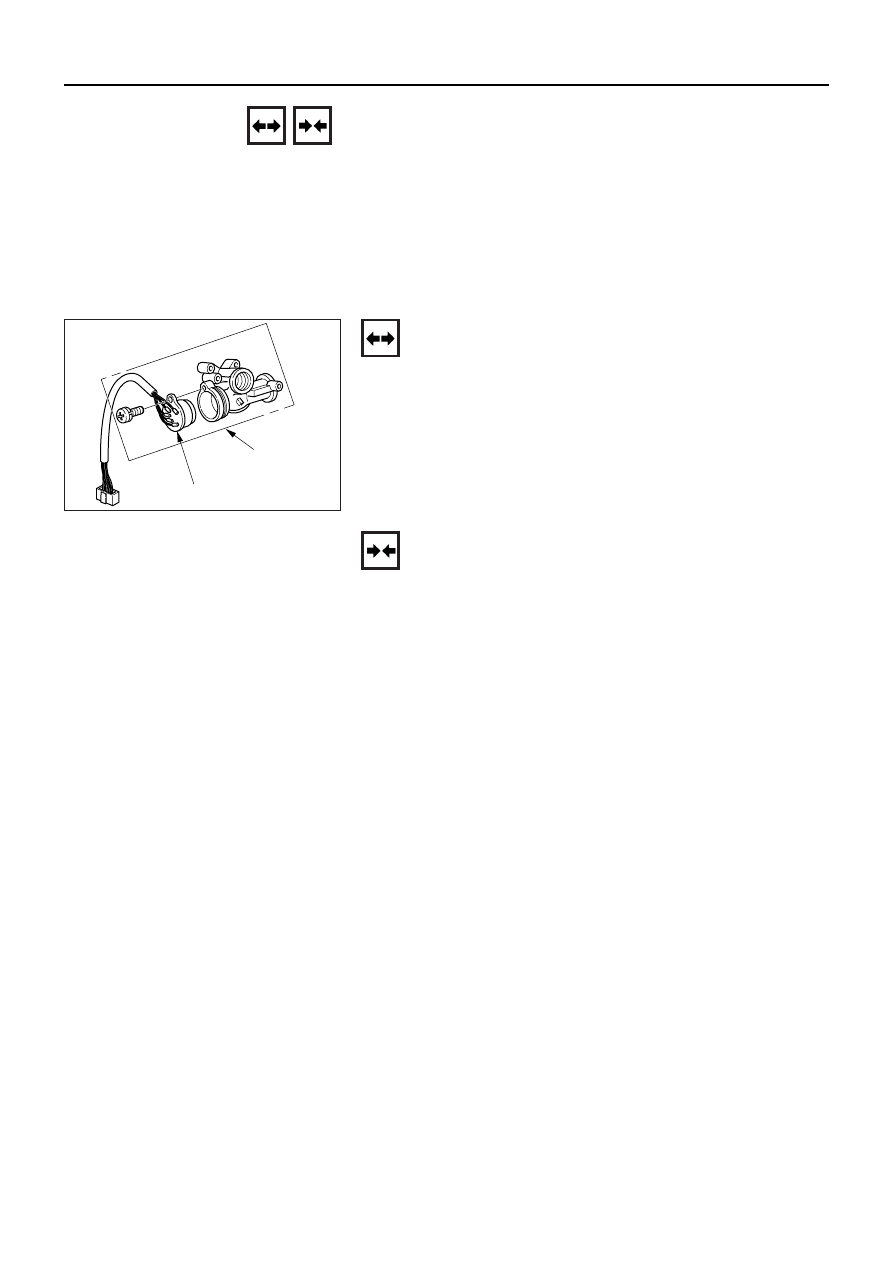

Starter Switch

Starter switch

Steering lock
assembly

730RS005

REMOVAL AND INSTALLATION

Installation

Follow the removal procedure in the reverse order to
install the starter switch.

ELECTRICAL-BODY AND CHASSIS 8–77

INSPECTION AND REPAIR

STARTER SWITCH

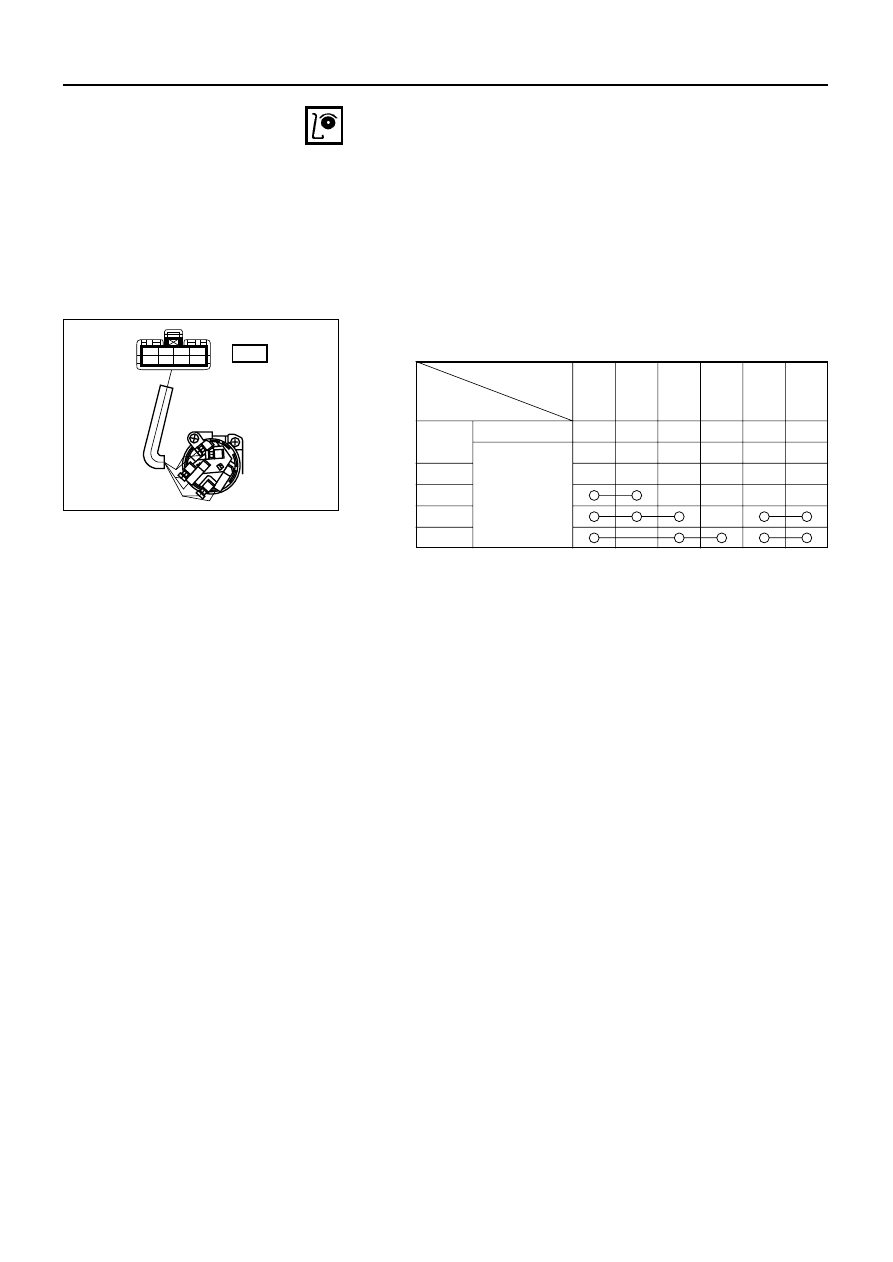

Switch Connections

1

2

3

4

5

6

7

8

C-41

730RV001

Starter

Terminal No.

1

4

8

2

3

6

switch key

(B2)

(ACC)

(IG2)

(ST)

(B1)

(IG1)

position

LOCK

Removed

OFF

ACC

Inserted

ON

START

8–78 ELECTRICAL-BODY AND CHASSIS

4

1

3

2

5

2

1

3

4

5

060RV005

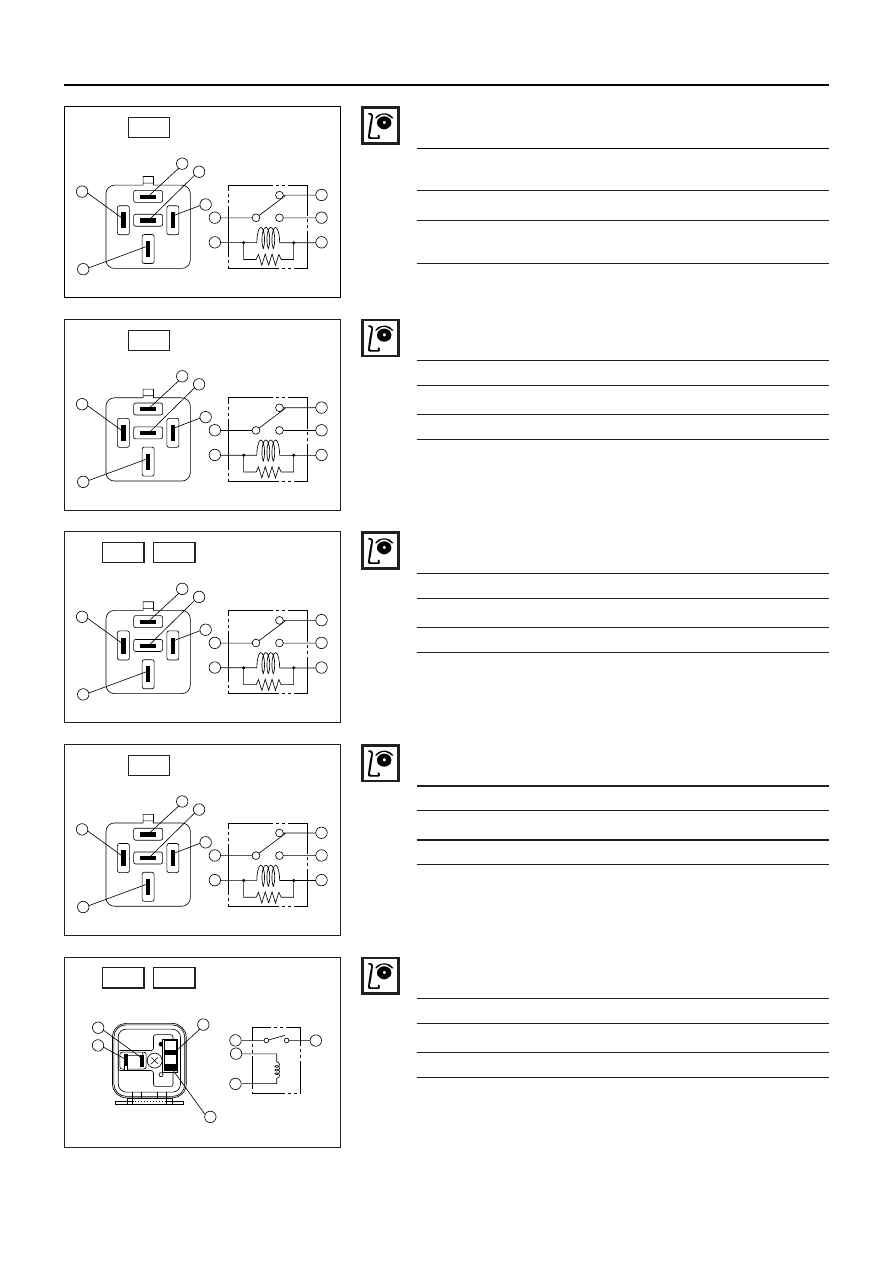

Charge relay (Diesel engine)

Check continuity between the relay terminals.

3 – 5  . . . . . . . . . . . . . .

Continuity

1 – 5  . . . . . . . . . . . . . .

No continuity

(When battery voltage is applied between 2 and 4)

3 – 5  . . . . . . . . . . . . . .

No continuity

1 – 5  . . . . . . . . . . . . . .

Continuity

X-5

4

1

3

2

5

2

1

3

4

5

060RV005

X-5

4

1

3

2

5

2

1

3

4

5

060RV005

X-3

X-6

4

1

3

2

5

2

1

3

4

5

060RV005

X-8

b

b

a

a

c

c

d

d

060RV006

C-10

C-11

Charge relay (Gasoline engine except 4ZE1 (MPI))

Check continuity between the relay terminals.

1 – 5  . . . . . . . . . . . . . .

No continuity

(When battery voltage is applied between 2 and 4)

1 – 5  . . . . . . . . . . . . . .

Continuity

Starter relay (Gasoline engine), Heater relay

Check continuity between the relay terminals.

1 – 5  . . . . . . . . . . . . . .

No continuity

(When battery voltage is applied between 2 and 4)

1 – 5  . . . . . . . . . . . . . .

Continuity

St. cut relay

Check continuity between the relay terminals.

3 – 5  . . . . . . . . . . . . . .

Continuity

(When battery voltage is applied between 2 and 4)

3 – 5  . . . . . . . . . . . . . .

No continuity

Starter relay (Diesel engine)

Check continuity between the relay terminals.

a – b  . . . . . . . . . . . . . . No continuity

(When battery voltage is applied between c and d)

a – b  . . . . . . . . . . . . . . Continuity

ELECTRICAL-BODY AND CHASSIS 8–79

1

3

2

5

5

2

1

3

D08RW599

X-24

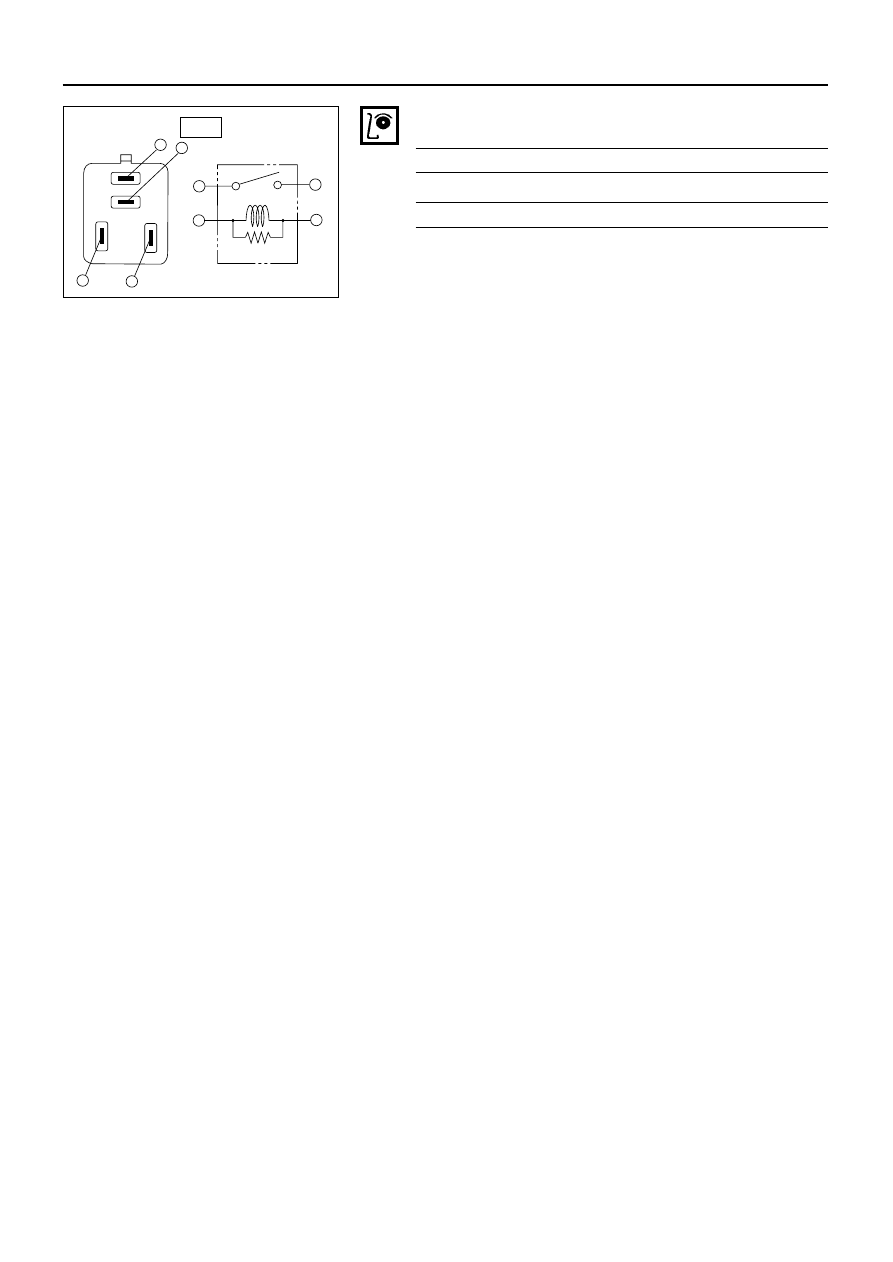

Starter relay (Gasoline engine 6VD1)

Check continuity between the relay terminals.

1 – 2  . . . . . . . . . . . . . .

Continuity

(When battery voltage is applied between 3 and 5)

1 – 2  . . . . . . . . . . . . . .

No continuity
