8–56 ELECTRICAL-BODY AND CHASSIS

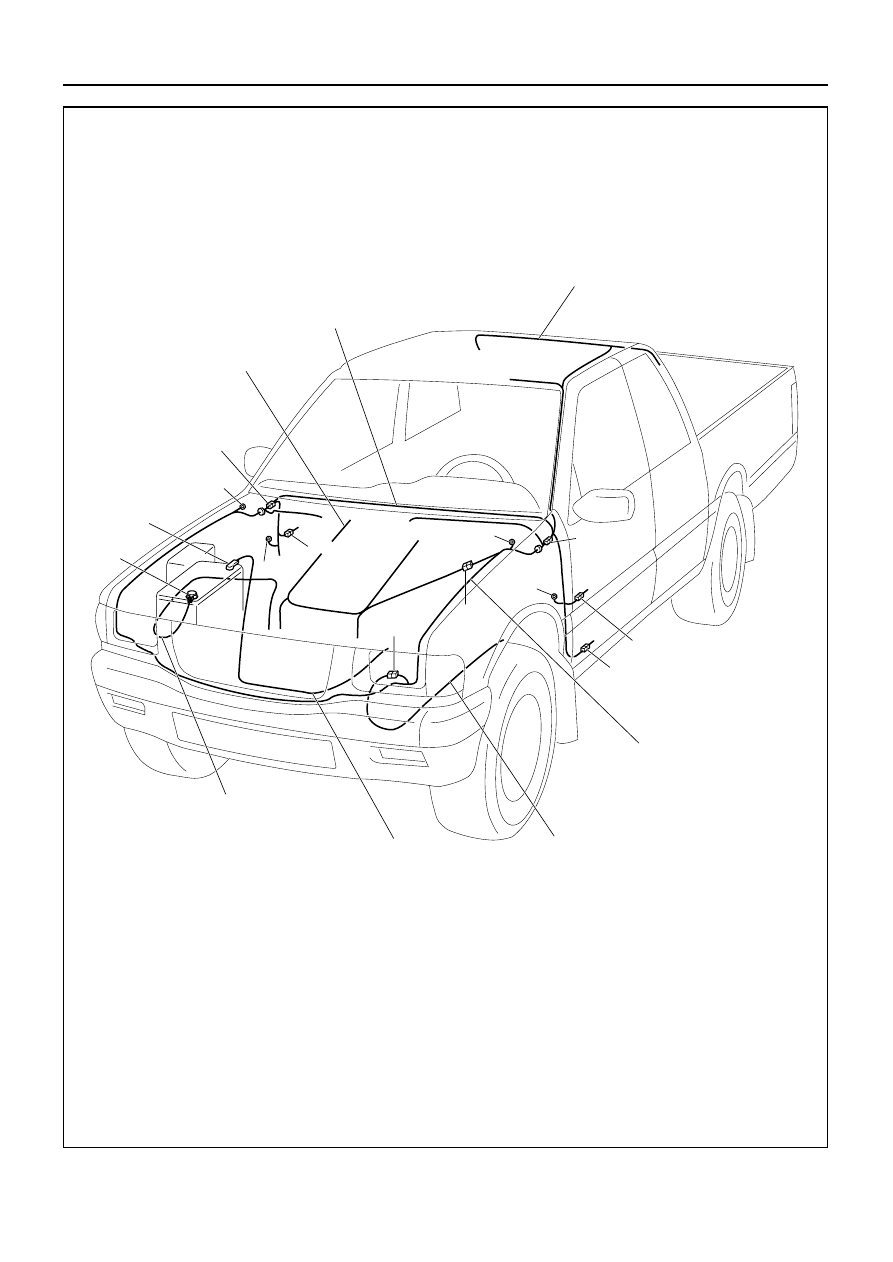

D08RVA56

H-8

H-13

H-15

H-19
H-20

H-16

F-3

H-17

H-14

H-6
H-7
H-11
H-12

H-10

REAR
DOOR
HARNESS
-LH

FRONT
DOOR
HARNESS
-LH

REAR BODY
HARNESS

COMBINATION LIGHT
HARNESS

CHASSIS
HARNESS

REAR DOOR
HARNESS-RH

ENGINE ECGI
HARNESS

ENGINE & TRANSMISSION HARNESS(DIESEL)
TRANSMISSION HARNESS(GASOLINE)

FRONT DOOR
HARNESS-RH

H-4(DIESEL)
H-5(GASOLINE)

H-1(GASOLINE)
H-2

B-28

H-9

(LHD)

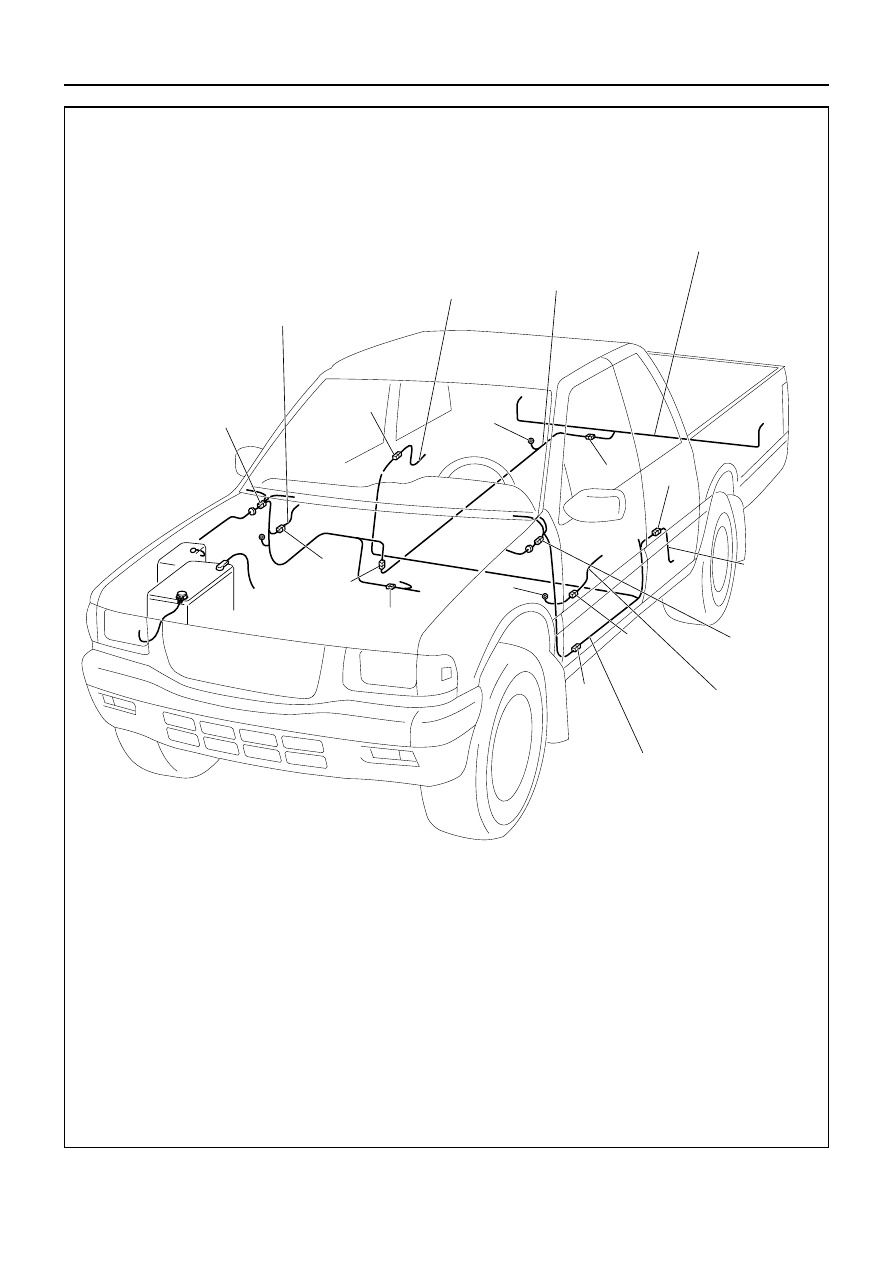

ELECTRICAL-BODY AND CHASSIS 8–57

D08RW561

H-34

H-10

H-8

C-36

H-13

B-9

C-2

H-6
H-11
H-12
H-28

P-1

P-5

B-28

H-22

H-20
H-24
H-25

BATTERY NEGATIVE
CABLE

BATTERY POSITIVE
CABLE

ENGINE ROOM
HARNESS

TRANS MISSION
HARNESS

BODY HARNESS

ENGINE HARNESS

DOME LIGHT HARNESS

(LHD-6VD1)

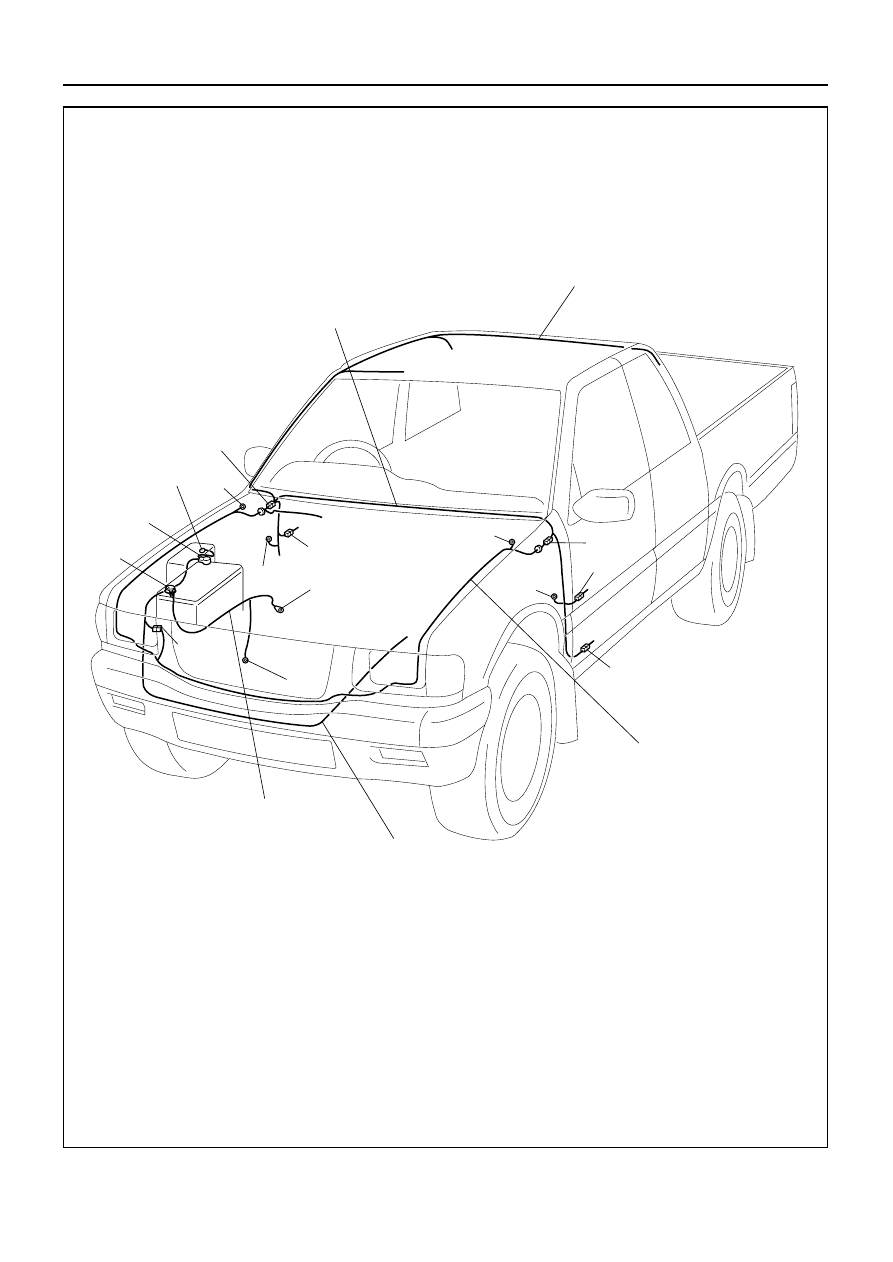

8–58 ELECTRICAL-BODY AND CHASSIS

D08RW562

H-8

H-13

H-15

H-32

H-16

F-3

H-17

H-14

H-6
H-11
H-12
H-28

H-10

REAR
DOOR
HARNESS
-LH

FRONT
DOOR
HARNESS
-LH

REAR BODY
HARNESS

COMBINATION LIGHT
HARNESS

CHASSIS
HARNESS

REAR DOOR
HARNESS-RH

FRONT DOOR
HARNESS-RH

B-28

H-34

(LHD-6VD1)

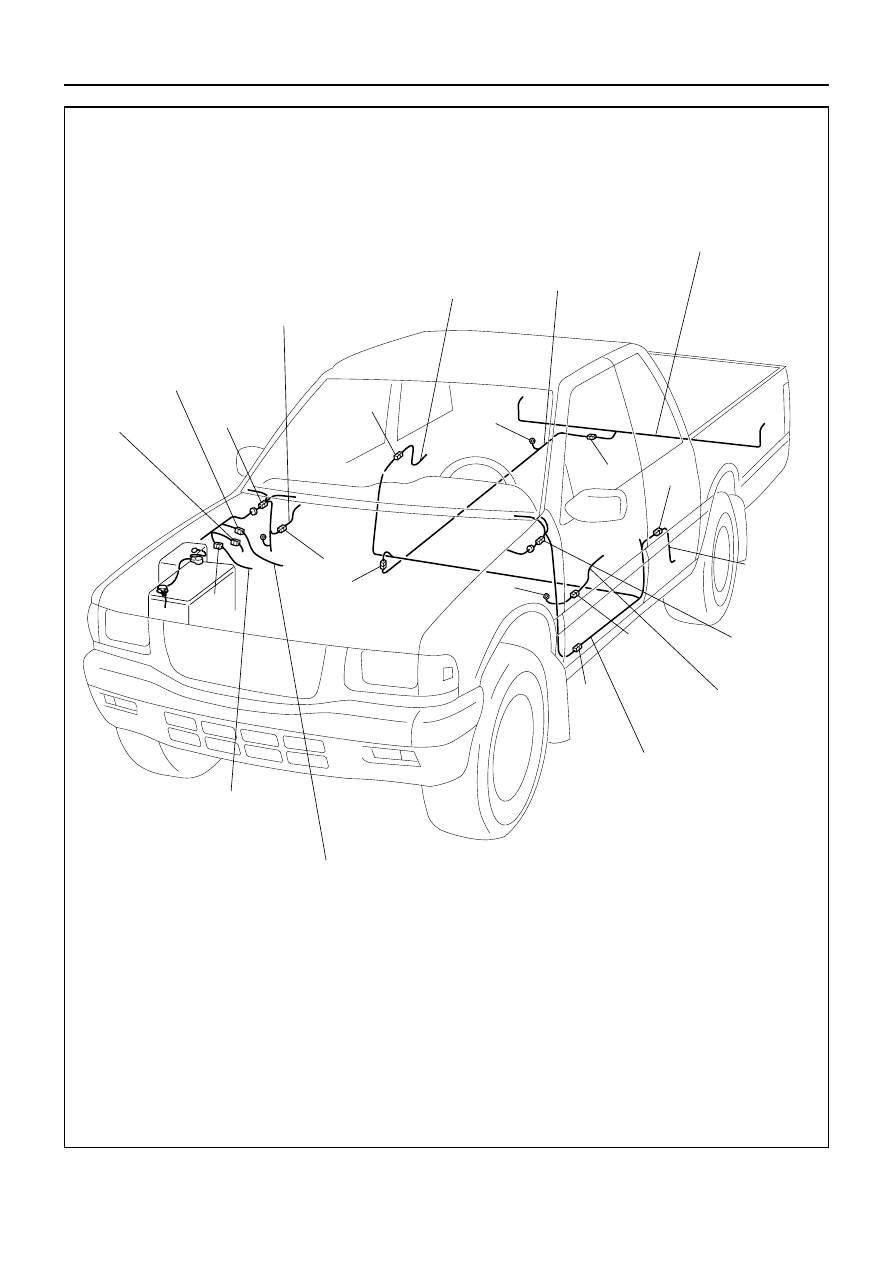

ELECTRICAL-BODY AND CHASSIS 8–59

D08RVA57

H-1
(DIESEL)

BATTERY NEGATIVE
CABLE

BATTERY POSITIVE
CABLE

ENGINE ROOM
HARNESS

BODY HARNESS

DOME LIGHT HARNESS

P-7

P-10

H-9

H-13

H-8

C-36

H-10

B-28

C-2

H-6
H-7
H-11
H-12

P-1

P-5

P-2

B-9

(RHD)
