8–8 ELECTRICAL-BODY AND CHASSIS

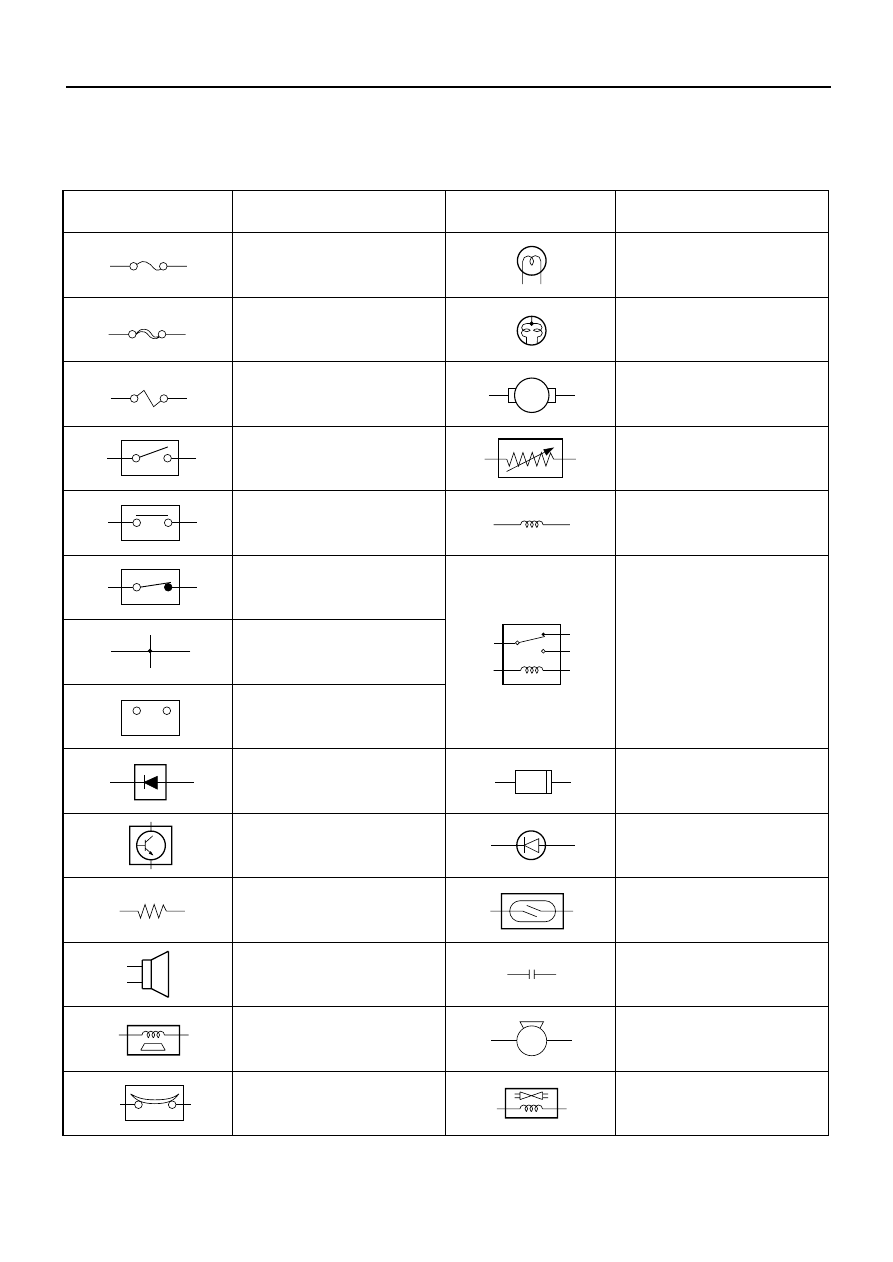

SYMBOLS AND ABBREVIATIONS

SYMBOLS

Symbol

Meaning of Symbol

Fuse

Fusible link

Fusible link wire

Switch

Switch

Contact wiring

Battery

Diode

Electronic Parts

Resistor

Speaker

Buzzer

Circuit breaker

Symbol

Meaning of Symbol

Bulb

Double filament bulb

Motor

Variable resistor
Rheostat

Coil (inductor), solenoid,
magnetic valve

Relay

Connector

Light emitting diode

Reed switch

Condenser

Horn

Vacuum switching valve

+

–

Switch
(Normal close type)

M

ELECTRICAL-BODY AND CHASSIS 8–9

ABBREVIATIONS

Abbreviation

Meaning of Abbreviation

A

ABS

ASM

AC

A/C

ACC

A/T

CARB

C/B

CSD

DIS

EBCM

ECGI

ECM

ECU

EFE

4A/T

4X4

FL

FRT

H/L

IC

IG

kW

Ampere (S)

Anti-lock brake system

Assembly

Alternating current

Air conditioner

Accessories

Automatic transmission

Carburetor

Circuit breaker

Cold start device

Direct ignition system

Electronic brake control module

Electronic control gasoline injection

Engine control module

Electronic control unit

Early fuel evaporation

4-speed automatic transmission

Four-wheel drive

Fusible link

Front

Headlight

Integrated circuit

Ignition

kilowatt

Abbreviation

Meaning of Abbreviation

LH

LWB

MPI

M/T

OD

OPT

QOS

RH

RR

RWAL

SRS

ST

STD

SW

SWB

TCM

3A/T

V

VSV

W

WOT

W/

W/O

Left hand

Long wheel base

Multiport fuel injection

Manual transmission

Over drive

Option

Quick on start

Right hand

Rear

Rear wheel anti-lock brake system

Supplemental restraint system

Start

Standard

Switch

Short wheel base

Transmission control module

3-speed automatic transmission

Volt

Vacuum switching valve

Watt (S)

Wide open throttle

With

Without

8–10 ELECTRICAL-BODY AND CHASSIS

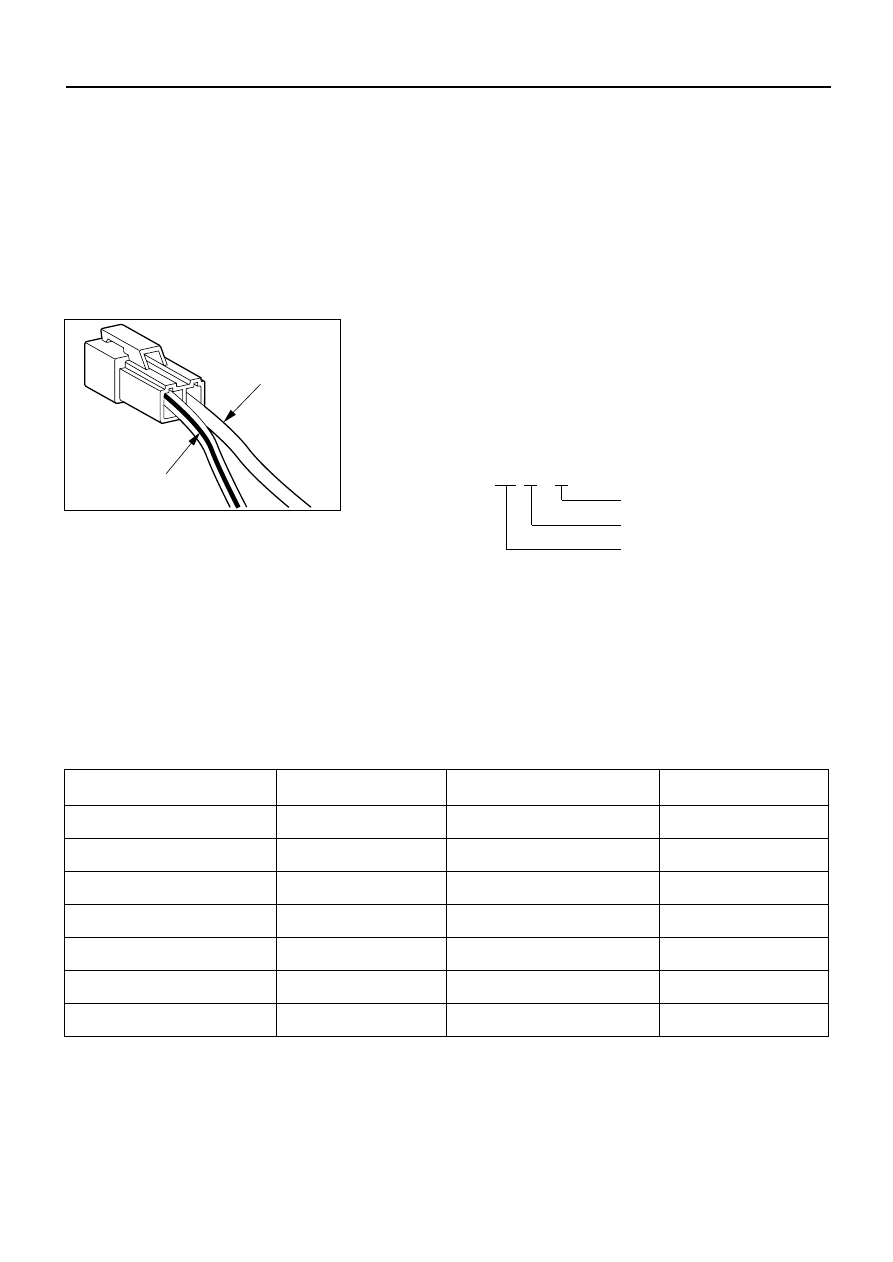

PARTS FOR ELECTRICAL CIRCUIT

WIRING

Wire Color
All wires have color-coded insulation.
Wires belonging to system’s main harness will have a
single color.  Wires belonging to a system’s sub-circuits
will have a colored stripe.  Striped wires use the following
code to show wire size and colors.

Example: 0.5 G / R

Red (Stripe color)

Green (Base color)

Wire size (0.5 mm

2

)

Abbreviations are used to indicate wire color within a
circuit diagram.
Refer to the following table.

Colored stripe

Single color

D08RV840

Wire Color-Coding

Color-Coding Meaning

Color-Coding Meaning

B

Black

BR

Brown

W

White

LG

Light green

R

Red

GR

Grey

G

Green

P

Pink

Y

Yellow

LB

Light blue

L

Blue

V

Violet

O

Orange

ELECTRICAL-BODY AND CHASSIS 8–11

Distinction of Circuit by Wire Base Color

Base color

Circuits

Base color

Circuits

B

Starter circuit and grounding circuit

Y

Instrument circuit

W

Charging circuit

R

Lighting circuit

Other circuits

G

Signal circuit

Wire Size Specifications

Normal size

Cross sectional area

Outside diameter

Allowable current

(mm

2

)

(mm)

(A)

0.3

0.372

1.8

9

0.5

0.563

2.0

12

0.85

0.885

2.2

16

1.25

1.287

2.5

21

2

2.091

2.9

28

3

3.296

3.6

37.5

5

5.227

4.4

53

8

7.952

5.5

67

15

13.36

7.0

75

20

20.61

8.2

97

L,O, BR,
LG, GR,
P, LB, V

Wire Size

Wire size is specified with the metric gauge system.
The metric gauge system gives the wire size in cross
sectional area measured in square millimeters.

Outside diameter

Cross sectional area

D08RV683
