DOOR SWITCH

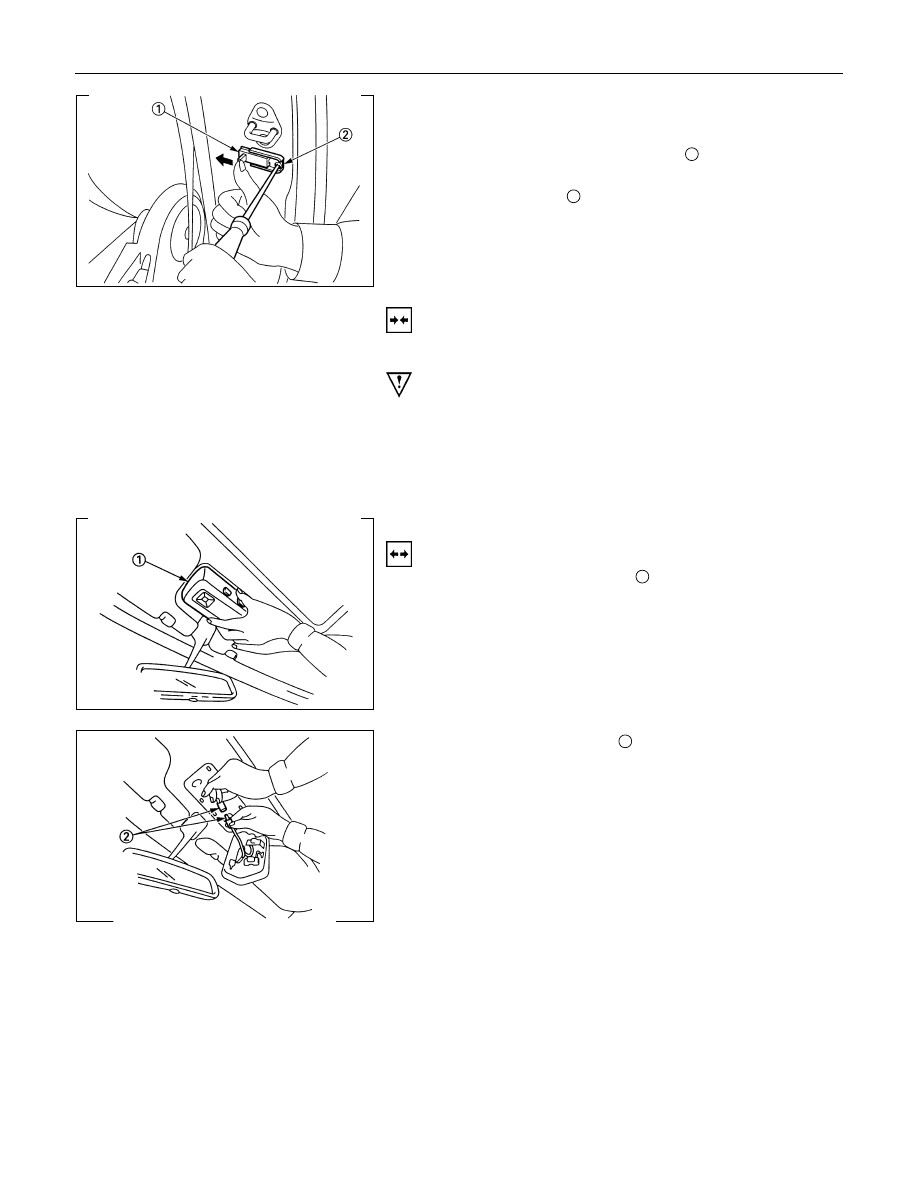

Removal

1.  Push the door switch sliding portion

1

 in the direction of the

arrow in the illustration.

2.  Loosen the screw

2

.

3.  Pull the switch free to remove it.
4.  Disconnect the door switch connector.









Installation

Follow the removal procedure in the reverse order to install the
spot light.
Pay close attention to the important points mentioned in the
following paragraphs.







Connector

Be absolutely sure that the door switch connector is securely
connected.
This will prevent a poor contact and an open circuit.






SPOT LIGHT

Removal

1.  Grasp the spot light housing

1

 with both hands.



Pull the housing straight down.



This will release the clip.








2.  Disconnect the connector

2

.

3.  Push the bulb in and turn it counterclockwise to remove it.


ELECTRICAL-BODY AND CHASSIS  8-177






Installation

Follow the removal procedure in the reverse order to install the
spot light.
Pay close attention to the important points mentioned in the
following paragraphs.






Connector

Be absolutely sure that the spot light connector is securely
connected.
This will prevent a poor contact and an open circuit.







Bulb

Be absolutely sure that the spot light bulb is correctly installed.
This will prevent a poor contact and an open circuit.






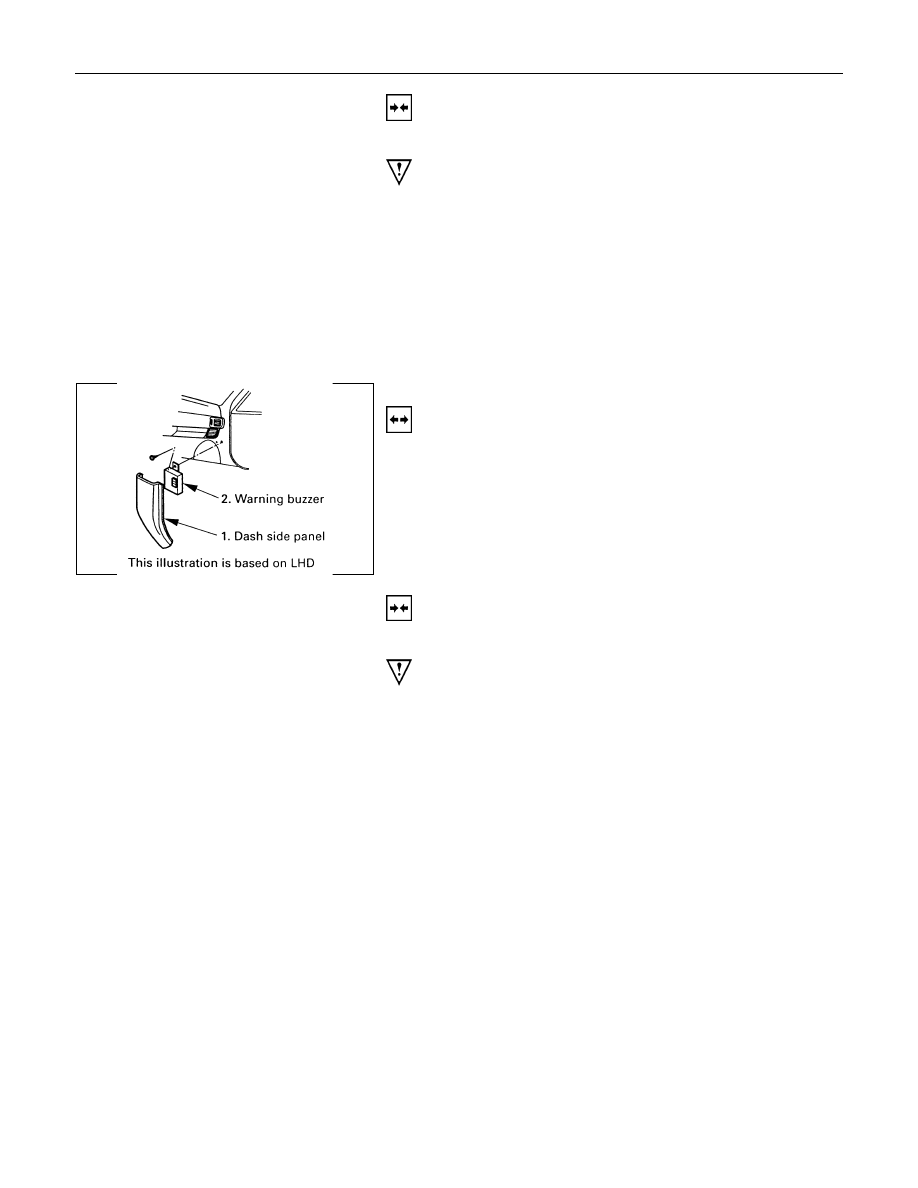

WARNING BUZZER (For Gulf only)

Removal

1.  Dash Side Panel
2. Warning Buzzer

·  Disconnect the connector.
·  Remove the screw.









Installation

Follow the removal procedure in the reverse order to install the
warning buzzer.
Pay close attention to the important points mentioned in the
following paragraphs.







Connector

Be absolutely sure that the warning buzzer connector is
securely connected.
This will prevent a poor contact and an open circuit.




8-178  ELECTRICAL-BODY AND CHASSIS

  INSPECTION AND REPAIR








DOOR SWITCH

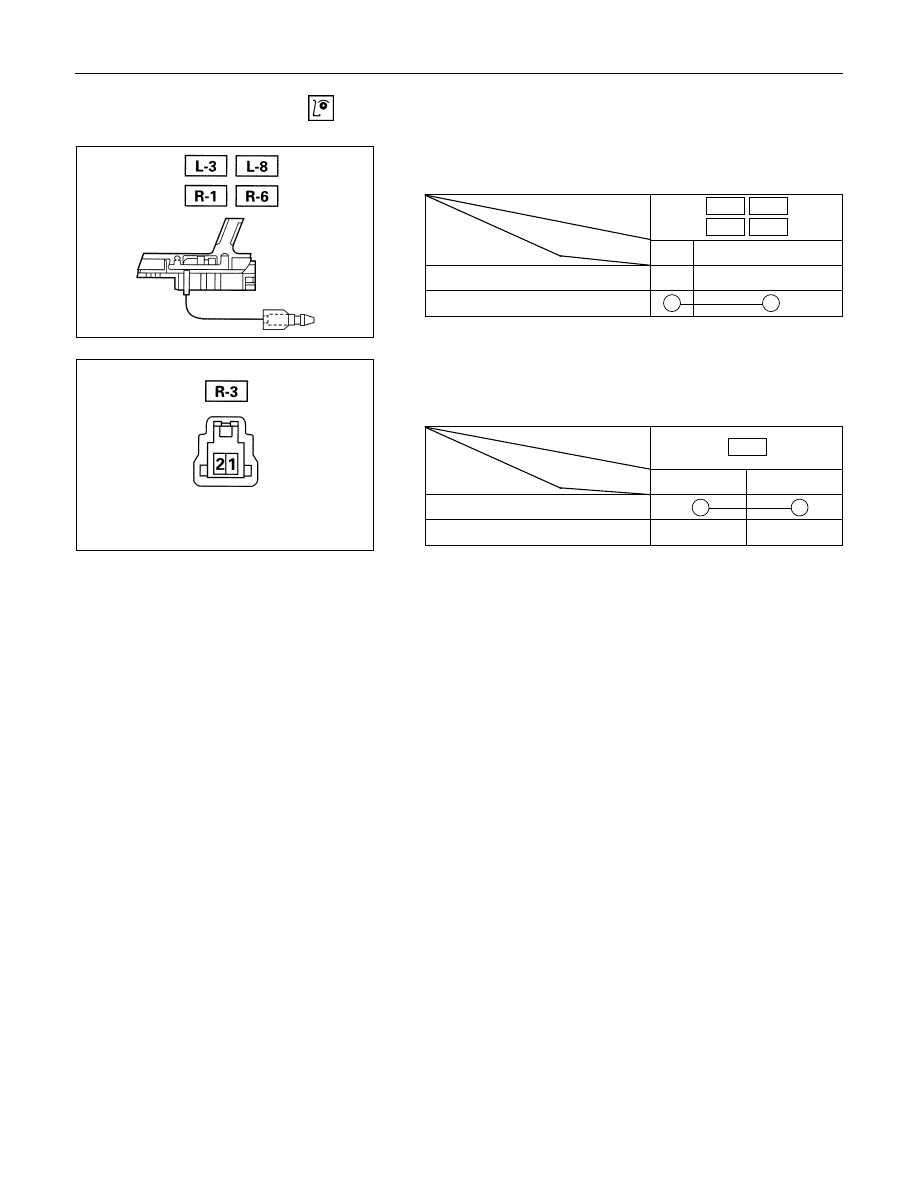

Door Switch Connections

Connector

SW

No.

L-3



L-8

R-1



R-6

position

Terminal No.

1

Body Ground

PUSHED

RELEASED




Switch side






SEAT BELT SWITCH (GULF, SOUTH

AFRICA)

Seat Belt Switch Connections

Connector

SW

No.

R-3

position

Terminal No.

1

2

ON (Belt tongue removed)

OFF (Belt tongue inserted)




ELECTRICAL-BODY AND CHASSIS  8-179



WARNING BUZZER

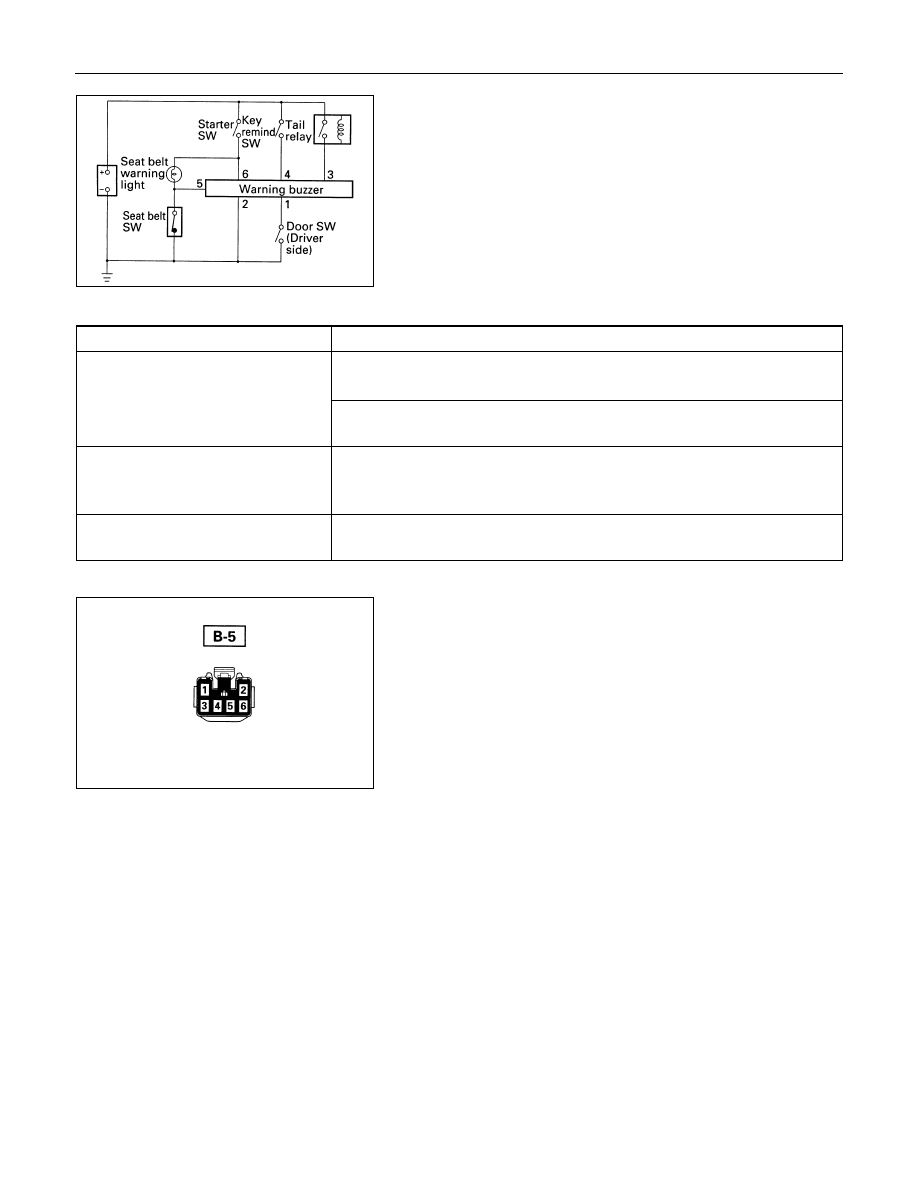

1.  Warning Buzzer Circuit



Warning function

Operational conditions




The warning light meter assembly turned about 6 seconds from the
moment the starter switch is turned on.



The buzzer sounds for about 6 seconds when the starter switch is turned
on with the seat belt switch on (when the seat belt is not used).


Key left in starter switch

The buzzer sounds when both the key remind switch and the FRT door
switch-LH are turned on.
To stop the sound of the buzzer, turn on the starter switch.

Tail lights left on

The buzzer sounds when the starter switch is turned from the “on” to “off”
position while the taillights are on.




Harness side






2.  Warning Buzzer Harness Side Connector Circuit
  Disconnect the warning buzzer connector and check

continuity and voltage between the warning buzzer harness
side connector terminals.





Fasten the seat belt
