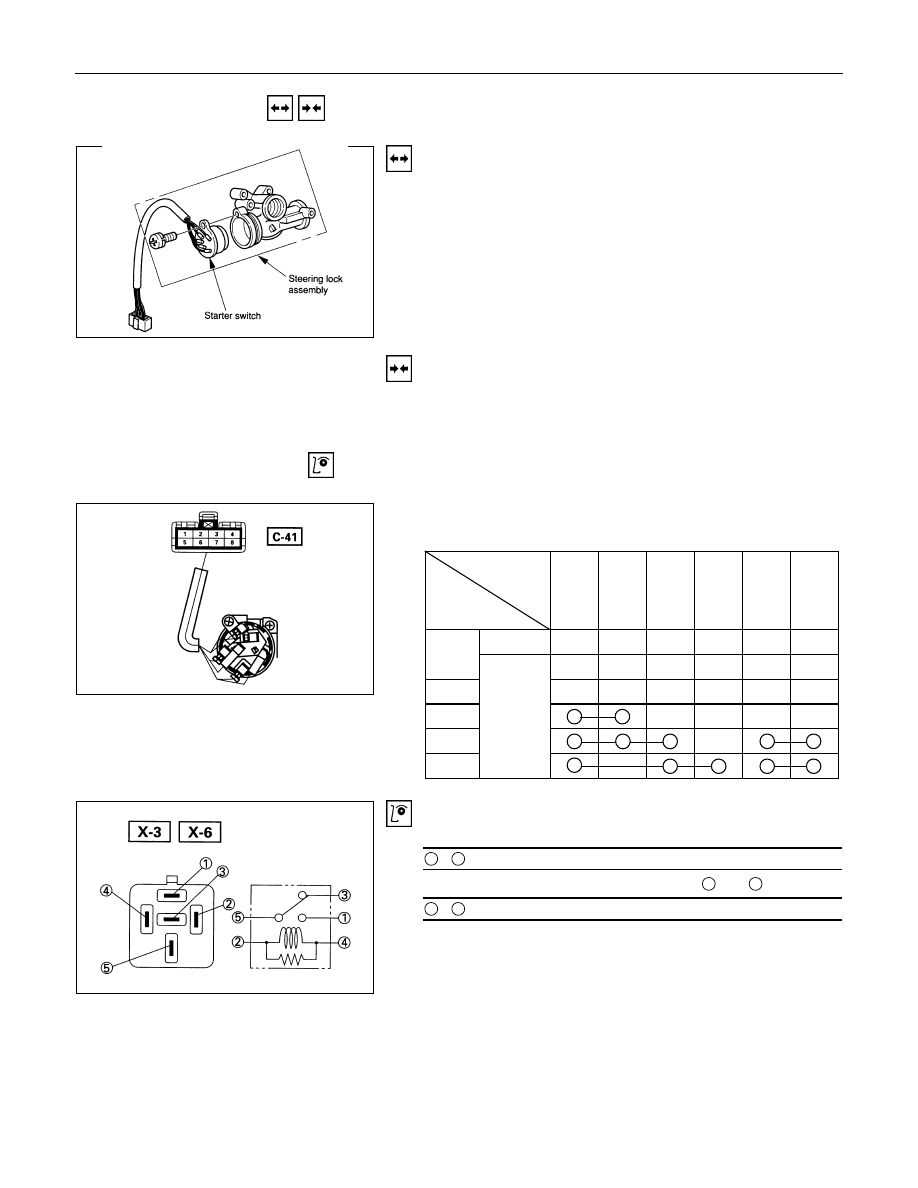

8-72  ELECTRICAL-BODY AND CHASSIS



  REMOVAL AND INSTALLATION





STARTER SWITCH

Removal

1.  Steering Lock Assembly

·  Refer to Section 3B" STEERING COLUMN" for steering

lock assembly removal steps.

2. Starter Switch





Installation

Follow the removal procedure in the reverse order to install the
starter switch.




  INSPECTION AND REPAIR








STARTER SWITCH

Switch Connections

Terminal No.

Starter
switch key
position

1

(B2)

4

(ACC)

8

(IG2)

2

(ST)

3

(B1)

6

(IG1)

Removed

OFF

ACC

Inserted

ON

START

LOCK







Starter relay, Heater relay

Check continuity between the relay terminals.

1

 -

5

............................. No continuity

(When battery voltage is applied between

2

 and

4

)

1

 -

5

............................. Continuity





ELECTRICAL-BODY AND CHASSIS  8-73

ENGINE CONTROL MODULE (ECM) AND FUEL PUMP

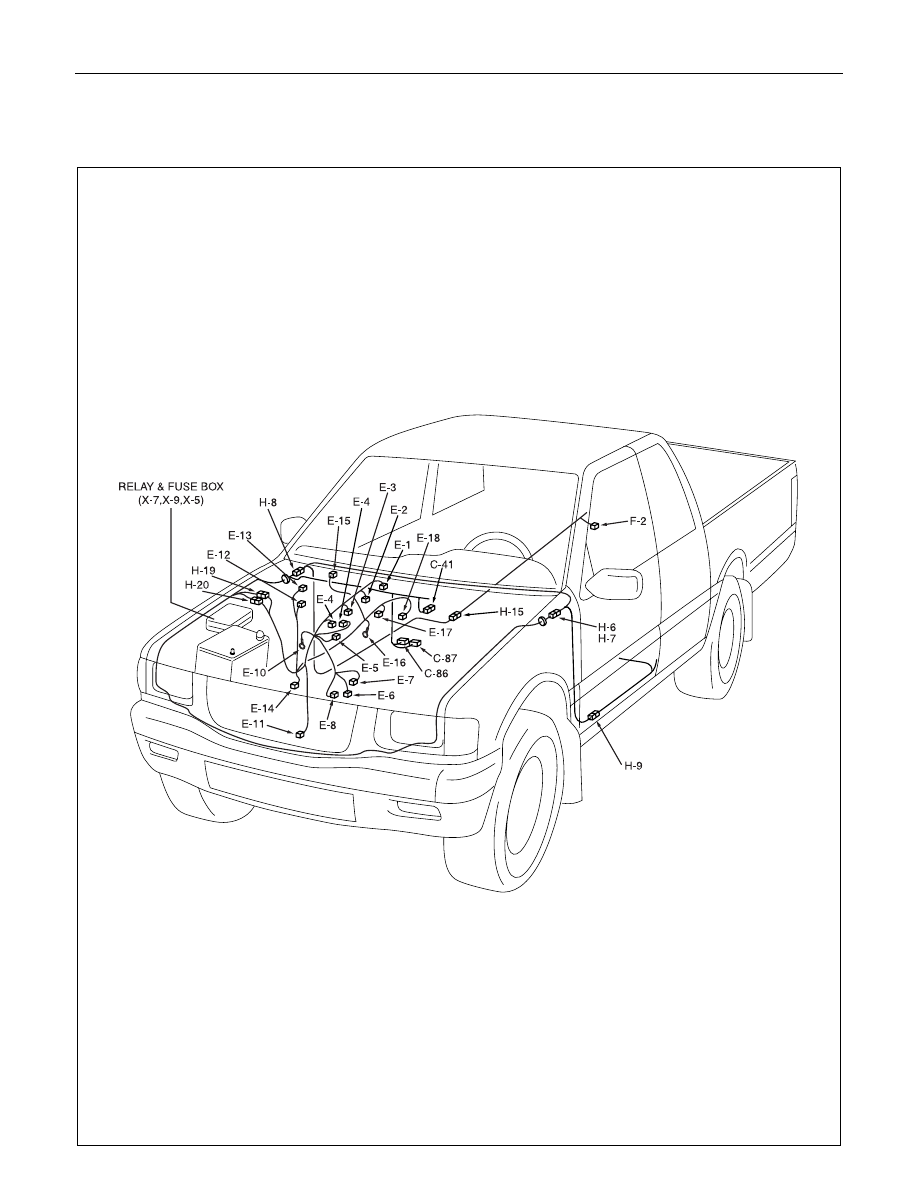

PARTS LOCATION (LHD)



8-74  ELECTRICAL-BODY AND CHASSIS

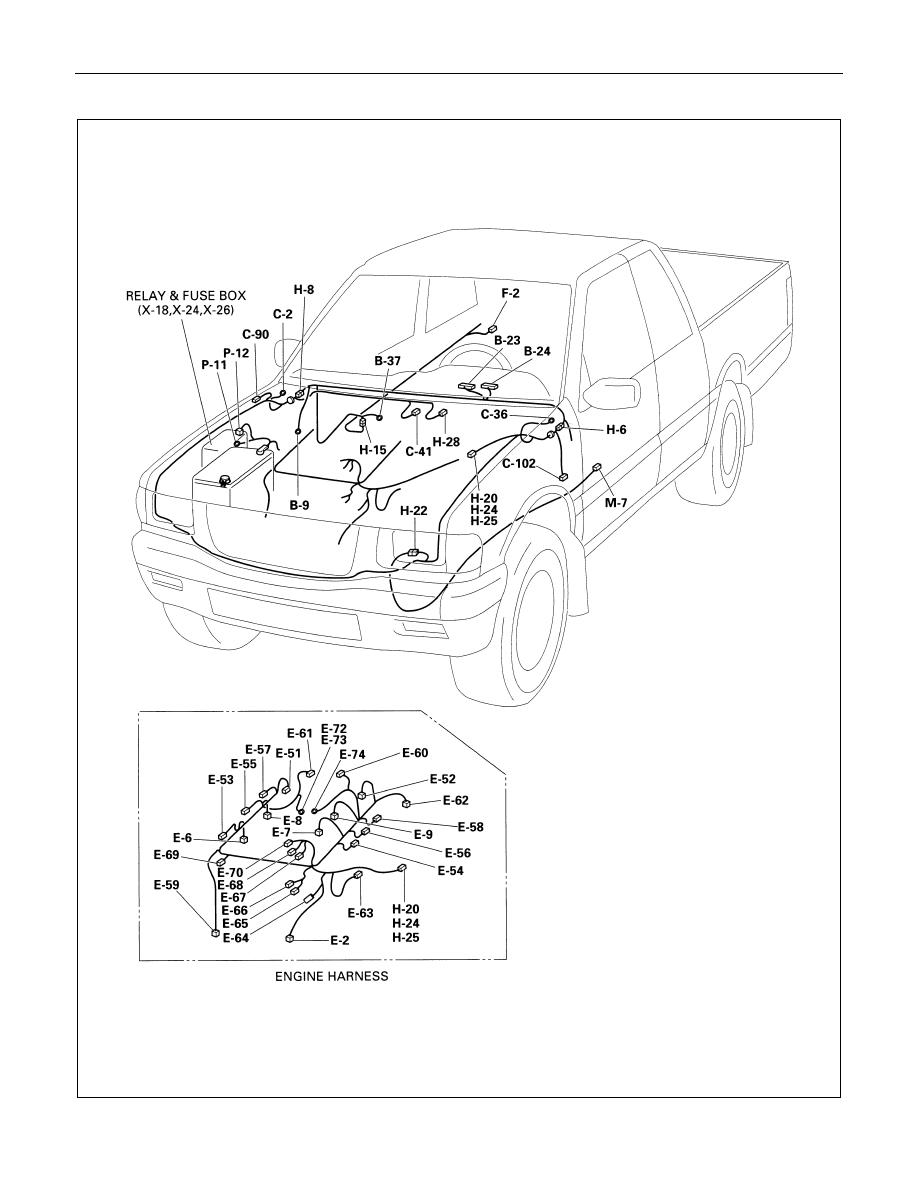

PARTS LOCATION (6VD1-LHD)



ELECTRICAL-BODY AND CHASSIS  8-75

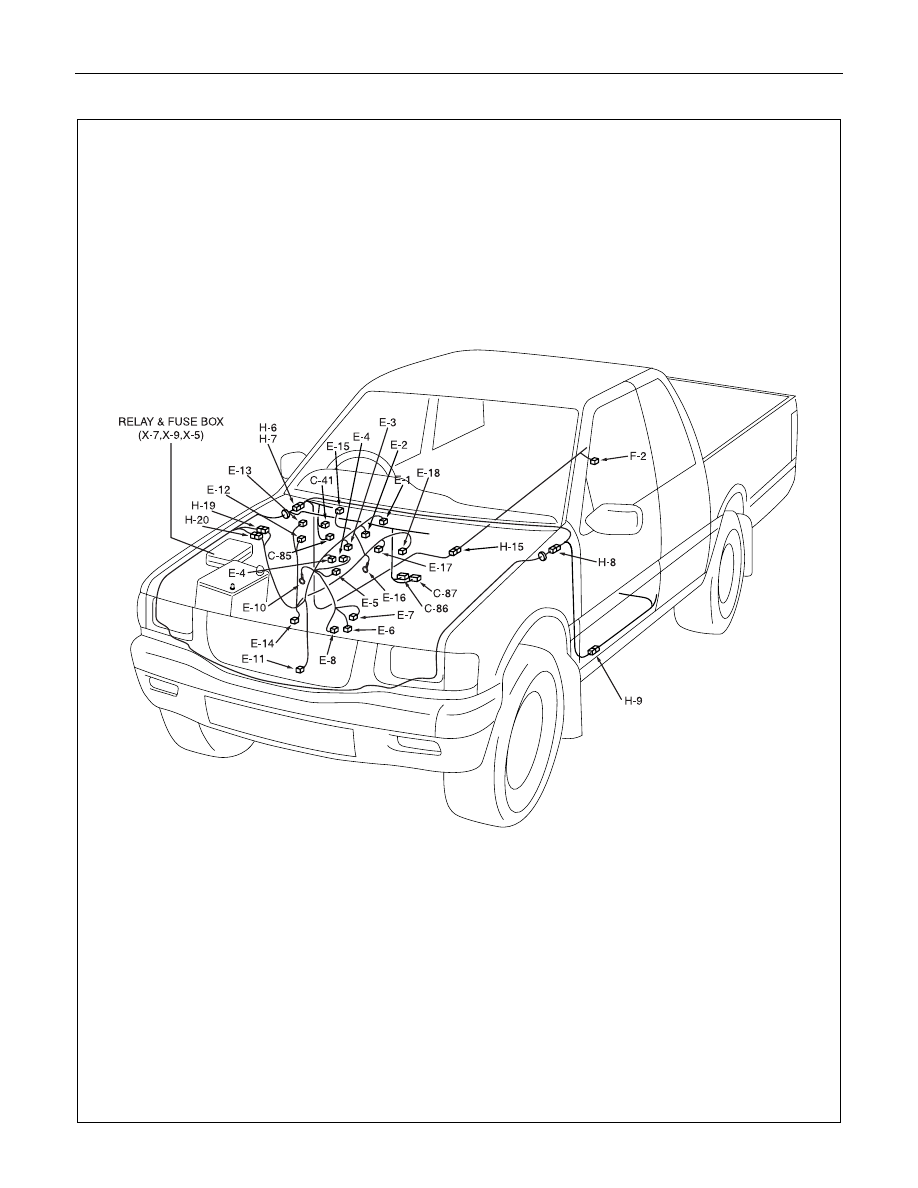

PARTS LOCATION (RHD)
