Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1143





ELECTRICAL-BODY AND CHASSIS  8-329

REAR DEFOGGER

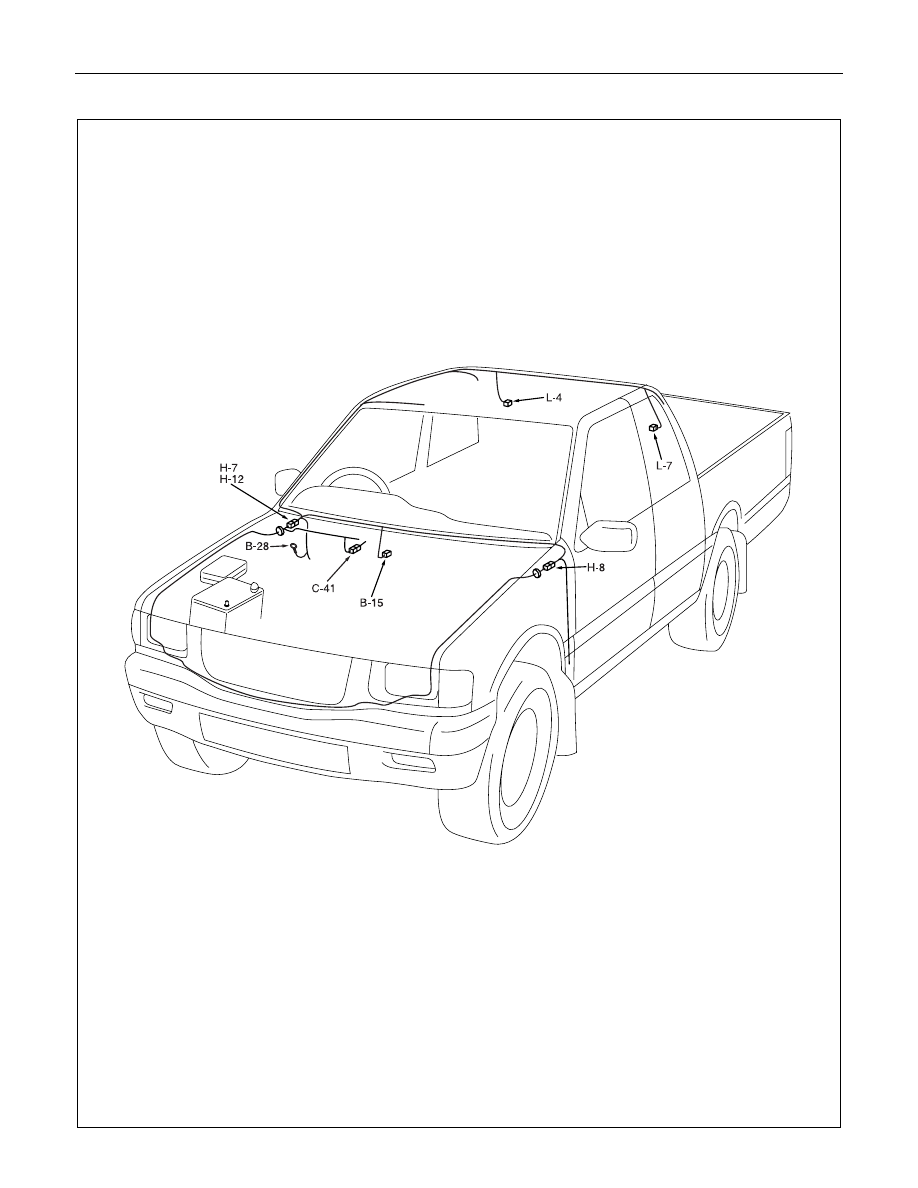

PARTS LOCATION (LHD)

8-330  ELECTRICAL-BODY AND CHASSIS

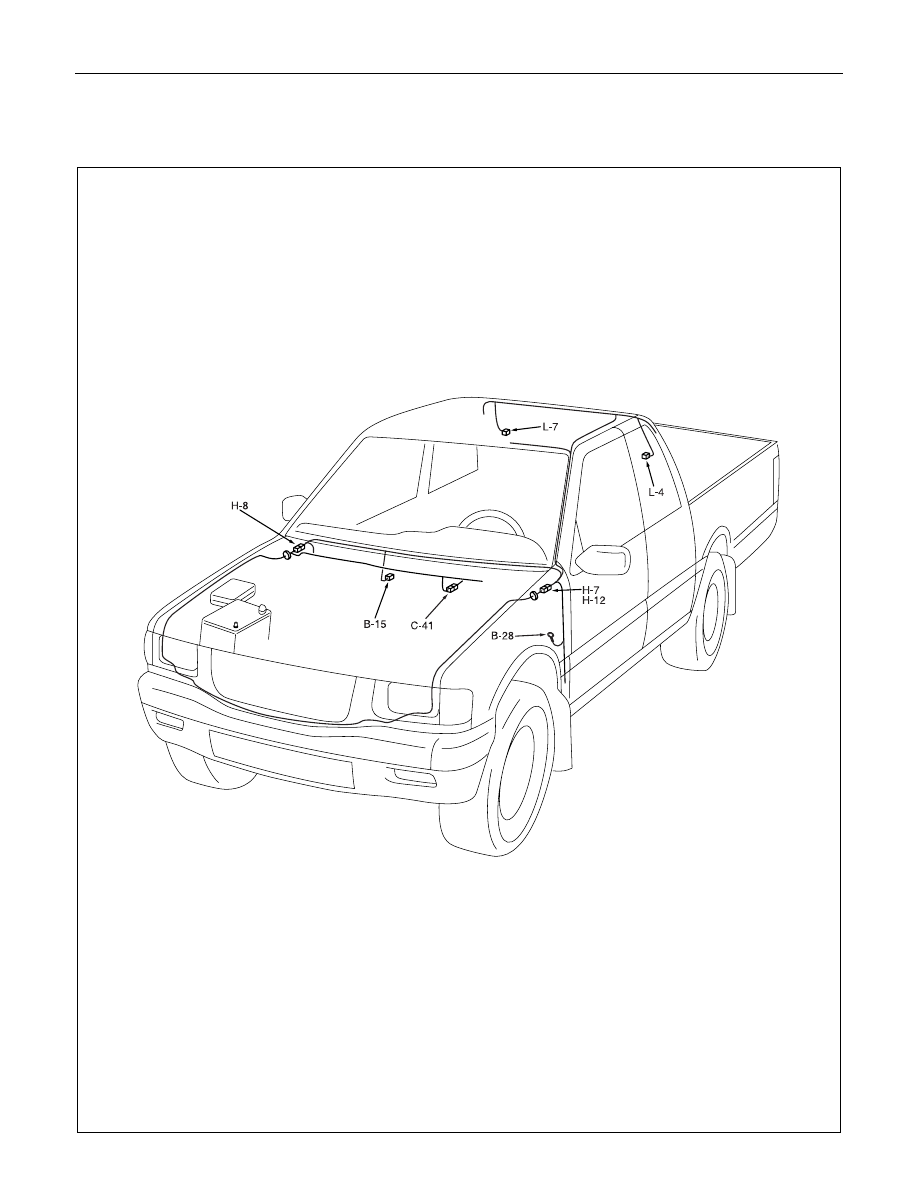

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-331

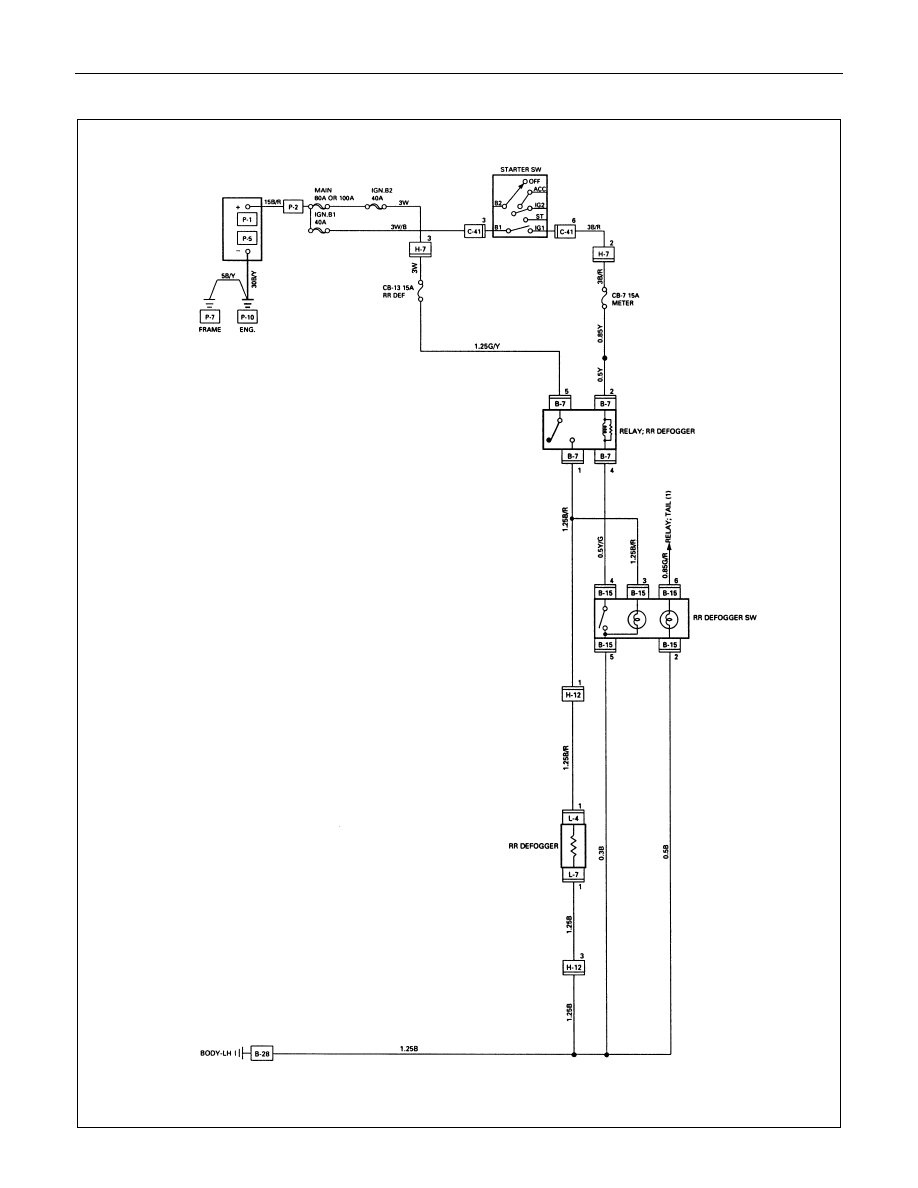

CIRCUIT DIAGRAM (LHD)

8-332  ELECTRICAL-BODY AND CHASSIS

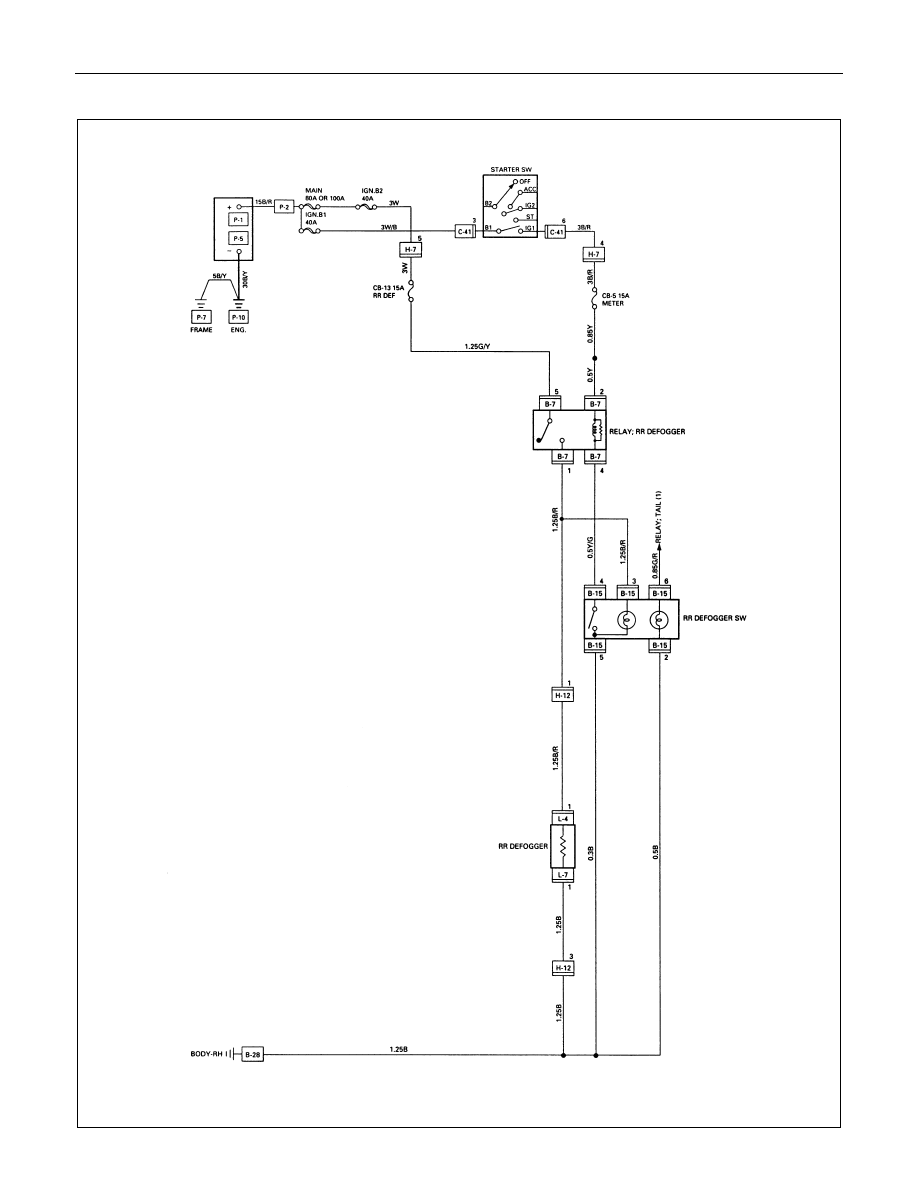

CIRCUIT DIAGRAM (RHD)
