Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1140





ELECTRICAL-BODY AND CHASSIS  8-317

POWER DOOR MIRROR

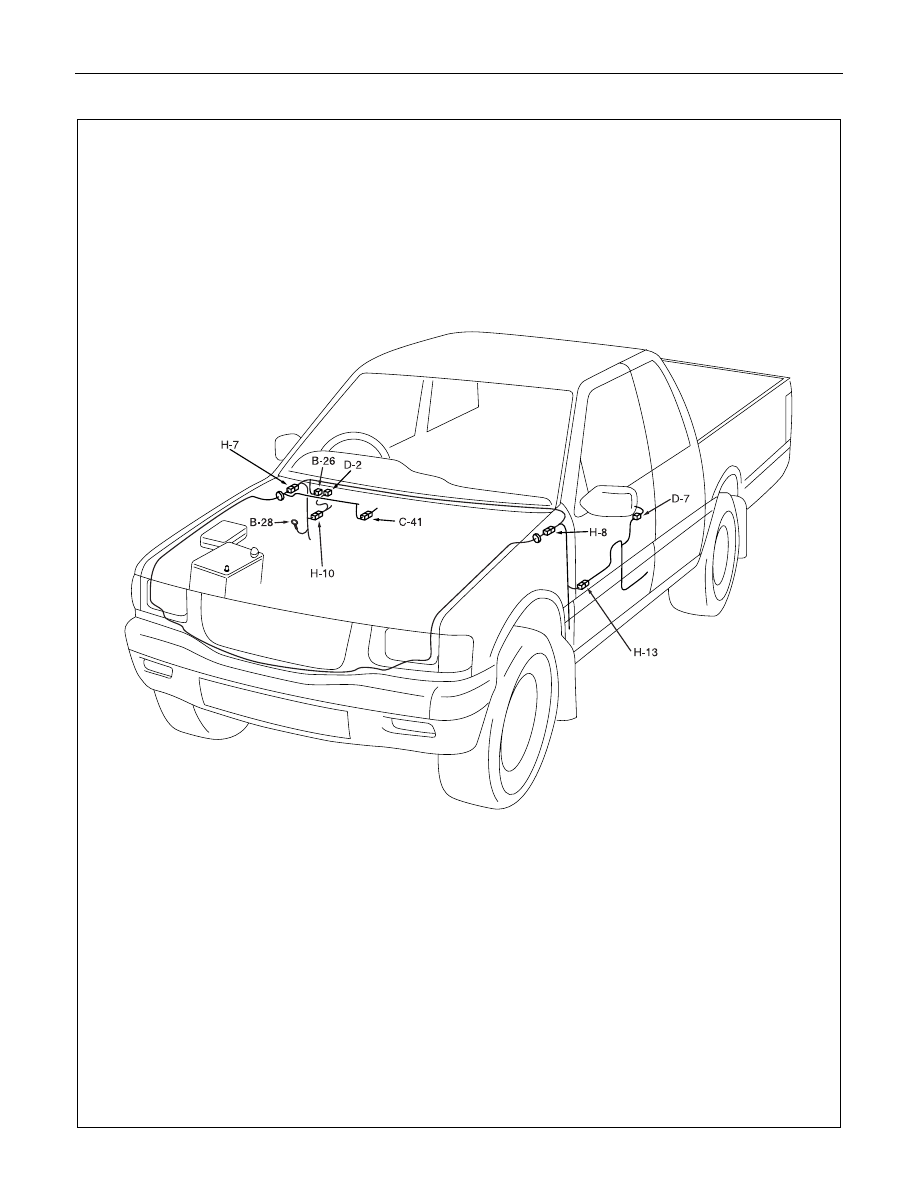

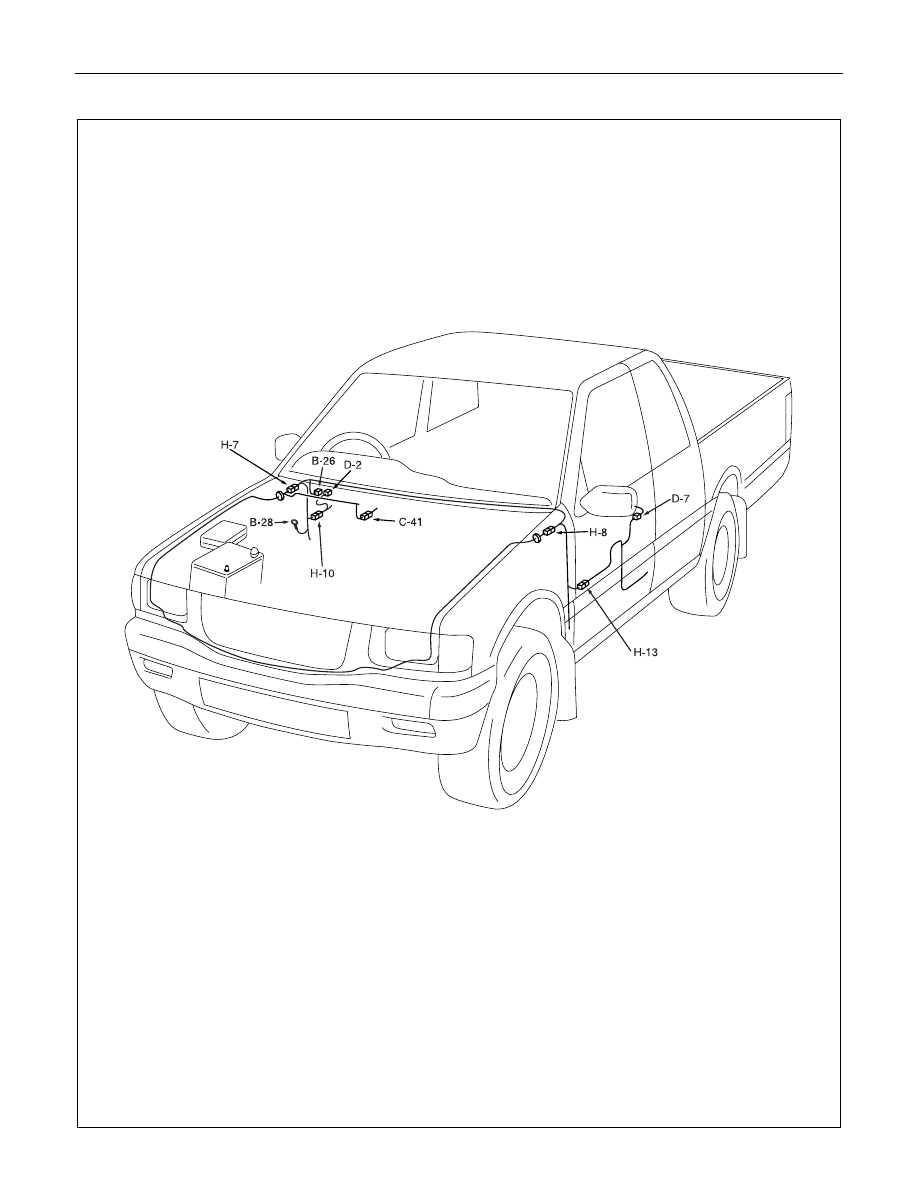

PARTS LOCATION (LHD)

8-318  ELECTRICAL-BODY AND CHASSIS

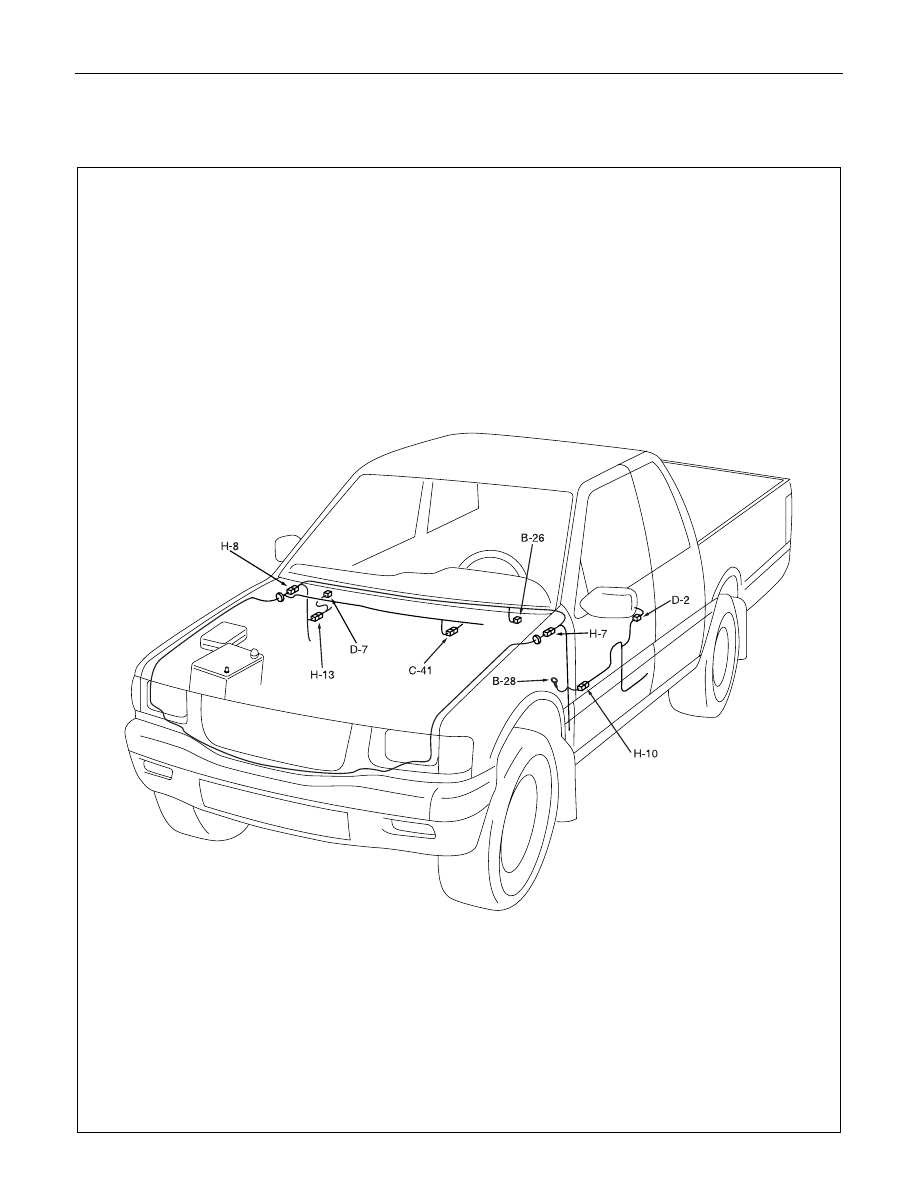

PARTS LOCATION (RHD)

ELECTRICAL-BODY AND CHASSIS  8-319

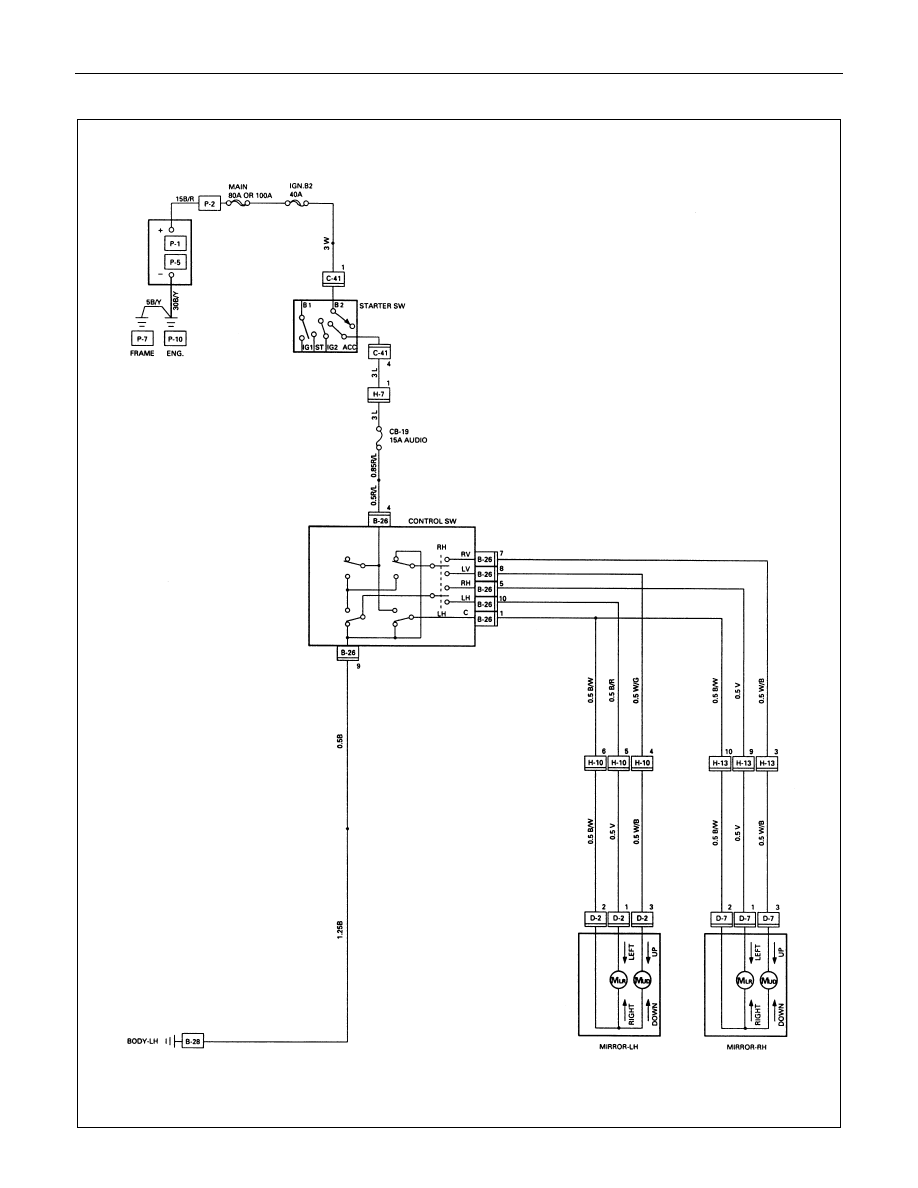

CIRCUIT DIAGRAM (LHD)

8-320  ELECTRICAL-BODY AND CHASSIS

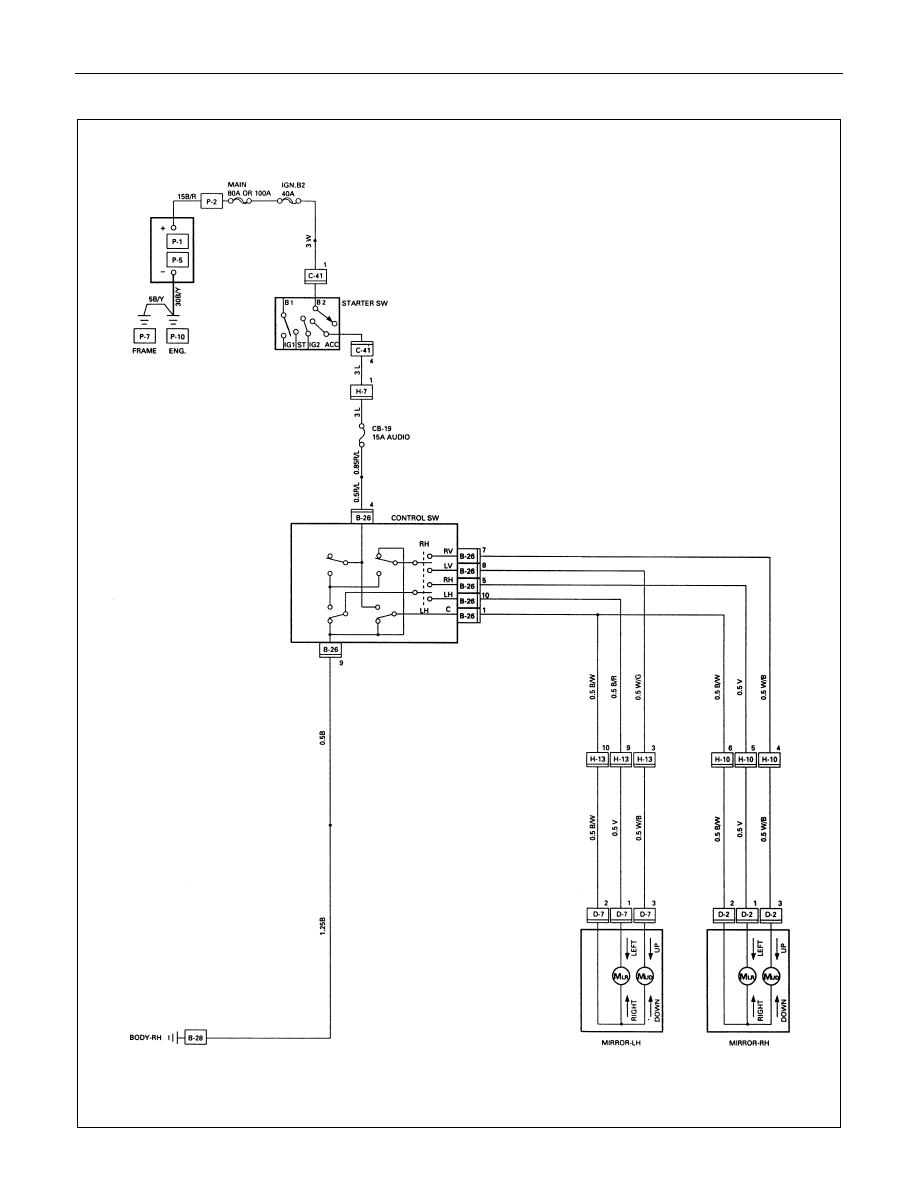

CIRCUIT DIAGRAM (RHD)
