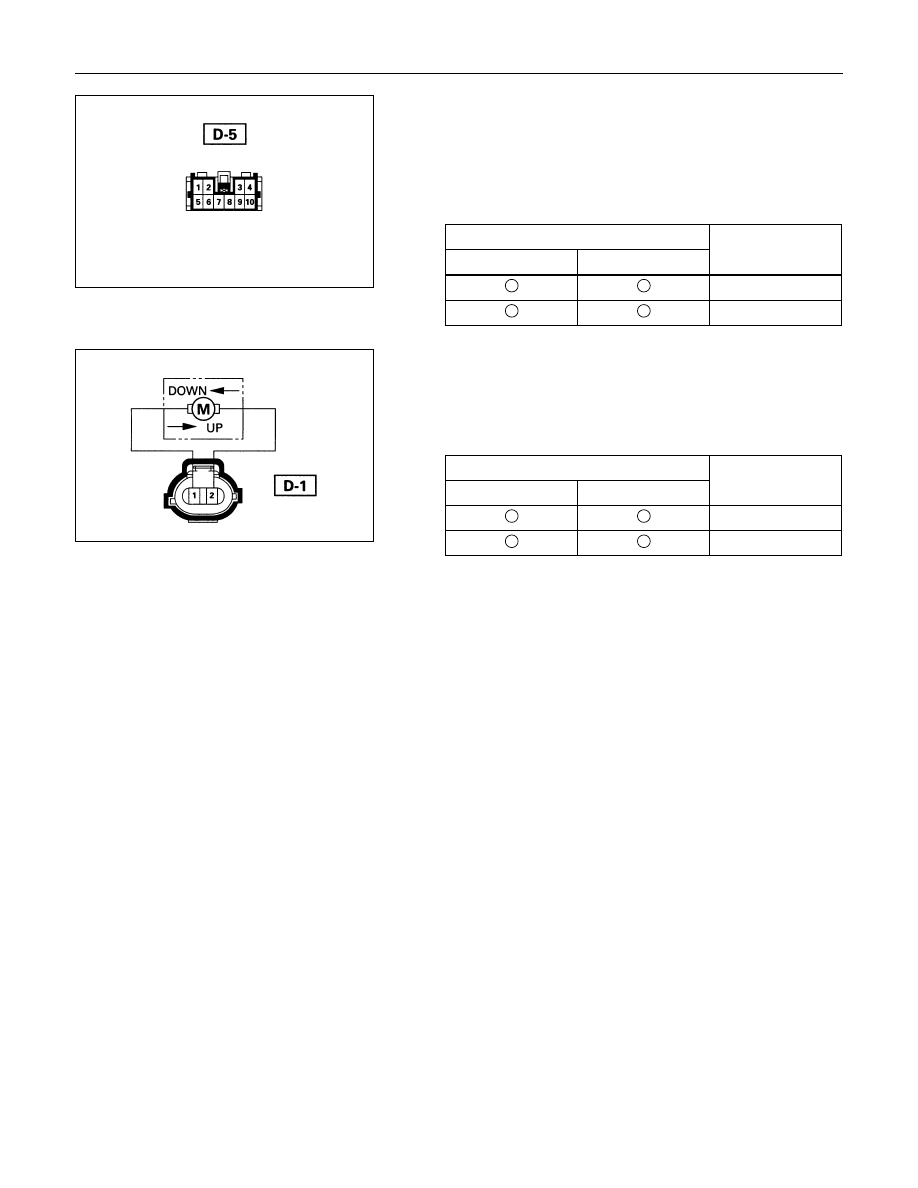

ELECTRICAL-BODY AND CHASSIS  8-305

Harness side

Driver Seat Side Power Window Motor

1.Driver  Seat  Side  Power  Window  &  Door  Lock  Switch

Connector Circuit

Disconnect  the  switch  connector,  apply  the  battery  voltage

(12V)  to  the  harness  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

1 (L/R)

10 (L/W)

direction

-

+

DOWN

+

-

UP

2.Driver  Seat  Side  Power  Window  Motor  Connector

Circuit

Disconnect  the  switch  connector,  apply  the  battery  voltage

(12V)  to  the  motor  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

1

2

direction

+

-

DOWN

-

+

UP

8-306  ELECTRICAL-BODY AND CHASSIS

Harness side

Front Passenger’s Power Window Motor

1.Front  Passenger’s  Power  Window  Switch  &  Door  Lock

Switch Connector Circuit

Disconnect  the  motor  connector,  apply  the  battery  voltage

(12V)  to  the  harness  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

6 (L/R)

10 (L/W)

direction

-

+

DOWN

+

-

UP

2.Front  Passenger’s  Power  Window  Motor  Connector

Circuit

Disconnect  the  switch  connector,  apply  the  battery  voltage

(12V)  to  the  motor  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

1

2

direction

+

-

DOWN

-

+

UP

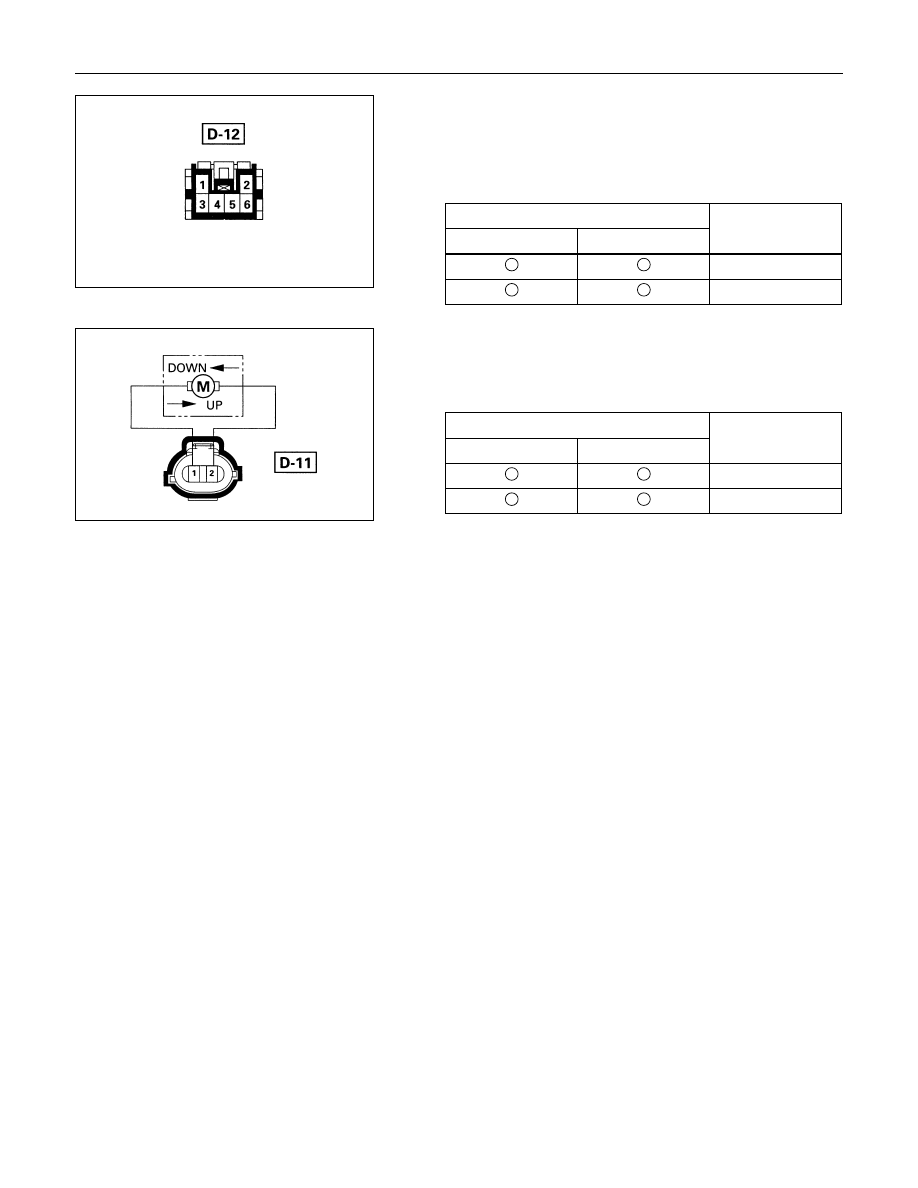

ELECTRICAL-BODY AND CHASSIS  8-307

Harness side

Rear Passenger’s Power Window Motor-LH

1.Rear Power Window Switch-LH Connector Circuit

Disconnect  the  motor  connector,  apply  the  battery  voltage

(12V)  to  the  harness  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

5 (L/R)

6 (BR/W)

direction

-

+

DOWN

+

-

UP

2.Rear Power Window Motor-LH Connector Circuit

Disconnect  the  switch  connector,  apply  the  battery  voltage

(12V)  to  the  motor  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

1

2

direction

+

-

DOWN

-

+

UP

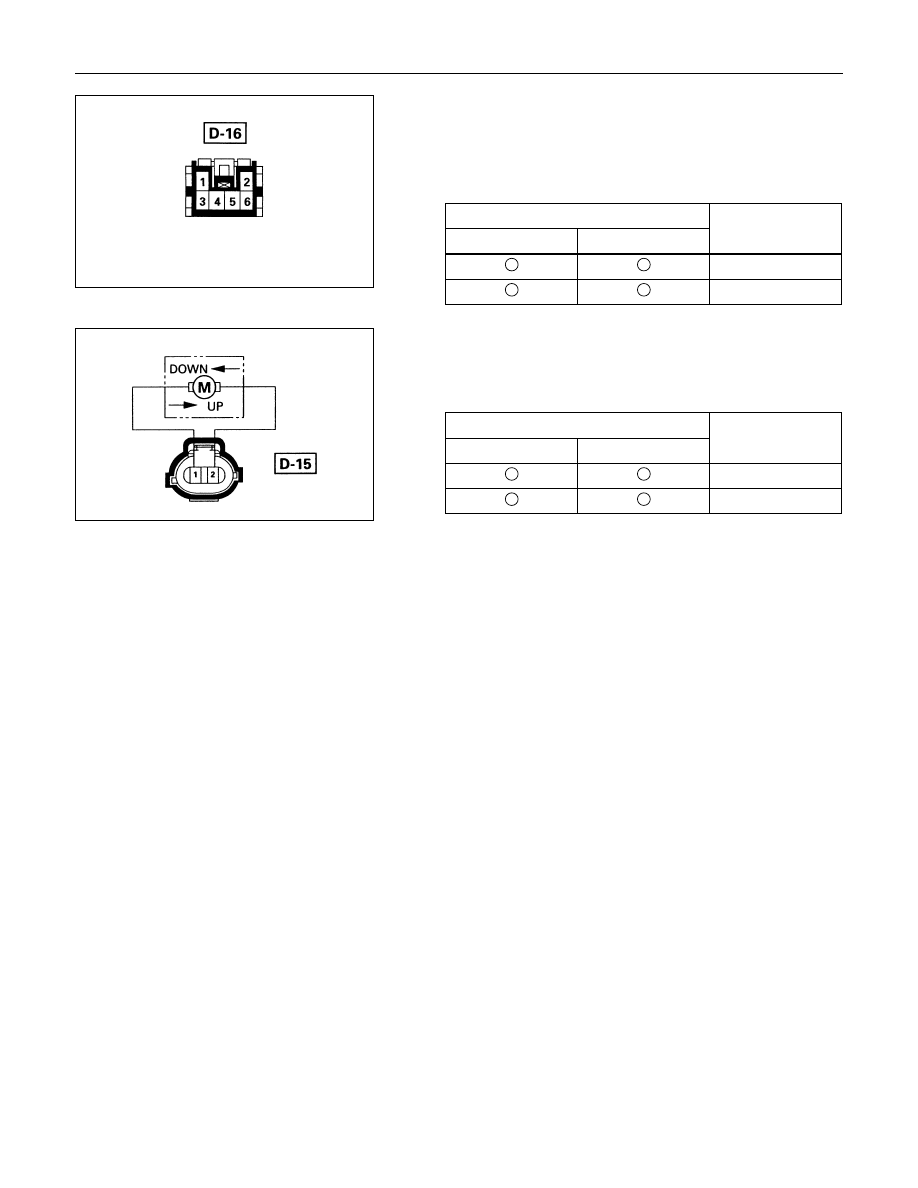

8-308  ELECTRICAL-BODY AND CHASSIS

Harness side

Rear Power Window Motor-RH

1.Rear Power Window Switch-RH Connector Circuit

Disconnect  the  motor  connector,  apply  the  battery  voltage

(12V)  to  the  harness  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

5 (L/R)

6 (BR/W)

direction

-

+

DOWN

+

-

UP

2.Rear Power Window Motor-RH Connector Circuit

Disconnect  the  switch  connector,  apply  the  battery  voltage

(12V)  to  the  motor  side  connector  terminals  and  check

operation.

Connecting terminals

Operation

1

2

direction

+

-

DOWN

-

+

UP
