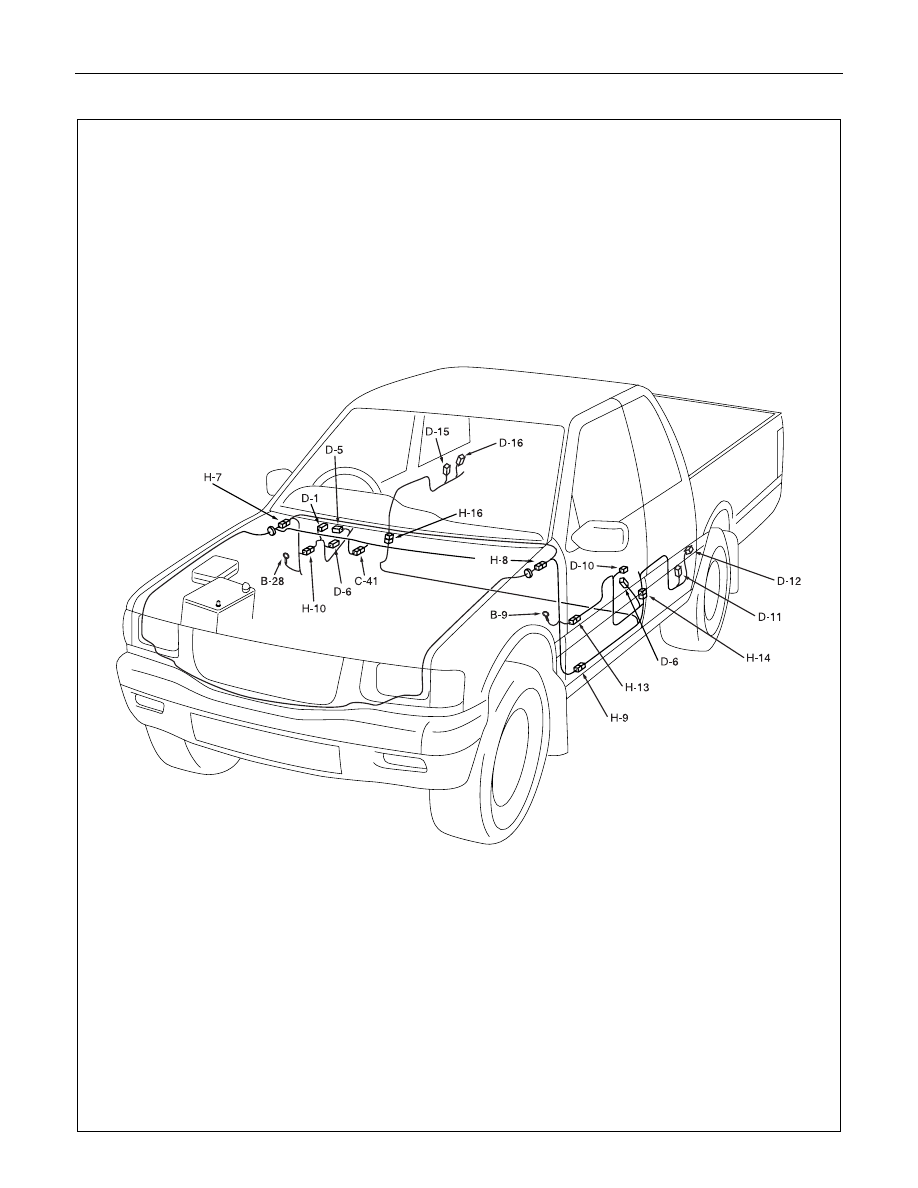

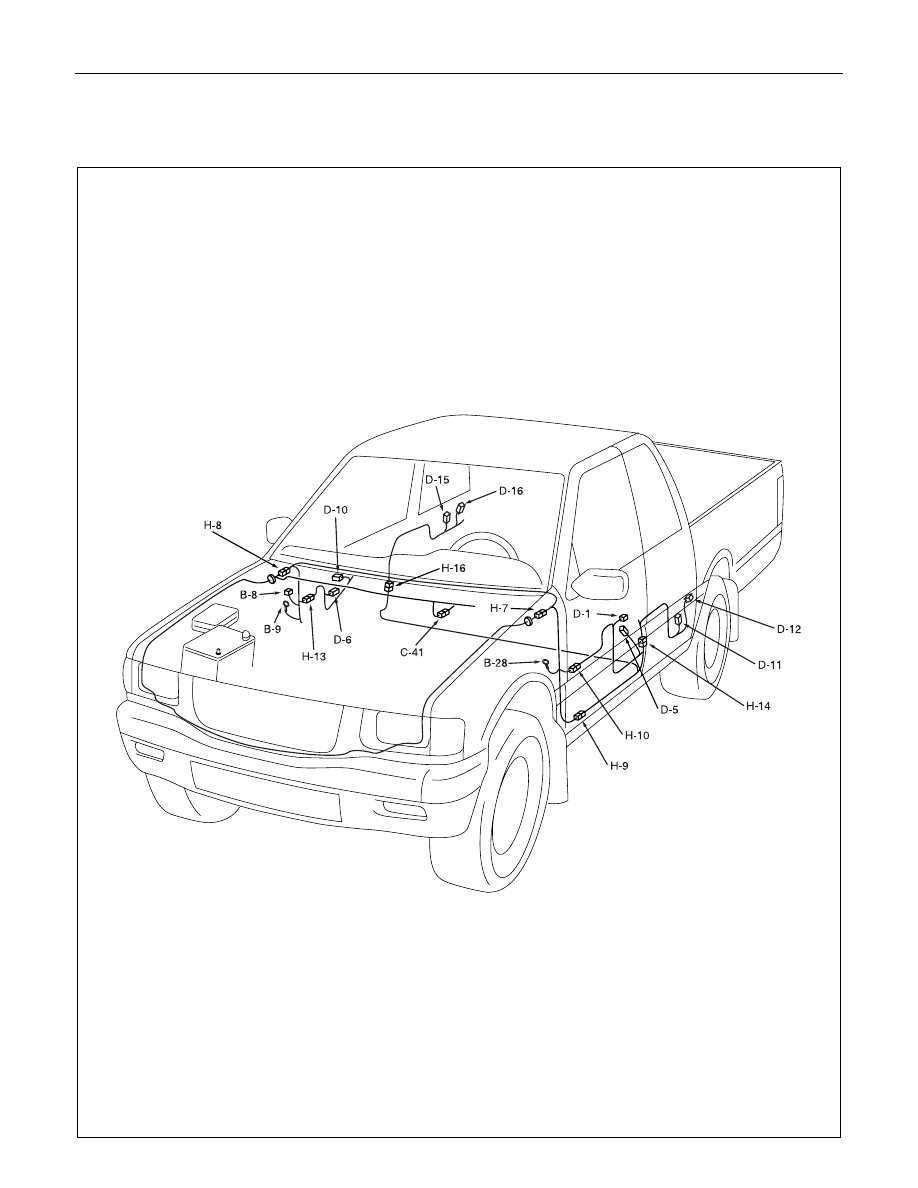

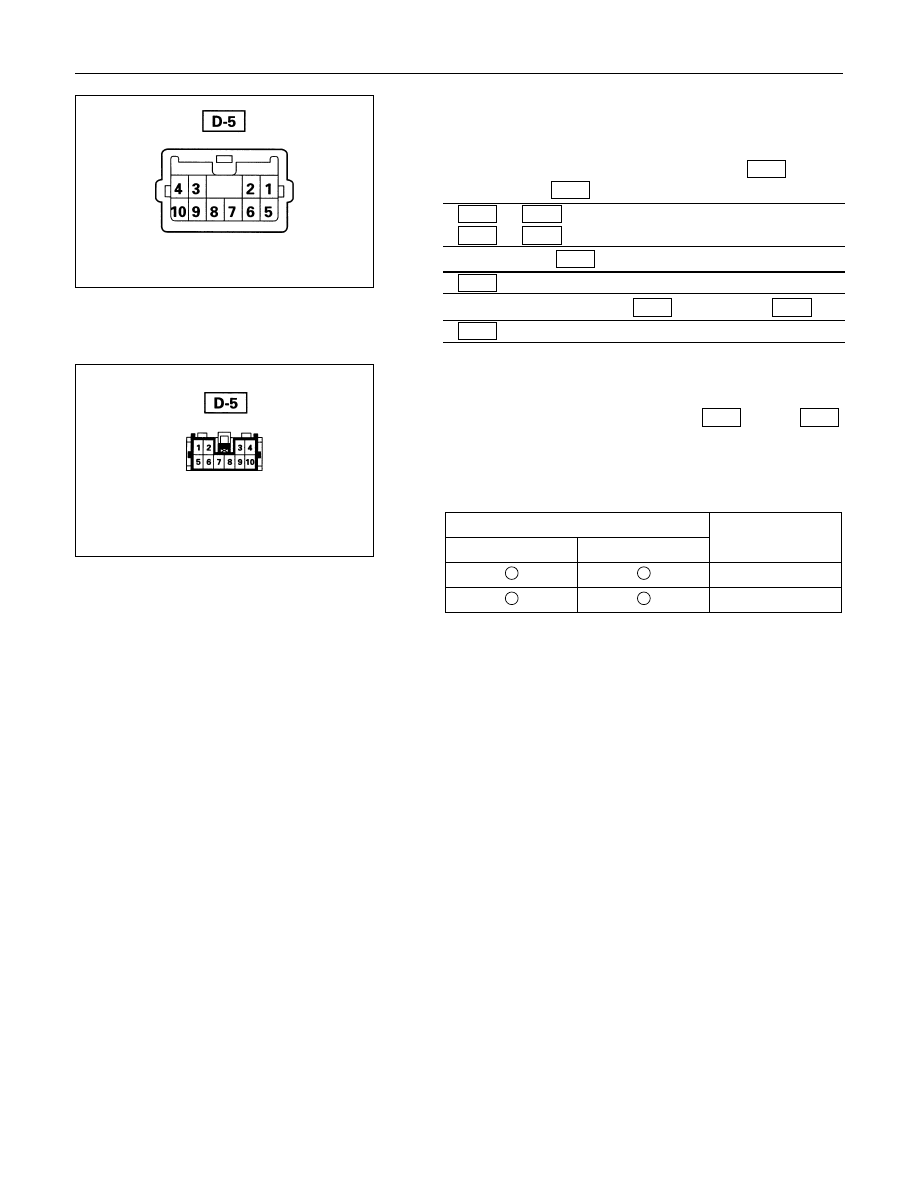

ELECTRICAL-BODY AND CHASSIS 8-285 Switch side 2. Switch Side Connector Circuit Remove the switch connector, and check continuity and voltage between the switch connector terminals. (Connect the (+) terminal of the battery to 9 D-5 and the (-) terminal to 5 D-5 .) 5 D-5 - 6 D-5 .................. Continuity 5 D-5 - 8 D-5 .................. Continuity (Then, ground 3 D-5 .) 6 D-5 ........... Current flow for approx. 1 second (Disconnect the ground of 3 D-5 , and ground 4 D-5 .) 8 D-5 ........... Current flow for approx. 1 second Harness side 3. Door Lock Operation Test After confirming that there is continuity between the switch harness side connector terminals 6 D-5 and 8 D-5 , apply the battery voltage to each of the terminals to conduct the operation test. When the door lock will not operate, check the door lock actuator for any trouble. Connecting terminals 8 (Y/G) 6 (L/Y) + - Unlock - + Lock Operation |
