ELECTRICAL-BODY AND CHASSIS  8-181

Harness side

2. Warning Buzzer Harness Side Connector Circuit

Disconnect  the  warning  buzzer  connector  and  check

continuity and voltage between the warning buzzer harness

side connector terminals.

Terminal

NO.

Wire

color

Connecting to

Check item

Connecting

terminal

Check condition

Standard

Seat

Unfasten

Continuity

belt

Fasten

No continuity

3

G/R

Tail relay

3-Ground

Lighting SW “ON”

Approx. 12V

Key remind SW

Insert

Approx. 12V

(Starter SW)

Remove

0V

6

Y

Fuse CB-5

6-Ground

Starter SW “ON”

Approx. 12V

Door SW

Open

Continuity

(FRT-LH)

Continuity

Close

No continuity

2

B

Ground

2-Ground

-

Continuity

KEY REMIND SWITCH (STARTER

SWITCH)

Switch Connections

Connector No.

C-41

Starter

Terminal

switch key position

No.

5

7

Removed

OFF

ACC

Inserted

ON

START

LOCK

5-Ground

Continuity

Seat belt SW

G/Y

5

Key

4-Ground

4

R/B

Voltage

FRT door-LH

1-Ground

1

B/W

8-182  ELECTRICAL-BODY AND CHASSIS

WINDSHIELD WIPER AND WASHER

PARTS LOCATION (LHD EXCEPT EC)

ELECTRICAL-BODY AND CHASSIS  8-183

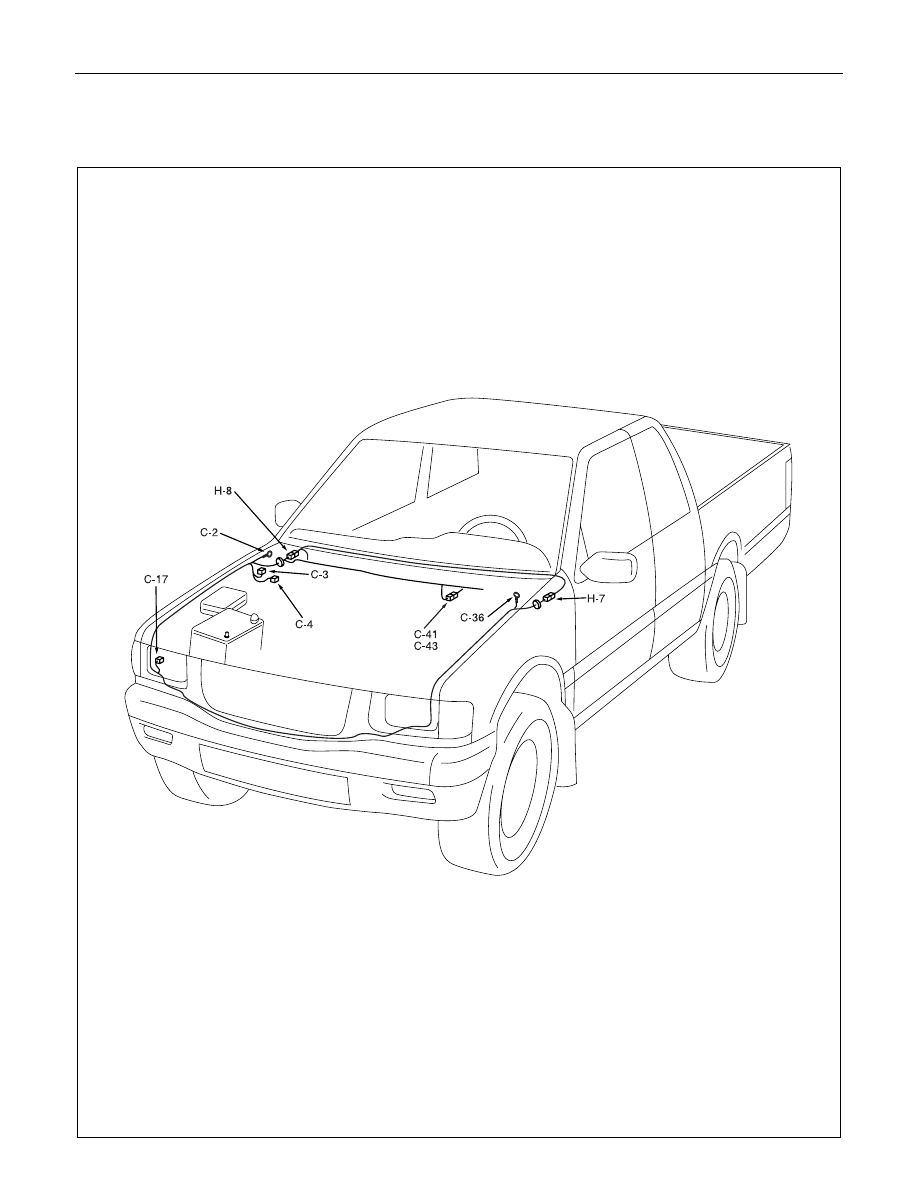

PARTS LOCATION (EC-LHD)

C-4

C-12

C-3

C-17

C-41

C-43

H-8

B-4

B-9

C-36

B-27

C-2

H-7

B-28

8-184  ELECTRICAL-BODY AND CHASSIS

PARTS LOCATION (RHD)
