6E–44

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

GENERAL DESCRIPTION FOR INJECTION

PUMP

Outline

Instead of the previous face cam type, the radial plunger
distributor type injection pump utilizes a cam ring to
enable fuel injection at high-pressures, marking it
suitable for small, high-speed direct injection diesel
engines. This pump was developed to provide the most
suitable fuel injection quantity and injection timing to
satisfy the demand for engine reliability, driveability, low
smoke, low noise, high output and clear exhaust
emissions.

Characteristic of VP44 Injection System

1. High Pressure Injection

The radial plunger distributor type injection pump is
capable of generating pressure of 100 Mpa
(approximately 1000 Bar) demanded by small, high
speed direct injection diesel engines.

2. High Pressure Atomization of Fuel Injected from
the Nozzle

Through high pressure fuel injection, the fuel is
atomized at high pressure with a high penetrating force
(the fuel droplets penetrate further) and with greater

dispersion and distribution (mixing with air is improved)
and results in better combustion. This contributes to
cleaner emissions.

3. Optimum Fuel Injection

High speed control of fuel injection quantity and fuel
injection timing, is performed by the control unit,
enabling lower fuel cost and high output.

4. Improved Durability

The components used in the pump are very resistant to
high pressure, ensuring improved durability.

5. Improved Engine Matching

As fuel injection is controlled by cylinder selective
adaptation, smooth running is improved.

6. Improved Reliability

As a control unit system with both an engine control
module (ECM) and a pump control unit (PSG) is used,
the control system is extremely reliable.

7. Improved Power Performance

As the control unit controls the optimum fuel injection
quantify corresponding to accelerator position,
increased torque in low accelerator pedal positions is
possible, enabling improved power performance.

8. Decreased Smoke at Acceleration

When the amount of injected fuel is increased, to
increase engine power at acceleration, the excess fuel
usually generates smoke. The VP44 fuel injection pump,
accurately controls fuel injection quantity even in this
range to prevent the generation of smoke without
adversely affecting acceleration.

9. Additional Devices are Unnecessary

Such additional devices as the boost compensator and
the aneroid compensator are unnecessary, as the
control unit compensates, based on signals from each
sensor. This results in less “clutter” injection pump.

10. Self Diagnosis Function

The system includes a self-diagnosis function, which
displays error codes to facilitate the diagnosis of
malfunctions.

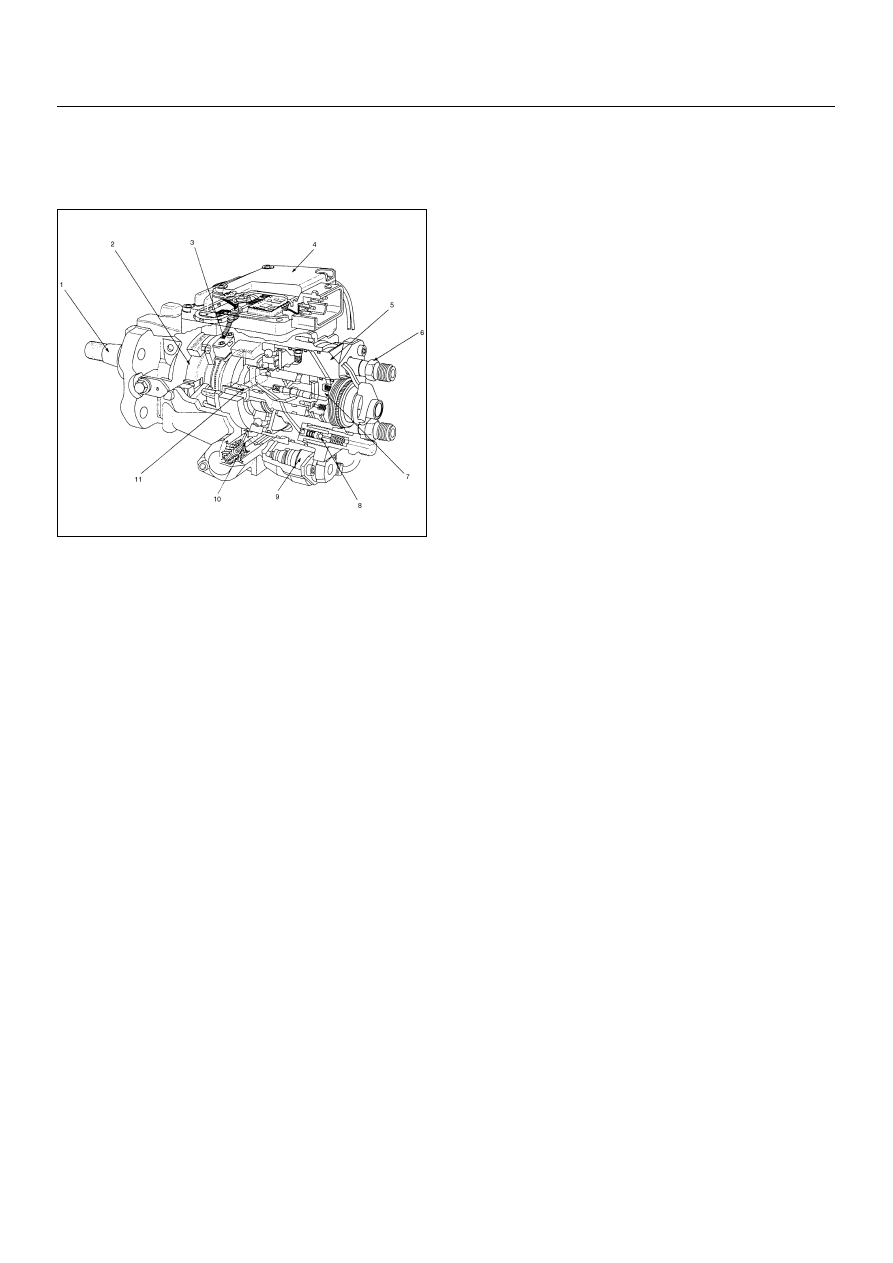

(1) Drive Shaft
(2) Feed Pump
(3) Pump Camshaft Speed Sensor
(4) Pump Control Unit (PSG)
(5) Distributor Head
(6) Constant Pressure Valve (CPV) Holder
(7) High Pressure Solenoid Valve
(8) Constant Pressure Valve (CPV)
(9) Timing Control Valve (TCV)

(10) Timer
(11) Radial Plunger High Pressure Pump

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–45

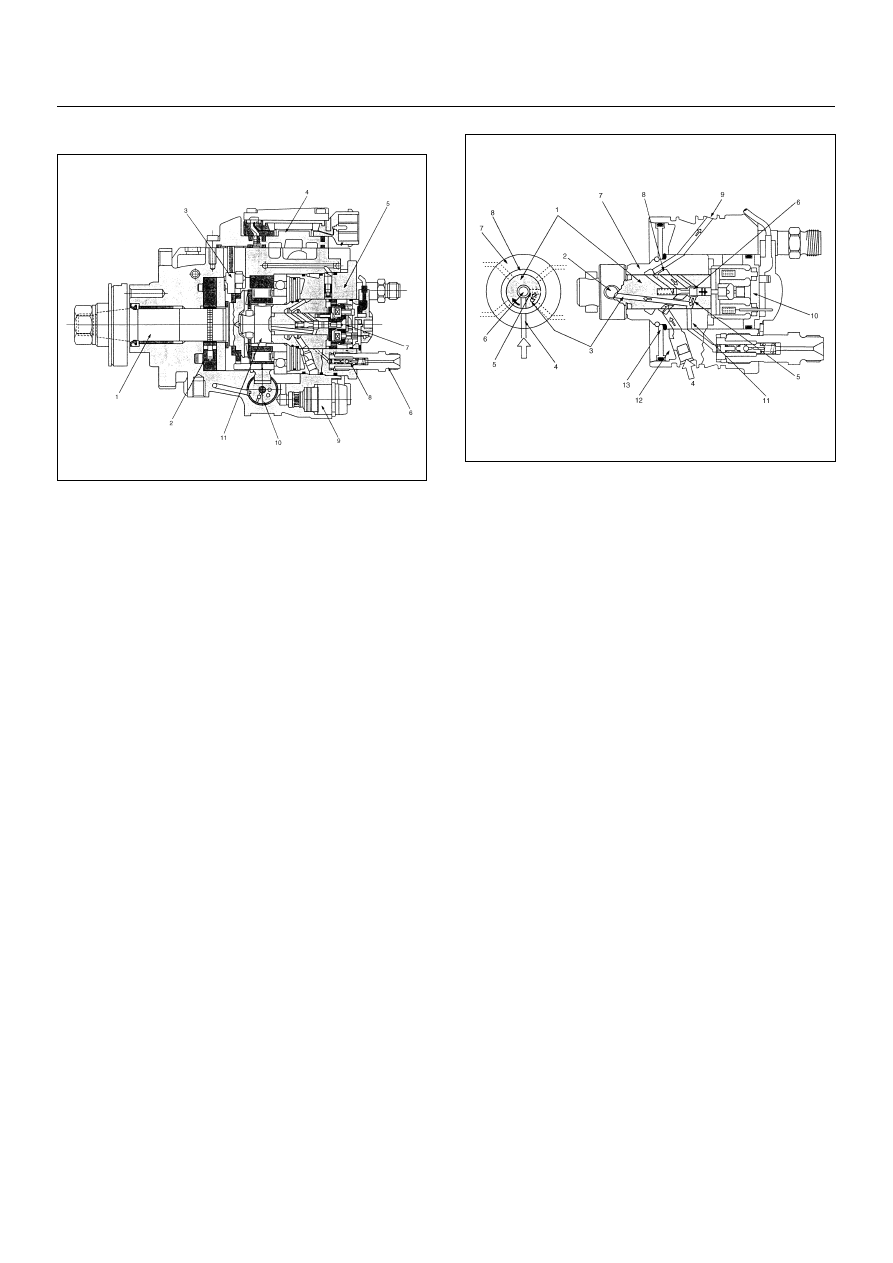

Cross-section View

(1) Drive Shaft
(2) Feed Pump
(3) Pump Camshaft Speed Sensor
(4) Pump Control Unit (PSG)
(5) Distributor Head
(6) Constant Pressure Valve (CPV) Holder
(7) High Pressure Solenoid Valve
(8) Constant Pressure Valve (CPV)
(9) Timing Control Valve (TCV)

(10) Timer
(11) Radial Plunger High Pressure Pump

(1) Rotor Shaft
(2) Radial Plunger
(3) High Pressure Passage
(4) Low Pressure Inlet
(5) Distributor Slit
(6) Valve Needle
(7) Barrel
(8) Annular Passage
(9) Fuel Return

(10) High Pressure Solenoid Valve
(11) High Pressure Outlet
(12) Diaphram Chamber
(13) Accumulator Diaphram

6E–46

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

Low Pressure Fuel Circuit

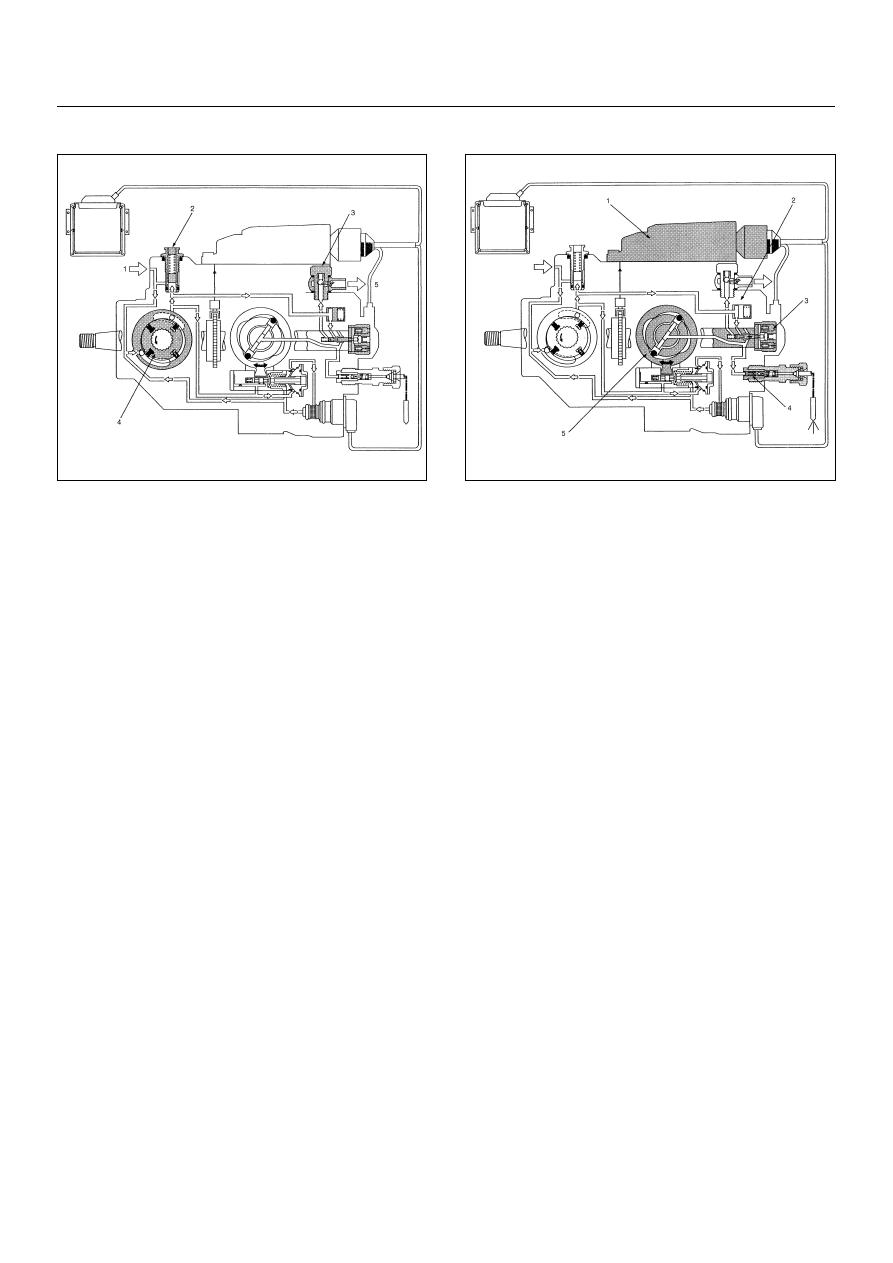

The low pressure fuel circuit must supply sufficient fuel
to the high pressure fuel circuit. The main components
are the feed pump, the regulating valve and the overflow
valve.

High Pressure Fuel Circuit

In addition high pressure generating device, the high
pressure circuit also consists of fuel piping, and devices
to set the beginning of injection and fuel injection
quantity.

The main components are as follows.

• High pressure generation: Radial Plunger High

Pressure Pump

• Fuel distribution: Distributor Head

• Beginning of injection timing: Timing Device

• Prevention of secondary injection: Constant Pressure

Valve (CPV)

(1) Fuel Suction
(2) Regulating Valve
(3) Overflow Valve
(4) Feed Pump
(5) To Fuel Tank

(1) Pump Control Unit (PSG)
(2) Distributor Head
(3) High Pressure Solenoid Valve
(4) Constant Pressure Valve (CPV)
(5) Radial Plunger High Pressure Pump

4JH1 ENGINE DRIVEABILITY AND EMISSIONS

6E–47

Timing Control

The timing device determines the optimum injection
timing against variations in engine speed.
The pressure of the fuel fed from the feed pump is
adjusted in accordance with speed by the regulating
valve. This delivery pressure acts on the hydraulic
stopper's annular chamber as control pressure.
The chamber pressure of the annular chamber is
controlled by the timing control valve (TCV).
The timing plunger is connected to the cam ring by a
ball pin. Axial movement of the timing plunger is
transferred to the cam ring in the form of rotational
movement. Movement to the right of the timing plunger
(to the spring side) advances injection timing.
The main components are timing plunger, the timing
control valve (TCV) and pump camshaft speed sensor.

Start of Injection

The engine control module (ECM) contains
characteristic maps of the beginning of injection,
corresponding to engine operating conditions (engine
load, engine speed and engine coolant temperature).
The pump control unit (PSG) is constantly comparing
the set beginning of injection timing and the actual
beginning of injection timing.
If there is a difference, the timing control valve (TCV) is
controlled by the duty ratio. (The actual beginning of
injection timing is determined from the pump camshaft
speed sensor.)

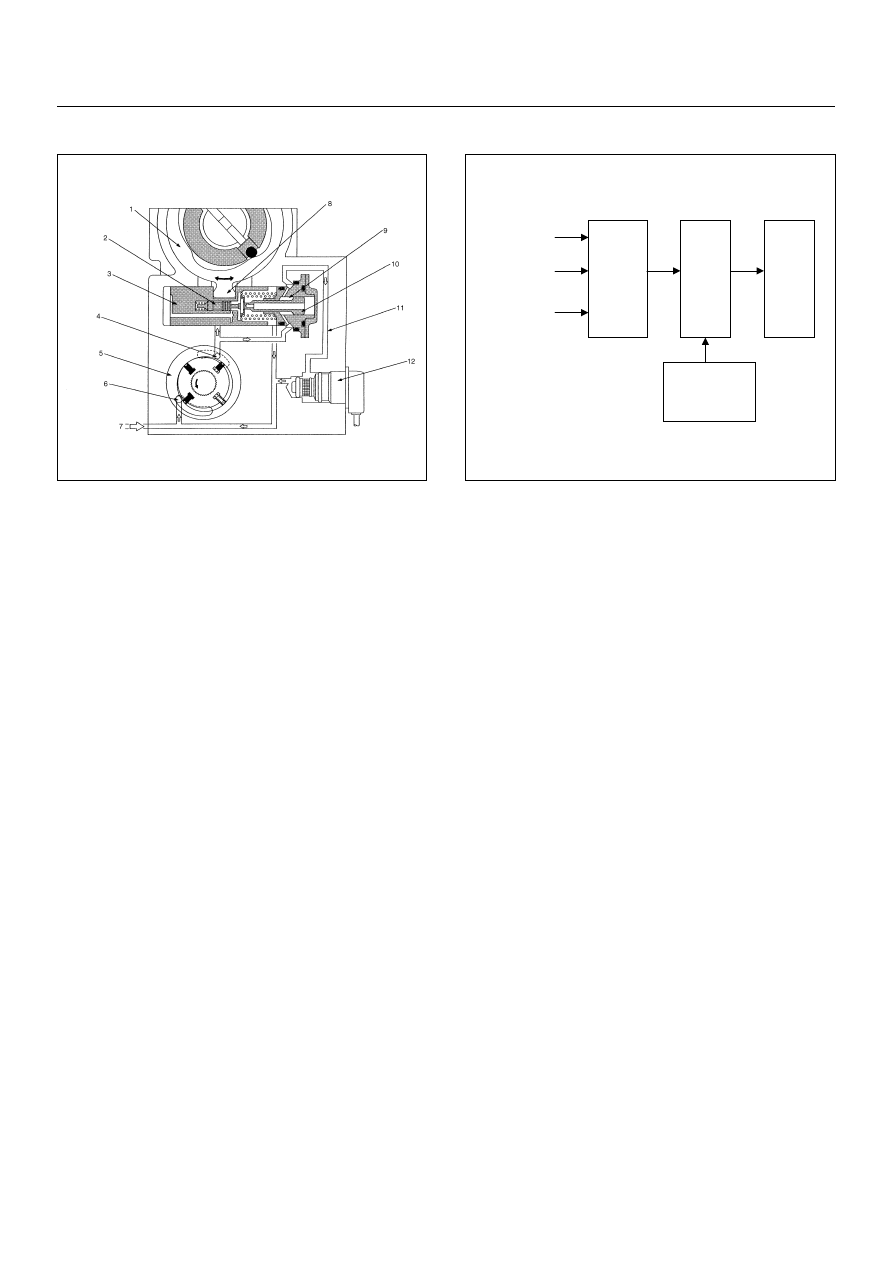

(1) Cam Ring
(2) Servo Valve
(3) Timer Piston
(4) Outlet
(5) Feed Pump
(6) Inlet
(7) Fuel Suction
(8) Ball Pin
(9) Annular Chamber

(10) Hydraulic Stopper
(11) Return Passage
(12) Timing Control Valve (TCV)

Engine Load

Engine Speed

Engine Coolant
Temperature

Engine

Control

Module

(ECM)

Pump

Control

Unit

(PSG)

Pump

Camshaft

Speed Sensor

Timing

Control

Valve

(TCV)
