Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1095





ELECTRICAL-BODY AND CHASSIS  8-137

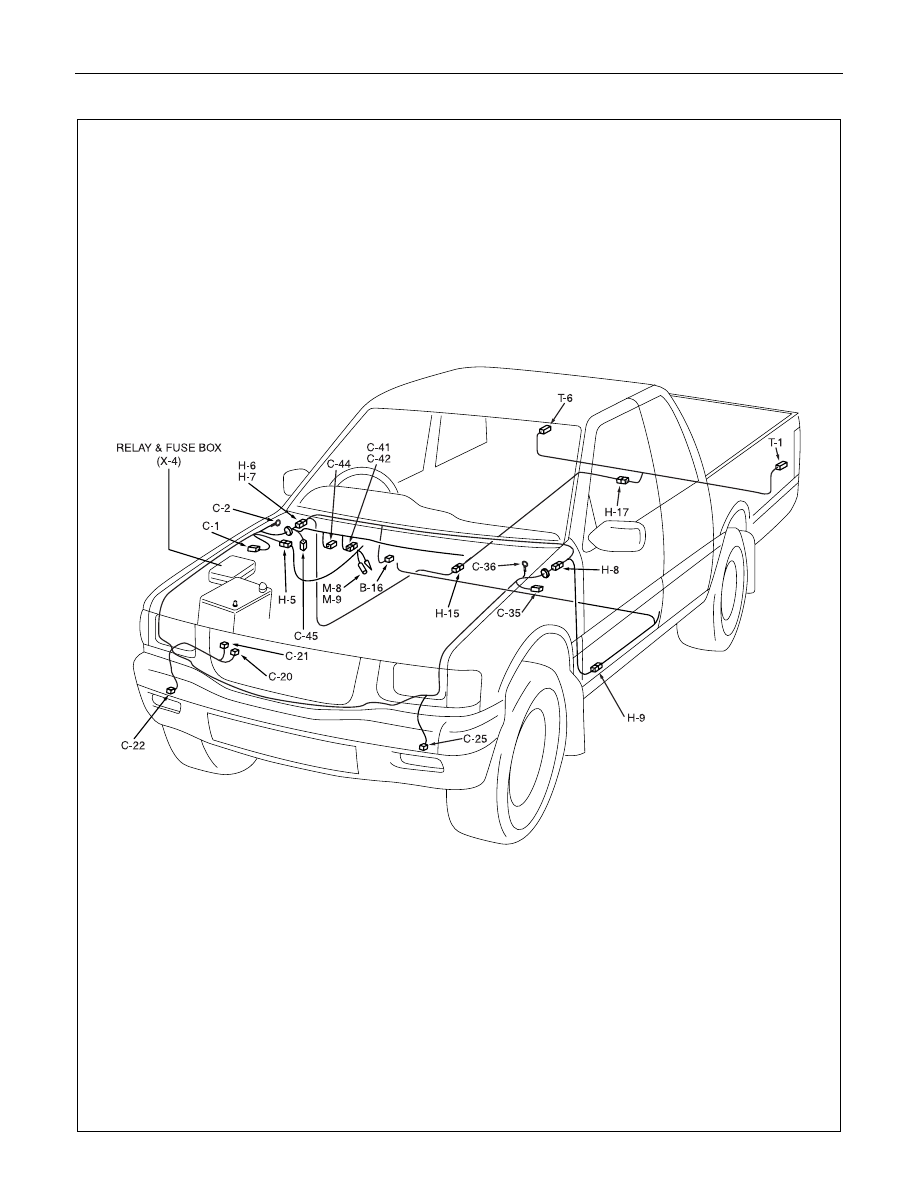

PARTS LOCATION (RHD)

8-138  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-139

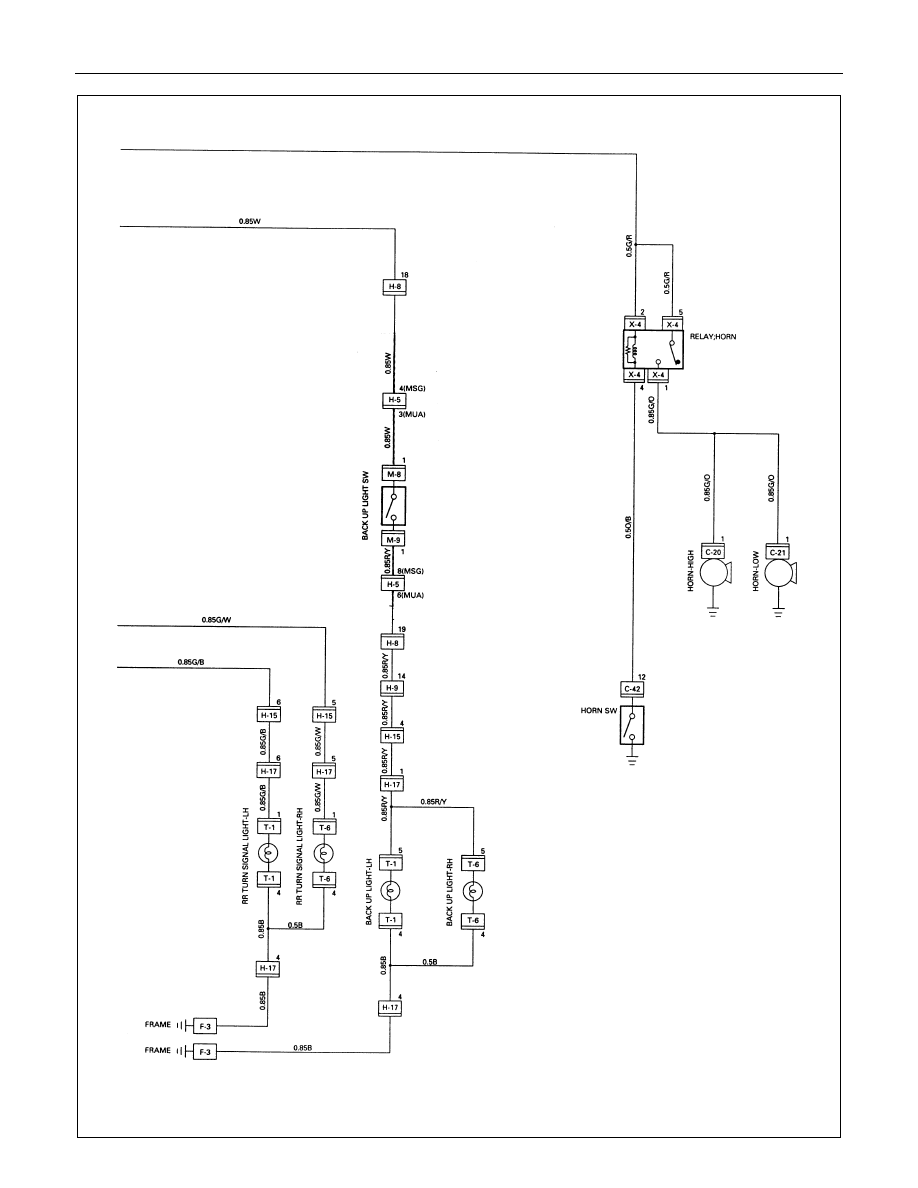

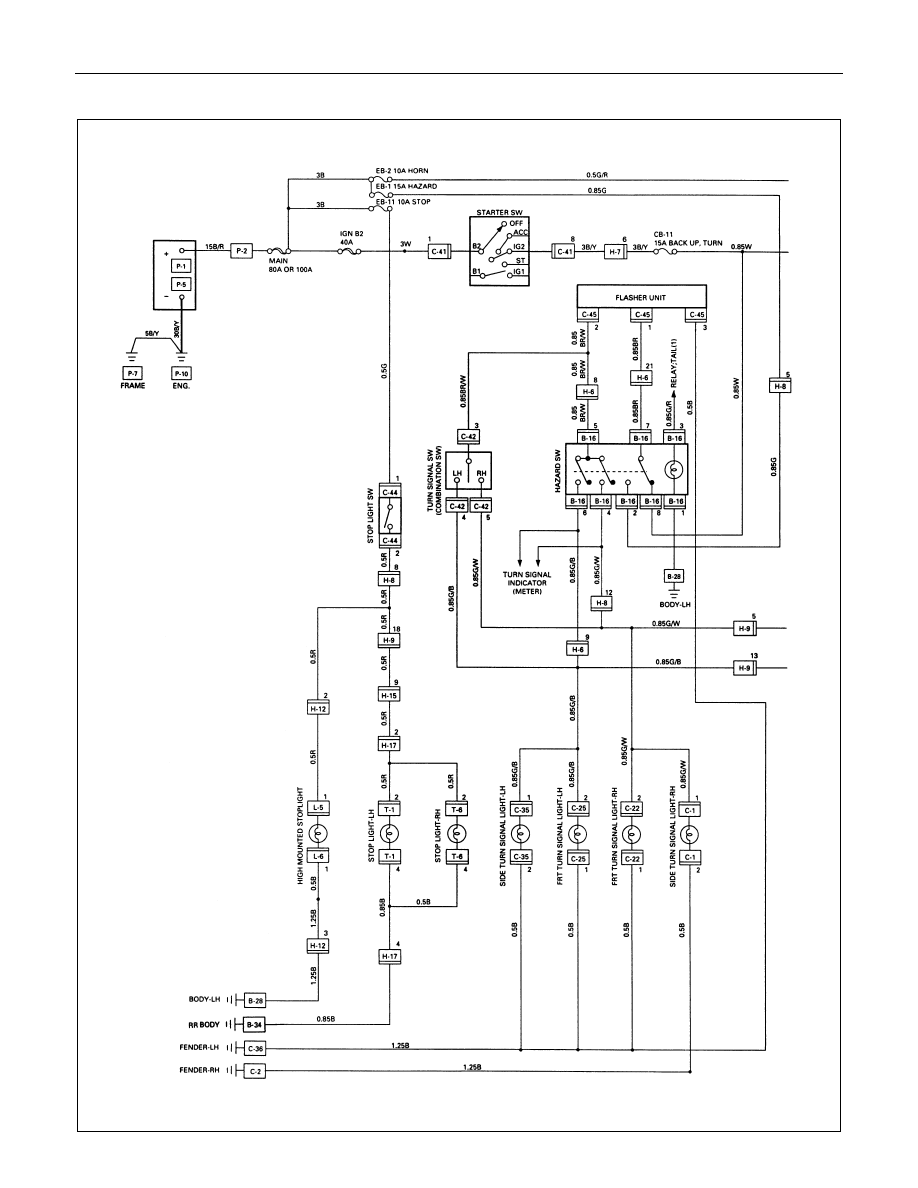

CIRCUIT DIAGRAM (LHD EXCEPT EC)

8-140  ELECTRICAL-BODY AND CHASSIS
