ELECTRICAL-BODY AND CHASSIS  8-93

LIGHTING

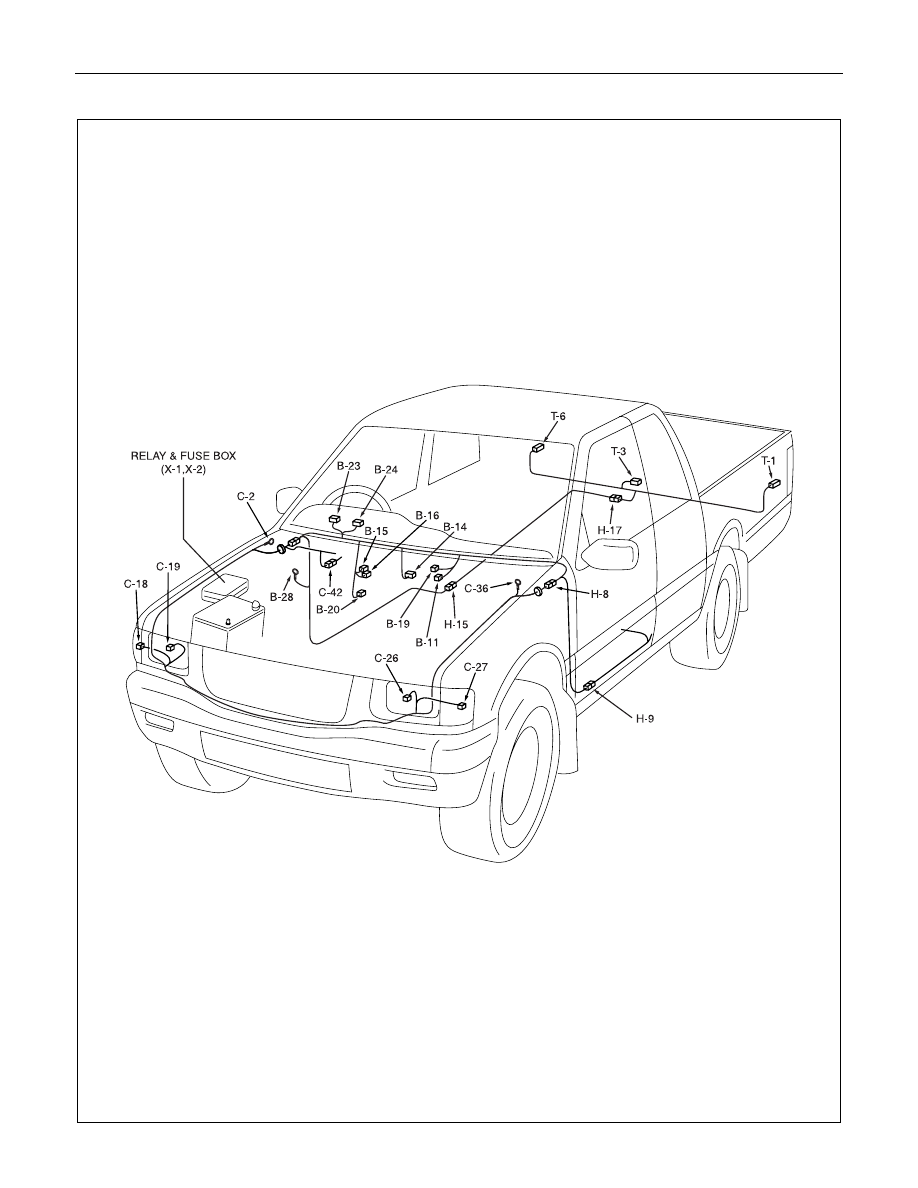

PARTS LOCATION (LHD EXCEPT EC)

8-94  ELECTRICAL-BODY AND CHASSIS

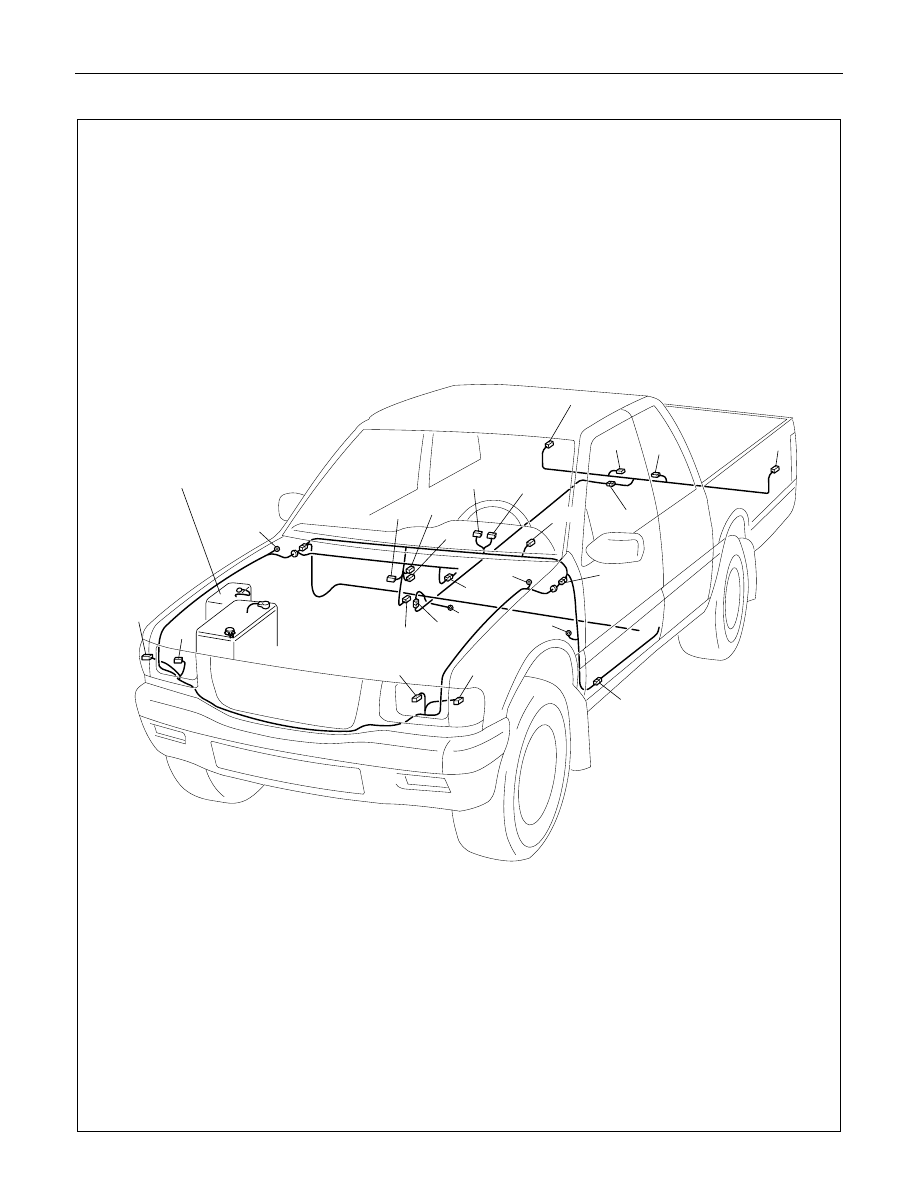

PARTS LOCATION (EC-LHD)

B-23

B-16

B-15

B-19

B-20

B-24

C-42

RELAY & FUSE BOX

(X-1,X-2,X-9)

C-18

C-19

C-26

C-27

H-34

C-36

C-2

H-6

B-28

B-25

T-6

T-4

T-1

H-15

B-34

H-17

T-3

ELECTRICAL-BODY AND CHASSIS  8-95

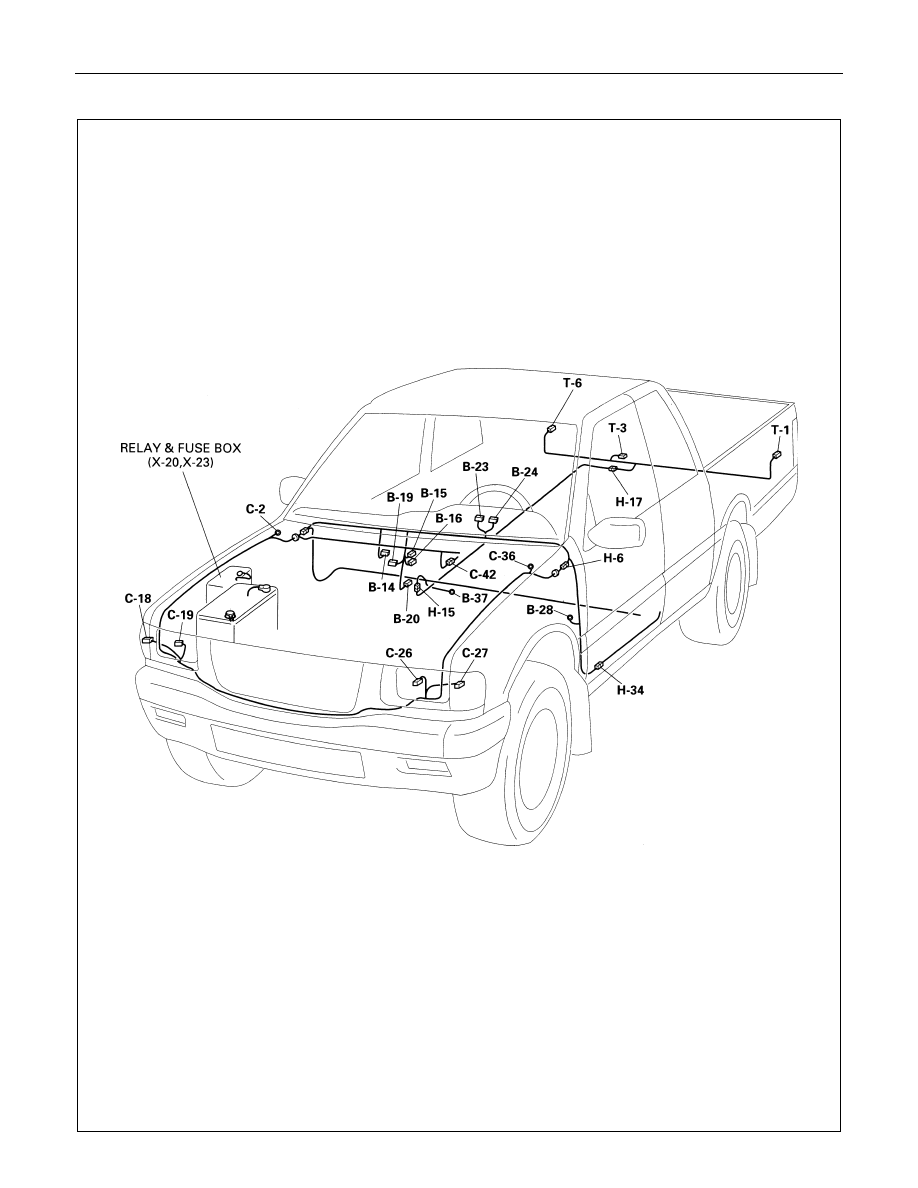

PARTS LOCATION (6VD1-LHD)

8-96  ELECTRICAL-BODY AND CHASSIS

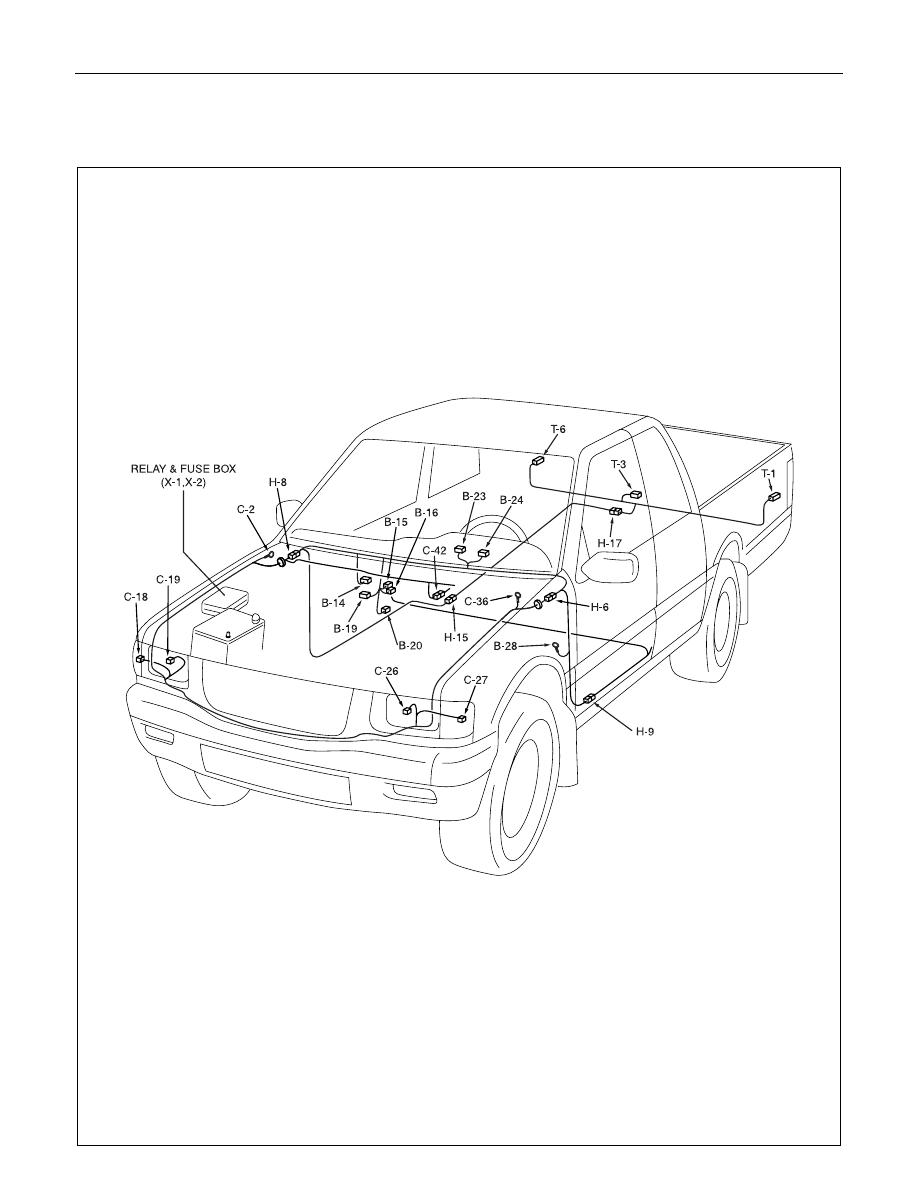

PARTS LOCATION (RHD EXCEPT UK)
