ELECTRICAL-BODY AND CHASSIS  8-81

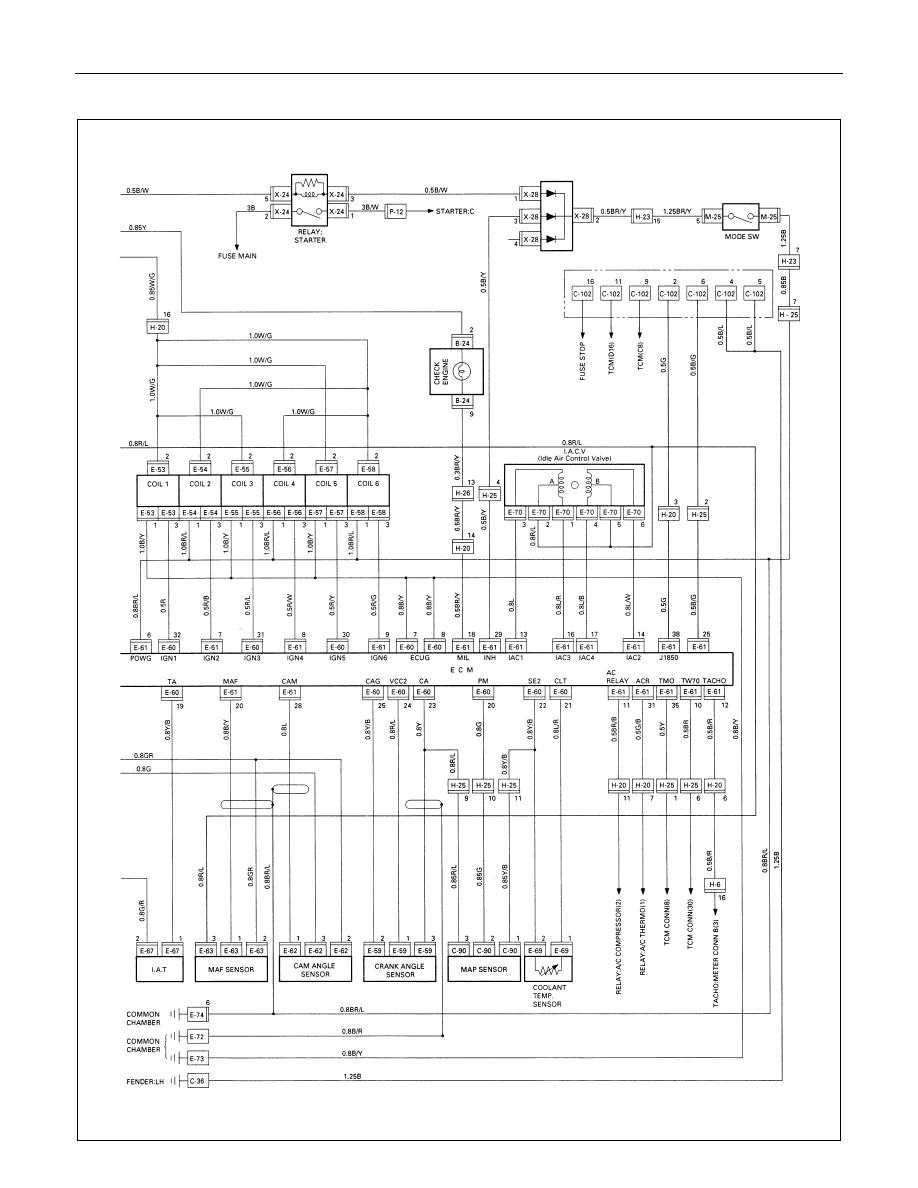

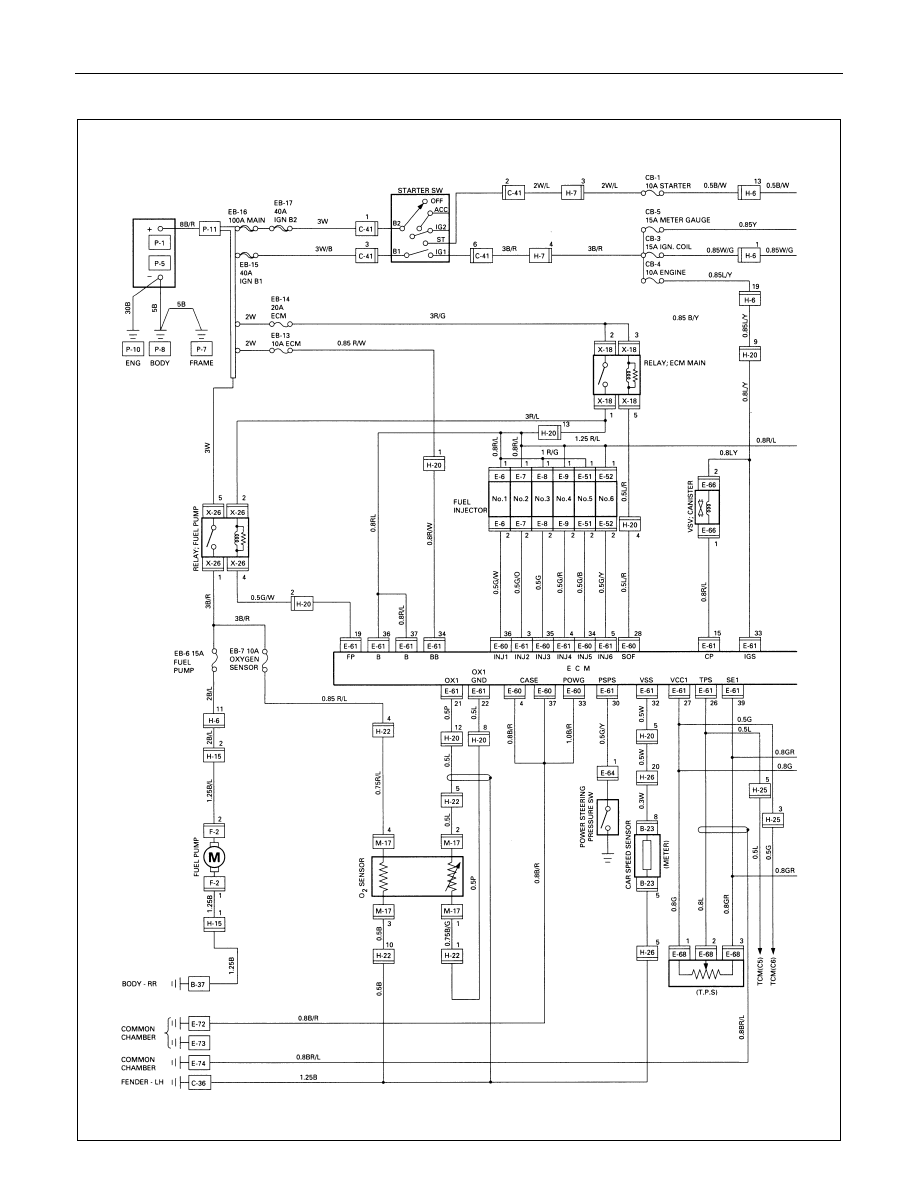

CIRCUIT DIAGRAM (6VD1 GASOLINE ENGINE-LHD)

8-82  ELECTRICAL-BODY AND CHASSIS

ELECTRICAL-BODY AND CHASSIS  8-83

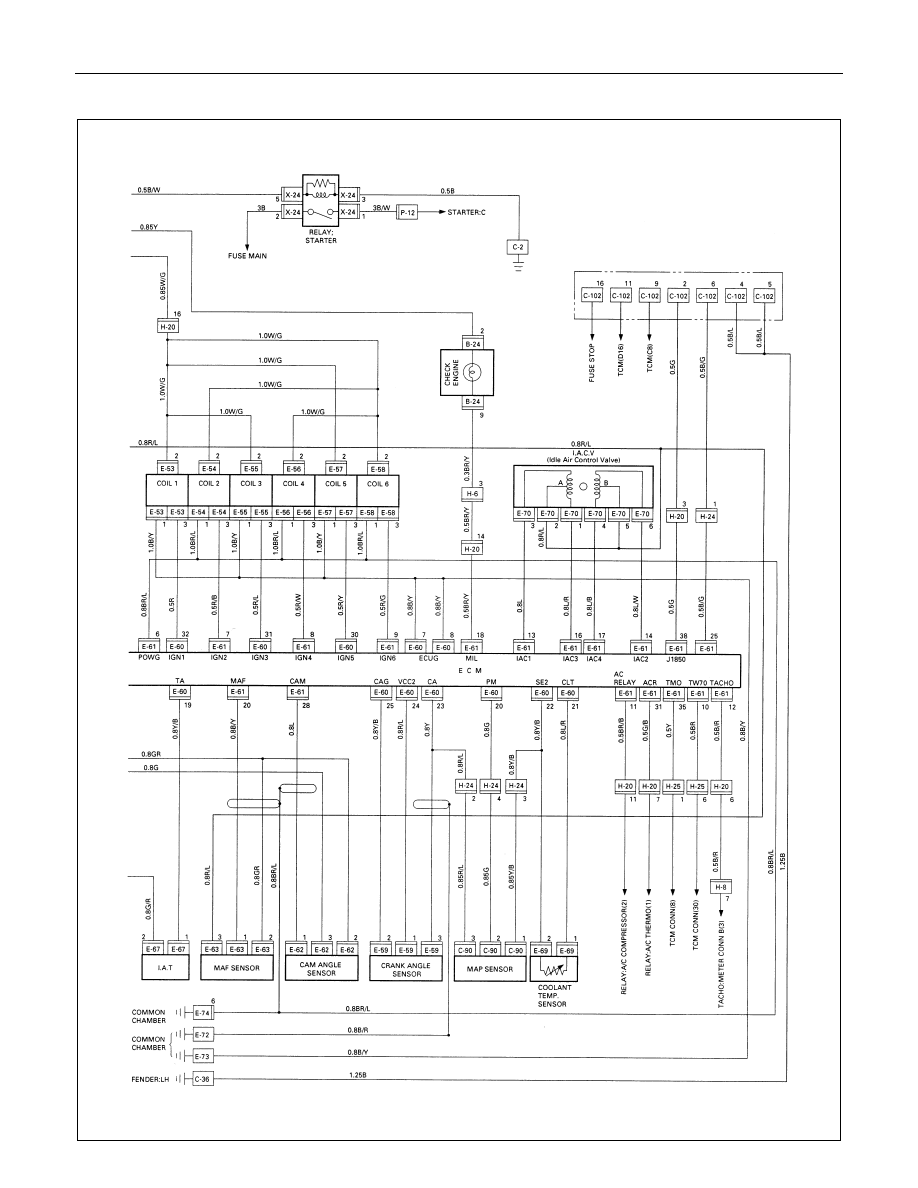

CIRCUIT DIAGRAM (6VD1 GASOLINE ENGINE-RHD)

8-84  ELECTRICAL-BODY AND CHASSIS
