Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 1076

ELECTRICAL-BODY AND CHASSIS  8-61

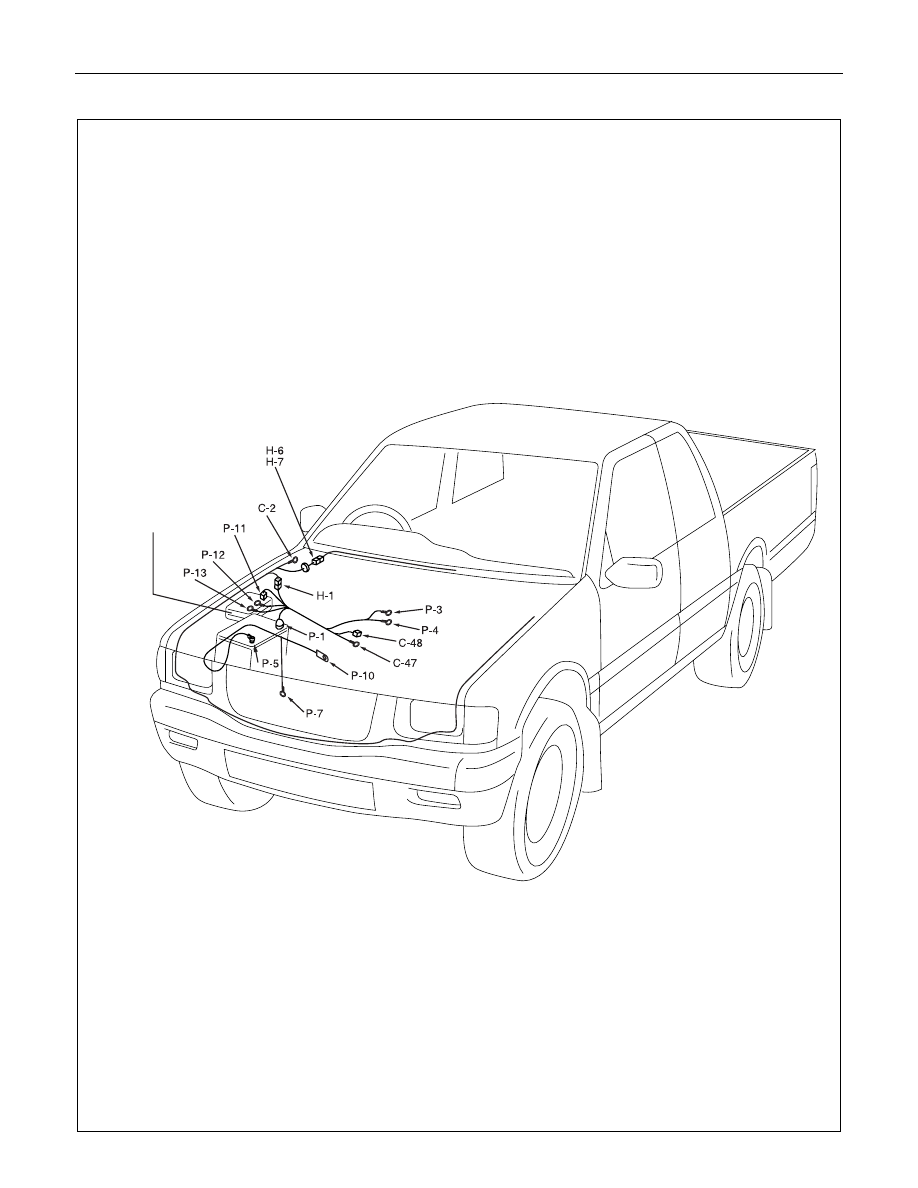

PARTS LOCATION (HEC ENGINE-RHD)

RELAY & FUSE BOX

(X-3, X-6)

8-62  ELECTRICAL-BODY AND CHASSIS

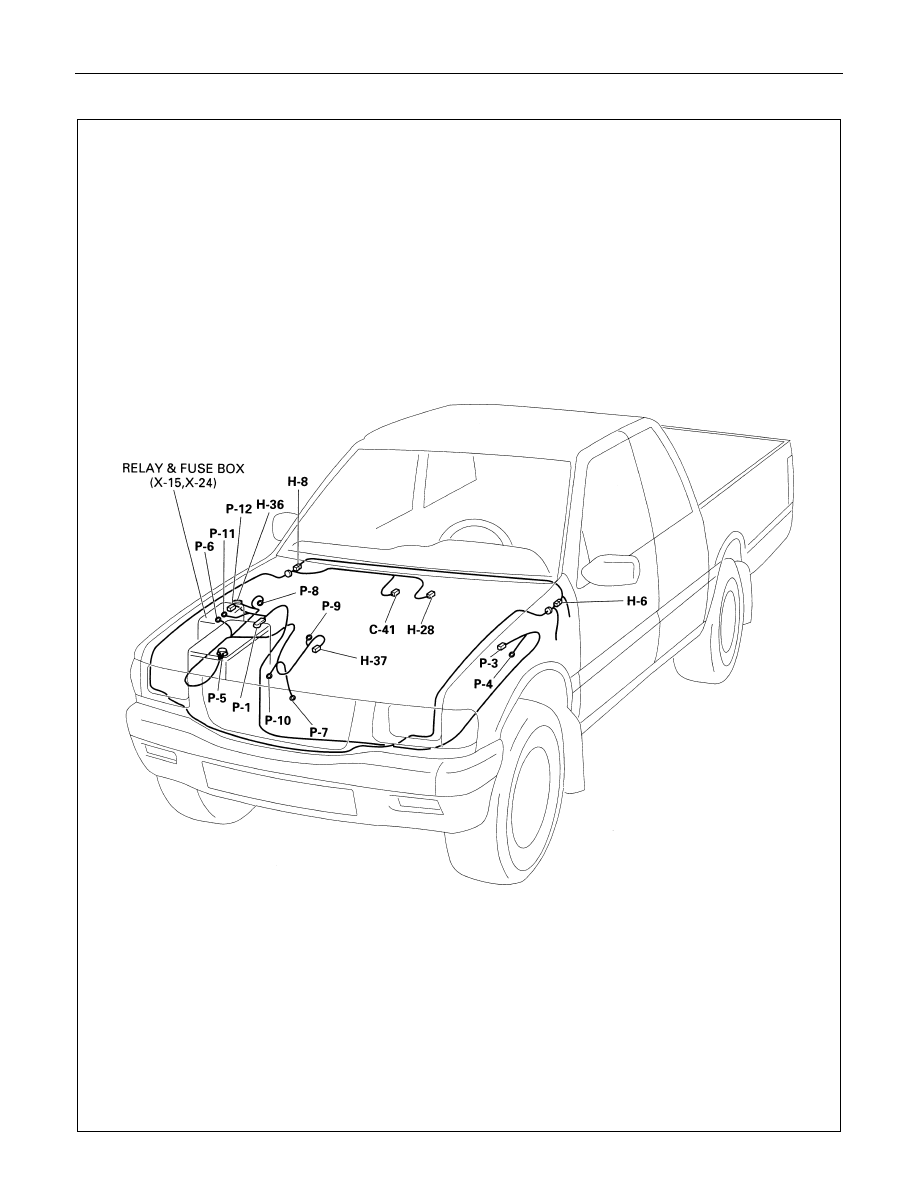

PARTS LOCATION (6VD1 GASOLINE ENGINE-LHD)

ELECTRICAL-BODY AND CHASSIS  8-63

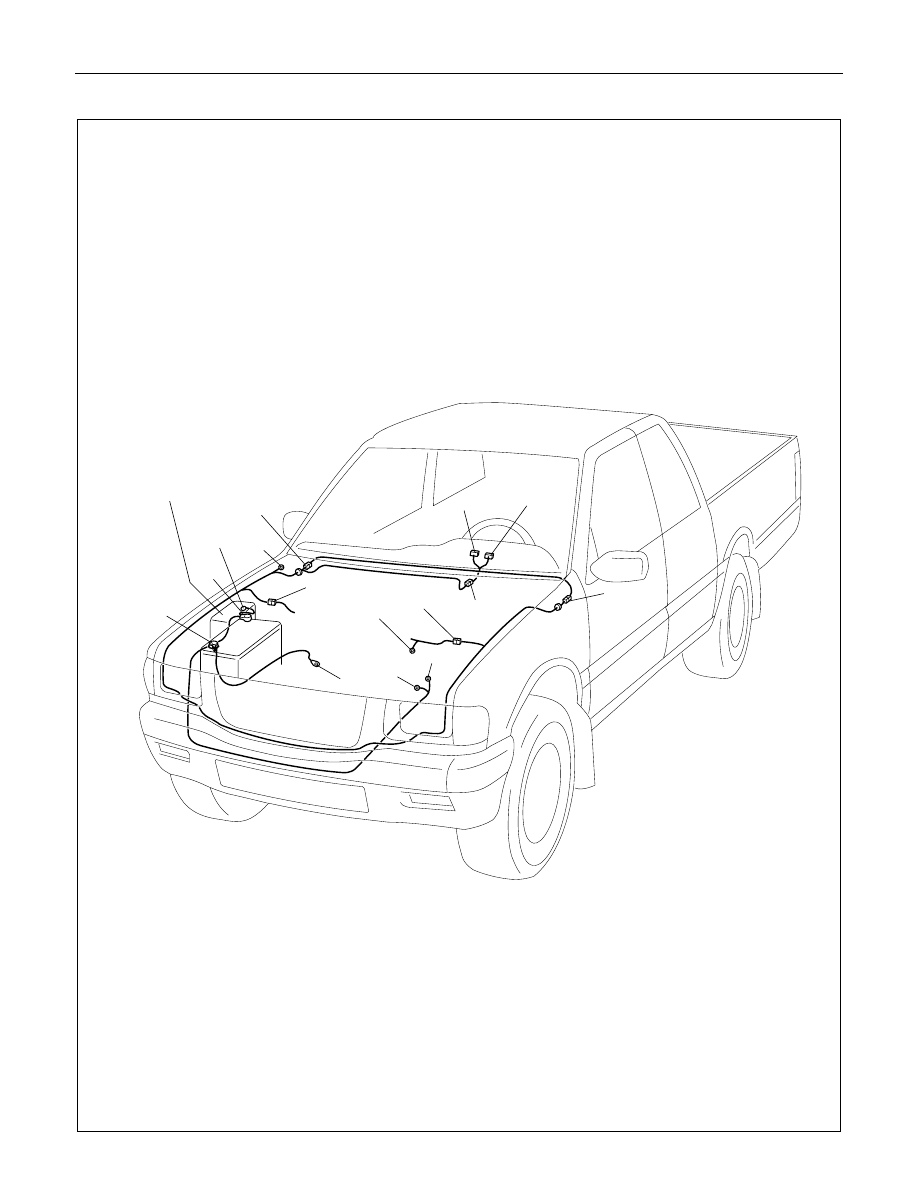

PARTS LOCATION (6VD1 GASOLINE ENGINE-RHD)

8-64  ELECTRICAL-BODY AND CHASSIS

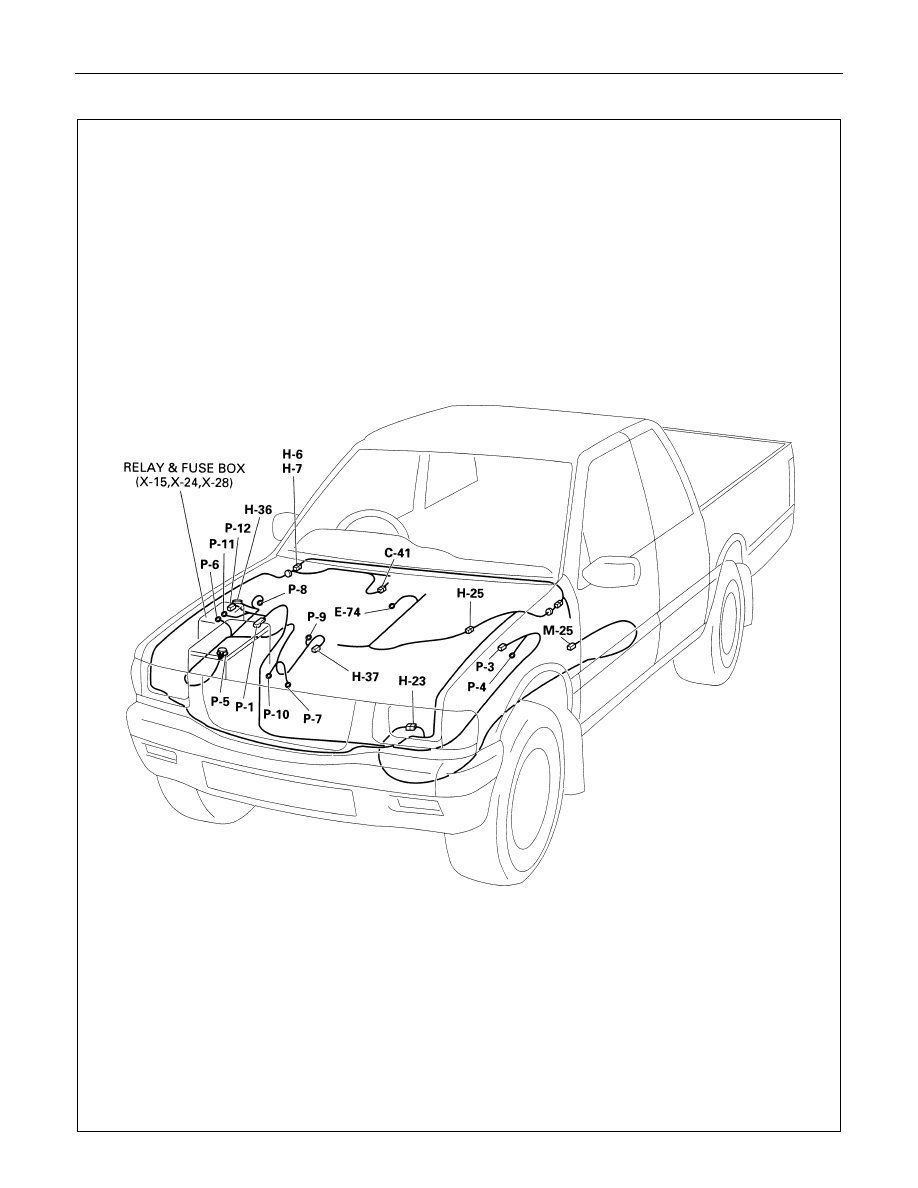

PARTS LOCATION (4J ENGINE-LHD)

C-41

H-4

E-35

H-3

P-10

P-3

P-4

C-2

P-1

RELAY & FUSE BOX

(X-3,X-5,X-13,H-1)

P-5

P-2

P-11

H-8

H-6

H-7

B-23

B-24
