ELECTRICAL-BODY AND CHASSIS  8-29

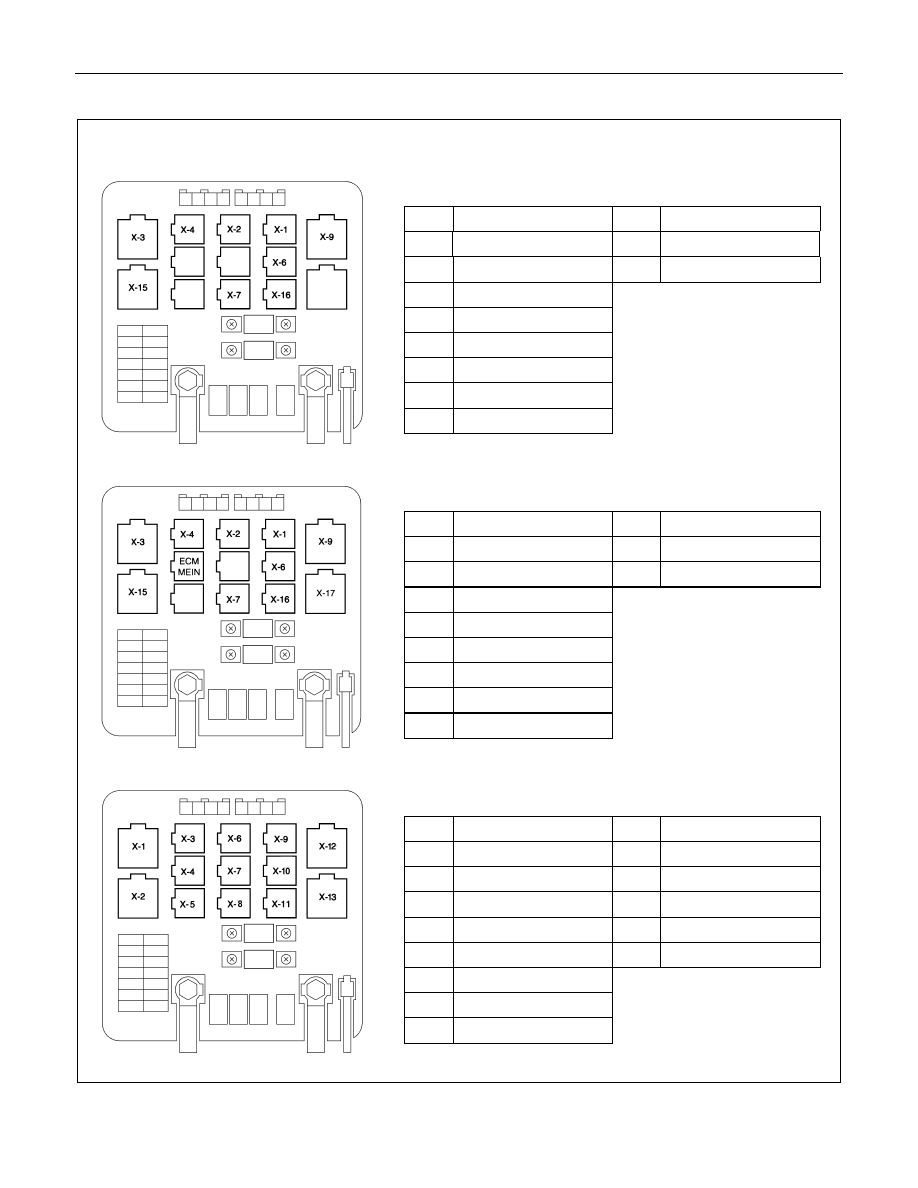

RELAY LOCATION-1 (RELAY AND FUSE BOX)

RELAY & FUSE BOX

RELAY (HEC)

NO.

HEC Engine Series

NO.

HEC Engine Series

X-1

RELAY;HEAD LIGHT

X-16

(RELAY;COND.FAN)

X-2

RELAY;TAIL LIGHT

X-17

-

X-3

RELAY;HEATER

X-4

RELAY;HORN

X-6

RELAY;STARTER

X-7

(RELAY;THERMO)

X-9

RELAY;FUEL PUMP

X-15

(RELAY;A/C COMP)

RELAY (6VD1)

NO.

6VD1 Engine Series

NO.

6VD1 Engine Series

X-1

RELAY;HEAD LIGHT

X-16

RELAY;COND.FAN

X-2

RELAY;TAIL LIGHT

X-17

-

X-3

RELAY;HEATER

X-4

RELAY;HORN

X-6

RELAY;STARTER

X-7

RELAY;THERMO

X-9

RELAY;FUEL PUMP

X-15

RELAY;A/C COMP

RELAY (4J)

NO.

4J Engine Series

NO.

4J Engine Series

X-1

RELAY;HEATER

X-9

RELAY;HEAD LIGHT

X-2

RELAY;CHARGE

X-10

RELAY;QWS

X-3

RELAY;HORN

X-11

RELAY;RR FOG

X-4

-

X-12

RELAY;DIMMER

X-5

RELAY;IMMOBILIZER X-13

RELAY;STARTER

X-6

RELAY;TAIL LIGHT

X-7

-

X-8

RELAY;THERMO

8-30  ELECTRICAL-BODY AND CHASSIS

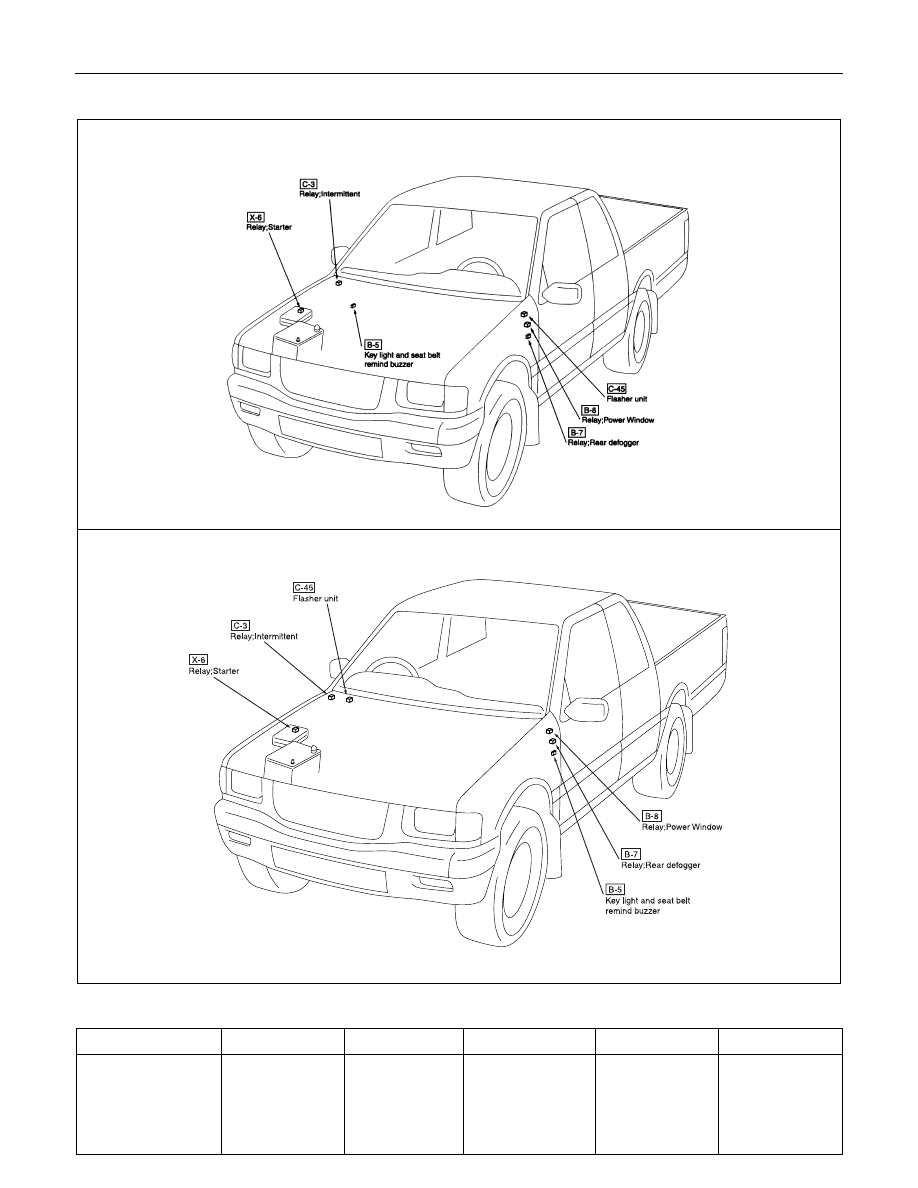

RELAY LOCATION-2 (HEC ENGINE MODEL)

(LHD)

(RHD)

RELAY

Connector No.

C-3

C-45

B-5

B-7

B-8

HEC Engine Series

WINDSHIELD

INTERMITTENT

FLASHER UNIT KEY, LIGHT AND

SEAT BELT

REMIND BUZZER

(For Gulf only)

REAR

DEFOGGER

(Except South

Africa & Chile)

POWER

WINDOW

ELECTRICAL-BODY AND CHASSIS  8-31

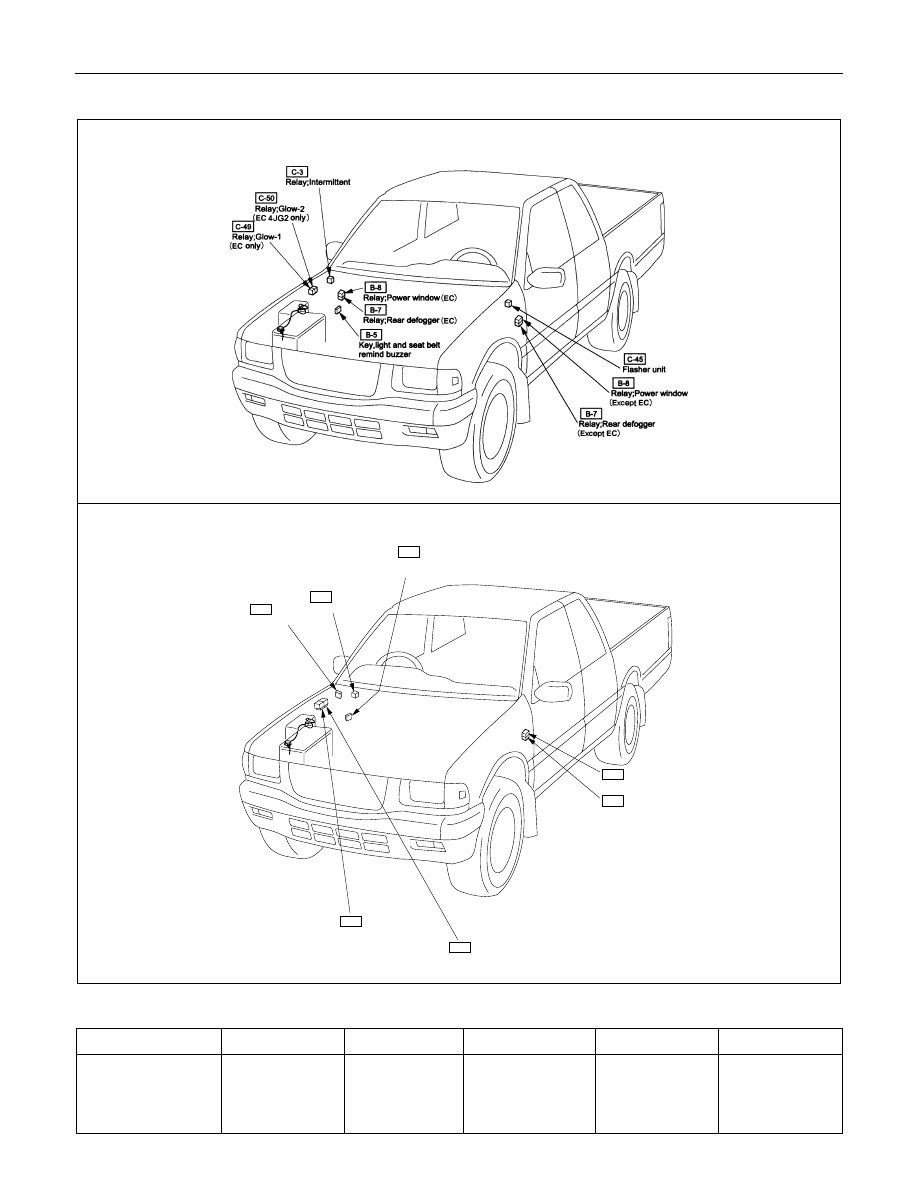

RELAY LOCATION-3 (4J ENGINE MODEL)

(LHD)

(RHD)

C-45

C-3

Flasher unit

B-5

Key, light and seat belt

remind buzzer

Relay;Intermittent

Relay;Glow-1

Relay;Glow-2

C-49

C-50

Relay;Rear defogger

B-7

Relay;Power window

B-8

RELAY

Connector No.

C-3

C-45

B-5

B-7

B-8

4J Engine Series

WINDSHIELD

INTERMITTENT

FLASHER UNIT KEY, LIGHT AND

SEAT BELT

REMIND BUZZER

REAR

DEFOGGER

POWER

WINDOW

8-32  ELECTRICAL-BODY AND CHASSIS

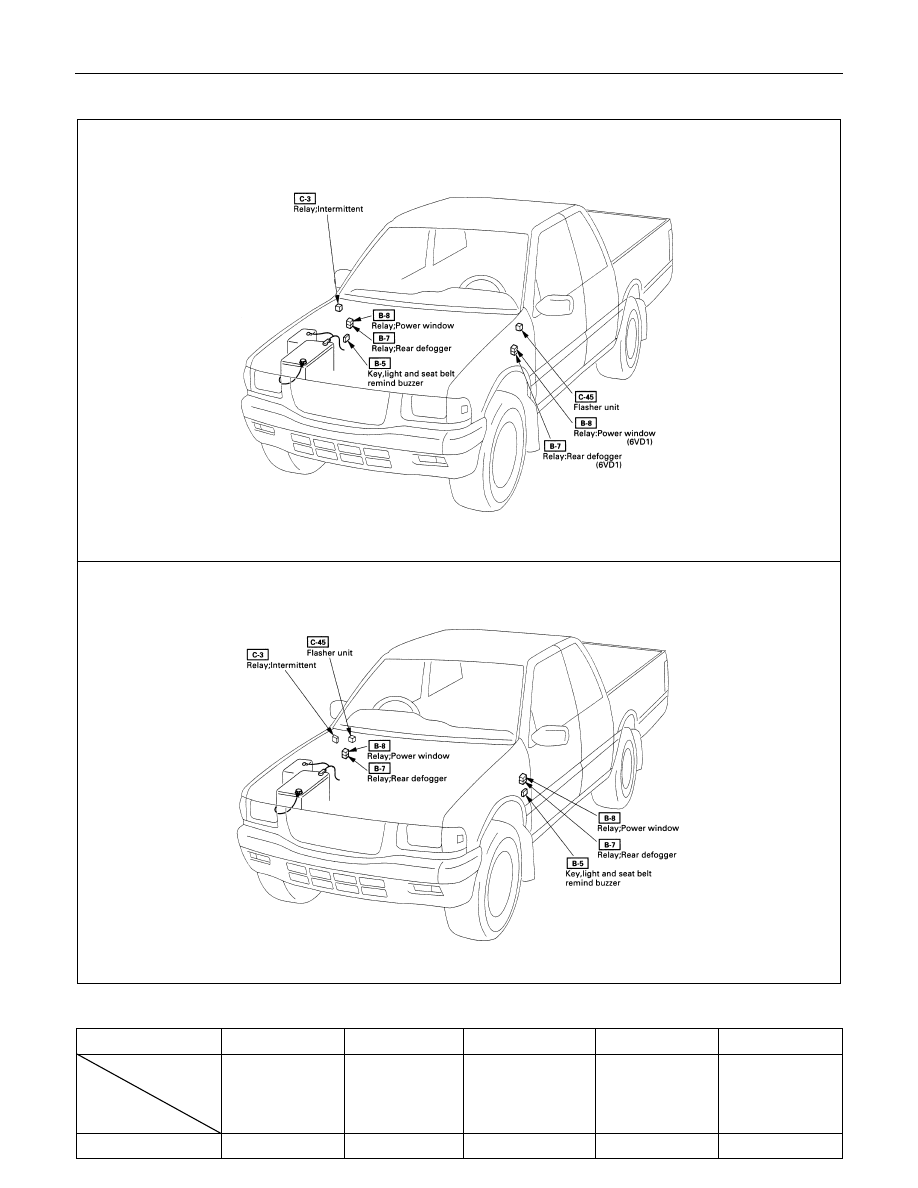

RELAY LOCATION-4 (6VD1 ENGINE MODEL)

(LHD)

(RHD)

RELAY

Connector No.

C-3

C-45

B-5

B-7

B-8

Relay

Engine model

WINDSHIELD

INTERMITTENT

FLASHER UNIT KEY, LIGHT AND

SEAT BELT

REMIND BUZZER

REAR

DEFOGGER

POWER

WINDOW

6VD1

!

!

!
