Isuzu D-Max / Isuzu Rodeo (TFR/TFS). Manual - part 44

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–171

Diagnostic Trouble Code (DTC) P0380 (Symptom Code 8) (Flash Code 66)

Glow Relay Circuit Voltage High

Step

Action

Value(s)

Yes

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0380 (Symptom Code 8) stored as
“Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0380 (Symptom Code 8) stored in this
ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 5

Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Go to Step 6

—

Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobiliser system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobiliser System-ECM replacement” for
the ECM/Immobiliser linking procedure.

—

Verify repair

—

6E–172

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

DIAGNOSTIC TROUBLE CODE (DTC) P0381 (SUB CODE 4) (FLASH CODE 67)

GLOW PLUG INDICATOR CIRCUIT VOLTAGE LOW

DIAGNOSTIC TROUBLE CODE (DTC) P0381 (SUB CODE 8) (FLASH CODE 67)

GLOW PLUG INDICATOR CIRCUIT VOLTAGE HIGH

Condition for setting the DTC and action taken when the DTC sets

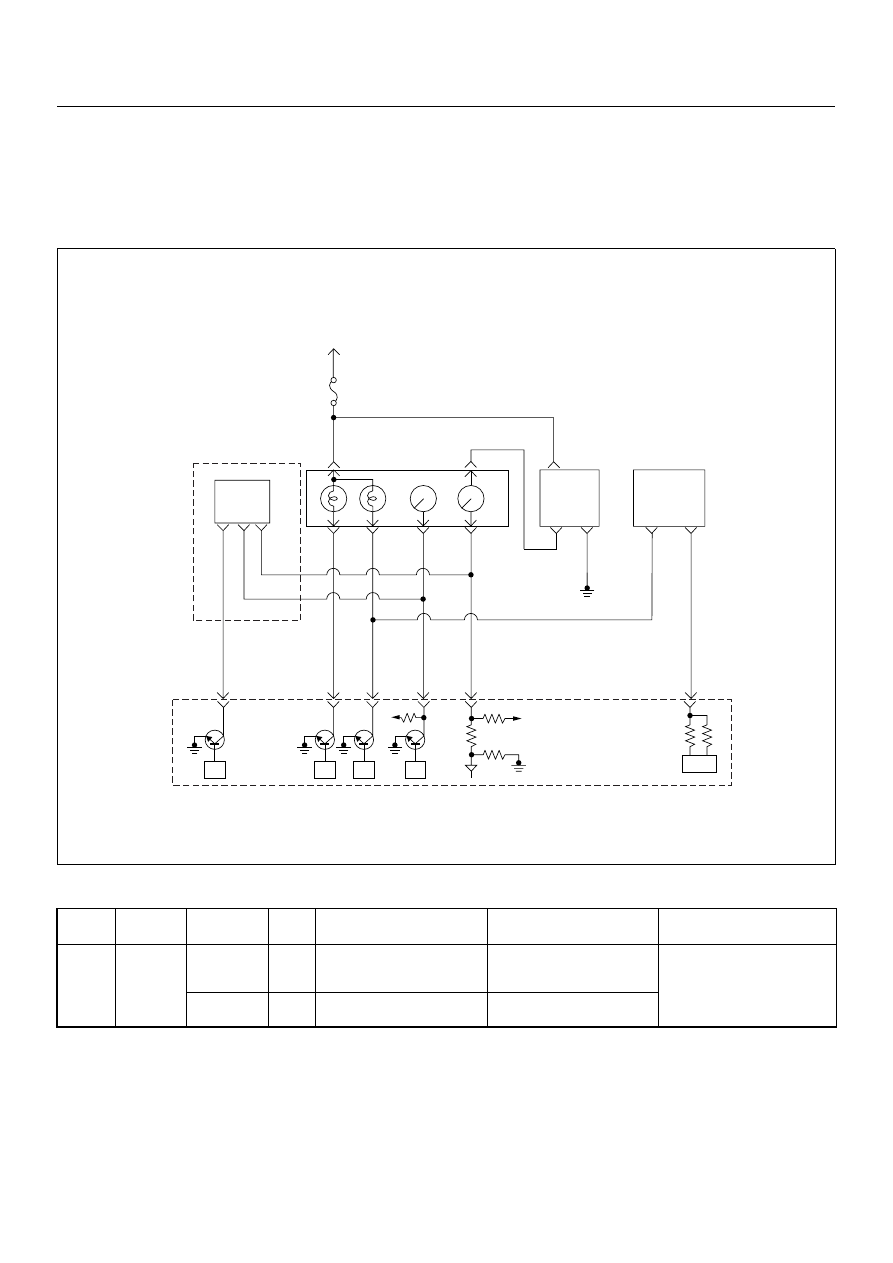

Circuit Description

The function of the glow time indicator lamp is to inform
the driver whether the glow system is activated.
When the lamp turned off, the engine can be started.
This does not imply that the glow plugs are no longer
activated.
In the after glow phase the lamp is not illuminated but

the glow plugs remain active for a certain period
depending on engine coolant temperature.

Diagnostic Aids

An intermittent may be caused by the following:

• Poor connections.

• Misrouted harness.

Flash

Code

Symptom

Code

MIL

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

P0381

Glow Plug Indicator Circuit
Voltage Low

Glow plug indicator circuit
open or short to ground cir-
cuit.

No fail-safe function.

Glow Plug Indicator Circuit
Voltage High

Glow plug indicator circuit
short to voltage circuit.

Ignition
SW

Meter
15A

6 15

Batt

0.5
RED/
WHT

0.5
ORG/
BLU

0.5
BRN/
YEL

0.5
BLK/
RED

0.5
BLU/
WHT

0.5 BLU/BLK

0.5
WHT

2.0
BLK

VSS

0.85
YEL

Imnobiliser

Control Unit

0.5
BRN/
YEL

0.85
YEL

Glow

Check

Engine

Tacho

Meter

Speed

Meter

A/T

TCM

µP

Engine
Control
Module
(ECM)

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

6E–173

• Rubbed through wire insulation.

• Broken wire inside the insulation.
Check for the following conditions:

• Poor connection at ECM-Inspect harness connectors

for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and

poor terminal to wire connection.

• Damaged harness-Inspect the wiring harness for

damage. If the harness appears to be OK, observe
the DTC P0381 display on the Tech2 while moving
connectors and wiring harnesses. A change in the
display will indicate the location of the fault.

Diagnostic Trouble Code (DTC) P0381 (Symptom Code 4) (Flash Code 67)

Glow Plug Indicator Circuit Voltage Low

Step

Action

Value(s)

Yes

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to On Board

Diagnostic

(OBD) System

Check

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor As Stored By ECU” in

“F0: Diagnostic Trouble Codes”.

Is the DTC P0381 (Symptom Code 4) stored as
“Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

1. Using the Tech 2, ignition “On” and engine “Off”.

2. Select “F1: Clear DTC Information” in “F0:

Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.

3. Operate the vehicle and monitor the “F0: Read

DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.

Was the DTC P0381 (Symptom Code 4) stored in this
ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

1. Ignition “On”, engine “Off”.

2. Check the glow plug indicator lamp.

Does the lamp turn “On”?

—

Go to Step 5

Go to Step 6

1. Ignition “On”, engine “Off”.

2. Check the glow plug indicator lamp.

Does the lamp turn “Off”?

—

Go to Step 9

Go to Step 7

Check the glow plug indicator lamp bulb.
If the bulb is burnt out, repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 7

6E–174

4JA1-TC/4JH1-TC ENGINE DRIVEABILITY AND EMISSIONS

Check for poor/faulty connection at the meter
connector and ECM connector. If a poor/faulty
connection is found, repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 8

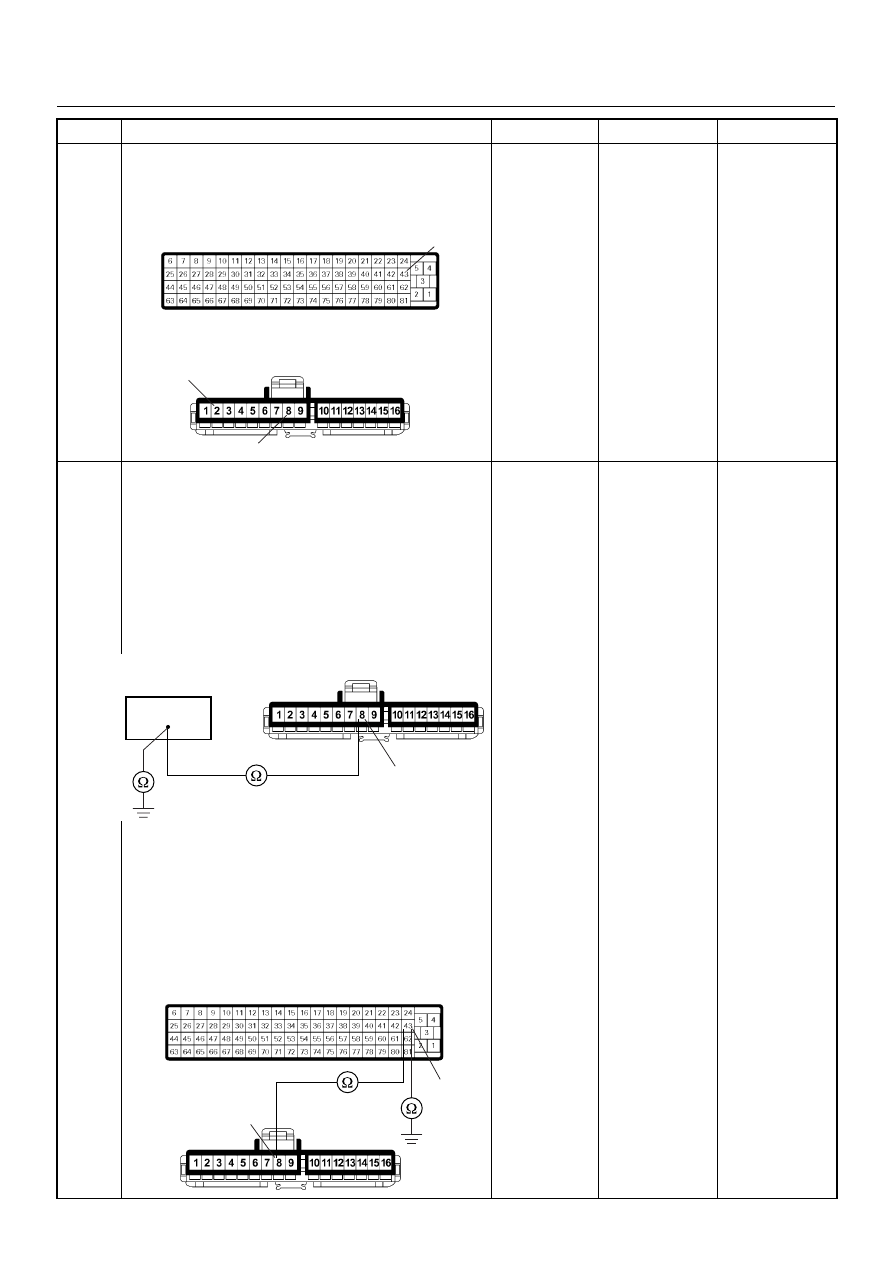

Using the DVM and check the glow time telltale circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Ref. Page 6E-81

3. Remove the meter connector.

4. Check the circuit for open or short to ground

circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the ECM connector.

3. Remove the meter connector.

4. Check the circuit for open or short to ground

circuit.

Was the problem found?

—

Repair faulty
harness and

verify repair

Go to Step 9

Step

Action

Value(s)

Yes

B-24

C-56

B-24

C-56
