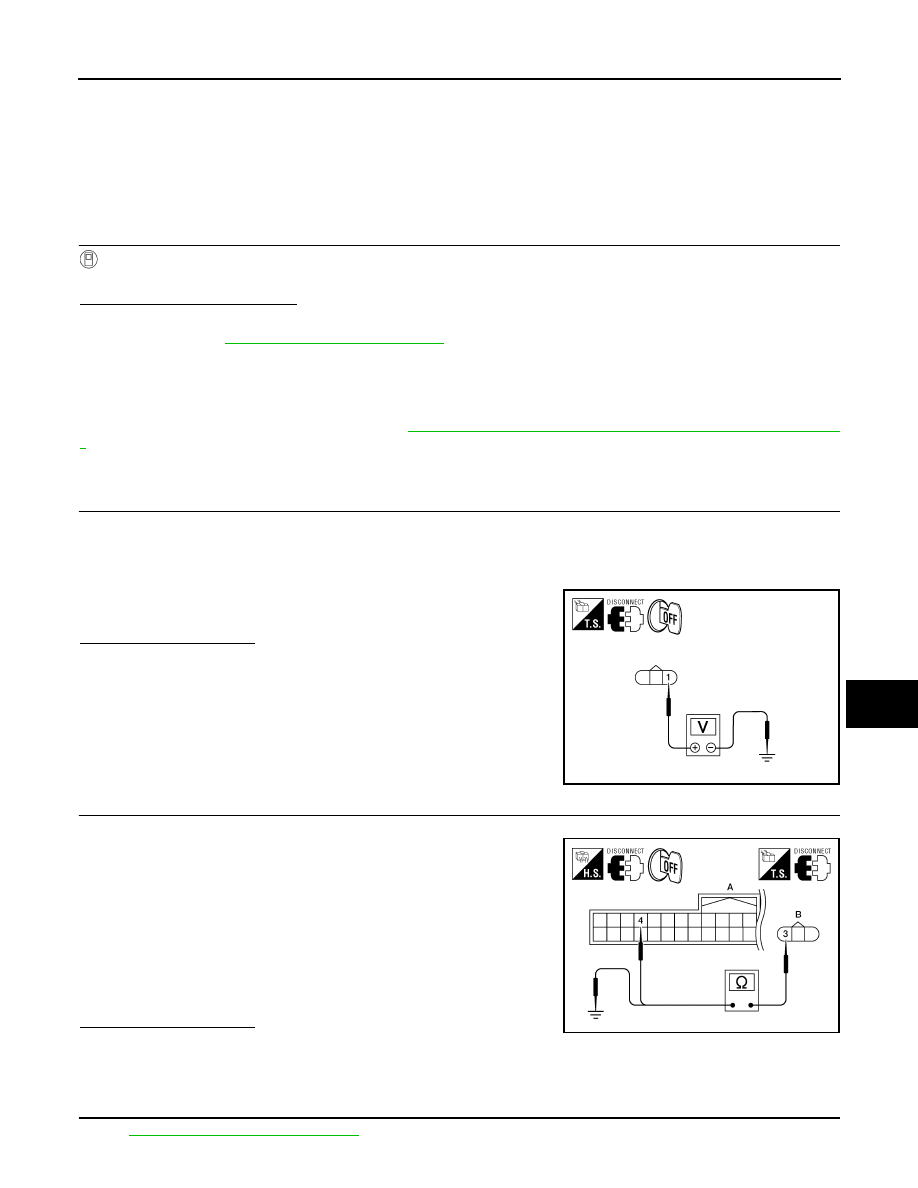

INTELLIGENT KEY WARNING BUZZER

Description

INFOID:0000000005146963

Answers back and warns for an inappropriate operation.

Component Function Check

INFOID:0000000005146964

1.

CHECK FUNCTION

 With CONSULT-III

Check Intelligent Key warning buzzer "OUTSIDE BUZZER" in Active Test mode.
Is the inspection result normal?

YES

>> Intelligent Key warning buzzer (engine room) is OK.

NO

>> Refer to

DLK-95, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005146965

Regarding Wiring Diagram information, refer to

DLK-178, "Wiring Diagram — INTELLIGENT KEY SYSTEM —

"

.

1.

CHECK INTELLIGENT KEY WARNING BUZZER (ENGINE ROOM) POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect Intelligent Key warning buzzer (engine room) connector.

3. Check voltage between Intelligent Key warning buzzer (engine room) harness connector E25 terminal 1

and ground.

Is the inspection normal?

YES

>> GO TO 2

NO

>> Repair or replace Intelligent Key warning buzzer (engine

room) power supply circuit.

2.

CHECK INTELLIGENT KEY WARNING BUZZER (ENGINE ROOM) CIRCUIT

1. Disconnect Intelligent Key unit connector.

2. Check continuity between Intelligent Key unit harness connector

(A) M70 terminal 4 and Intelligent Key warning buzzer (engine

room) harness connector E25 terminal 3.

3. Check continuity between Intelligent Key warning buzzer

(engine room) harness connector E25 terminal 3 and ground.

Is the inspection normal?

YES

>> GO TO 3

NO

>> Repair or replace harness between Intelligent Key warning buzzer (engine room) and Intelligent

Key unit.

3.

CHECK INTELLIGENT KEY WARNING BUZZER (ENGINE ROOM) OPERATION

Check

DLK-96, "Component Inspection"

.

1 - Ground

: Battery voltage

WIIA1195E

4 - 3

: Continuity should exist.

3 - Ground

: Continuity should not exist.

WIIA1196E

DLK-96

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY WARNING BUZZER

>> Inspection End.

Component Inspection

INFOID:0000000005146966

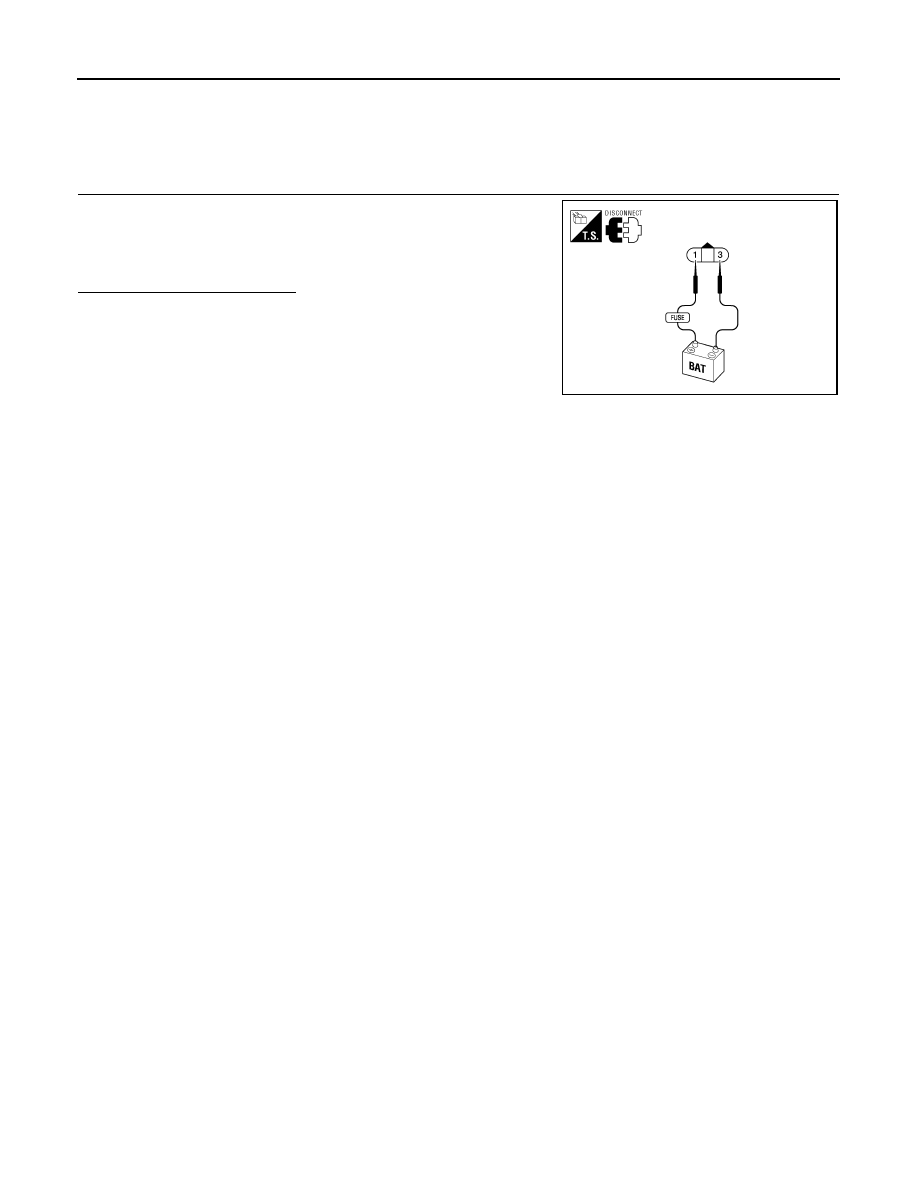

1.

CHECK INTELLIGENT KEY WARNING BUZZER

Connect battery power supply to Intelligent Key warning buzzer ter-

minals 1 and 3, and check the operation.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace Intelligent Key warning buzzer.

1 (BAT+) - 3 (BAT-)

: the buzzer sounds

WIIA1197E

OUTSIDE KEY ANTENNA

DLK-97

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

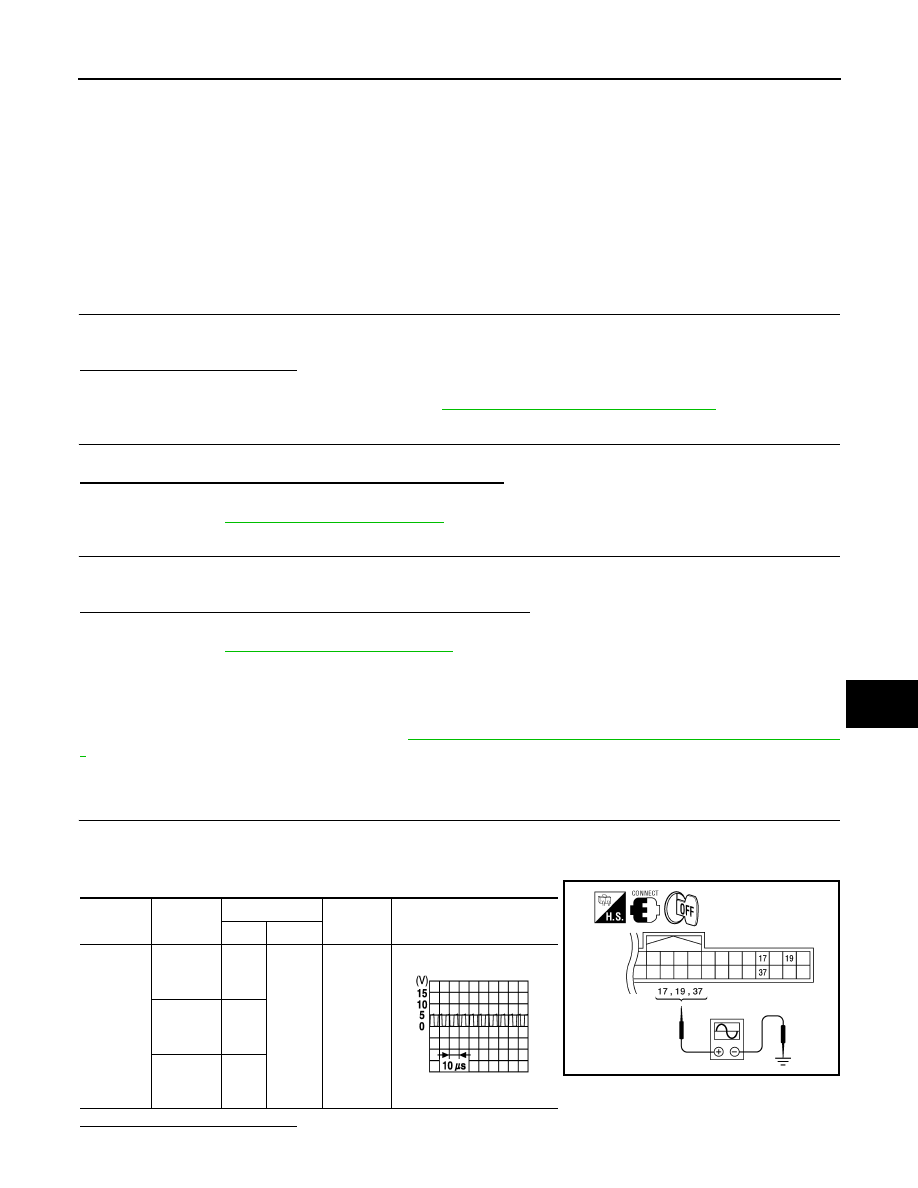

OUTSIDE KEY ANTENNA

Description

INFOID:0000000005146967

Detects whether the Intelligent Key is in the operating range of the outside antennas.

Front outside antennas are integrated in front outside door handles (driver side, passenger side) to allow lock-

ing and unlocking of door locks when the Intelligent Key is present.

Rear bumper antenna is mounted on the rear bumper and is used to allow the back door and glass hatch

switch assembly opening of the back door when the Intelligent Key is present.

Component Function Check

INFOID:0000000005146968

1.

CHECK DOOR REQUEST SWITCHES

Check that door request switches operate normally.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Inspect door request switches. Refer to

DLK-83, "Component Function Check"

.

2.

CHECK OUTSIDE KEY ANTENNAS FUNCTION

Be sure that Intelligent Key is in each outside key antenna detection range.
Does door lock/unlock when each request switch is pressed?

YES

>> GO TO 3

NO

>> Refer to

DLK-97, "Diagnosis Procedure"

.

3.

CHECK REAR ANTENNA FUNCTION

Be sure that Intelligent Key is in rear bumper antenna detection range.

Be sure that back door close switch is not in the "CANCEL" position.
Does power back door open when back door switch is operated?

YES

>> Outside key antennas are OK.

NO

>> Refer to

DLK-138, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005146969

Regarding Wiring Diagram information, refer to

DLK-178, "Wiring Diagram — INTELLIGENT KEY SYSTEM —

"

.

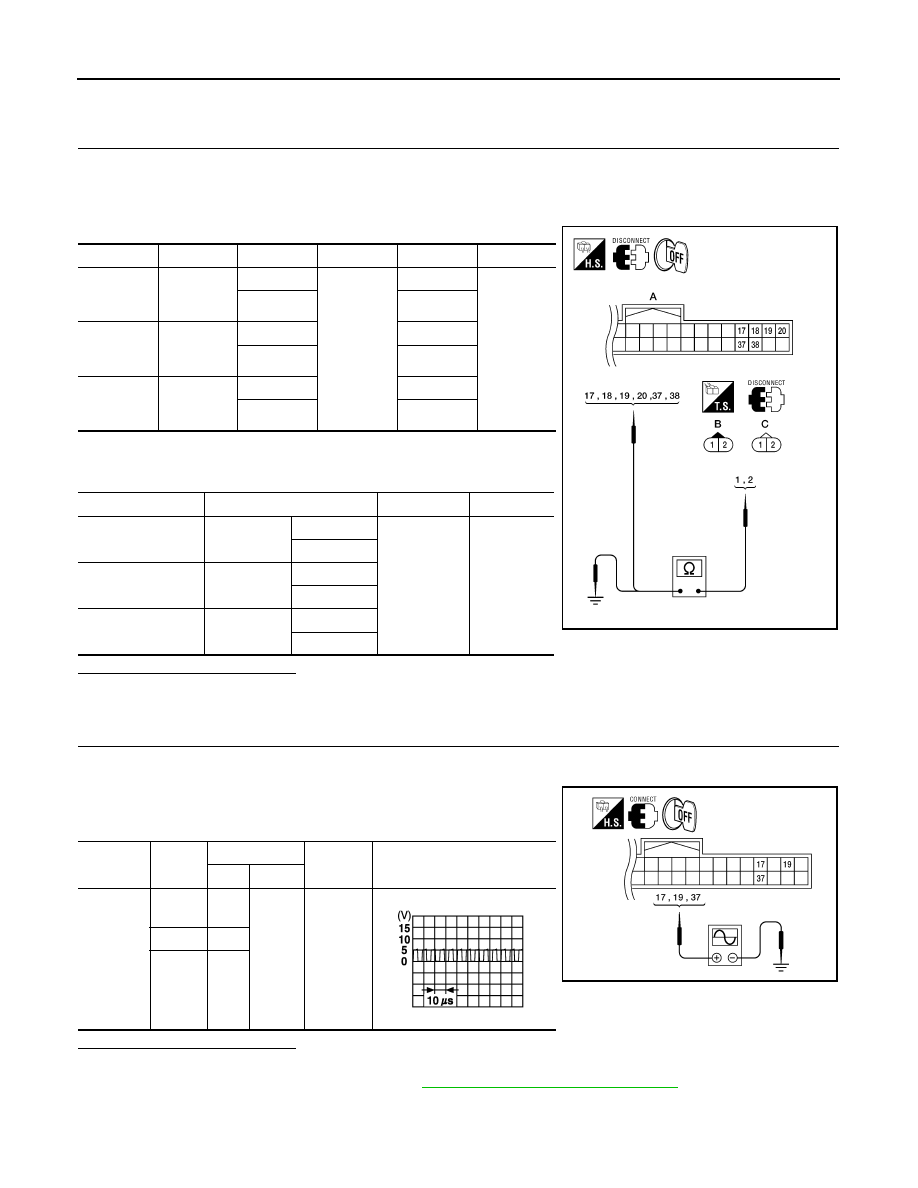

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL

1. Turn ignition switch OFF.

2. Check signal between Intelligent Key unit connector M70 terminals 17, 19, 37 and ground with an oscillo-

scope.

Is the inspection result normal?

Connector

Item

Terminals

Condition

Signal

(Reference value)

(+)

(-)

M70

Rear
bumper
antenna

17

Ground

Request
switch is
pushed

Front out-
side an-
tenna LH

19

Front out-
side an-
tenna RH

37

WIIA1198E

SIIA1910J
