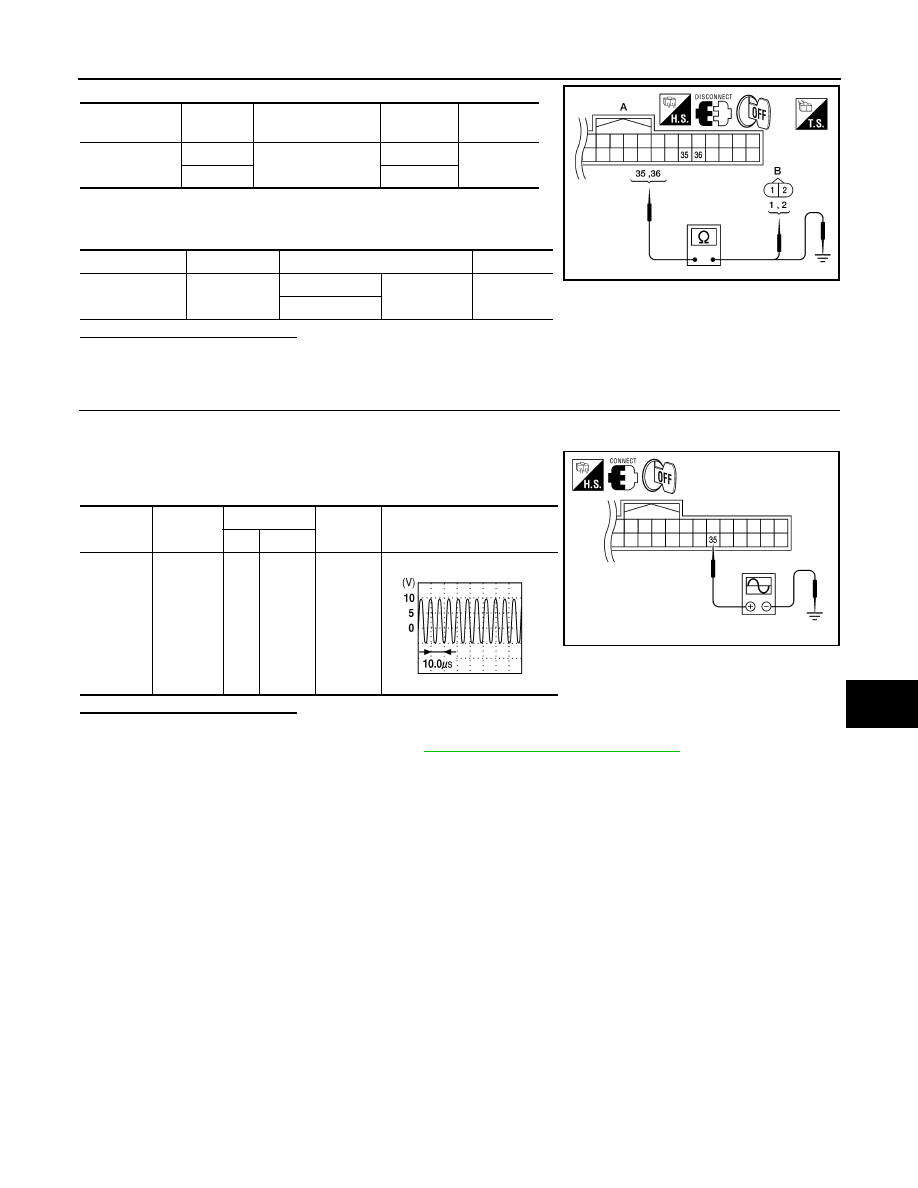

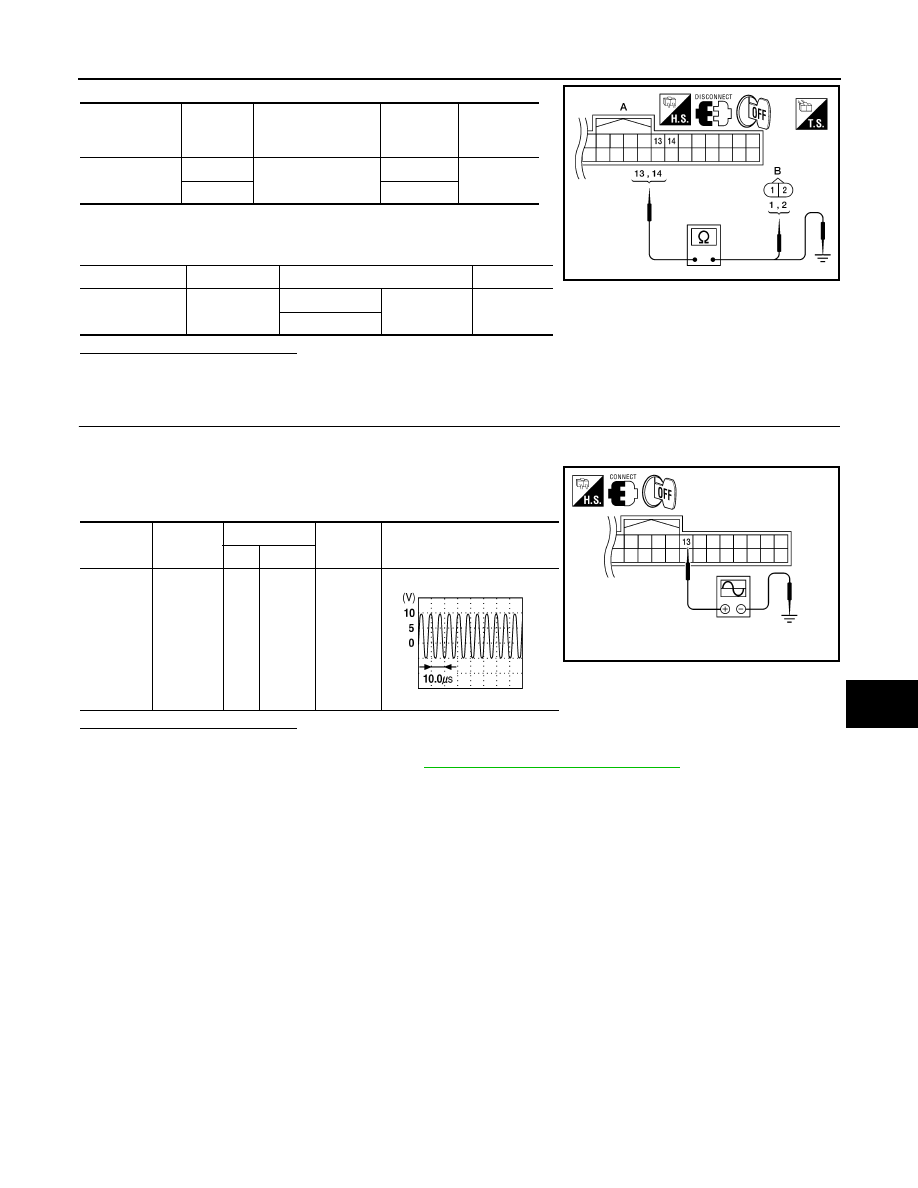

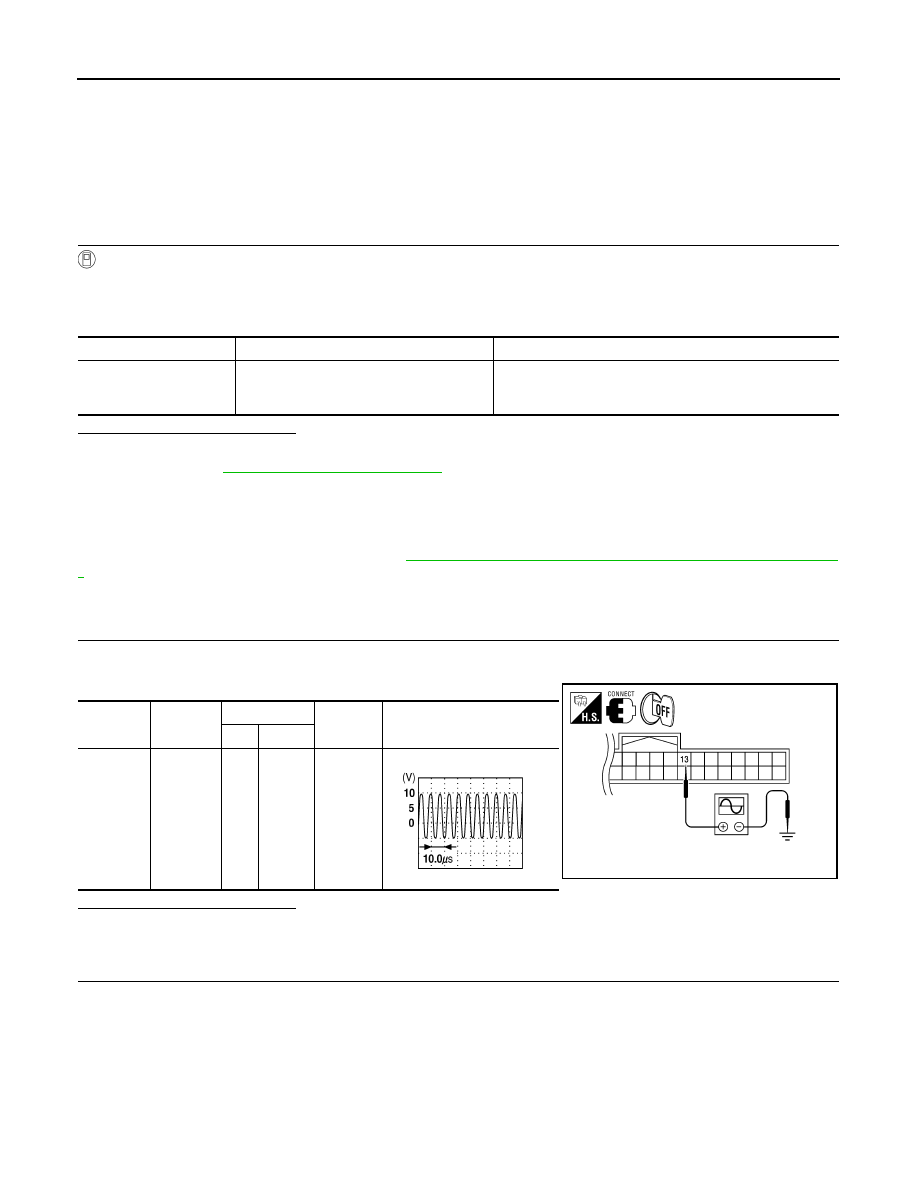

LUGGAGE AREA ANTENNA DLK-63 < COMPONENT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P 3. Check continuity between Intelligent Key unit harness connector (A) M70 terminals 35, 36 and ground. Is the inspection result normal? YES >> GO TO 3 NO >> Repair or replace harness between Intelligent Key unit and luggage area antenna. 3. CHECK INSIDE KEY ANTENNA POWER SUPPLY SINGAL 1. Replace luggage area antenna. (New antenna or other antenna) 2. Connect Intelligent Key unit connector. 3. Check signal between Intelligent Key unit connector and ground with oscilloscope. Is the inspection result normal? YES >> Replace luggage area antenna. NO >> Replace Intelligent Key unit. Refer to SEC-120, "Removal and Installation" Intelligent Key Terminals Luggage area an- tenna connector Terminals Continuity A: M70 35 B: B76 1 Yes 36 2 Item Connector Terminals Continuity Intelligent Key unit A: M70 35 Ground No 36 ALKIA0588ZZ Connector Item Terminals Condition Signal (V) (Reference value) (+) (–) M70 Intelligent Key unit 35 Ground Ignition ALKIA0587ZZ PIIB7441E |
