BRM-6

< SERVICE INFORMATION >

BODY REPAIR

SERVICE INFORMATION

BODY REPAIR

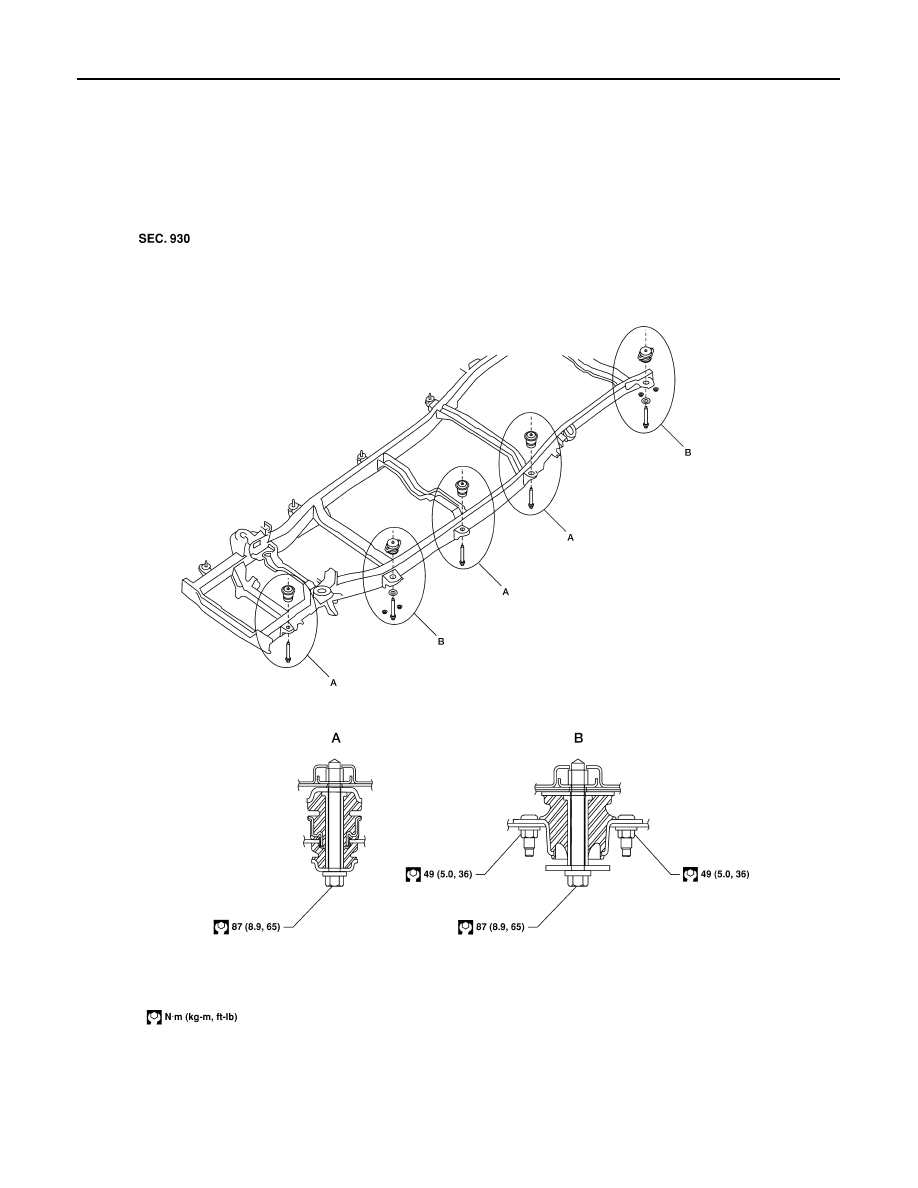

Body Mounting

INFOID:0000000005147331

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

mounting).

LIIA1564E

BODY REPAIR

BRM-7

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

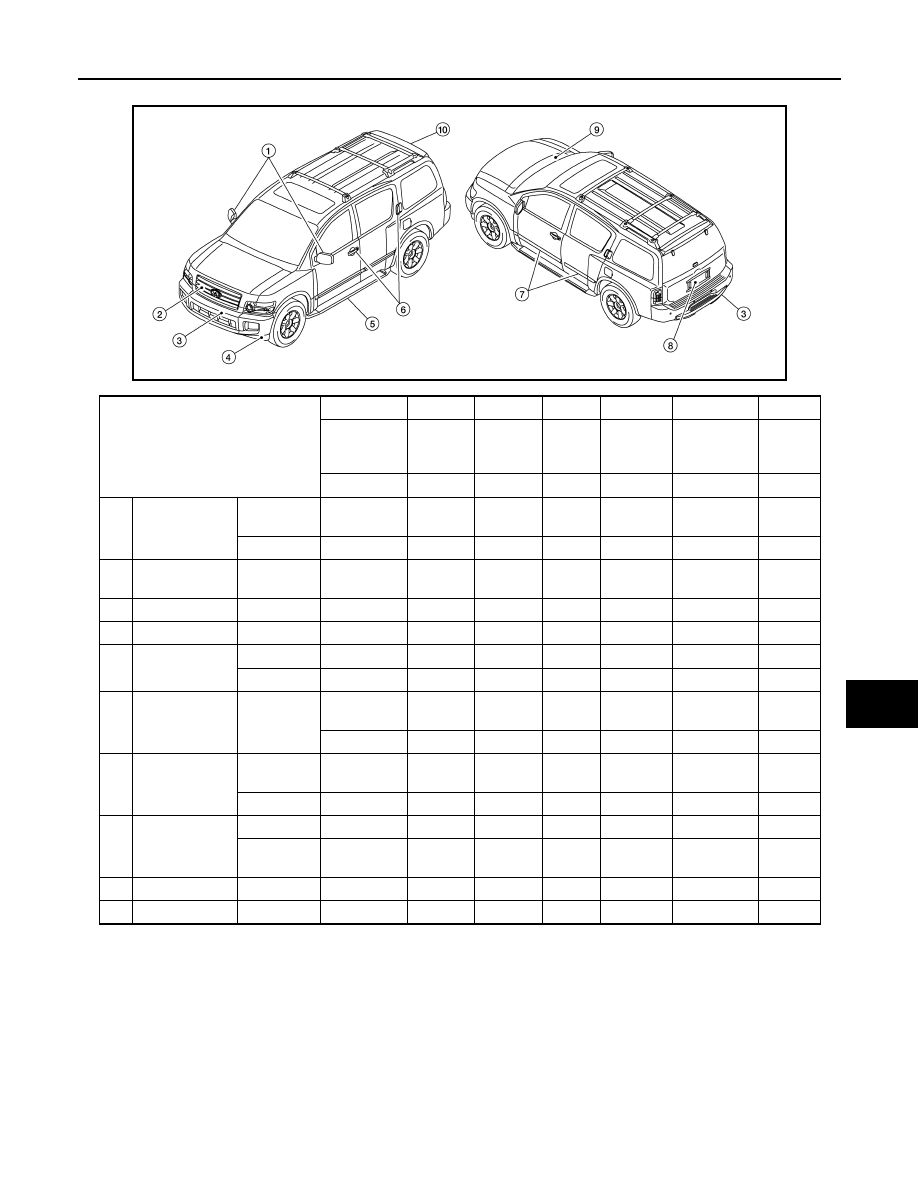

Body Exterior Paint Color

INFOID:0000000005147332

M: Metallic; 2S: 2-Coat Solid, 2P: 2-Coat Pearl; 3P: 3-Coat Pearl; t: New Cross Linking Clear Coat

LIIA1437E

Component

Color code

NAD

B30

G10

K11

K12

Q11

Description

Deep

Garnet

Lake-
shore

Slate

Liquid

Onyx

Silver

Graphite

Silver

Indulgence

Tuscan

Pearl

Clear coat

t

t

t

t

t

t

1

Outside
mirror

Body

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Base

Black

KH3

KH3

KH3

KH3

KH3

KH3

2

Radiator grille

Center and
emblem

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

3

Bumpers

Fascias

Body color

NAD

B30

G10

K11

K12

Q11

4

Valance

Black

KH3

KH3

KH3

KH3

KH3

KH3

5

Running Boards

Body

Body color

NAD

B30

G10

K11

K12

Q11

Step pad

Black

KH3

KH3

KH3

KH3

KH3

KH3

6

Outside handles

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Body color

NAD

B30

G10

K11

K12

Q11

7

Side Guard
Molding

Top

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Bottom

Body color

NAD

B30

G10

K11

K12

Q11

8

License plate
finisher

Base

Body color

NAD

B30

G10

K11

K12

Q11

Top and bot-
tom trim

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

9

Cowl top cover

Body color

NAD

B30

G10

K11

K12

Q11

10

Rear spoiler

Body color

NAD

B30

G10

K11

K12

Q11

BRM-8

< SERVICE INFORMATION >

BODY REPAIR

Body Component Parts

INFOID:0000000005147333

UNDERBODY COMPONENT PARTS

1. Hoodledge assembly (RH, LH)
2. Hoodledge reinforcement (RH, LH)
3. Body mounting bracket (RH, LH)
4. Hoodledge front brace (RH), Battery mounting bracket (LH)

LIIA0908E

BODY REPAIR

BRM-9

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

5. Harness connector bracket
6. Rear floor reinforcement
7. Rear floor
8. Rear floor reinforcement
9. Rear floor side (RH, LH)
10. Crossmember
11. Second seat rear crossmember
12. Second seat front crossmember
13. Rear front seat crossmember
14. Second Body crossmember
15. Front floor
16. Front seat front crossmember
17. Front floor reinforcement
18. Outer sill (RH, LH)
19. Second crossmember extension
20. Rear crossmember end
21. Rear lower crossmember end
22. Rear crossmember end (RH, LH)
23. Rear side member rear reinforcement (RH, LH)
24. Rear side member (RH, LH)
25. Rear side member reinforcement (RH, LH)
26. Inner sill extension (RH, LH)
27. Rear crossmember
28. Upper dash top
29. Upper dash bottom
30. Cowl top
31. Lower dash
32. Lower dash insulator (RH)
33. Lower dash reinforcement
34. Side dash (RH, LH)
35. Lower dash insulator
