WIPER AND WASHER SYSTEM

JCLWM5497GB

WIPER AND WASHER SYSTEM

WW-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

JCLWM5498GB

WW-32

< WIRING DIAGRAM >

WIPER AND WASHER SYSTEM

JCLWM5499GB

DIAGNOSIS AND REPAIR WORKFLOW

WW-33

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006300466

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

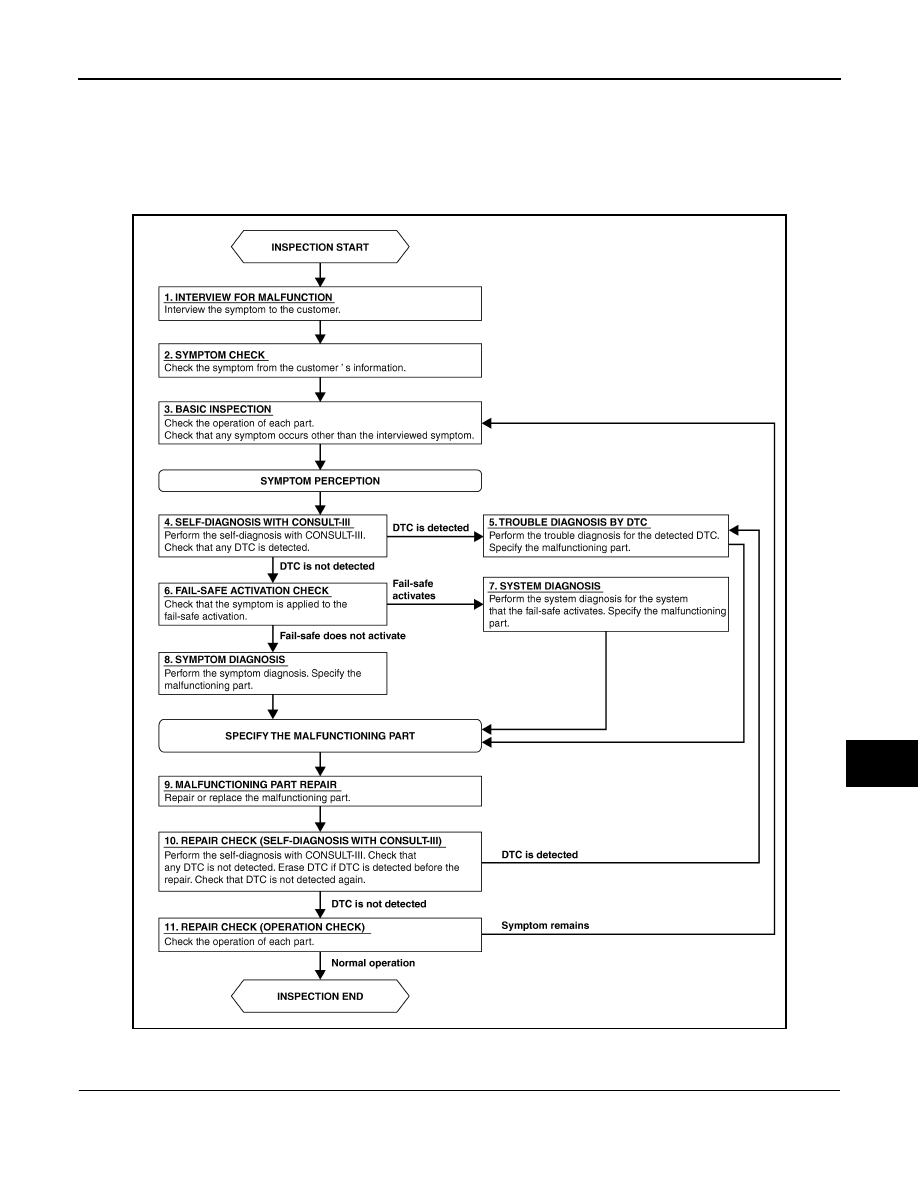

JPLIA0313GB
