Infiniti QX4 (R50). Manual - part 568





SMT963D

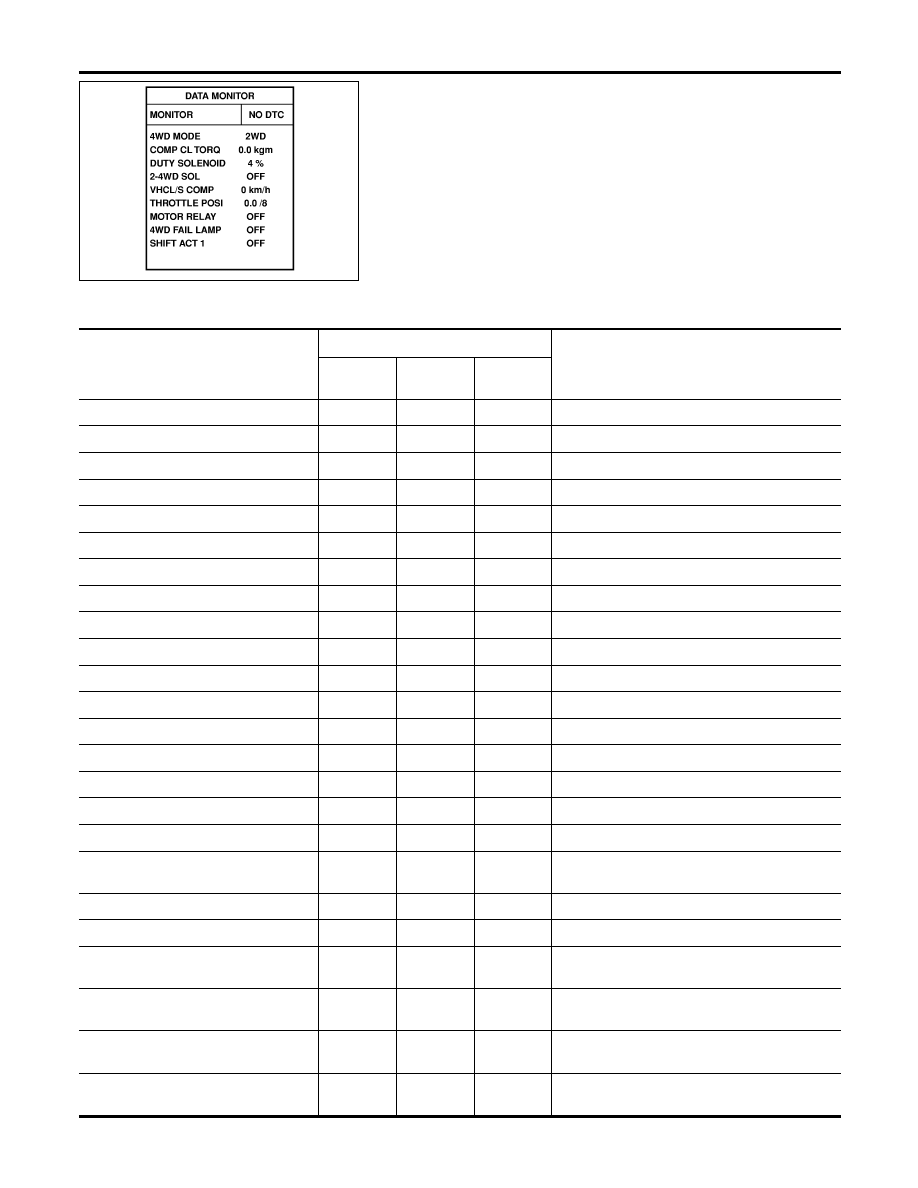

12. Monitored data are displayed.

DATA MONITOR ITEMS

NBTF0012S04

q

: Standard

H

: Option

Item [Unit]

Monitor item

Remarks

ECU input

signals

Main sig-

nals

Item menu

selection

Revolution sensor-front [km/h (MPH)]

q

H

Revolution sensor installed on T/F

Revolution sensor-rear [km/h (MPH)]

q

H

Vehicle speed sensor·A/T

Engine speed [rpm]

q

H

Throttle position sensor [V]

q

H

Transfer fluid temperature sensor [V]

q

H

Battery voltage [V]

q

H

2WD switch [ON-OFF]

q

H

2WD switch of 4WD shift switch

AUTO switch [ON-OFF]

q

H

AUTO switch of 4WD shift switch

Lock switch [ON-OFF]

q

H

4H switch of 4WD shift switch

4L switch [ON-OFF]

q

H

4LO switch of 4WD shift switch

N position switch TF [ON-OFF]

q

H

N position switch of transfer

Line pressure switch [ON-OFF]

q

H

Line pressure switch

Clutch pressure switch [ON-OFF]

q

H

Clutch pressure switch

ATP switch [ON-OFF]

q

H

N position switch [ON-OFF]

q

H

“N” position on A/T PNP switch

R position switch [ON-OFF]

q

H

“R” position on A/T PNP switch

P position switch [ON-OFF]

q

H

“P” position on A/T PNP switch

Closed throttle position switch
[ON/OFF]

q

H

Idle contact of throttle position switch

ABS operation switch [ON-OFF]

q

H

ABS operation switch

Wait detection switch [ON-OFF]

q

H

Throttle opening

q

H

Throttle opening recognized by transfer control
unit

4WD-mode

q

H

4WD-mode recognized by transfer control unit
(2W, AUTO, 4H & 4LO)

Vehicle speed comp [km/h (MPH)]

q

H

Vehicle speed recognized by transfer control
unit

*Control torque [N·m (kg-m, ft-lb)]

q

H

Calculated torque recognized by transfer control
unit

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Trouble Diagnosis with CONSULT-II (Cont’d)

TF-34

Item [Unit]

Monitor item

Remarks

ECU input

signals

Main sig-

nals

Item menu

selection

Duty solenoid valve [%]
(Transfer 4WD solenoid valve)

q

H

2-4WD shift solenoid valve [ON-OFF]

q

H

Control signal outputs of transfer control unit

Transfer motor relay [ON-OFF]

q

H

Shift activating 1 [ON-OFF]

q

H

Shift activating 2 [ON-OFF]

q

H

2-4WD shift solenoid valve monitor
[ON-OFF]

H

Check signal (re-input signal) of transfer control
unit control signal output is displayed. If circuit
is shorted or open, ON/OFF state does not
change.

Transfer motor relay monitor [ON-OFF]

H

Shift activating monitor 1 [ON-OFF]

H

Shift activating monitor 2 [ON-OFF]

H

4WD fail lamp [ON-OFF]

q

H

Transfer control unit control signal output for
4WD warning lamp (left)

Shift position switch 1 [ON-OFF]

q

H

Shift position switch 2 [ON-OFF]

q

H

2WD indicator lamp [ON-OFF]

H

Transfer control unit control signal output for
4WD shift indicator lamp (rear)

AUTO indicator lamp [ON-OFF]

H

Transfer control unit control signal output for
4WD shift indicator lamp (front & rear)

LOCK indicator lamp [ON-OFF]

H

Transfer control unit control signal output for
4WD shift indicator lamp (center)

4LO indicator lamp [ON-OFF]

H

Transfer control unit control signal output for
4WD shift indicator lamp (right)

Offset at starting

H

Appears on monitor but does not function.

Clutch limit [N·m (kg-m, ft-lb)]

H

Clutch force release limit value set in WORK
SUPPORT

Voltage [V]

H

Value measured by voltage probe is displayed.

Frequency [Hz]

H

Value measured by pulse probe is displayed. If
measurement is impossible, “#” sign is dis-
played. “#” sign is also displayed at the final
data value until the measurement result is
obtained.

DUTY-HI

H

Duty cycle value for measurement probe is dis-
played.

DUTY-LOW

H

PLS WIDTH-HI

H

Measured pulse width of measurement probe is
displayed.

PLS WIDTH-LOW

H

*: This item is indicated as “COMP CL TORQ”.

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Trouble Diagnosis with CONSULT-II (Cont’d)

TF-35

REFERENCE VALUE IN DATA MONITOR MODE

NBTF0012S09

Indicated items

(Screen terms for CONSULT, “DATA

MONITOR” mode)

Display

Conditions

Throttle position sensor
(THRTL POS SEN)

Approx. 0.5 - 4.0V

Throttle valve fully closed to fully open

Transfer fluid temperature sensor
(FLUID TEMP SE)

Approx. 1.5 - 0.5V

Transfer fluid temperature approx. 20 - 80°C (68 -
176°F)

Closed throttle position switch
(CLOSED THL/SW)

ON

After engine warm-up, accelerator pedal is released.

OFF

After engine warm-up, accelerator pedal is depressed.

ABS operation switch
(ABS OPER SW)

OFF

ABS is not operating.

ON

ABS is operating.

ABS control operation
(ABS CONT OPER)

ON

ABS OPER SW is “ON”. Control operation is accom-
plished in combination with ABS.

OFF

ABS is not operating. When a message such as
“improper ABS operation signal” appears on the display
and ABS OPER SW is “ON”, control operation is not
accomplished in combination with ABS.

2WD position
(2WD SW)

ON

4WD shift switch is in “2WD”.

OFF

Except the above condition

Lock position
(LOCK SWITCH)

ON

4WD shift switch is in “4H”.

OFF

Except the above condition

Neutral-4LO switch
(N POSI SW TF)
ATP switch
(ATP SWITCH)
Wait detection switch
(WAIT DETCT SW)

4WD shift switch position

2WD, AUTO,

4H

(N)

4LO

ATP switch

OFF

ON

OFF

Neutral-4LO switch

OFF

ON

Wait detection switch

OFF

ON

See Note.

Note: When shifting from “4LO” to “2WD”, “AUTO”, “4H”, it turns ON when “Wait” function
is operating (and it turns OFF when “Wait” function is canceled).

Transfer motor relay
(MOTOR RELAY)

Throttle valve

4WD shift

switch

A/T selector

lever

Motor relay

Remarks

Fully closed

2WD

OFF

AUTO,

4LO

P, N

OFF

ON for approx. 2 sec. after

shifting to “P” and “N”

Others

ON

4H

P

OFF

ON for approx. 2 sec. after

shifting to “P”

Others

ON

Line pressure switch
(LINE PRES SW)

OFF

The vehicle has been left at room temperature for 5 min-
utes and more with ignition switch in “OFF” position.

ON

Ignition switch in “ON”, and 4WD shift switch in “AUTO”
or “4H” and A/T selector lever in “D”.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Trouble Diagnosis with CONSULT-II (Cont’d)

TF-36

Indicated items

(Screen terms for CONSULT, “DATA

MONITOR” mode)

Display

Conditions

Clutch pressure switch
(CL PRES SW)

OFF

Ignition switch in “ON”, and 4WD shift switch in “2WD”.
(“Wait” function is not operating.)

ON

Ignition switch in “ON”, and 4WD shift switch in “AUTO”
or “4H” and A/T selector lever in “D”. (“Wait” function is
not operating.)

Control torque
(COMP CL TORQ)

0 kg-m

4WD shift switch

(“Wait” function is not oper-

ating.)

In “2WD” position

39 - 1,079 N·m

(4 - 110 kg-m, 29 - 796 ft-lb)

In “AUTO” position

1,079 N·m

(110 kg-m, 796 ft-lb)

In “4H” or “4LO” position

4WD solenoid
(DUTY SOLENOID)

4%

In “2WD” position

94 - 4%

In “AUTO” position

4%

In “4H” or “4LO” position

2-4WD shift solenoid valve
(2-4WD SOL)

OFF

4WD shift switch

In “2WD” position

ON (“Wait” function is not oper-

ating.)

In “AUTO” position

OFF (“Wait” function is operat-

ing.)

ON (“Wait” function is not oper-

ating.)

In “4H” position

OFF (“Wait” function is operat-

ing.)

ON

In “4LO” position

Indicated items

Display

Conditions

Battery voltage

Approx. 12V

Key switch “ON” and engine at rest

Approx. 13 - 14V

During idling

AUTO switch

OFF

4WD shift switch in other than “AUTO” position

ON

4WD shift switch in “AUTO” position

4L switch

OFF

4WD shift switch in other than “4LO” position

ON

4WD shift switch in “4LO” position

N position switch

OFF

A/T selector lever in other than “N” position

ON

A/T selector lever in “N” position

R position swtich

OFF

A/T selector lever in other than “R” position

ON

A/T selector lever in “R” position

P position switch

OFF

A/T selector lever in other than “P” position

ON

A/T selector lever in “P” position

Throttle opening

0.0/8 - 8.0/8

Throttle fully closed (0.0/8) or throttle fully open (8.0/8)

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Trouble Diagnosis with CONSULT-II (Cont’d)

TF-37
