HARNESS
PFP:00011
Harness Layout
NKS001LP
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the figures:
●

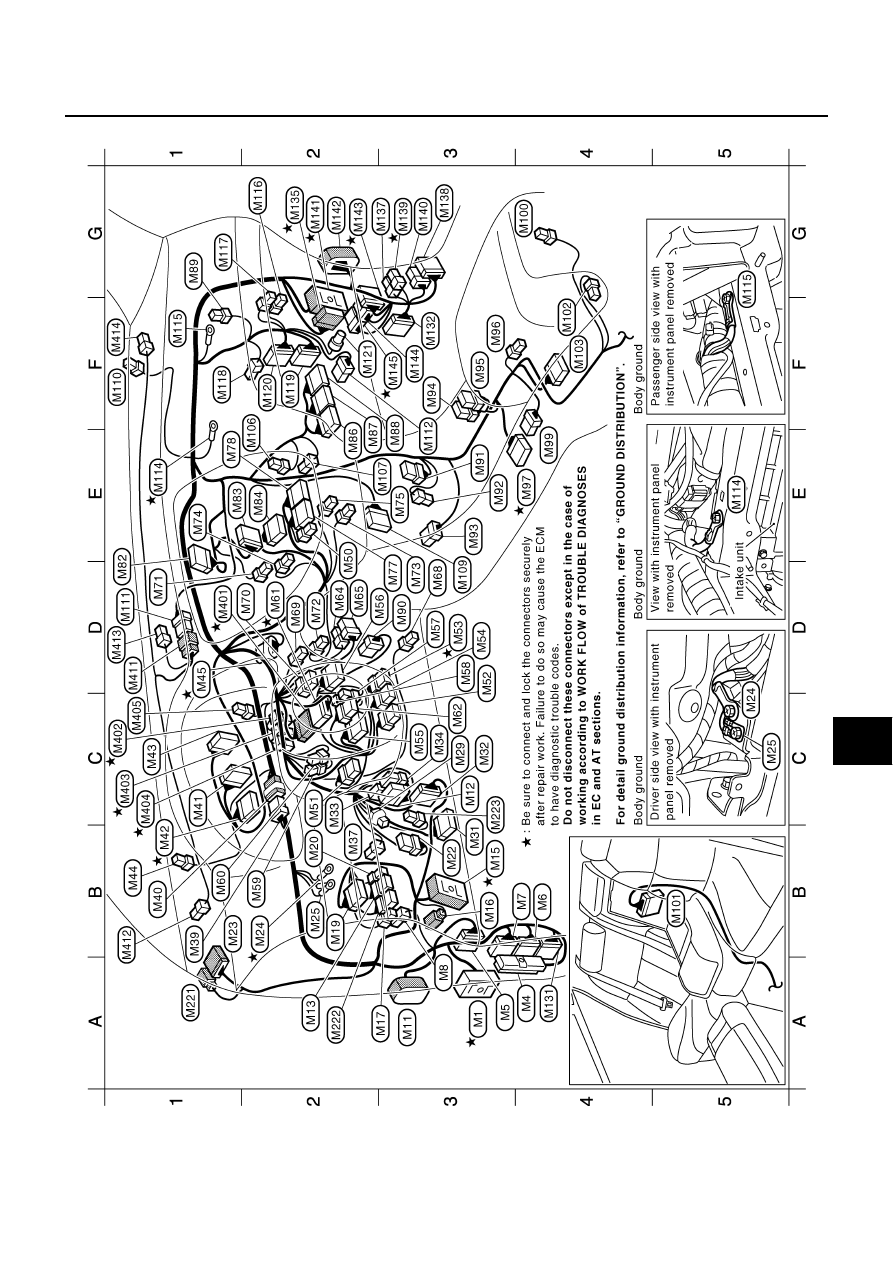

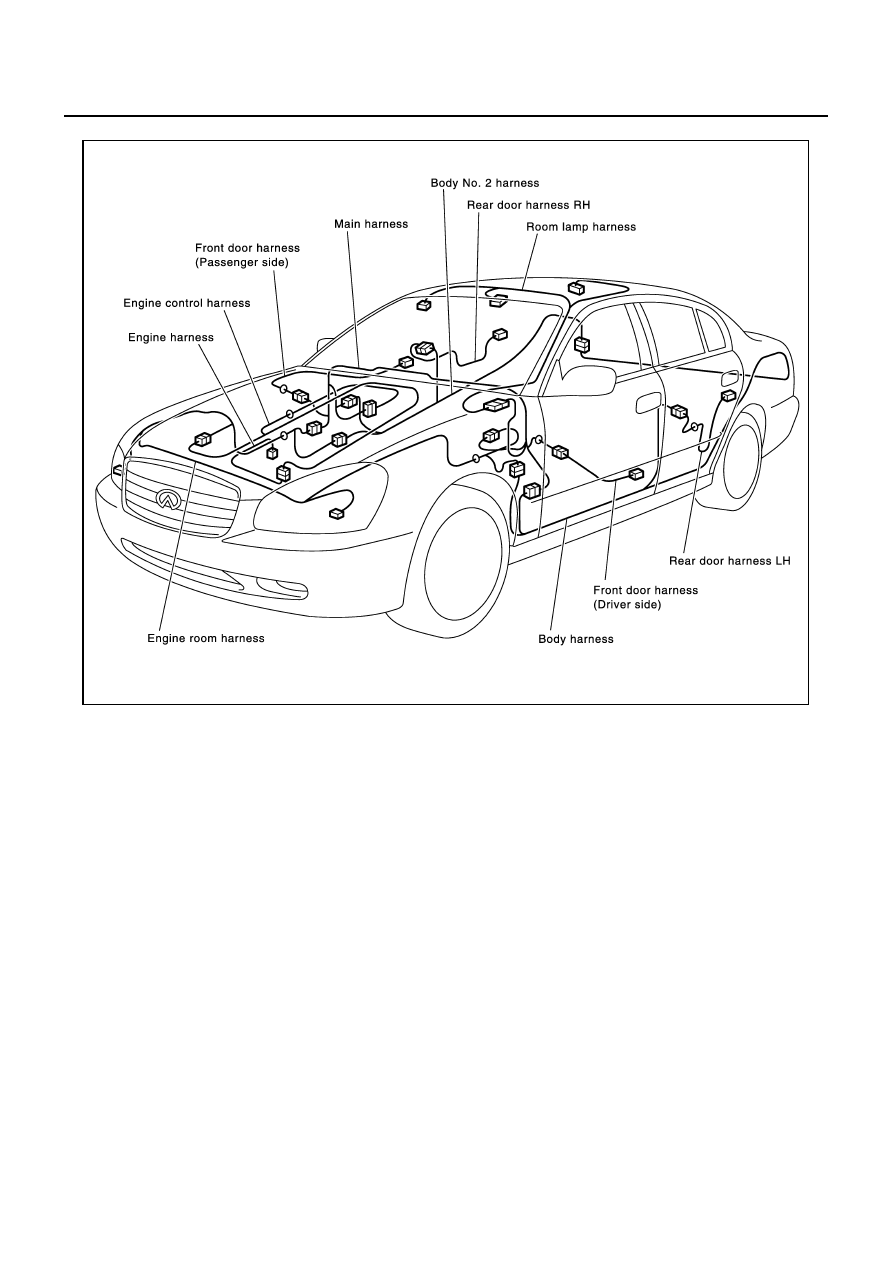

Main Harness
●
Engine Room Harness (Engine Compartment)
●
Engine Control Harness
●
Body Harness and Rear Control Harness
●
Body No. 2 Harness
To Use the Grid Reference
1.

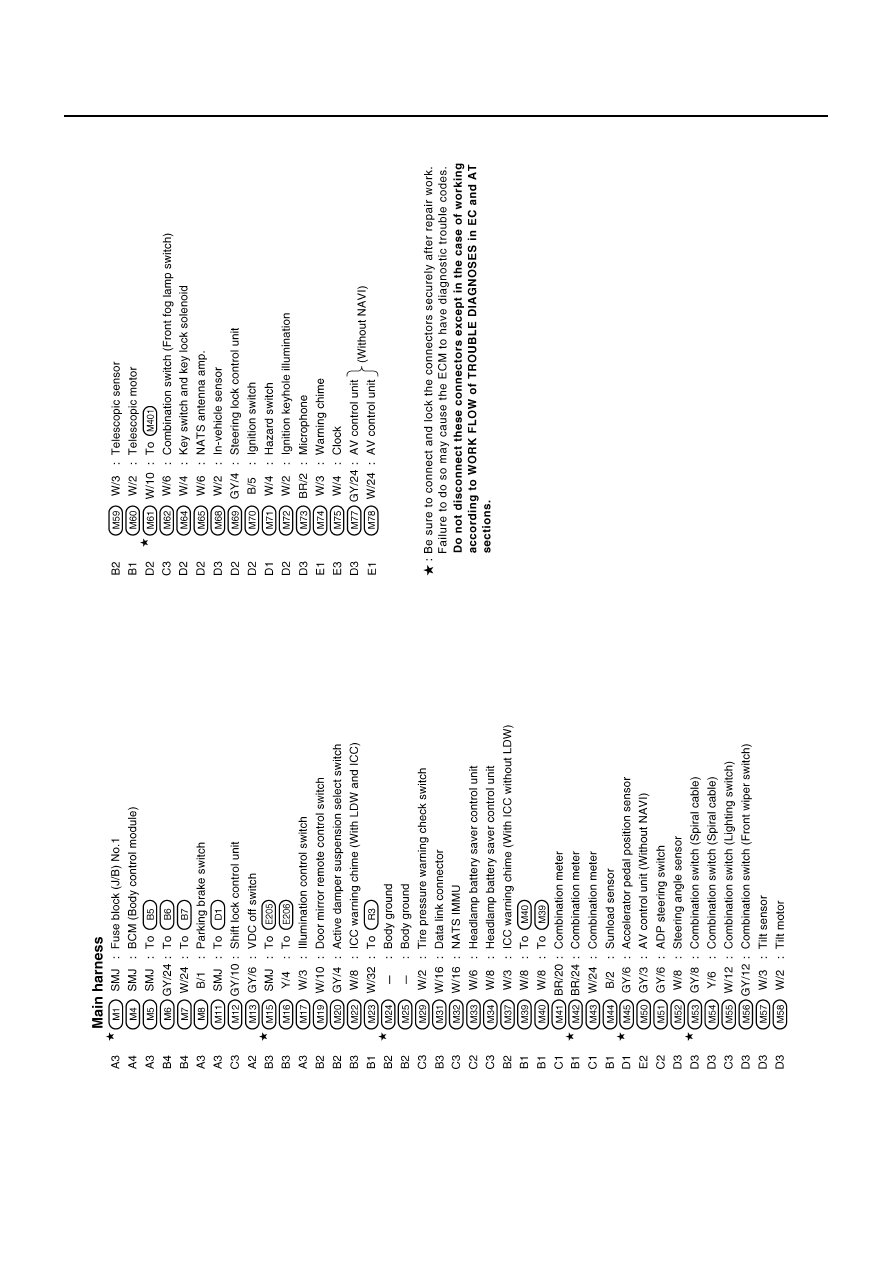

Find the desired connector number on the connector list.
2.
Find the grid reference.
3.
On the figure, find the crossing of the grid reference letter column and number row.
4.
Find the connector number in the crossing zone.
5.
Follow the line (if used) to the connector.

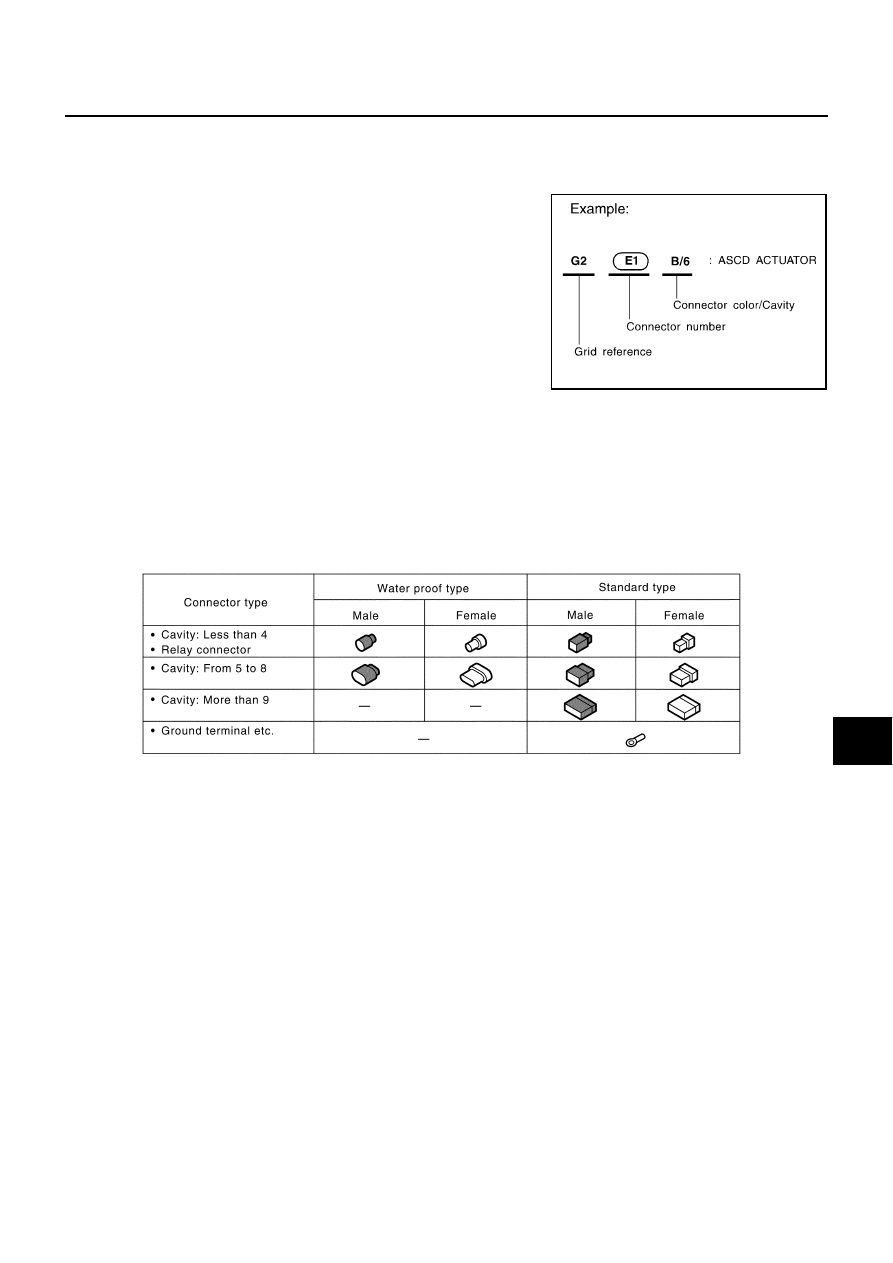

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
SKIA0404E
