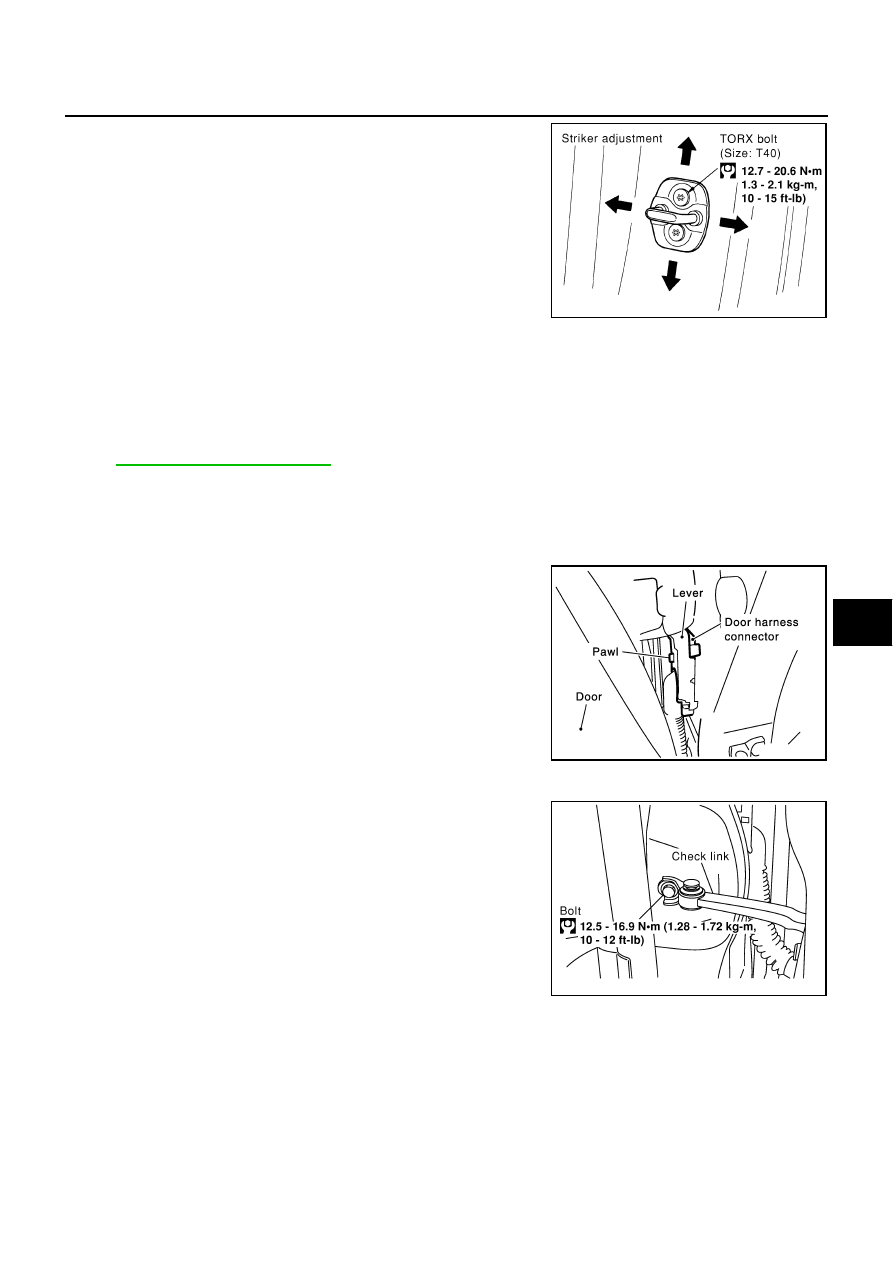

Adjust the striker so that it becomes parallel with the lock inser-
tion direction.

Removal and Installation of Front Door

NIS000V8

CAUTION:

●

When removing and installing the door assembly, support the door with a jack and cloth to protect
the door and body.

●

Operate with two workers, because of its heavy weight.

●

When removing and installing front door assembly, be sure to perform the fitting adjustment Refer
to

BL-104, "Fitting Adjustment"

 .

●

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

●

After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.

●

After installing, check operation.

REMOVAL

1.

Pull the lever and remove the front door harness connector
while removing tabs of door harness connector.

2.

Remove the check link cover.

3.

Remove the mounting bolts of the check link on the vehicle.

SIIA0338E

PIIA2514E

SIIA0339E

BL-106

DOOR

4.

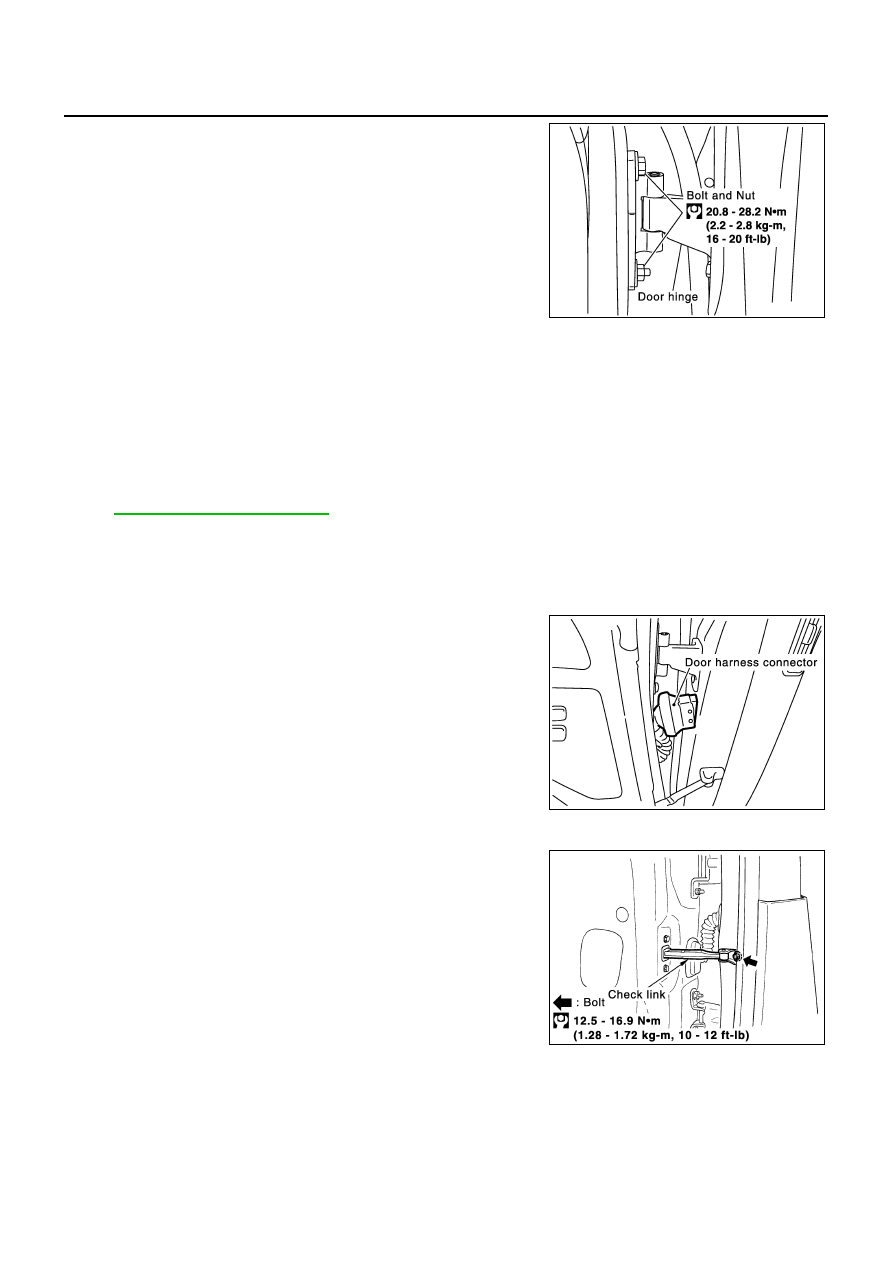

Remove the door-side hinge mounting bolts and nuts, and
remove the door assembly.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Rear Door

NIS000V9

CAUTION:

●

When removing and installing the rear door assembly, support the door with a jack and cloth to
protect the door and body.

●

Operate with two workers, because of its heavy weight.

●

When removing and installing rear door assembly, be sure to perform the fitting adjustment Refer
to

BL-104, "Fitting Adjustment"

 .

●

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

●

After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.

●

After installing, check operation.

REMOVAL

1.

Grommet is pulled out, and the Rear door harness connector is
detached.

2.

Remove the check link cover.

3.

Remove the mounting bolts of the check link on the vehicle.

PIIA3473E

PIIA3412E

PIIA2788E

DOOR

BL-107

C

D

E

F

G

H

J

K

L

M

A

B

BL

4.

Remove the door-side hinge mounting nuts, and remove the
door assembly.

INSTALLATION

Install in the reverse order of removal.

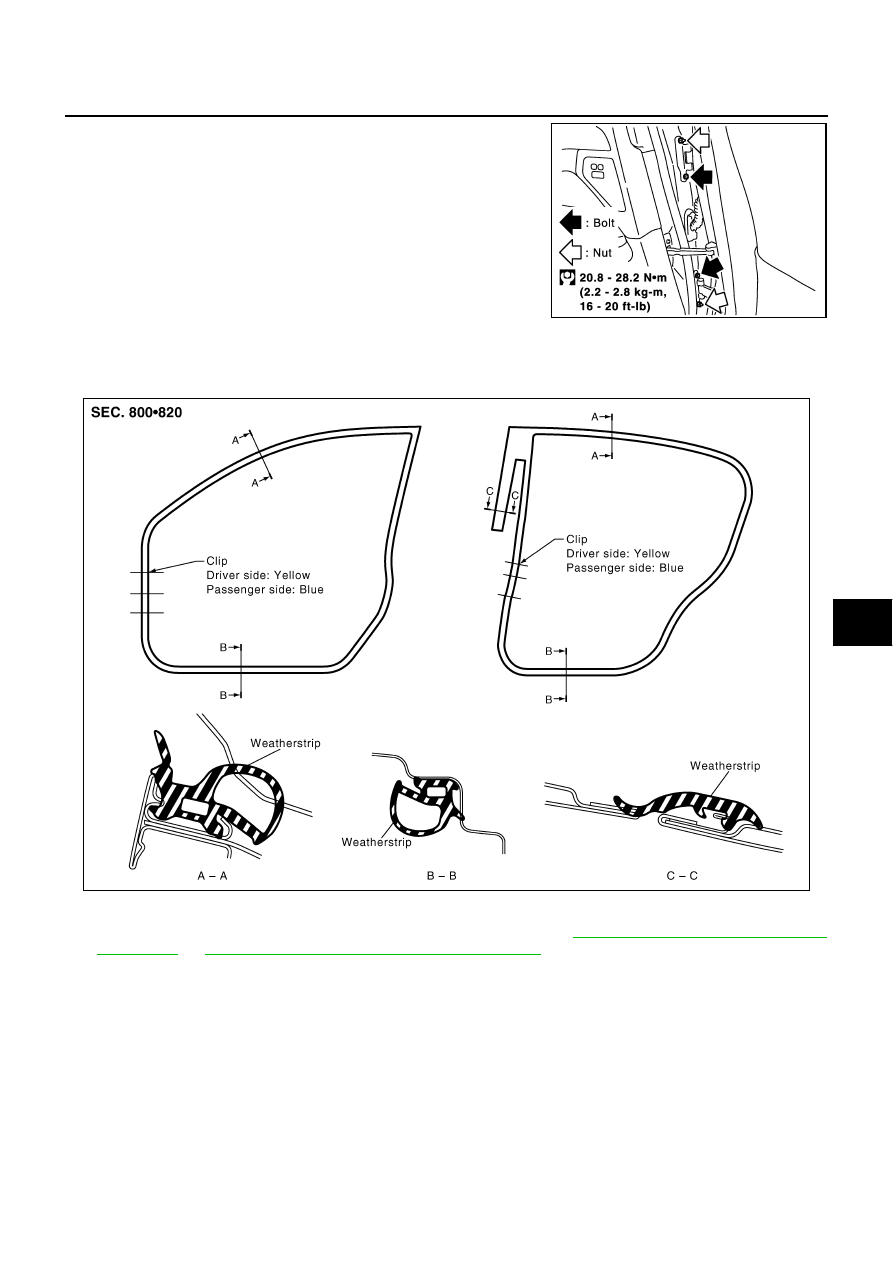

Door Weatherstrip

NIS000VA

REMOVAL

1.

Remove the mounting bolts of the check link on the vehicle. Refer to

BL-105, "Removal and Installation of

Front Door"

  or

BL-106, "Removal and Installation of Rear Door"

 .

2.

Remove the weatherstrip clips and remove weatherstrip.

CAUTION:

After removal, do not pull strongly on the weatherstrip.

INSTALLATION

Install in the reverse order of removal.

PIIA3431E

SIIA0328E

BL-108

FRONT DOOR LOCK

FRONT DOOR LOCK

PFP:80502

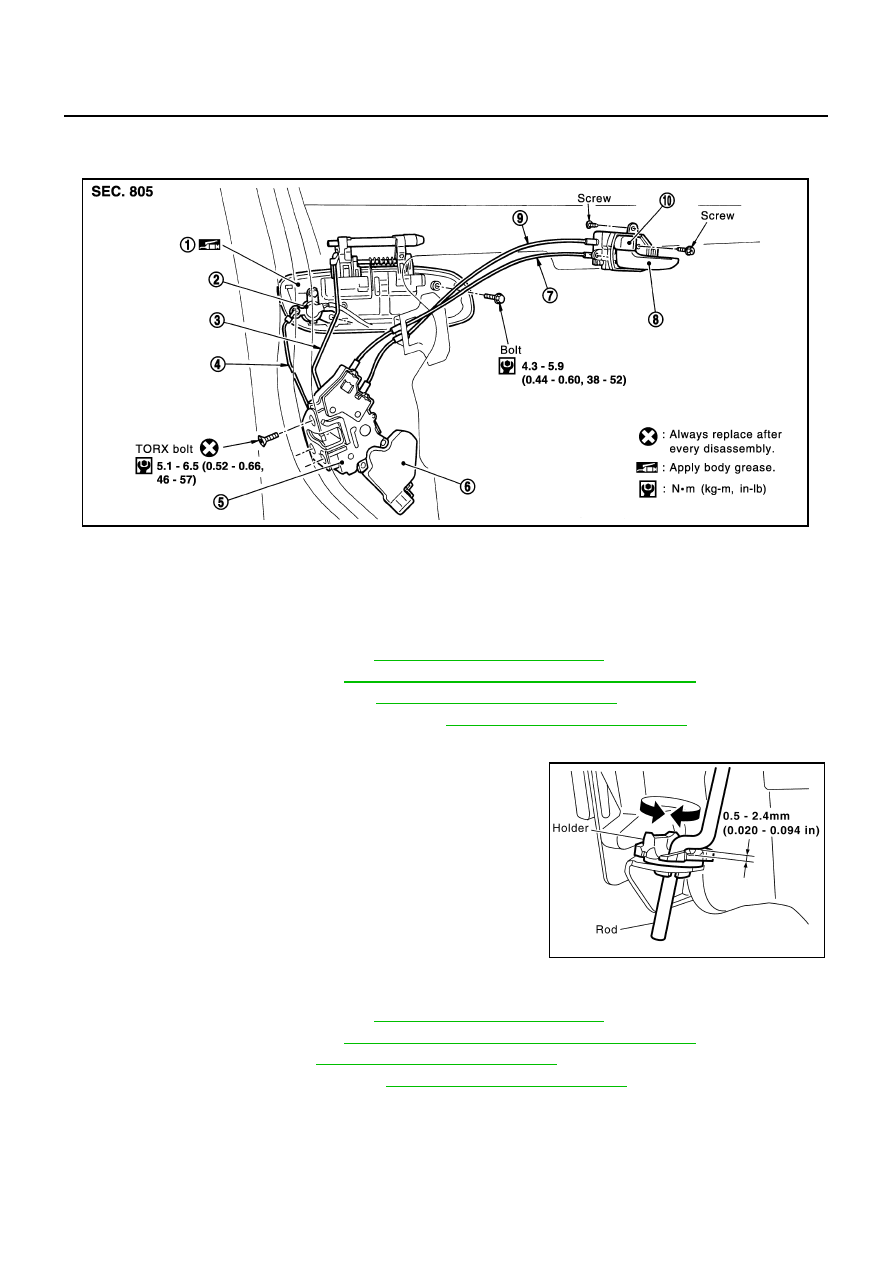

Component Structure

NIS000VB

Inspection and Adjustment

NIS000VC

1.

Remove the front door finisher. Refer to

EI-35, "Removal and Installation"

 .

2.

Remove the front speaker. Refer to

AV-53, "Removal and Installation of Door Speaker"

 .

3.

Remove the front door window. Refer to

GW-51, "Removal and Installation"

 .

4.

Remove the front door module assembly. Refer to

GW-51, "Removal and Installation"

 .

EXTERIOR HANDLE ROD ADJUSTMENT

Rotate the bushing to adjust so that the clearance between the bush-
ing and rod becomes as shown in the figure.

CAUTION:

Be careful not to make the clearance 0 mm (0 in) or the rod
pressed continuously.

Removal and Installation

NIS000VD

REMOVAL

1.

Remove the front door finisher. Refer to

EI-35, "Removal and Installation"

 .

2.

Remove the front speaker. Refer to

AV-53, "Removal and Installation of Door Speaker"

 .

3.

Remove the front door window.

GW-51, "Removal and Installation"

 .

4.

Remove the front door module assembly.

GW-51, "Removal and Installation"

 .

1.

Outside handle

2.

Key cylinder (Driver side only)

3.

Outside handle rod

4.

Key lock rod

5.

Door lock assembly

6.

Door lock actuator

7.

Inside handle cable

8.

Inside handle

9.

Lock knob cable

10. Lock knob

PIIA3475E
