Infiniti Q45. Manual - part 157

ANTENNA

AV-57

C

D

E

F

G

H

I

J

L

M

A

B

AV

ANTENNA

PFP:28200

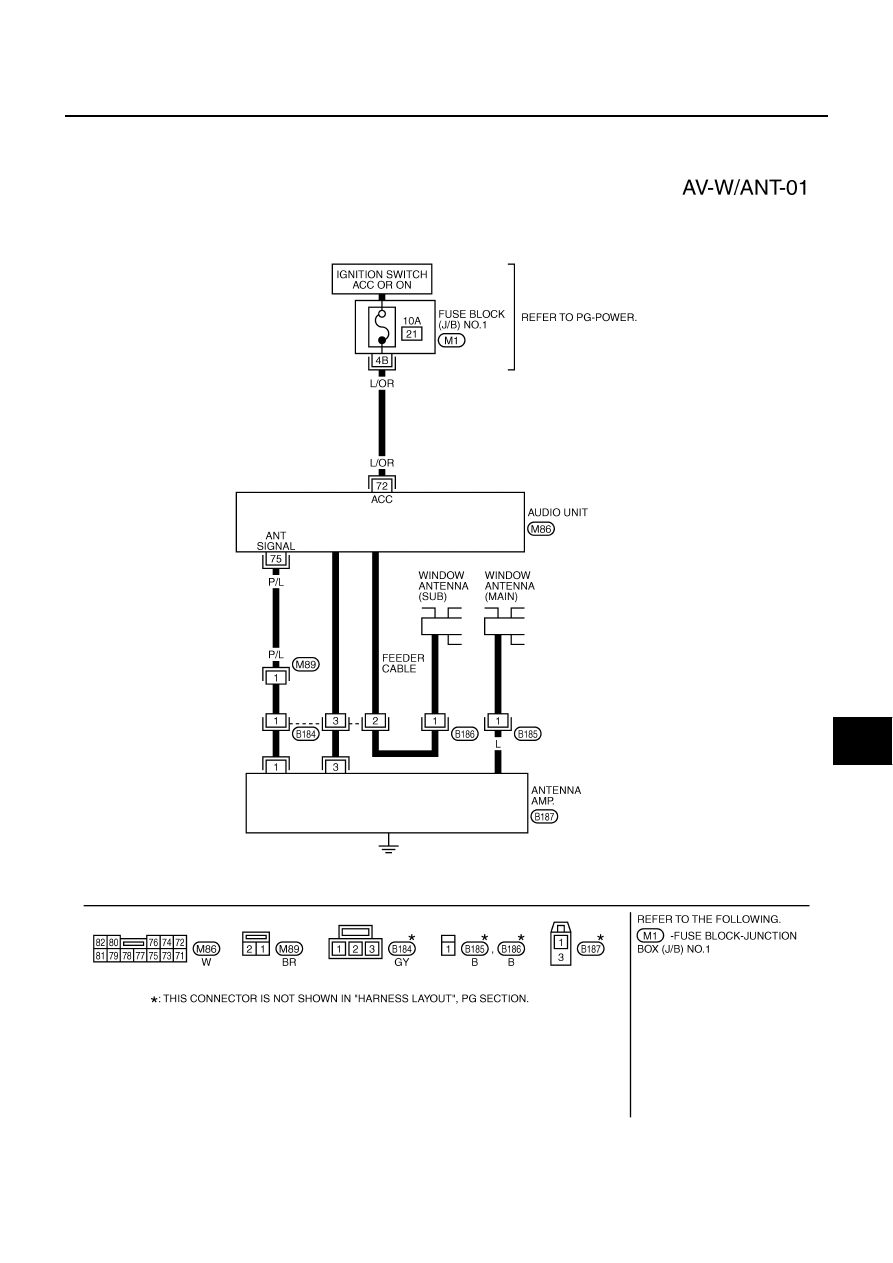

Wiring Diagram — W/ANT —

NKS002H7

TKWM1353E

AV-58

ANTENNA

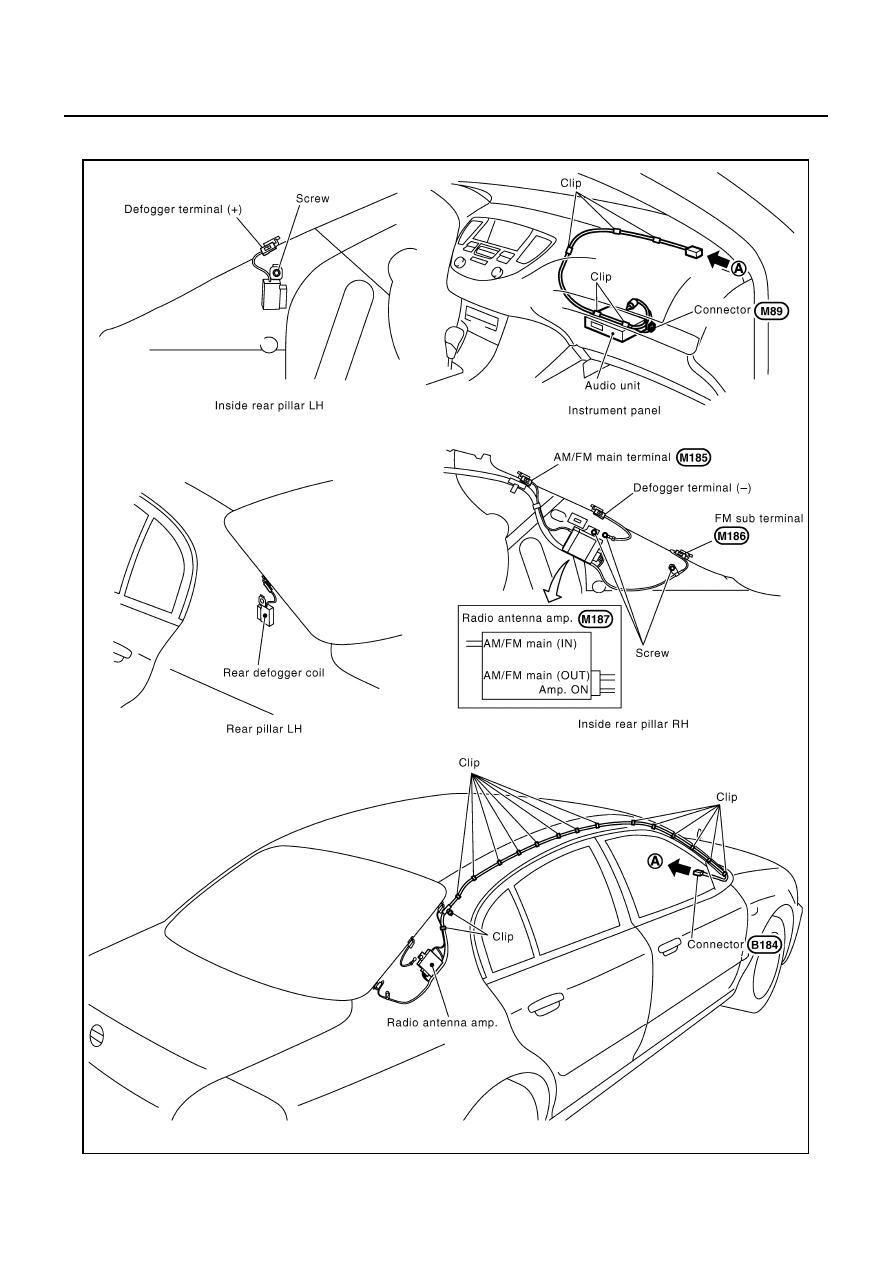

Location of Antenna

NKS002H8

RADIO ANTENNA

SKIB7606E

ANTENNA

AV-59

C

D

E

F

G

H

I

J

L

M

A

B

AV

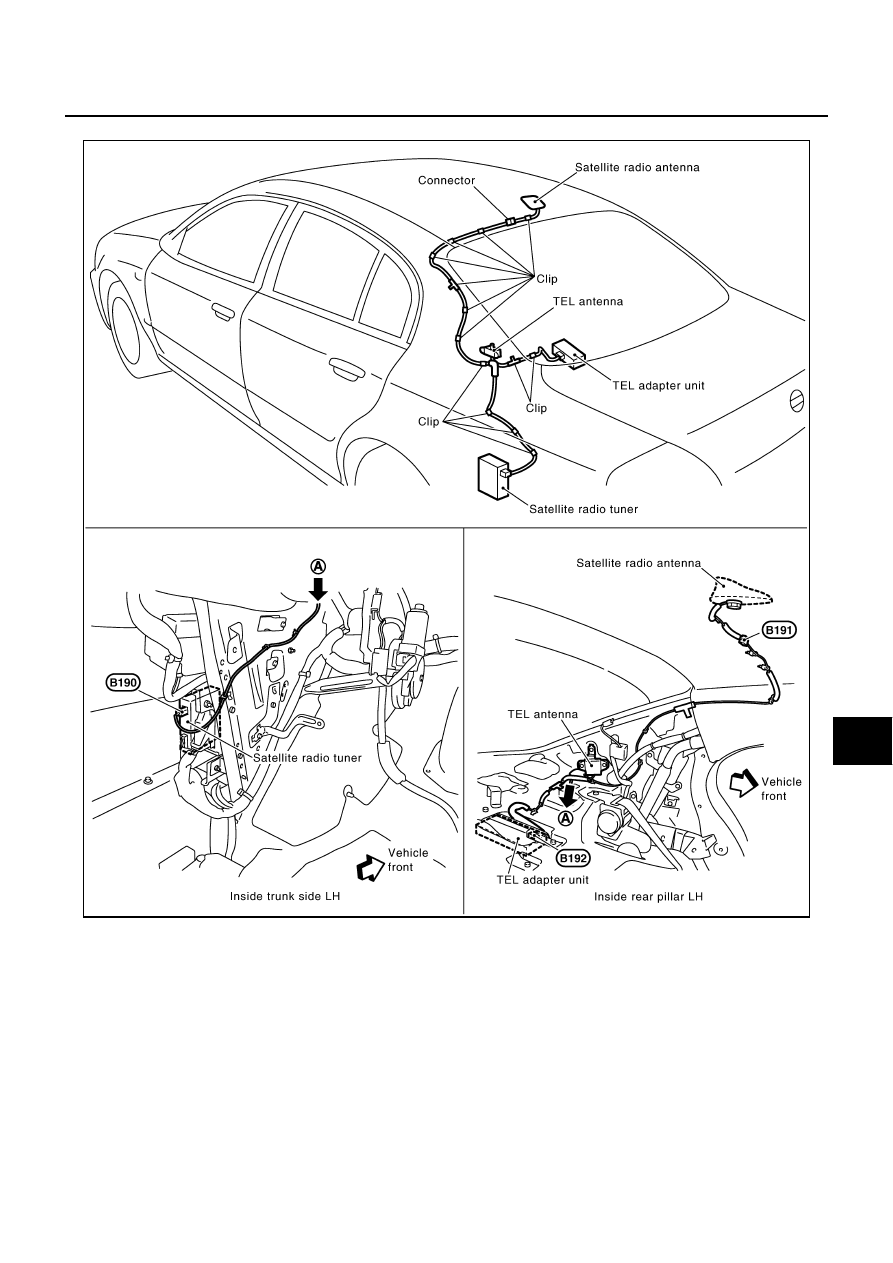

SATELLITE RADIO ANTENNA AND TEL ANTENNA

SKIB7607E

AV-60

ANTENNA

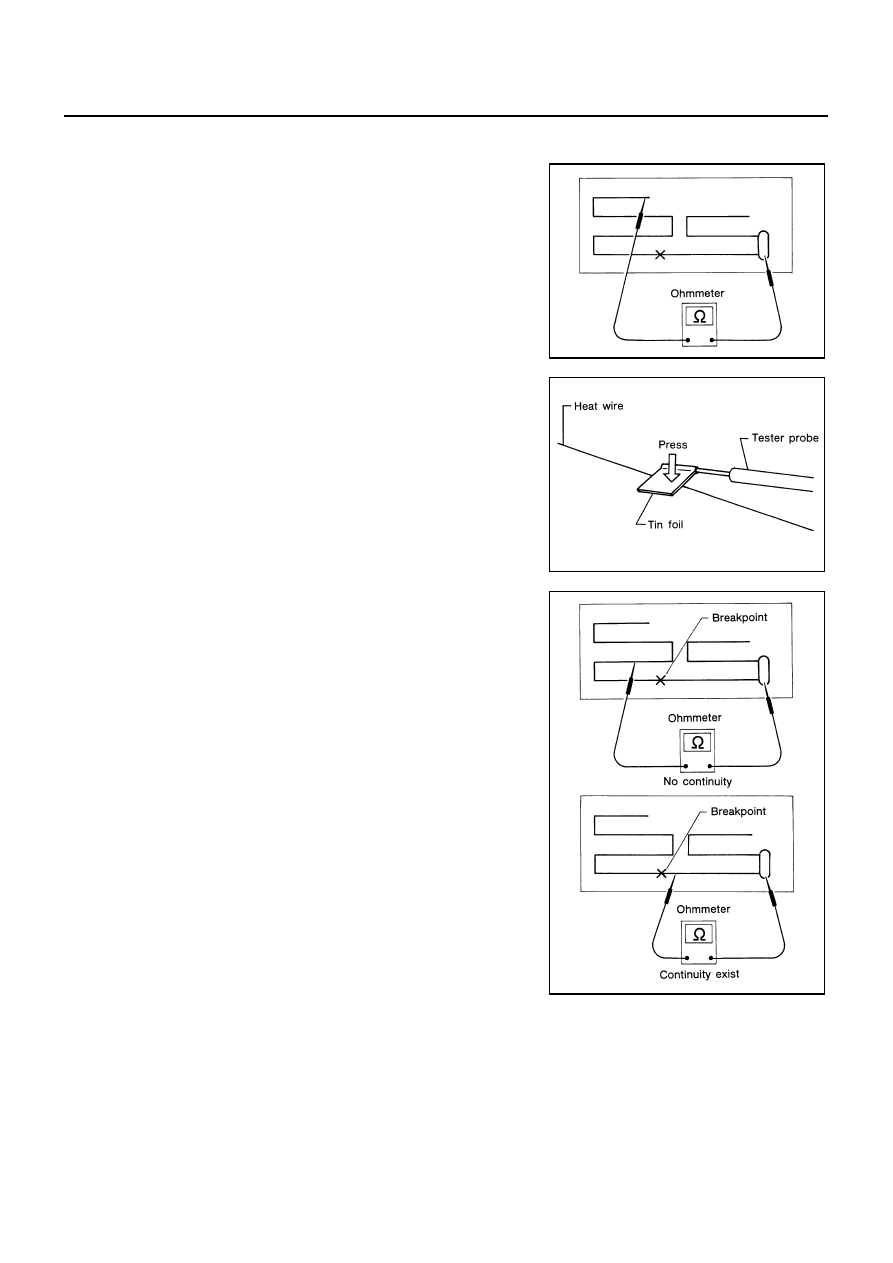

Window Antenna Repair

NKS002H9

CHECK ELEMENT

1.

Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

●

When measuring continuity, wrap tin foil around the top of
probe. Then, press the foil against the wire with your finger.

2.

If an element is broken, no continuity will exist.

SEL250I

SEL122R

SEL252I
