TROUBLE DIAGNOSIS

EC-105

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

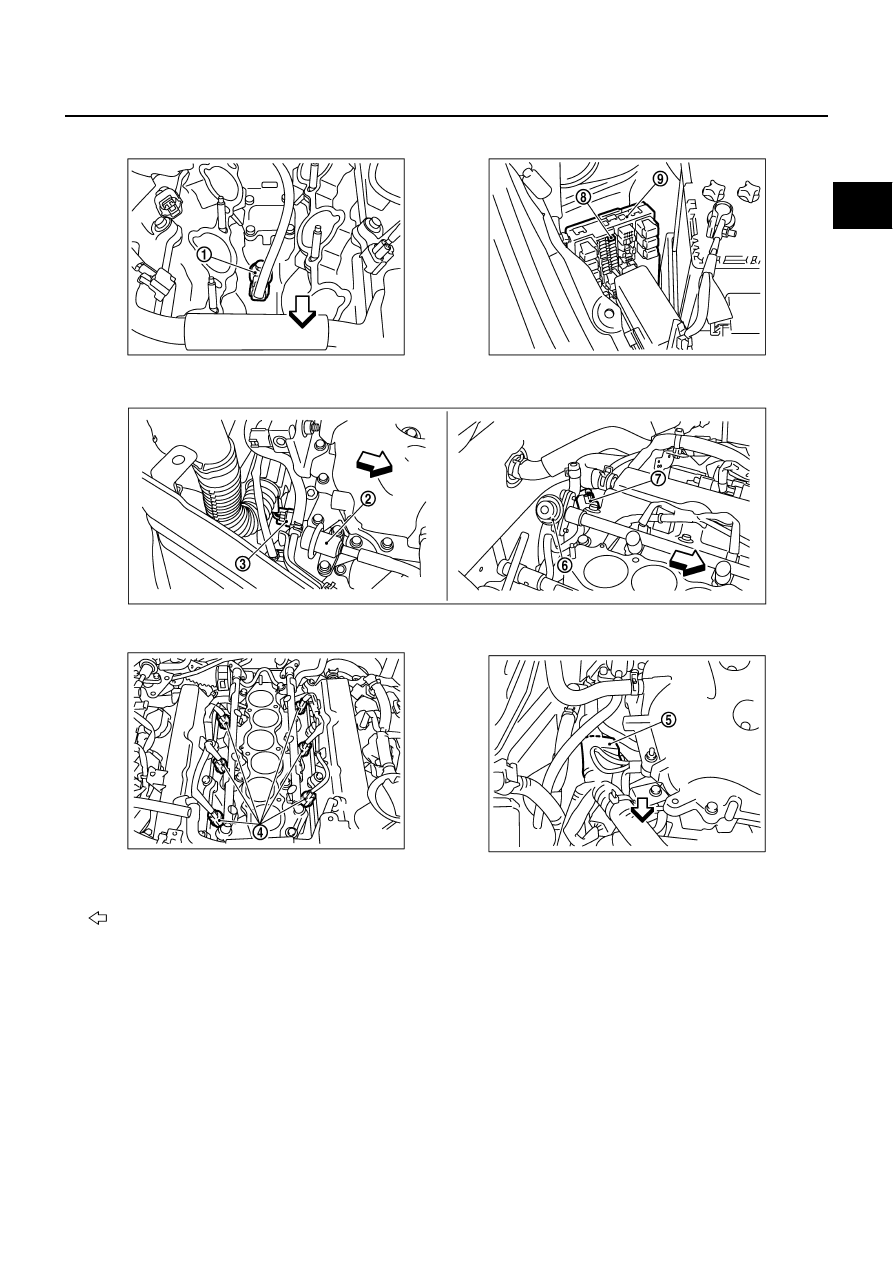

: Vehicle front

1.

Knock sensor

2.

Fuel damper

3.

Camshaft position sensor (PHASE)
(Bank 1)

4.

Fuel injector harness connector

5.

Condenser

6.

Fuel damper

7.

Camshaft position sensor (PHASE)
(Bank 2)

8.

Fuel pump fuse

9.

IPDM E/R

PBIB2788E

EC-106

[VQ35DE]

TROUBLE DIAGNOSIS

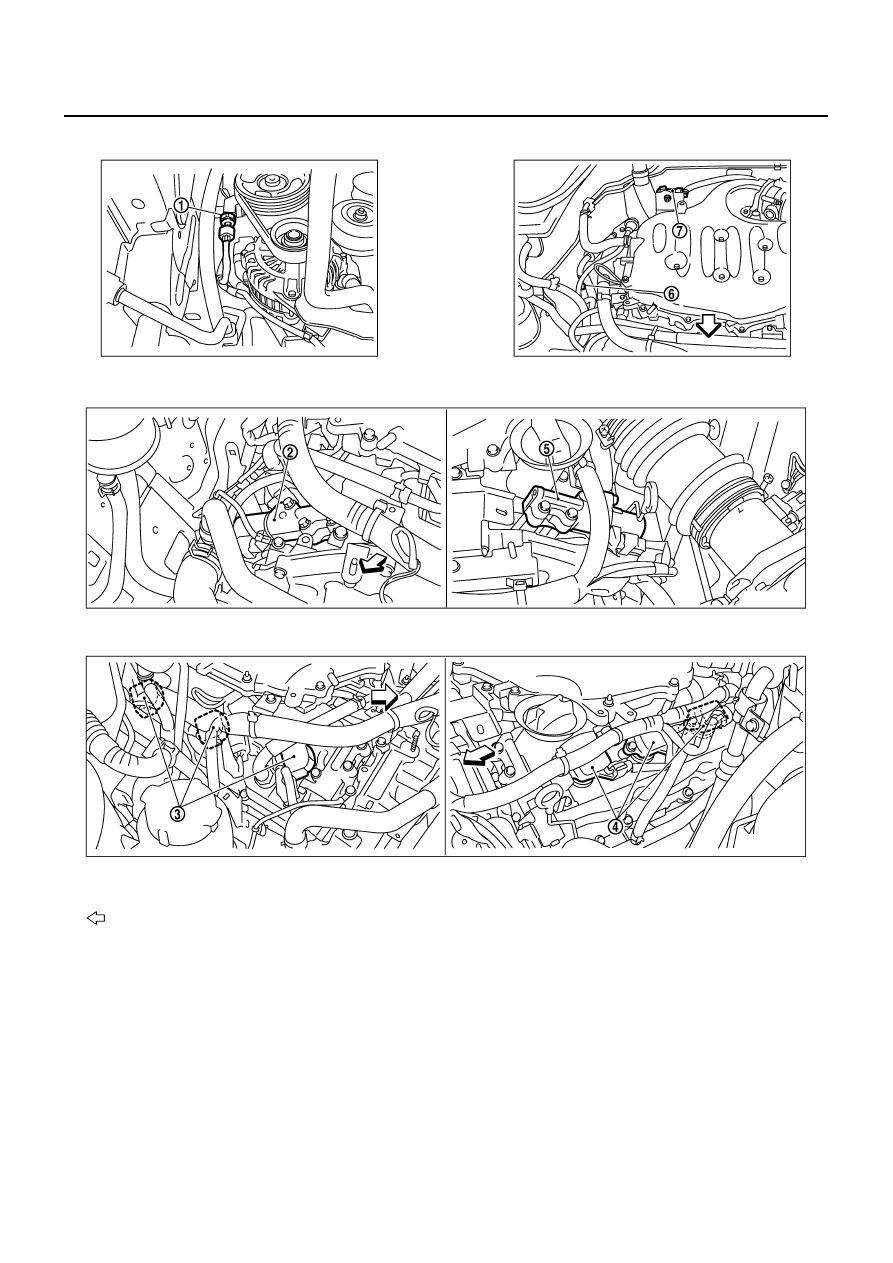

: Vehicle front

1.

Power steering pressure sensor

2.

Intake valve timing control solenoid
valve

3.

Ignition coil harness connector
(Bank 1)

4.

Ignition coil harness connector
(Bank 2)

5.

Intake valve timing control solenoid
valve

6.

EVAP service port

7.

EVAP canister purge volume con-
trol solenoid valve

PBIB2789E

TROUBLE DIAGNOSIS

EC-107

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

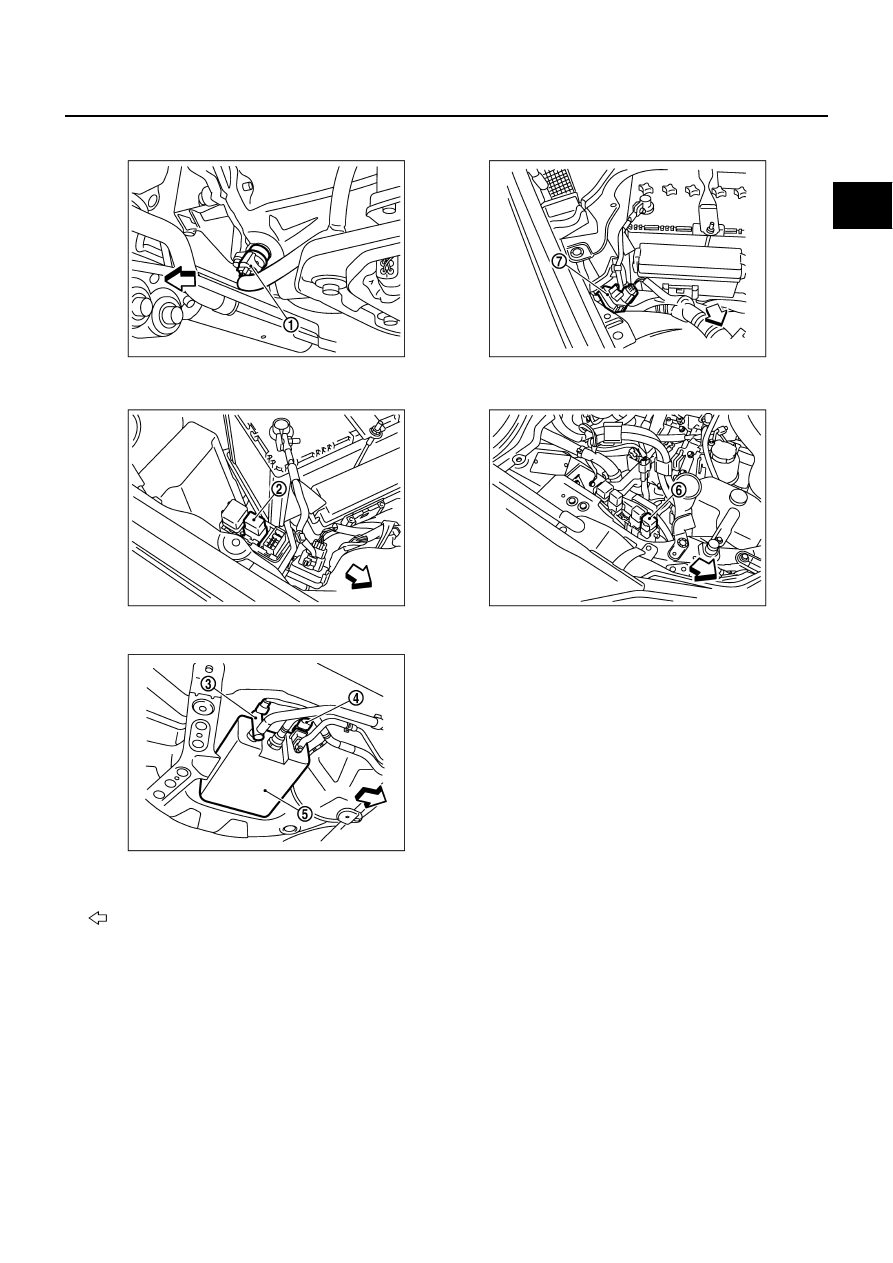

: Vehicle front

1.

Crankshaft position sensor (POS)

2.

ICC brake hold relay
(ICC models only)

3.

EVAP canister vent control valve

4.

EVAP control system pressure sen-
sor

5.

EVAP canister

6.

Cooling fan relay

7.

Battery current sensor

PBIB2790E

EC-108

[VQ35DE]

TROUBLE DIAGNOSIS

PBIB1907E

PBIB2188E
