TROUBLE DIAGNOSIS

AV-125

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

Rear view monitor image is not
clear

Front glass of camera lens is dirty

Dip a soft cloth into water and wipe the
glass softly.

There are raindrops, snow, etc.

Wipe it with a soft cloth softly.

The sunlight or the headlight of following vehicle is
shining directly to the camera lens.

It returns to the original condition if the light
applied to the lens disappears

The center position of possible
route line is not in the correct posi-
tion

●

Remove or replace the battery.

●

Replace steering angle sensor or camera control
unit.

●

Turn steering wheel when turning ignition switch
OFF.

Perform the neutral position correction as
follows.

●

Fully turn the steering wheel to left/right.

●

Drive 100 m or more at vehicle speed 30
km/h or more.

Symptom

Possible cause

Possible solution

AV-126

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

PFP:00000

Removal and Installation/Precautions for Replacement

NKS0049F

REMOVAL OF BATTERY

When the battery is removed, the possible route line center position of rear view monitor may not be in the cor-
rect position. Perform the center position correction with the following procedure.

1.

Fully turn the steering wheel to left/right.

2.

Drive 100 m (328.1 ft) or more at vehicle speed 30 km/h (18.6 MPH) or more.

Audio Unit

NKS0049G

REMOVAL

1.

Remove cluster lid C. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove screws (A) and remove audio unit (2) in conjunction
with unified meter and A/C amp (1).

3.

Remove screws (A) and (B)

4.

Remove meter and A/C amp (1), audio unit (2) and bracket (3).

CAUTION:

Be careful not to allow foreign material to enter from CD
slot.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

Unified meter and A/C amp screws are different from other securing screws. Never confuse them
when installing.

Front Door Speaker

NKS0049H

REMOVAL

1.

Remove front door finisher. Refer to

EI-34, "DOOR FINISHER"

 .

2.

Remove screws (A) and remove front door speaker (1).

INSTALLATION

Installation is the reverse order of removal.

SKIB4268E

SKIB4269E

SKIB4270E

REMOVAL AND INSTALLATION

AV-127

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

Rear Door Speaker

NKS0049I

REMOVAL

1.

Remove rear door finisher. Refer to

EI-34, "DOOR FINISHER"

 .

2.

Remove screws (A) and remove rear door speaker (1).

INSTALLATION

Installation is the reverse order of removal.

Tweeter

NKS0049J

REMOVAL

1.

Remove front door finisher. Refer to

EI-34, "DOOR FINISHER"

 .

2.

Remove door sash inner cover (front). Refer to

EI-34, "DOOR FINISHER"

 .

3.

Remove screws (A), and disconnect connector (1).

4.

Remove tweeter (2).

INSTALLATION

Installation is the reverse order of removal.

Center Speaker

NKS0049K

REMOVAL

1.

Remove upper ventilator grill. Refer to

ATC-145, "REMOVAL"

 .

2.

Remove screws (A) and disconnect connector.

3.

Remove center speaker (1).

INSTALLATION

Installation is the reverse order of removal.

SKIB4271E

SKIB4272E

SKIB4345E

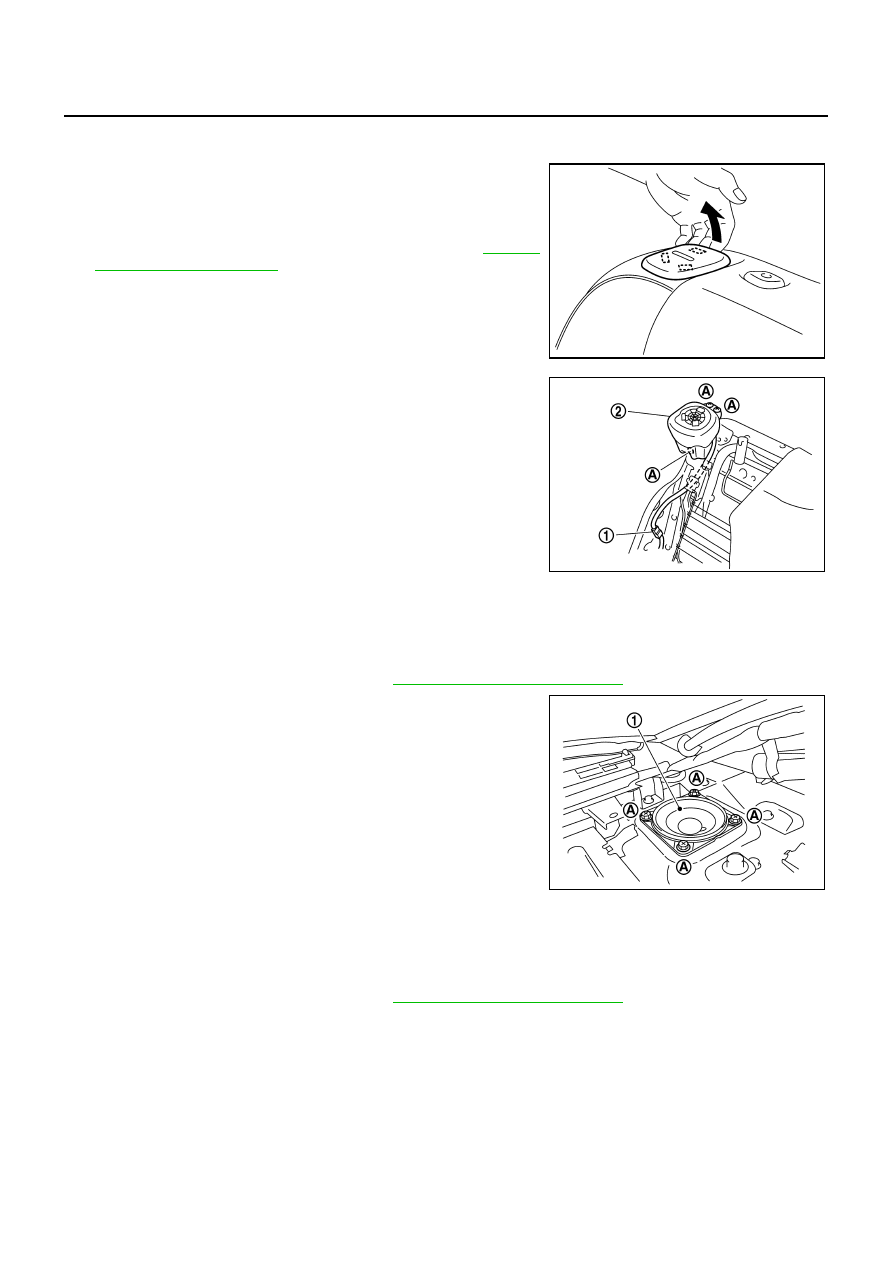

AV-128

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

REMOVAL AND INSTALLATION

Seat Speaker

NKS0049L

REMOVAL

1.

Remove seat speaker grill as shown in the figure.

CAUTION:

Never reuse seat speaker grill. The pawl is broken when
removing.

2.

Remove front seat back trim and pad. Refer to

SE-168,

"Removal and Installation"

 .

3.

Remove screws (A) and disconnect connector (1).

4.

Remove seat speaker (2).

INSTALLATION

Installation is the reverse order of removal.

Rear Surround Speaker

NKS0049M

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

EI-42, "Removal and Installation"

 .

2.

Remove screws (A) and disconnect connector.

3.

Remove rear surround speaker (1).

INSTALLATION

Installation is the reverse order of removal.

Woofer

NKS0049N

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

EI-42, "Removal and Installation"

 .
