TROUBLE DIAGNOSIS
SRS-35
C
D
E
F
G
I
J
K
L
M
A
B
SRS
Trouble Diagnosis without CONSULT-II
NHS00098
DIAGNOSTIC PROCEDURE 6
Inspecting SRS Malfunctioning Parts by Using “AIR BAG” Warning Lamp — Diagnosis Mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is detected in User mode.
1.
Turn ignition switch ON.
2.
After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.
3.
Wait more than 3 seconds.
4.
Repeat the steps 1 to 3 twice. (Perform three times in all.)
5.
Turn ignition switch ON.
SRS is now in Diagnosis mode.
“AIR BAG” warning lamp operates in Diagnosis mode as follows:

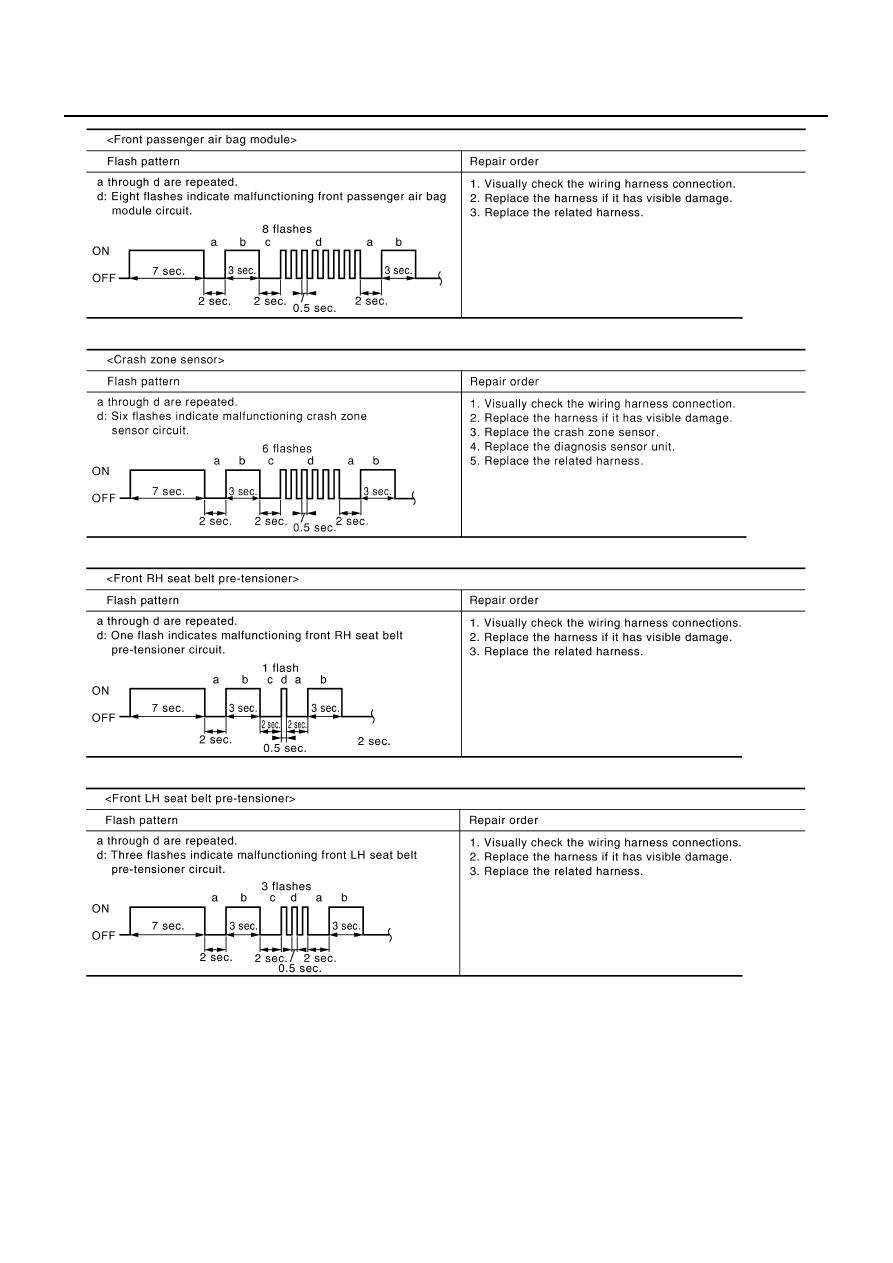

WARNING LAMP FLASH CODE CHART
PHIA0532E
PHIA1233E
SHIA0028E
