ASSEMBLY

AT-351

D

E

F

G

H

I

J

K

L

M

A

B

AT

ii.

Install parking pawl (with return spring) (1) and pawl shaft (2) to
output shaft & companion flange complement.

iii.

Install parking actuator support (1) from output shaft & compan-
ion flange complement.

26. Assemble one of the following parts.

●

Rear extension assembly (VQ35DE models for 2WD)

●

Adapter case assembly (AWD models)

●

Output shaft & companion flange complement (VK45DE models for 2WD)

a.

VQ35DE models for 2WD

i.

Install seal rings to output shaft.

CAUTION:

●

Do not reuse seal rings.

●

Apply petroleum jelly to seal rings.

ii.

Install parking gear to output shaft.

SCIA7066E

SCIA7065E

SCIA5209E

SCIA5247E

AT-352

ASSEMBLY

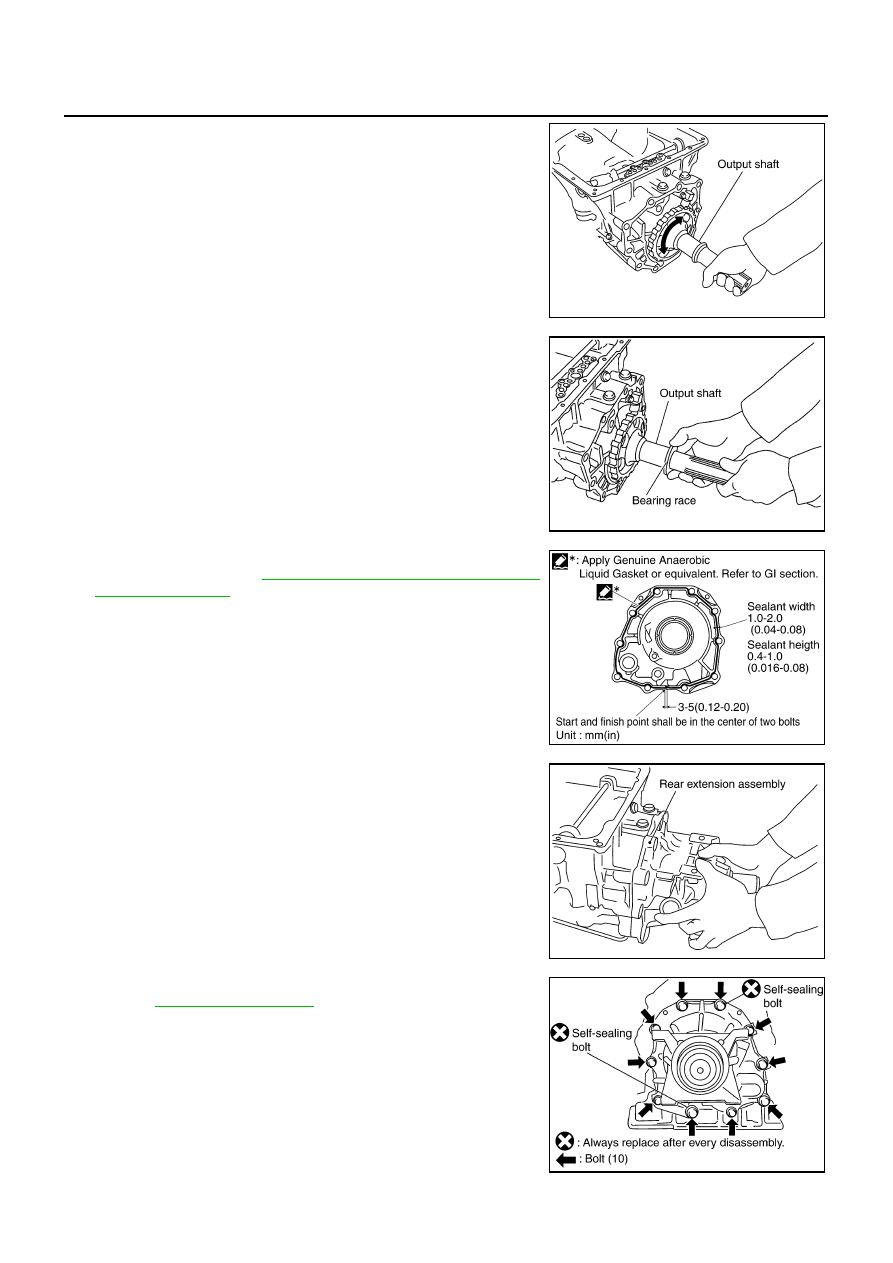

iii.

Install output shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

iv.

Install bearing race to output shaft.

v.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to

GI-47, "Recommended Chemical Prod-

ucts and Sealants"

 .) to rear extension assembly as shown in

the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

vi. Install rear extension assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

vii. Tighten rear extension assembly bolts to the specified torque.

Refer to

AT-281, "Components"

 .

CAUTION:

Do not reuse self-sealing bolts.

SCIA5030E

SCIA5245E

SCIA5212E

SCIA5029E

SCIA6941E

ASSEMBLY

AT-353

D

E

F

G

H

I

J

K

L

M

A

B

AT

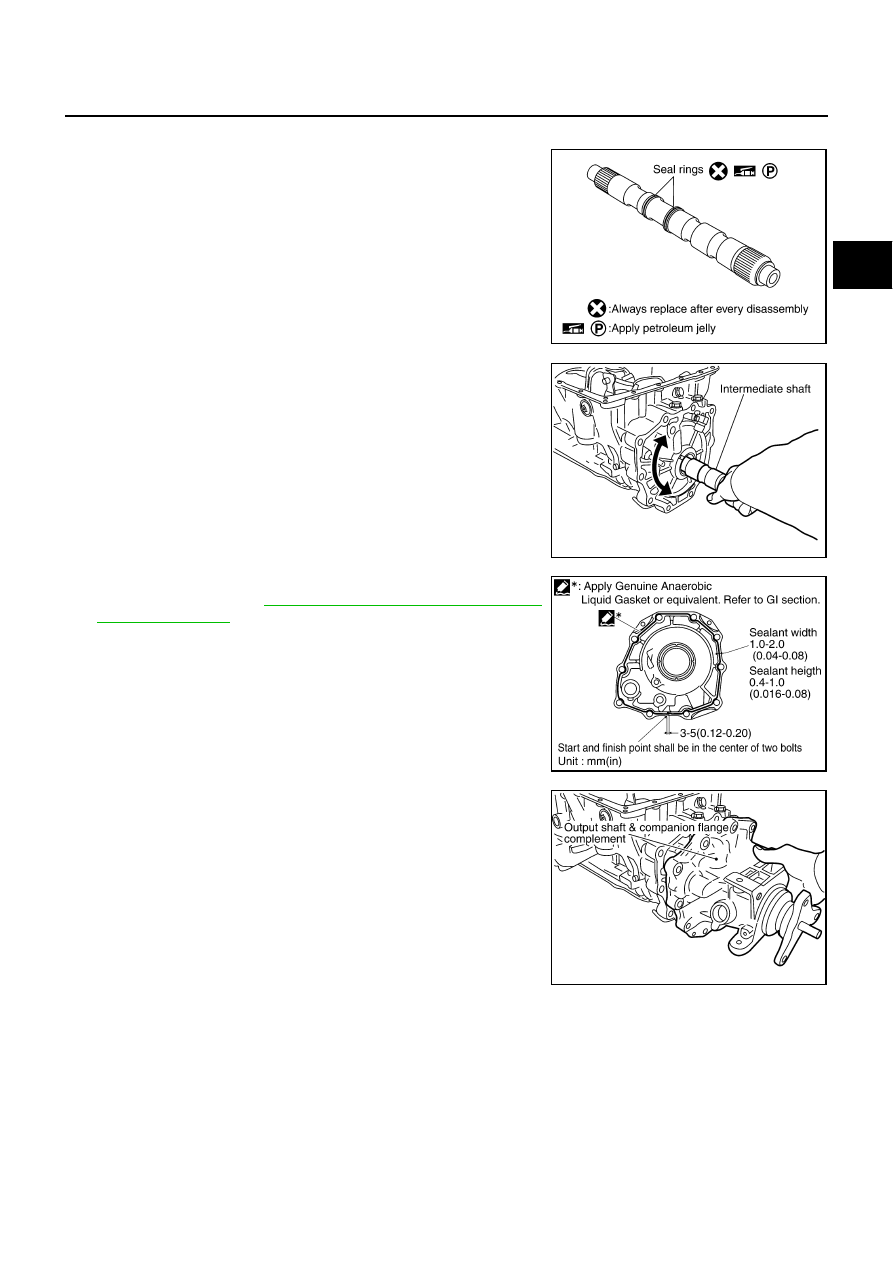

b.

VK45DE models for 2WD

i.

Install seal rings to intermediate shaft.

CAUTION:

●

Do not reuse seal rings.

●

Apply petroleum jelly to seal rings.

ii.

Install intermediate shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

iii.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to

GI-47, "Recommended Chemical Prod-

ucts and Sealants"

 .) to output shaft & companion flange com-

plement as shown in the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and output shaft & companion
flange complement mounting surfaces.

iv.

Install output shaft & companion flange complement in transmis-
sion case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the output
shaft & companion flange complement.

SCIA5714E

SCIA5713E

SCIA5212E

SCIA5712E

AT-354

ASSEMBLY

v.

Tighten output shaft & companion flange complement bolts (1)
to the specified torque. Refer to

AT-281, "Components"

 .

: Bolt (10)

CAUTION:

Do not reuse self-sealing bolts (2).
Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to

GI-11, "Components"

 .

c.

AWD models

i.

Install seal rings to output shaft.

CAUTION:

●

Do not reuse seal rings.

●

Apply petroleum jelly to seal rings.

ii.

Install parking gear to output shaft.

iii.

Install output shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

SCIA6943E

SCIA5209E

SCIA5247E

SCIA5030E
