STARTING SYSTEM

SC-15

C

D

E

F

G

H

I

J

L

M

A

B

SC

VQ35DE ENGINE MODELS (AWD)

Removal

1.

Disconnect the battery cable from the negative terminal.

2.

Remove engine rear undercover, using power tools.

3.

Remove exhaust mounting bracket. Refer to

EM-28, "Removal and Installation"

 .

4.

Remove “B” terminal nut (1).

5.

Disconnect “S” connector (1).

6.

Remove starter motor mounting bolts (A) and harness bracket
(2), using power tools.

7.

Remove starter motor downward from the vehicle.

Installation

Installation is the reverse order of removal.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

1.

Starter motor mounting bolt

2.

Oil pan

3.

Starter motor

4.

“B” terminal harness

5.

“B” terminal nut

6.

“S” connector

: N·m (kg-m, ft-lb)

: Engine front

PKIB8801E

PKIB8802E

PKIB8803E

SC-16

STARTING SYSTEM

VK45DE ENGINE MODELS

Removal

1.

Disconnect the battery cable from the negative terminal.

2.

Remove engine front and rear undercover, using power tools.

3.

Remove left engine mounting insulator and left engine mounting
bracket. Refer to

EM-247, "ENGINE ASSEMBLY"

 .

4.

Remove “B” terminal nut (1).

5.

Disconnect “S” connector (2).

6.

Remove the bolt (A) and the harness bracket (3).

7.

Remove starter motor mounting bolts (B), using power tools.

8.

Remove starter motor forward from the vehicle.

Installation

Installation is the reverse order of removal.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

1.

Starter motor

2.

Starter motor mounting bolt

3.

“S” connector

4.

“B” terminal harness

5.

“B” terminal nut

6.

Cylinder block

: N·m (kg-m, ft-lb)

: Engine front

PKIB8797E

PKIB8798E

STARTING SYSTEM

SC-17

C

D

E

F

G

H

I

J

L

M

A

B

SC

Disassembly and Assembly

NKS005BV

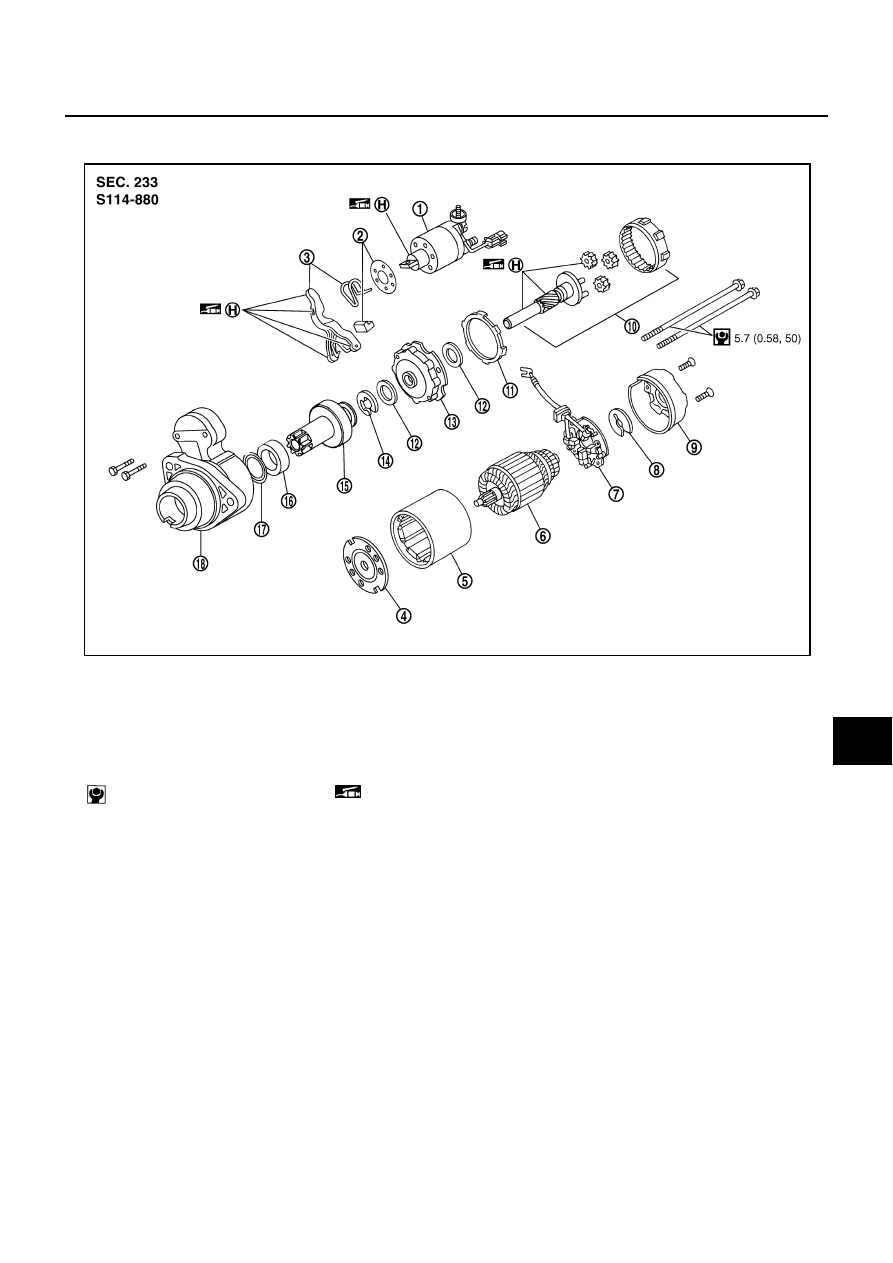

VQ35DE ENGINE MODELS (2WD)

1.

Magnetic switch assembly

2.

Dust cover kit

3.

Shift lever set

4.

Center bracket (A)

5.

Yoke assembly

6.

Armature assembly

7.

Brush holder assembly

8.

Thrust washer

9.

Rear cover assembly

10. Shaft gear assembly

11.

Packing

12. Thrust washer

13. Center bracket (P)

14.

E-ring

15. Pinion assembly

16. Ball bearing

17.

Caul

18. Gear case assembly

: N·m (kg-m, in-lb)

  (H): High-temperature grease point

PKIB8804E

SC-18

STARTING SYSTEM

VQ35DE ENGINE MODELS (AWD)

1.

Magnetic switch assembly

2.

Dust cover kit

3.

Shift lever set

4.

Center bracket (A)

5.

Yoke assembly

6.

Armature assembly

7.

Brush holder assembly

8.

Thrust washer

9.

Rear cover assembly

10. Shaft gear assembly

11.

Packing

12. Thrust washer

13. Center bracket (P)

14.

E-ring

15. Pinion assembly

16. Ball bearing

17.

Caul

18. Gear case assembly

: N·m (kg-m, in-lb)

  (H): High-temperature grease point

PKIB8805E
