SUNROOF

RF-11

C

D

E

F

G

H

J

K

L

M

A

B

RF

System Description

NIS0023R

Power supplied at all time

through 50A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55.

through 10A fuse [No.21, located in the fuse block (J/B)]

to BCM terminal 42.

through BCM terminal 54

to sunroof motor assembly terminal 1.

When ignition switch ON or START position,
Power is supplied

through 15A fuse [No.1, located in the fuse block (J/B)]

to BCM terminal 38.

through BCM terminal 53

to sunroof motor assembly terminal 6.

Ground is supplied

to BCM terminal 52

through body grounds M16 and M70.

to sunroof motor assembly terminal 8

through body ground M16 and M70.

TILT UP / SLIDE CLOSE OPERATION

When tilt up / slide close switch is pressed,
Ground is supplied

to sunroof motor assembly terminal 11

through sunroof switch terminal 3

through sunroof switch terminal 2

through sunroof motor assembly terminal 9.

Then, the sunroof tilt up / slide close.

TILT DOWN / SLIDE OPEN OPERATION

When tilt down / slide open switch is pressed,
Ground is supplied

to sunroof motor assembly terminal 4

through sunroof switch terminal 1

through sunroof switch terminal 2

through sunroof motor assembly terminal 9.

Then, the sunroof tilt down / slide open.

AUTO OPERATION

The power sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the
sunroof without holding the sunroof switch in the SLIDE OPEN/TILT DOWN or SLIDE CLOSE/TILT UP posi-
tion.

RETAINED POWER OPERATION

When the ignition switch is turned to OFF position from ON position, power is supplied for 45 seconds.

through BCM terminal 53.

to sunroof motor assembly terminal 6.

When power is supplied, the sunroof can be operated.
The retained power operation is canceled when the driver or passenger side door is opened.
RAP signal period can be changed by CONSULT-II. Refer to

RF-16, "CONSULT-II Function (BCM)"

 .

RF-12

SUNROOF

ANTI-PINCH FUNCTION

The CPU of sunroof motor assembly monitors the sunroof motor operation and the sunroof position (fully-
closed or other) by the signals from sunroof motor.
When sunroof motor detects an interruption during the following slide close and tilt down operation, sunroof
motor assembly controls the motor until full up position (when tilt down operate) or 125 mm (4.92 in) or more to
open direction (when slide close operate).
The function is operated in the following conditions.

close operation and tilt down when ignition switch is in the ON position.

close operation and tilt down during retained power operation.

INITIALIZATION PROCEDURE

If the battery is disconnected, the sunroof motor connector is disconnected sunroof does not close or open
automatically, use the following procedure to return sunroof operation to normal.

1.

Close the sunroof if it is not in the closed position. It may be necessary to repeatedly push the switch to
close the sunroof.

2.

Press the SLIDE OPEN/TILT DOWN switch for approximately 1 second or more.

3.

Initialization procedure is completed. Confirm proper operation of the sunroof (slide open, slide close, tilt
up, tilt down.)

SUNROOF

RF-13

C

D

E

F

G

H

J

K

L

M

A

B

RF

Wiring Diagram — SROOF —

NIS0023S

TIWT1334E

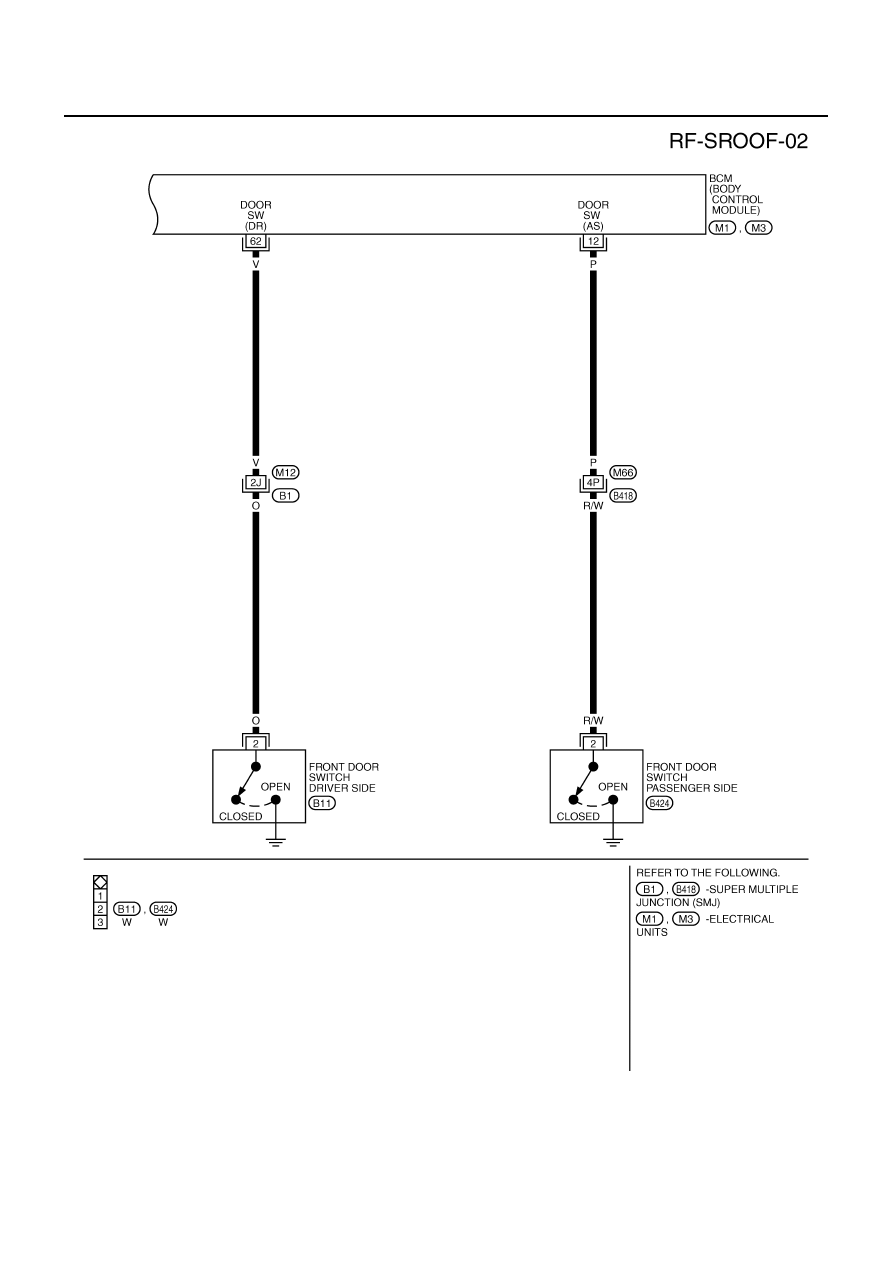

RF-14

SUNROOF

TIWT2119E
