PRECAUTIONS

AT-7

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NCS001JC

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for On Board Diagnostic (OBD) System of A/T and Engine

NCS001JD

The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.

CAUTION:

●

Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative termi-
nal before any repair or inspection work. The open/short circuit of related switches, sensors, sole-
noid valves, etc. will cause the MIL to light up.

●

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

●

Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.

●

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.

●

Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.

AT-8

PRECAUTIONS

Precautions

NCS001JE

●

Before connecting or disconnecting the A/T assembly har-
ness connector, turn ignition switch OFF and disconnect
the battery cable from the negative terminal. Because bat-
tery voltage is applied to TCM even if ignition switch is
turned OFF.

●

After performing each TROUBLE DIAGNOSIS, perform
“DTC (Diagnostic Trouble Code) Confirmation Procedure”.
If the repair is completed the DTC should not be displayed
in the “DTC Confirmation Procedure”.

●

When removing the transmission from a vehicle, do not use the
companion flange section at the rear end of the transmission as
a support point. (VK45DE models only)

●

Always use the specified brand of ATF. Refer to

MA-12, "Fluids

and Lubricants"

●

Use lint-free paper not cloth rags during work.

●

After replacing the ATF, dispose of the waste oil using the meth-
ods prescribed by law, ordinance, etc.

●

Before proceeding with disassembly, thoroughly clean the out-
side of the transmission. It is important to prevent the internal
parts from becoming contaminated by dirt or other foreign mat-
ter.

●

Disassembly should be done in a clean work area.

●

Use lint-free paper or towels for wiping parts clean. Common
shop rags can leave fibers that could interfere with the operation
of the transmission.

●

Place disassembled parts in order for easier and proper assem-
bly.

●

All parts should be carefully cleaned with a general purpose,
non-flammable solvent before inspection or reassembly.

●

Gaskets, seals and O-rings should be replaced any time the
transmission is disassembled.

●

It is very important to perform functional tests whenever they are indicated.

●

The valve body contains precision parts and requires extreme care when parts are removed and serviced.
Place disassembled valve body parts in order for easier and proper assembly. Care will also prevent
springs and small parts from becoming scattered or lost.

●

Properly installed valves, sleeves, plugs, etc. will slide along bores in valve body under their own weight.

●

Before assembly, apply a coat of recommended ATF to all parts. Apply petroleum jelly to protect O-rings
and seals, or hold bearings and washers in place during assembly. Do not use grease.

●

Extreme care should be taken to avoid damage to O-rings, seals and gaskets when assembling.

SEF289H

SEF217U

SCIA0490E

PRECAUTIONS

AT-9

●

Clean or replace ATF cooler if excessive foreign material is found in oil pan or clogging strainer. Refer to

AT-9, "ATF COOLER SERVICE"

●

After overhaul, refill the transmission with new ATF.

●

When the A/T drain plug is removed, only some of the ATF is drained. Old ATF will remain in torque con-
verter and ATF cooling system.
Always follow the procedures under “Changing A/T Fluid” in the AT section when changing A/T fluid. Refer
to

AT-12, "Changing A/T Fluid"

AT-13, "Checking A/T Fluid"

Service Notice or Precautions

NCS001JF

ATF COOLER SERVICE

If ATF contains frictional material (clutches, bands, etc.), or if an A/T is repaired, overhauled, or replaced,
inspect and clean the A/T fluid cooler mounted in the radiator or replace the radiator. Flush cooler lines using
cleaning solvent and compressed air after repair. For A/T fluid cooler cleaning procedure, refer to

AT-14, "A/T

Fluid Cooler Cleaning"

. For radiator replacement, refer to

CO-14, "RADIATOR"

(for VQ35DE engine),

CO-43,

"RADIATOR"

(for VK45DE engine).

OBD-II SELF-DIAGNOSIS

●

A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the A/T CHECK indicator or the malfunction indicator lamp (MIL). Refer to the table
on

AT-92, "SELF-DIAGNOSTIC RESULT MODE"

for the indicator used to display each self-diagnostic

result.

●

The self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM mem-
ories.
Always perform the procedure on

AT-41, "HOW TO ERASE DTC"

to complete the repair and avoid

unnecessary blinking of the MIL.

For details of OBD-II, refer to

EC-54, "ON BOARD DIAGNOSTIC (OBD) SYSTEM"

(for VQ35DE engine),

EC-

756, "ON BOARD DIAGNOSTIC (OBD) SYSTEM"

(for VK45DE engine).

●

Certain systems and components, especially those related to OBD, may use the new style slide-
locking type harness connector. For description and how to disconnect, refer to

PG-104, "HAR-

NESS CONNECTOR"

AT-10

PREPARATION

PFP:00002

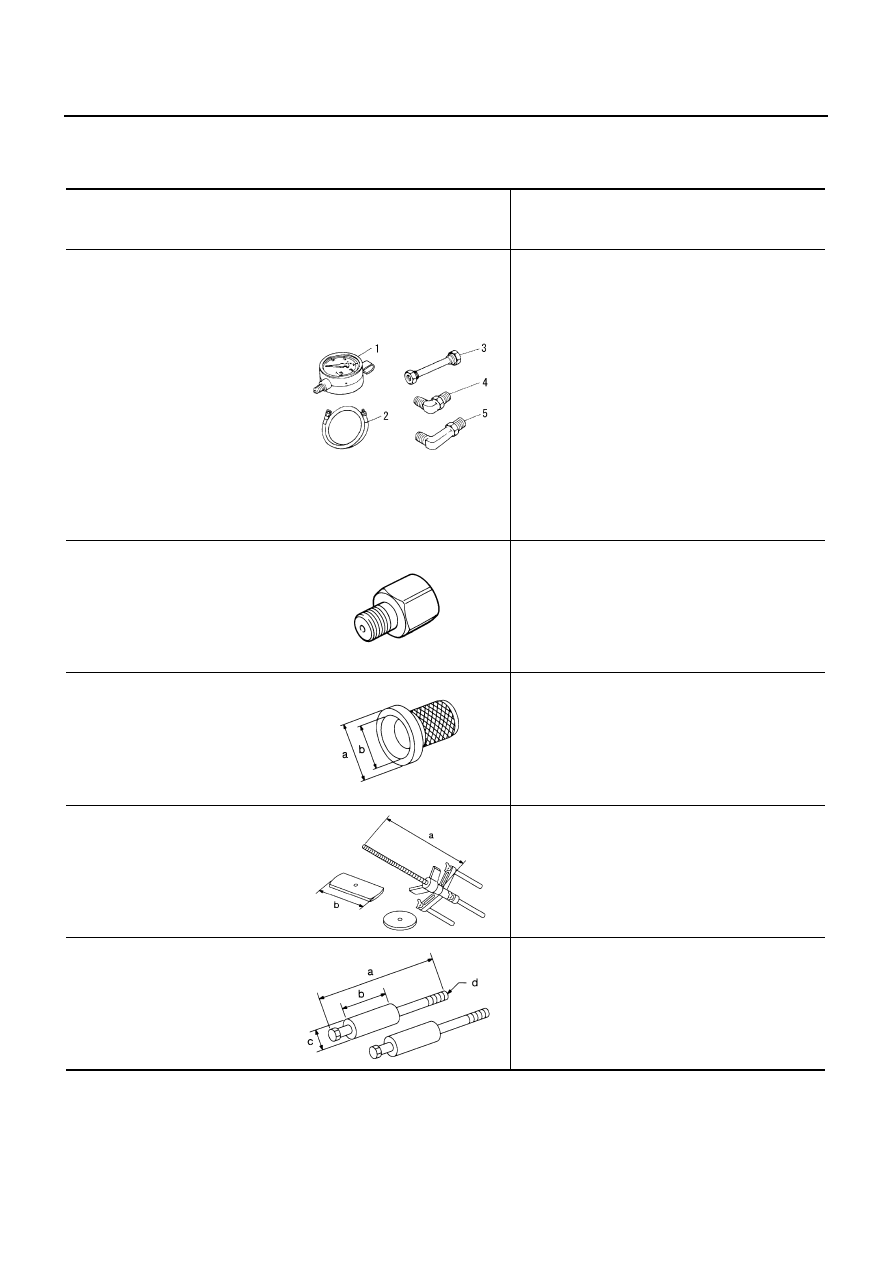

Special Service Tools

NCS001JG

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST2505S001
(J-34301-C)
Oil pressure gauge set
1. ST25051001
(

—

)

Oil pressure gauge
2. ST25052000
(

—

)

Hose
3. ST25053000
(

—

)

Joint pipe
4. ST25054000
(

—

)

Adapter
5. ST25055000
(

—

)

Adapter

Measuring line pressure

KV31103600
(J-45674)
Joint pipe adapter
(With ST25054000)

Measuring line pressure

ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

●

Installing rear oil seal (VQ35DE models for 2WD)

●

Installing oil pump housing oil seal

KV31102400
(J-34285 and J-34285-87)
Clutch spring compressor
a: 320 mm (12.60 in)
b: 174 mm (6.85 in)

Installing reverse brake return spring retainer

ST25850000
(J-25721-A)
Sliding hammer
a: 179 mm (7.05 in)
b: 70 mm (2.76 in)
c: 40 mm (1.57 in)
d: M12X1.75P

Remove oil pump assembly

SCIA3695J

ZZA1227D

NT086

NT423

NT422
