RHA056GA

DIAGNOSTIC PROCEDURE

NHHA0226

SYMPTOM: Intake sensor circuit is open or shorted. (

or

is indicated on the display as a result of conducting

Self-diagnosis STEP-2.)

1

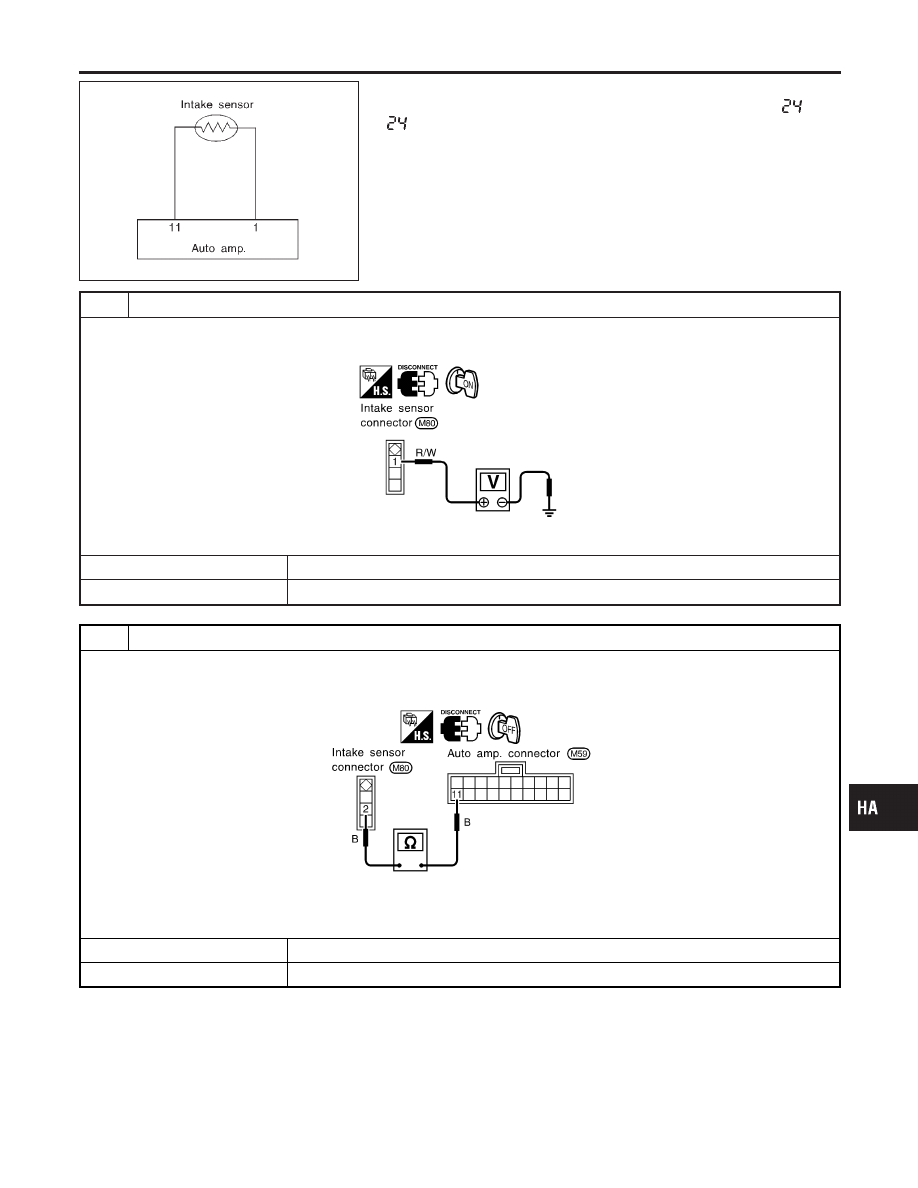

CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND GROUND

Disconnect intake sensor harness connector.
Do approx. 5 volts exist between intake sensor harness connector M80 terminal No. 1 and ground?

RHA417H

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 4.

2

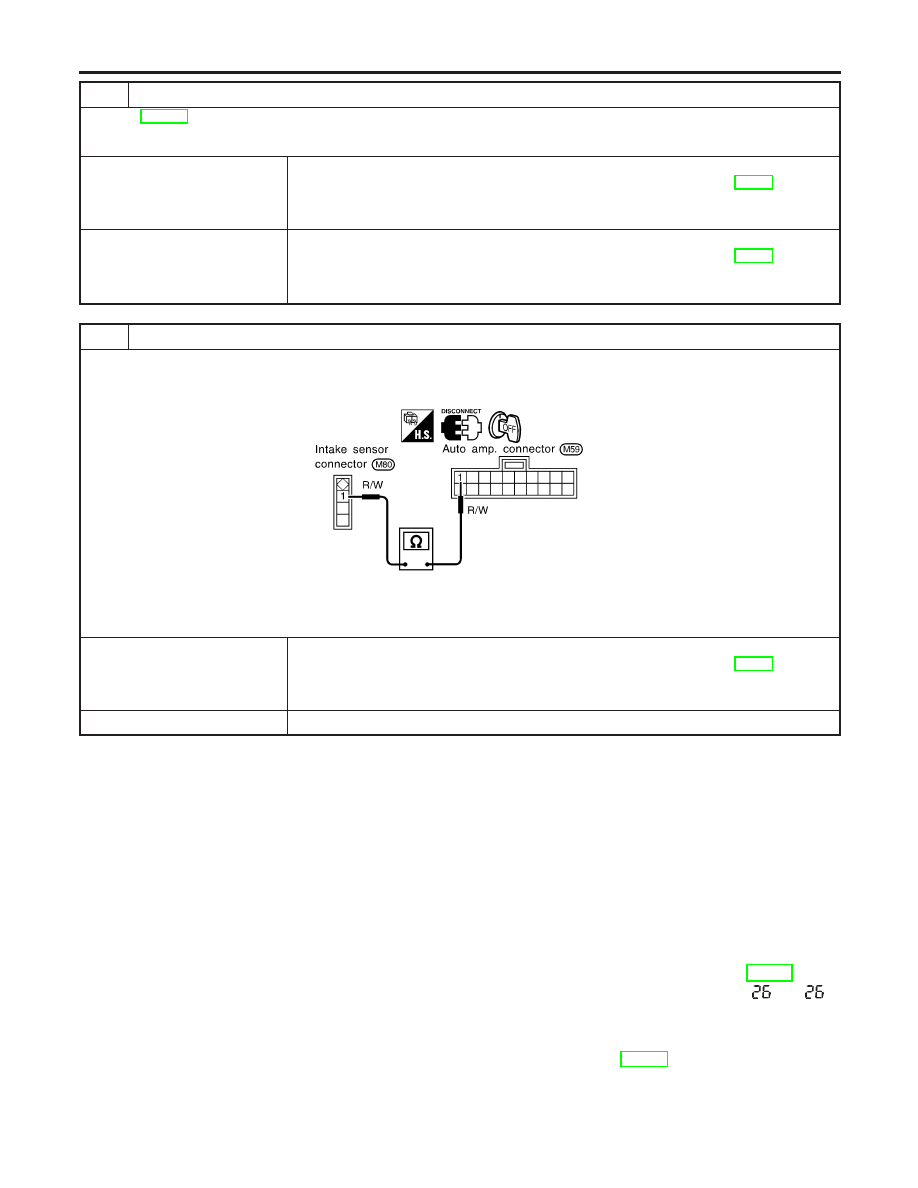

CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP.

1. Disconnect auto amp. harness connector.
2. Check circuit continuity between intake sensor harness connector M80 terminal No. 2 and auto amp. harness connec-

tor M59 terminal No. 11.

RHA418HB

Continuity should exist.

If OK, check harness for short.

OK or NG

OK

©

GO TO 3.

NG

©

Repair harness or connector.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

Intake Sensor Circuit (Cont’d)

HA-105

3

CHECK INTAKE SENSOR

Refer to HA-104.

OK or NG

OK

©

1. Replace auto amp.
2. Go to “FUNCTION CONFIRMATION PROCEDURE”, “Self-diagnosis”, HA-37 and per-

form self-diagnosis STEP-2.
Confirm that code No. 20 is displayed.

NG

©

1. Replace intake sensor.
2. Go to “FUNCTION CONFIRMATION PROCEDURE”, “Self-diagnosis”, HA-37 and per-

form self-diagnosis STEP-2.
Confirm that code No. 20 is displayed.

4

CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP.

1. Disconnect auto amp. harness connector.
2. Check circuit continuity between intake sensor harness connector M80 terminal No. 1 and auto amp. harness connec-

tor M59 terminal No. 1.

RHA419HB

Continuity should exist.

If OK, check harness for short.

OK or NG

OK

©

1. Replace auto amp.
2. Go to “FUNCTION CONFIRMATION PROCEDURE”, “Self-diagnosis”, HA-37 and per-

form self-diagnosis STEP-2.
Confirm that code No. 20 is displayed.

NG

©

Repair harness or connector.

Air Mix Door Motor PBR Circuit

DIAGNOSTIC PROCEDURE

NHHA0227

For description of air mix door motor circuit, refer to HA-61.
SYMPTOM: If PBR circuit is open or shorted. (−

or

is

indicated on the display as a result of conducting Self-diag-
nosis STEP-2.)
Perform diagnostic procedure for air mix door motor, mode
door motor and intake. Refer to HA-55.

TROUBLE DIAGNOSES

Intake Sensor Circuit (Cont’d)

HA-106

HFC-134a (R-134a) Service Procedure

NHHA0228

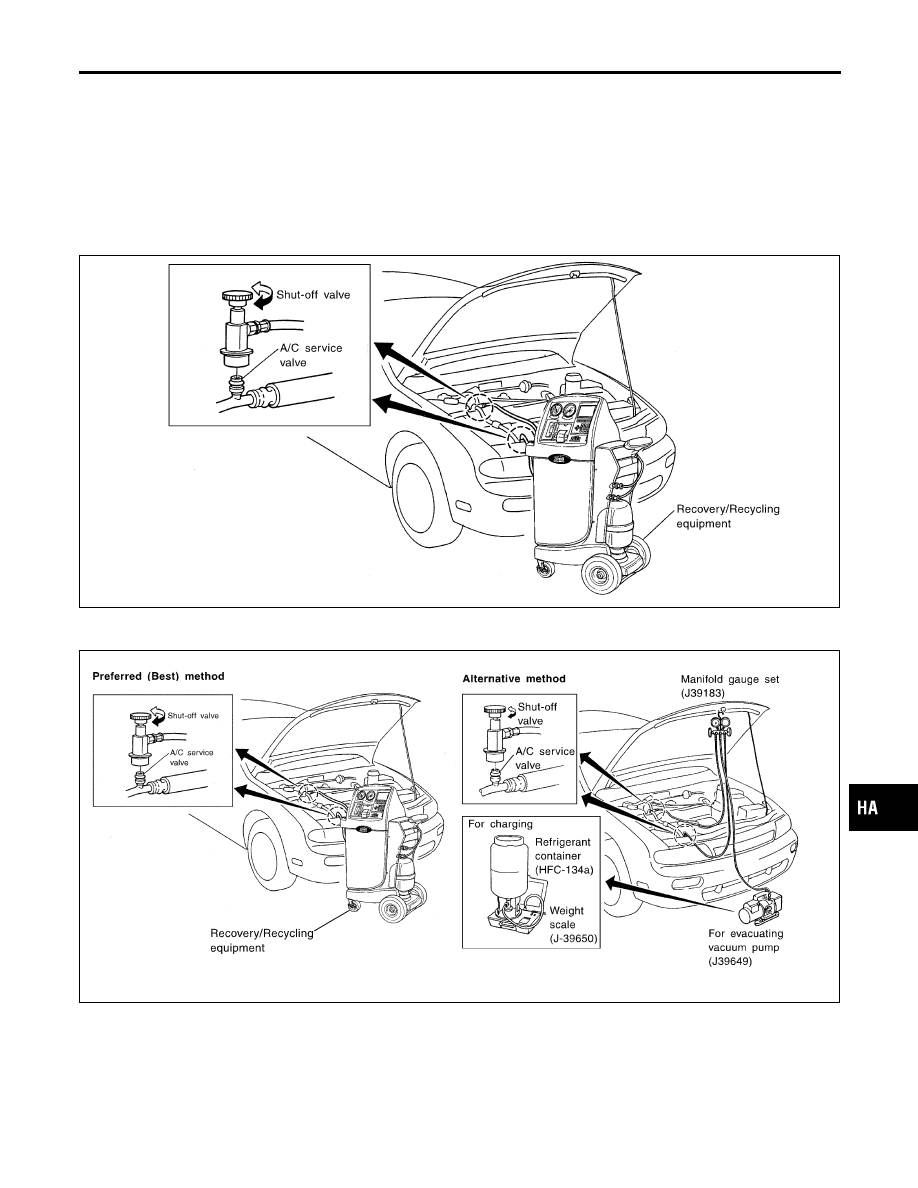

SETTING OF SERVICE TOOLS AND EQUIPMENT

NHHA0228S01

Discharging Refrigerant

NHHA0228S0101

WARNING:

Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Remove HFC-134a (R-134a) from A/C system using certified service equipment meeting require-
ments of SAE J2210 (R-134a recycling equipment) or J2209 (R-134a recovery equipment). If acciden-
tal system discharge occurs, ventilate work area before resuming service. Additional health and safety
information may be obtained from refrigerant and lubricant manufacturers.

WJIA0614E

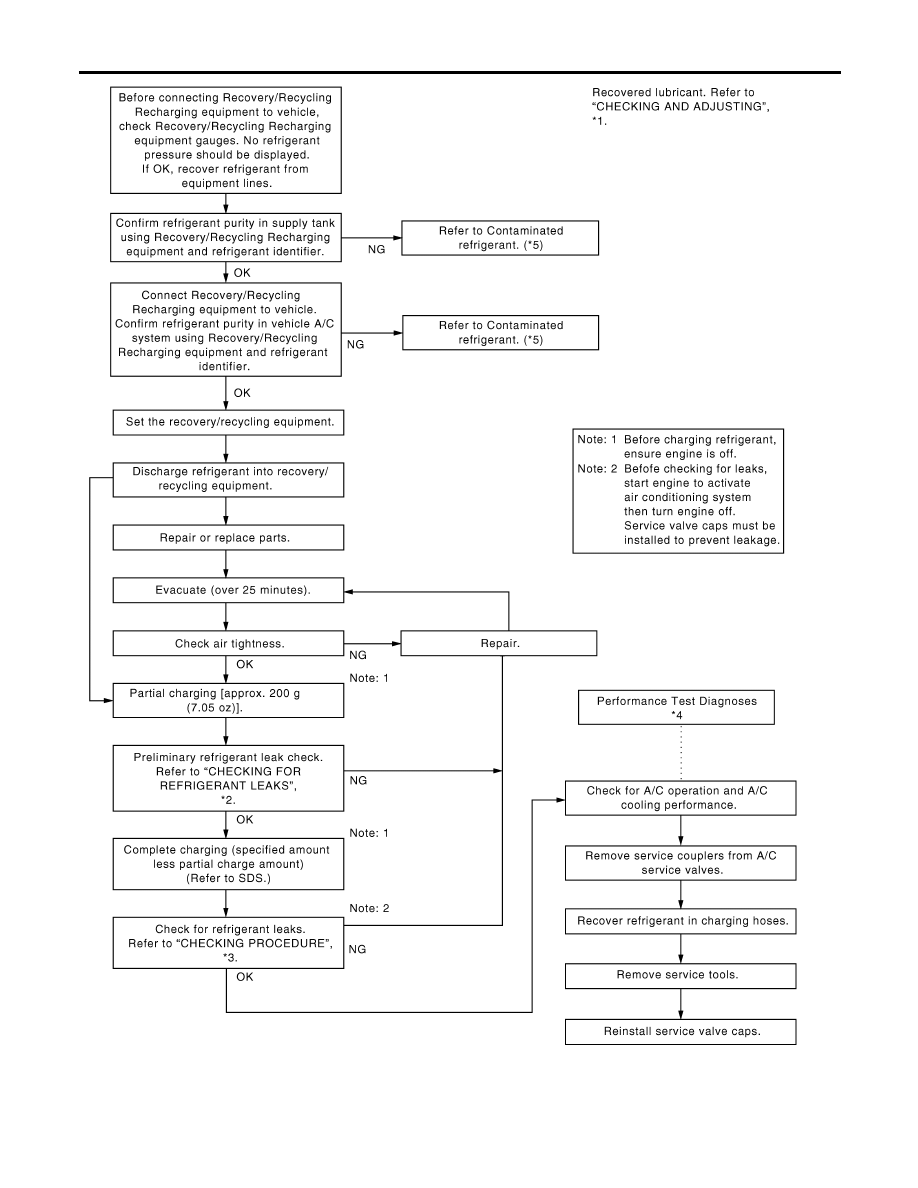

Evacuating System and Charging Refrigerant

NHHA0228S0102

WJIA0615E

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

SERVICE PROCEDURE

HFC-134a (R-134a) Service Procedure

HA-107

SHA922F

SERVICE PROCEDURE

HFC-134a (R-134a) Service Procedure (Cont’d)

HA-108
