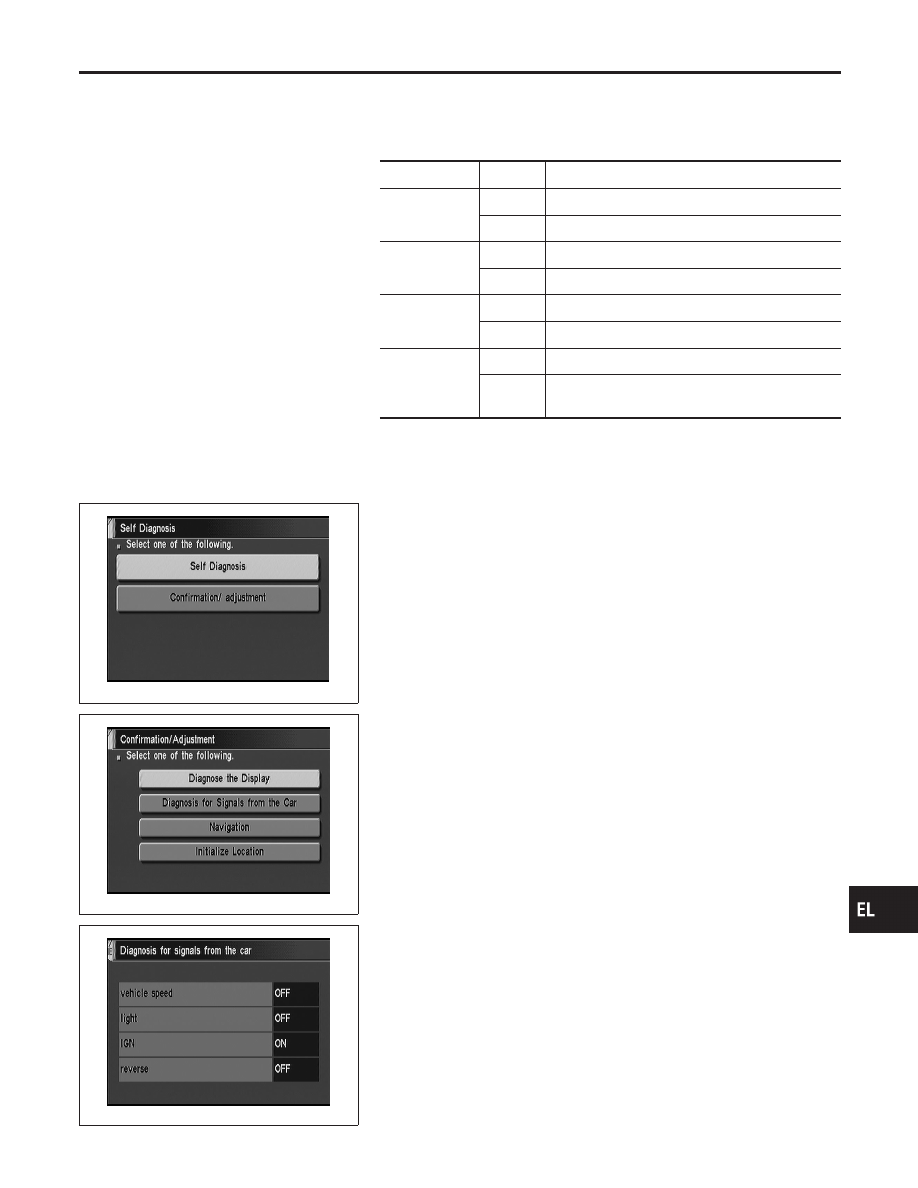

“DIAGNOSIS FOR SIGNALS FROM THE CAR” MODE =NHEL0300S03 Description NHEL0300S0301 In “Diagnosis for Signals from the Car” mode, following input sig- Item Indication Vehicle condition Vehicle Speed* ON Vehicle speed is greater than 0 km/h (0 MPH). OFF Vehicle speed is 0 km/h (0 MPH). Light ON Lighting switch is in 1st or 2nd position. OFF Lighting switch is in “OFF” position. IGN ON Ignition switch is in “ON” position. OFF Ignition switch is in “ACC” position. Reverse* ON Selector/shift lever is in “Reverse” position. OFF Selector/shift lever is in other than “Reverse” *: When ignition switch is in “ACC” position, indication will be changed to “-”. SEL527X How to Perform NHEL0300S0302 1. Start the engine. 2. Push “OPEN/CLOSE” switch and then open the display. 3. Push both “MAP” and “D/N” switches at the same time for more 4. Select “Confirmation/ adjustment”. SEL531X 5. Select “Diagnosis for Signals from the Car”. SEL542X 6. Then “Diagnosis for Signals from the Car” mode is performed. GI MA EM LC EC FE AT AX SU BR ST RS BT HA SC IDX NAVIGATION SYSTEM Confirmation/Adjustment Mode (Cont’d) EL-417 |
