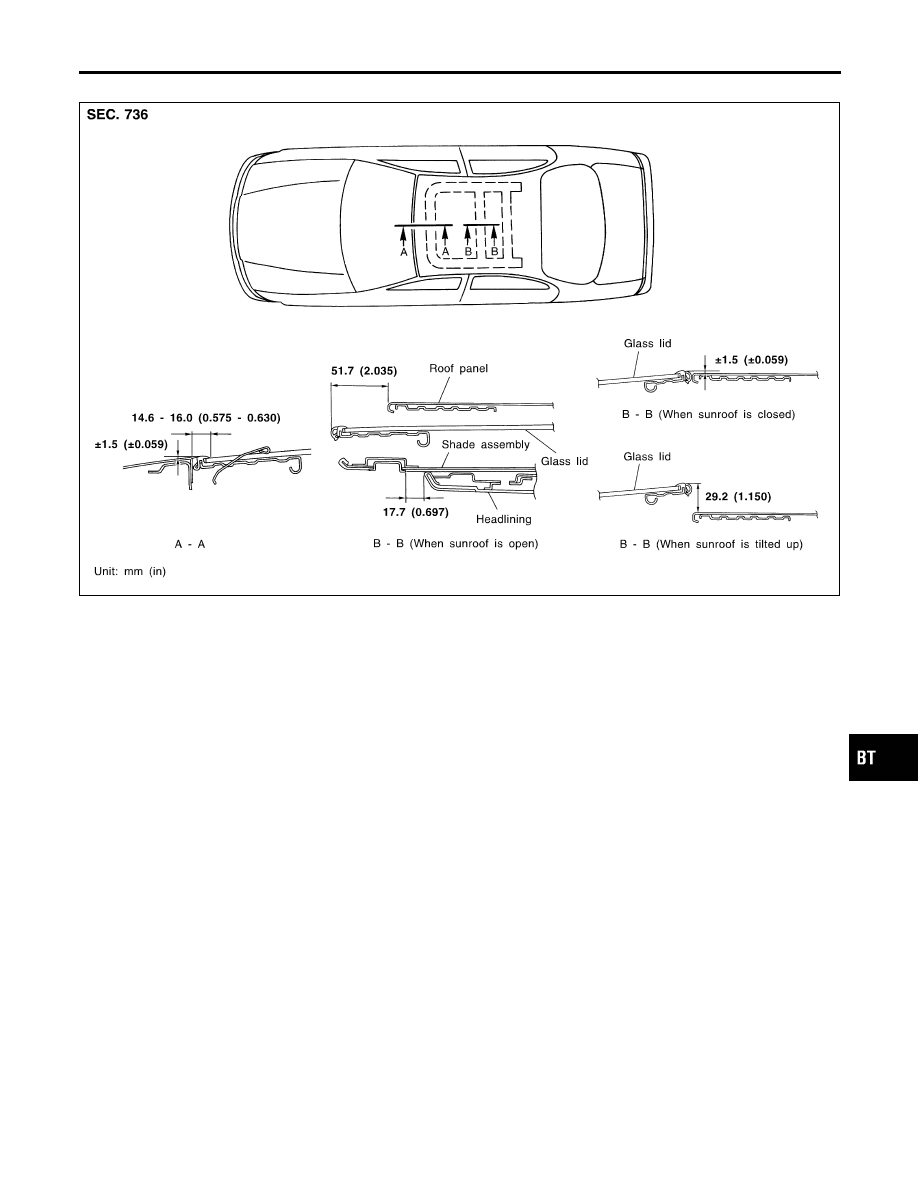

ADJUSTMENT NHBT0022S03 SBT256A If any gap or height difference between glass lid and roof is found, Gap Adjustment NHBT0022S0301 1. Open shade assembly. 2. Tilt glass lid up then remove side trim. 3. Loosen glass lid securing nuts (2 each on left and right sides), 4. Adjust glass lid from outside of vehicle so it resembles “A-A” 5. Tilt glass lid up and down until it is adjusted to “B-B” (When 6. After adjusting glass lid, tilt glass lid up and tighten nuts. 7. Tilt glass lid up and down several times to check that it moves Height Difference Adjustment NHBT0022S0302 1. Tilt glass lid up and down. 2. Check height difference between roof panel and glass lid to 3. If necessary, adjust it by using one of following procedures. I Adjust by adding or removing adjustment shim(s) between I If glass lid protrudes above roof panel, add shim(s) or plain GI MA EM LC EC FE AT AX SU BR ST RS HA SC EL IDX SUNROOF Trouble Diagnoses (Cont’d) BT-59 |
