SEL168Y
“C” is displayed in the compass window.
The compass needs to be calibrated. Drive the vehicle in 3
circles at 5 MPH or less until the display reads a direction. You
can also calibrate the compass by driving your vehicle on your
everyday routine. The compass will be calibrated once it has
tracked 3 complete circles.
Inaccurate compass direction
a.
With the display turned on, push the “COMP” button for 3
seconds, until the Zone selection comes up (a number will be
displayed in the mirror compass window).
b.
Toggle until correct zone is found and release switch.
c.
The display will show all segments, and return to the normal
compass mode within 10 seconds of no switch activity.
d.

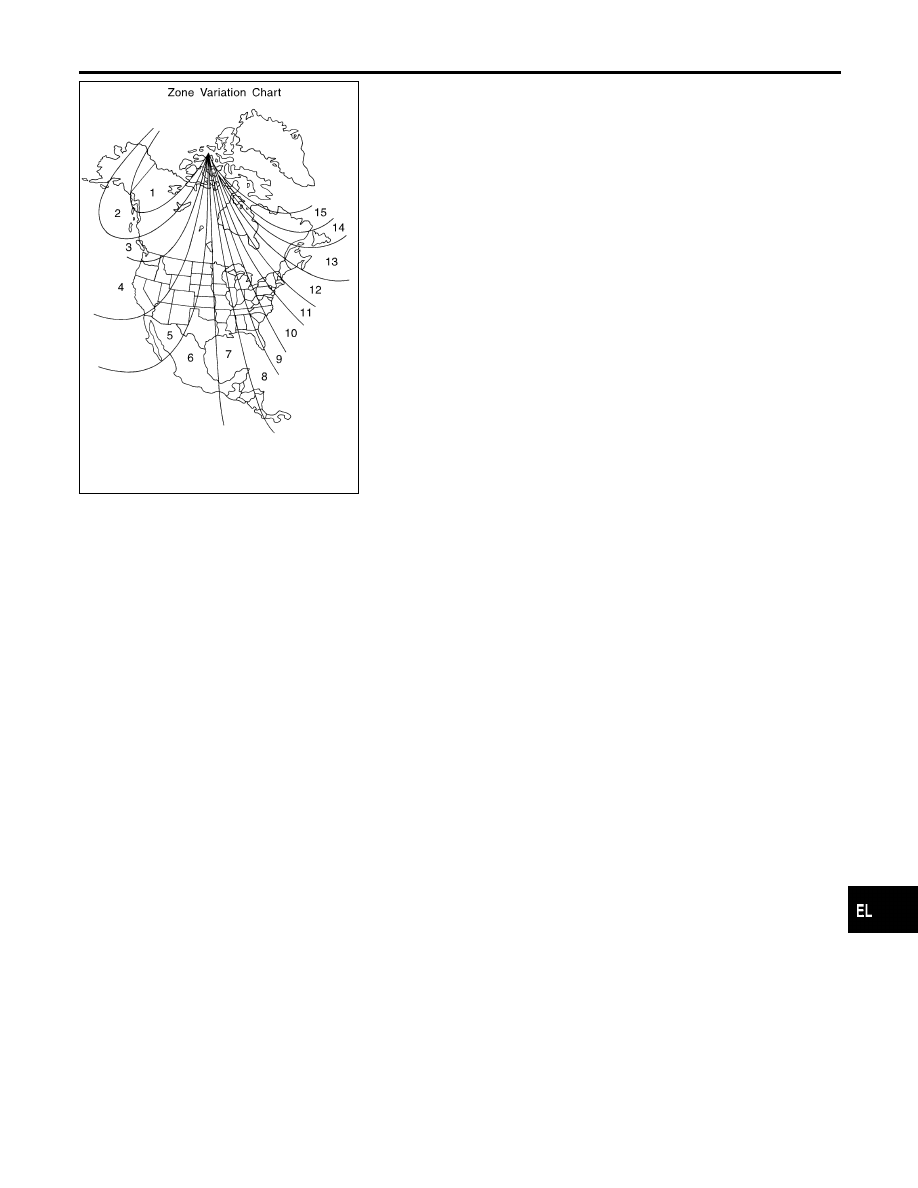

If the vehicle changes zone, repeat steps 1 thru 3. See map.
GI
MA
EM
LC
EC
FE
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX

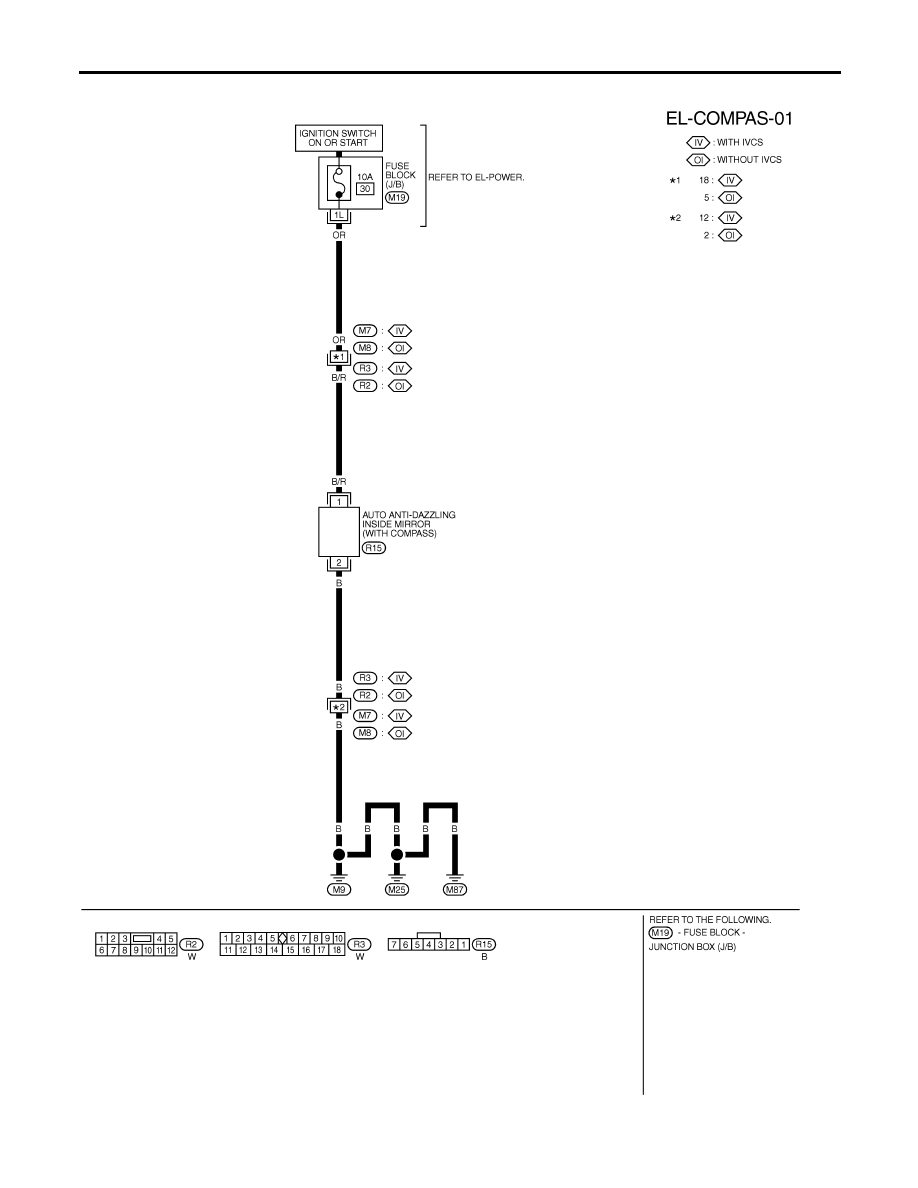

COMPASS
System Description (Cont’d)
EL-165
